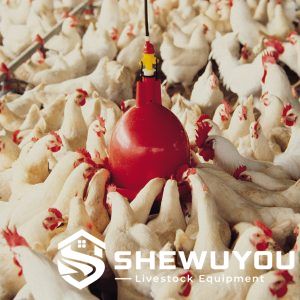

Automatic Bell Drinker for Poultry

The Automatic Bell Drinker for Poultry is a suspended floor-drinking unit designed to provide a continuous supply of fresh water for broilers, pullets, breeders and other compatible poultry. The circular drinking trough gives birds access from all sides, making the system suitable for commercial poultry houses with floor-reared flocks.

The drinker combines a durable molded bell, automatic valve mechanism, adjustable water-level control, suspension components and a stabilizing ballast system. Water is automatically replenished as birds drink, reducing the need for manual filling while maintaining a consistent drinking level.

The system can be installed as individual drinkers connected to a regulated water distribution pipe. Drinker quantity, spacing, suspension height and water-supply layout can be customized according to bird type, flock size, poultry-house dimensions and project requirements.

• Automatic Water Refill: Mechanical valve operation maintains the required water level as birds consume water.
• 360-Degree Drinking Access: Circular trough design allows multiple birds to drink simultaneously from all sides.
• Durable Molded Construction: Rugged impact-resistant plastic is suitable for demanding commercial poultry-house conditions.
• Independent Ballast System: A stabilizing ballast bottle helps keep the drinker steady without placing unnecessary load on the valve mechanism.
• Adjustable Water Level: The regulating mechanism allows drinking depth to be adapted to bird age and management requirements.
• Height-Adjustable Suspension: Hanging cords and adjustment hardware allow drinker height to be raised as birds grow.
• Simple Mechanical Operation: Standard drinking operation does not require electrical power.
• Easy Cleaning: Open circular trough and removable components support routine washing and flock-change sanitation.
• Flexible Farm Layout: Individual drinkers can be distributed according to stocking density and house dimensions.
• Commercial Poultry Application: Suitable for new poultry farms, steel structure poultry houses and drinking-system renovation projects.

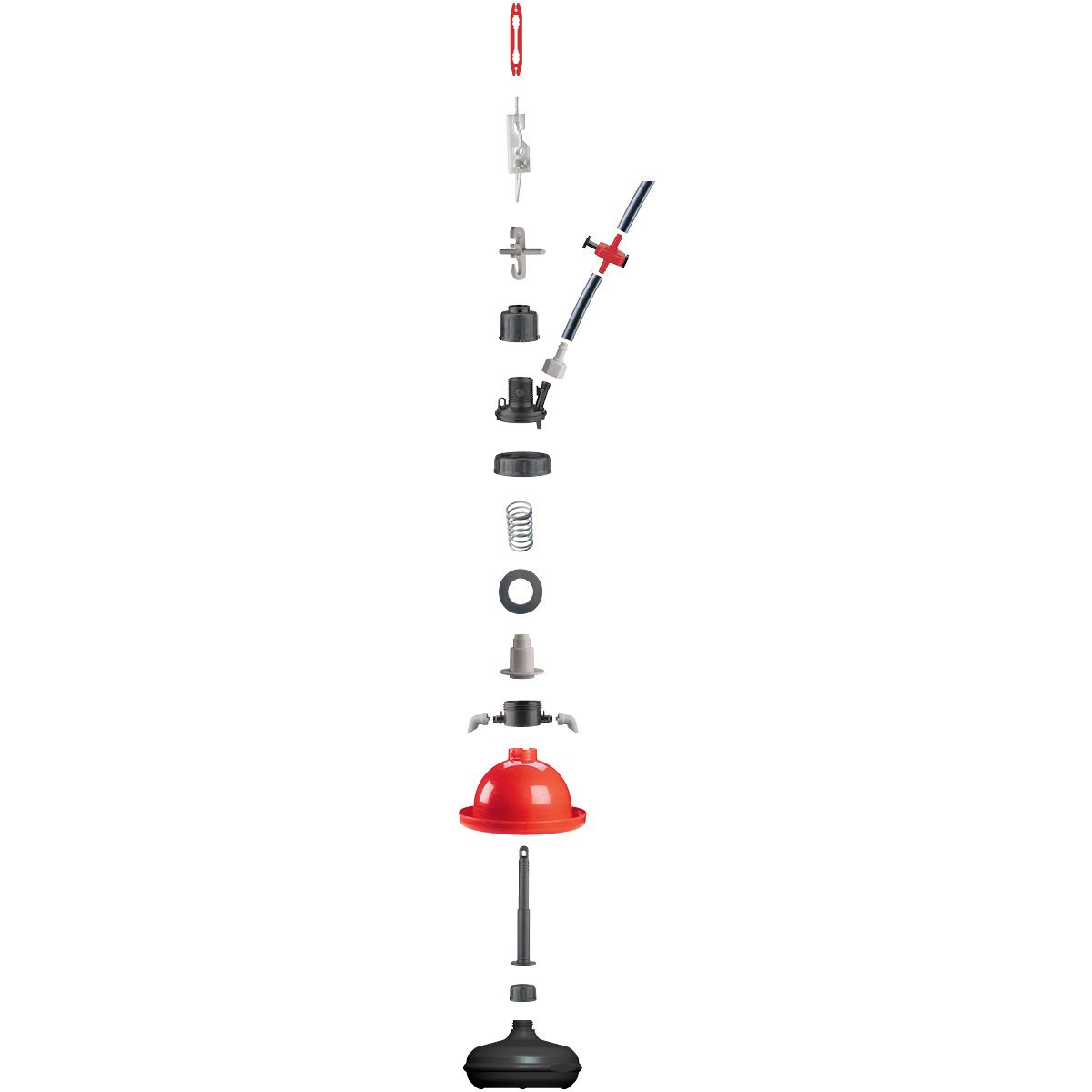

• Bell-shaped drinking body
• Circular outer drinking trough
• Automatic valve mechanism
• Mechanism top and lock collar
• Stainless steel spring
• Water-level adjuster
• Down spout
• Hanger rod
• Ballast bottle
• Ballast retaining nut
• Suspension cord
• Cord adjuster
• Flexible water tube
• Water-line union
• Optional inline shut-off valve

The bell drinker is connected to the poultry-house water supply through a flexible hose. Water passes into the mechanical regulating mechanism and then enters the circular drinking trough.

As birds consume water, the balance of the drinker mechanism changes and the valve admits additional water. When the preset water level is restored, the valve restricts further flow.

The integrated water-level adjustment mechanism allows the operating level to be modified according to bird age and management requirements. The ballast bottle beneath the drinking body adds stability while operating independently from the main bell and valve mechanism.

The complete unit is suspended from an overhead support. As birds grow, the suspension height can be adjusted so the drinking rim remains at an appropriate level for comfortable access and reduced litter contamination.

• Commercial broiler houses
• Pullet rearing houses
• Broiler breeder facilities
• Floor-reared layer houses
• Free-range poultry houses
• Alternative poultry housing systems
• Steel structure poultry buildings
• New poultry farm construction projects
• Existing drinking-system renovation projects

The bell drinker is especially suitable for poultry farms that prefer visible open-water access combined with automatic refill and straightforward mechanical operation.

For complete poultry projects, bell drinkers can be integrated with main water pipes, pressure-control equipment, filtration, medicators, automatic feeding systems, ventilation and environmental-control equipment.

• Bell diameter
• Drinking trough configuration
• Valve mechanism
• Water-level adjustment range
• Ballast configuration
• Flexible water hose length
• Suspension cord length
• Drinker spacing
• Number of drinkers per poultry house
• Water distribution pipe layout
• Inline isolation valve
• Connection fittings
• Installation accessories
• OEM configuration available upon request

The complete drinking layout can be designed according to poultry type, flock size, stocking density, house dimensions, local climate and project requirements.

Drinker Layout: Distribute drinkers evenly according to flock population, house dimensions and bird access requirements.

Water Supply: Connect the drinker to a clean, correctly regulated poultry-house water source through suitable flexible tubing.

Suspension: Hang the drinker vertically from a secure overhead support and ensure the suspension system can be adjusted easily.

Initial Height: Position the drinking rim at an appropriate height for newly placed birds and raise it progressively as the flock grows.

Water-Level Adjustment: Set the mechanical regulator so the trough contains sufficient drinking water without unnecessary overflow.

Ballast: Install and fill the ballast component according to system requirements to improve drinker stability.

Routine Cleaning: Remove feed, litter and organic material from the open drinking trough regularly.

Valve Inspection: Check the spring, valve assembly, water-level adjuster and flexible hose for restricted flow, wear or leakage.

Between Flocks: Thoroughly wash and disinfect the bell body, trough, valve components and water connections before the next production cycle.

In a commercial broiler house, automatic bell drinkers can be arranged in parallel rows between feeding lines to provide uniform open-water access throughout the flock.

For breeder or pullet houses, drinker quantity and spacing can be adapted to adult bird size, stocking density and drinking behavior.

In new steel structure poultry houses, drinker suspension points and water-distribution pipes can be coordinated with roof framing, feed lines, lighting and ventilation equipment during project design.

Q1: How does an automatic bell drinker work?
A mechanical valve automatically replenishes water as birds consume water from the circular trough.

Q2: Does the drinker require electricity?
No. Standard bell-drinker operation is mechanical and uses the poultry-house water supply.

Q3: Why is a ballast bottle used?
The ballast adds stability to the suspended drinker and helps reduce unwanted movement during bird contact.

Q4: Can the water level be adjusted?
Yes. The mechanical water-level regulator allows the operating level to be adapted to flock requirements.

Q5: Can the drinker height be changed?
Yes. The suspension cord and adjuster allow the unit to be raised as poultry grow.

Q6: How many bell drinkers are required for broilers?
A comparable Plasson broiler system recommends approximately 8–10 drinkers per 1,000 birds. Final layout should follow stocking density, climate and project conditions.

Q7: Can the drinker be isolated individually?
Yes. An optional inline shut-off can be incorporated into the flexible water connection.

Q8: Is the bell drinker suitable for commercial poultry houses?
Yes. Heavy-duty bell drinkers are widely used in commercial floor-reared poultry production.

Q9: Is regular cleaning required?
Yes. Because the drinking trough is open, routine cleaning is important for maintaining good water hygiene.

Q10: Can the system be customized?
Yes. Drinker quantity, spacing, water connections, suspension equipment and complete house layout can be supplied according to project requirements.
