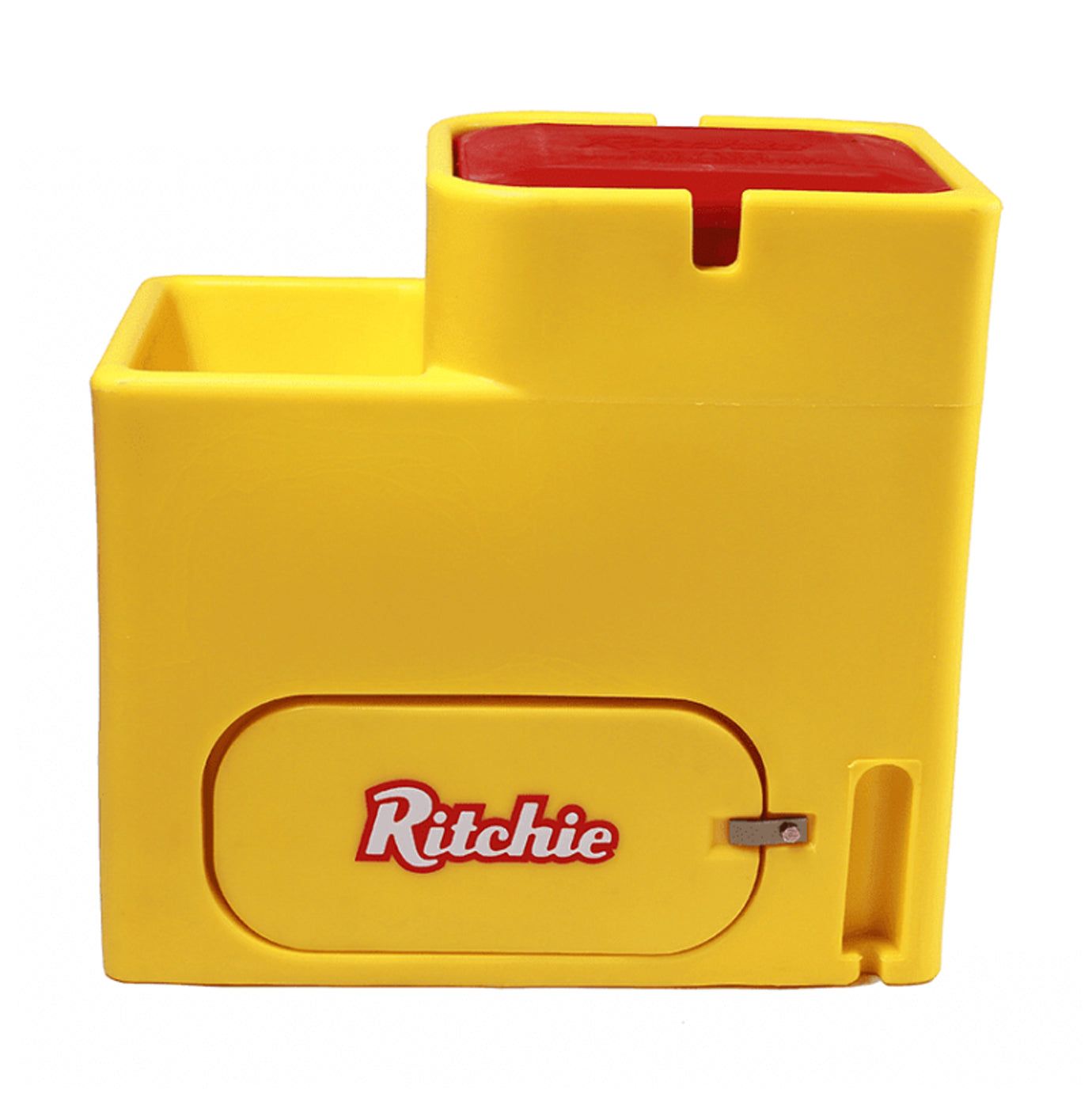

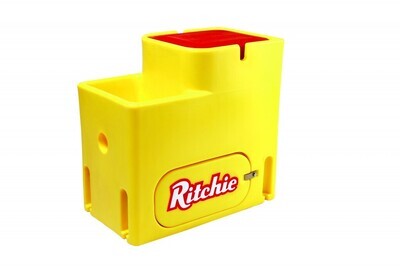

Single-Sided Automatic Sheep Drinker

The Single-Sided Automatic Sheep Drinker is a compact livestock watering unit designed for goat-farming-equipment/" target="_blank" class="keylink">sheep, goats and other compatible farm animals in individual stalls, small pens, paddocks and commercial livestock buildings. The single-sided drinking layout makes it suitable for installation against walls, pen partitions or service corridors where drinking access is required from one side only.

An automatic float-controlled valve replenishes water as animals drink, reducing manual filling while maintaining a ready supply of fresh water. The insulated body helps moderate water temperature during seasonal changes, while the low-capacity trough and quick-refill system support frequent water turnover.

For sheep farm construction projects, the drinker can be incorporated into centralized water pipelines, galvanized penning systems and steel structure livestock buildings. Installation, water connection and cold-weather protection can be configured according to project requirements.

• Single-Sided Drinking Access: Compact trough arrangement is ideal for stalls, smaller pens and wall-side installations.
• Automatic Water Refill: Float-controlled valve replenishes water automatically as the drinking level falls.
• Insulated Construction: Insulated polyethylene body helps keep water cooler in summer and provides additional protection during colder weather.
• Low-Capacity Trough: Reduced standing water volume combined with rapid refill promotes fresh water availability.
• Easy-Clean Design: Trough surfaces slope toward the drain opening to assist removal of sediment and debris.
• Convenient Service Access: Generous side-access panel simplifies inspection of the valve and internal plumbing.
• Rugged One-Piece Body: Durable molded construction is suitable for intensive farm environments and long-term use.
• Simple Top Access: Drop-in cover arrangement supports convenient routine maintenance.
• Cold-Climate Option: Optional heating and water-line protection can be added for freezing conditions.

The drinker is connected to a pressurized farm water supply. As sheep or goats consume water, the level inside the trough drops and the float mechanism opens the inlet valve. Fresh water then flows automatically into the trough.

When the preset water level is restored, the float rises and closes the valve. This cycle repeats according to livestock demand, reducing the need for manual filling.

The relatively small reservoir and quick-refill arrangement support regular water turnover. Sloped internal surfaces direct sediment toward the drain point, simplifying cleaning and reducing standing debris.

Reference dimensions, capacity and herd capacity are based on the comparable WaterMatic 100 configuration. SHEWUYOU production specifications can be customized and should be confirmed before ordering.

• Commercial sheep farms and goat farms
• Individual livestock stalls
• Small sheep and goat pens
• Breeding and holding pens
• Indoor livestock housing
• Outdoor paddocks with suitable water service
• Wall-side or partition-side watering points
• Steel structure sheep and goat buildings
• Farm renovation and watering-system upgrades
• Agricultural development and livestock construction projects

SHEWUYOU can configure the drinking system according to livestock type, farm layout and project requirements. Available options may include:

• Overall dimensions according to project requirements
• Drinking height according to livestock size
• Water inlet and pipeline configuration
• Valve specification according to operating water pressure
• Insulation configuration
• Optional cold-weather heating package
• Water-line frost protection
• Foundation and anchoring arrangement
• Drinker quantity and spacing according to flock size
• OEM branding and export packaging

Final configuration can be designed according to local climate, sheep breed, stocking density, water pressure and farm conditions.

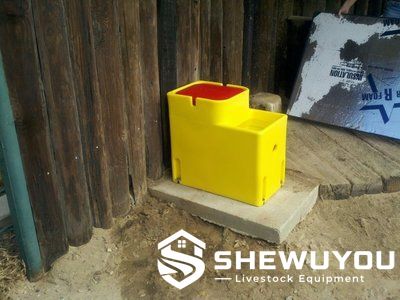

Foundation: Install the waterer on a stable, level base and secure it with suitable anchor bolts. For new livestock construction, coordinate underground water supply and optional electrical services before pouring the final concrete pad.

Positioning: Install the single drinking side where animals can approach comfortably while keeping service access available from the maintenance side.

Water Connection: Connect the unit to a clean pressurized livestock water supply. Valve configuration should match actual operating pressure and required refill performance.

Cleaning: Remove the drain plug and flush sediment, feed material and organic debris from the trough. The sloped basin helps direct contaminants toward the drain opening.

Valve Inspection: Periodically check the float, valve seat, seals and water connection to ensure correct refill and shut-off operation.

Winter Operation: In freezing climates, install an appropriate heating package and protect the vertical supply line according to local frost depth and project conditions.

Single-sided automatic sheep drinkers can be incorporated into complete commercial sheep and goat farm projects together with galvanized livestock pens, feeding equipment, water pipelines, drainage systems and steel structure livestock buildings. Drinking-point quantity and location can be planned according to flock size, pen arrangement, animal flow and available water pressure.

Q: What is the main advantage of a single-sided automatic sheep drinker?
A: It provides automatic watering from one side in a compact footprint, making it suitable for stalls, smaller pens and wall-side installations.

Q: How does the drinker refill automatically?
A: A float-operated inlet valve opens when the water level falls and closes after the preset level is restored.

Q: Is the drinker suitable for sheep and goats?
A: Yes. The reference WaterMatic 100 configuration is rated for up to 50 sheep or goats under suitable water-supply and management conditions.

Q: Can the drinker be installed outdoors?
A: Yes. It can be used in suitable paddock and outdoor livestock applications when installed on an appropriate foundation with protected water service.

Q: Is freeze protection available?
A: Yes. Optional immersion heating and self-regulating water-line heat protection can be specified for freezing climates.

Q: Is the unit easy to clean?
A: Yes. The trough slopes toward the drain opening, helping move sediment and debris out during wash-down.

Q: Can SHEWUYOU customize the drinker for commercial livestock projects?
A: Yes. Dimensions, water connection, insulation, heating, installation arrangement and other details can be configured according to project requirements.
