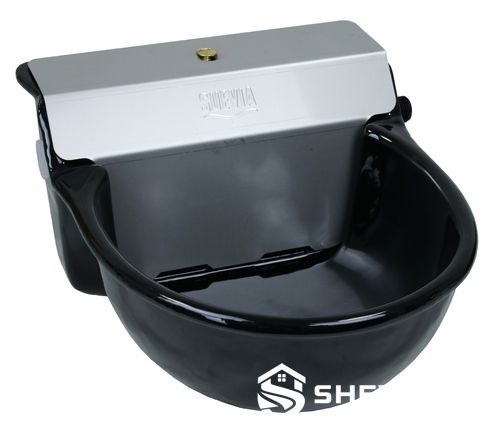

Heavy-Duty Cast Iron Automatic Sheep Drinker

The Heavy-Duty Cast Iron Automatic Sheep Drinker is a robust livestock watering bowl designed for goat-farming-equipment/" target="_blank" class="keylink">sheep, goats and other suitable farm animals. Its enamelled cast iron bowl provides high mechanical strength for demanding livestock environments, while the integrated float valve automatically maintains a consistent drinking water level.

A removable stainless steel valve cover protects the internal float mechanism from direct animal contact and allows convenient access for inspection and servicing. The smooth bowl profile has no sharp drinking edges, helping provide safe and comfortable animal access.

The compact wall- or pipe-mounted configuration makes this drinker suitable for commercial sheep farms, goat housing, livestock penning systems and steel structure livestock buildings. Water connection and installation arrangements can be adapted according to project requirements.

• Heavy-Duty Cast Iron Bowl: Enamelled cast iron construction provides durability and resistance to impact in intensive livestock housing.
• Automatic Float Valve: Maintains a constant water level and automatically replenishes water as animals drink.
• High Water Flow: Comparable professional configurations provide flow rates up to approximately 8 L/min under suitable supply conditions.
• Stainless Steel Valve Cover: Removable cover protects the float valve and facilitates routine maintenance.
• Easy Drainage: Push-out drain plug allows rapid emptying during cleaning and sanitation.
• Animal-Safe Bowl Geometry: Smooth edges reduce the risk of injury during drinking.
• Flexible Water Connection: Side connection can be configured from the left or right according to installation layout.
• Commercial Farm Durability: Suitable for sheep barns, goat facilities, holding pens and livestock farm construction projects.
• Low-Pressure Option: Low-pressure float valve configurations are available for farms using gravity-fed or reduced-pressure water systems.

The drinker is connected to the farm water supply through a mechanical float valve. When sheep or goats consume water, the water level in the bowl decreases and the float moves downward. This movement opens the inlet valve and allows fresh water to enter.

As the bowl refills, the float rises until the preset water level is reached. The valve then closes automatically, preventing unnecessary continuous flow. The operating level can be adjusted according to the selected valve configuration.

This simple mechanical principle provides reliable automatic water supply without requiring electronic level sensors for normal operation.

Reference specifications are based on comparable professional cast iron float-valve drinking bowls. Final SHEWUYOU dimensions, materials, pressure range and connection details should be confirmed before ordering.

• Commercial sheep farms and breeding facilities
• Goat farms and dairy goat housing
• Sheep barns and lambing facilities
• Individual livestock pens and group housing
• Holding and handling areas
• Indoor livestock buildings
• Steel structure sheep and goat houses
• Farm renovation and livestock housing projects
• Agricultural equipment dealer and distributor projects
• Government and international livestock development projects

SHEWUYOU can configure automatic drinking equipment according to farm design and project requirements. Available options may include:

• Bowl dimensions and capacity
• Cast iron surface treatment
• Float valve specification
• High-pressure or low-pressure configuration
• Left- or right-side water connection
• Water inlet thread specification
• Mounting brackets for walls, posts or livestock partitions
• Height-adjustable mounting systems
• Cold-climate heating configuration available upon request
• OEM branding and export packaging

Final configuration can be designed according to local climate, water pressure, livestock size, pen layout and farm conditions.

Mounting: Install the drinking bowl on a structurally sound wall, post or livestock pen support. Select the drinking height according to sheep size, age and management requirements.

Water Supply: Connect the inlet to a clean livestock water line. Verify actual supply pressure before selecting the float valve configuration.

Water-Level Adjustment: Adjust the float mechanism after installation to maintain the required water depth without excessive overflow.

Cleaning: Use the drain plug to empty the bowl and remove sediment, feed particles and organic contamination. Rinse the enamelled surface regularly to maintain hygienic drinking conditions.

Valve Maintenance: Periodically inspect the float, valve seat, seals and inlet fittings for mineral deposits, contamination or wear.

Cold Weather: In freezing climates, use suitable supply-line insulation, heating or frost-protection equipment designed according to local climate and farm conditions.

Heavy-duty cast iron automatic sheep drinkers can be integrated into complete livestock housing projects together with galvanized sheep pens, gates, feed barriers, creep feeders, water pipelines and steel structure farm buildings. Drinking-point quantity and installation height can be planned according to flock size, pen layout, animal age groups and water-supply conditions.

Q: How does the automatic float valve work?
A: When animals drink and the water level falls, the float opens the inlet valve. As the bowl refills, the float rises and closes the valve automatically at the preset level.

Q: Why choose a cast iron drinking bowl?
A: Cast iron provides high mechanical strength and is particularly suitable for commercial livestock environments where equipment may experience repeated animal contact.

Q: Is the drinker suitable for sheep and goats?
A: Yes. Comparable professional models are specifically recommended for both sheep and goats, provided the mounting height and water pressure are appropriate.

Q: Can it operate with low water pressure?
A: Yes. A low-pressure float valve configuration can be supplied for suitable gravity-fed or reduced-pressure watering systems.

Q: Is the drinking bowl easy to clean?
A: Yes. The removable valve cover provides service access, while the drain plug allows rapid emptying during routine cleaning.

Q: Can the water inlet be connected from either side?
A: Comparable configurations support left- or right-side connection. Final connection arrangement can be confirmed according to project requirements.

Q: Can SHEWUYOU customize the drinker for commercial projects?
A: Yes. Valve configuration, connection arrangement, mounting system, dimensions and packaging can be customized according to project requirements.
