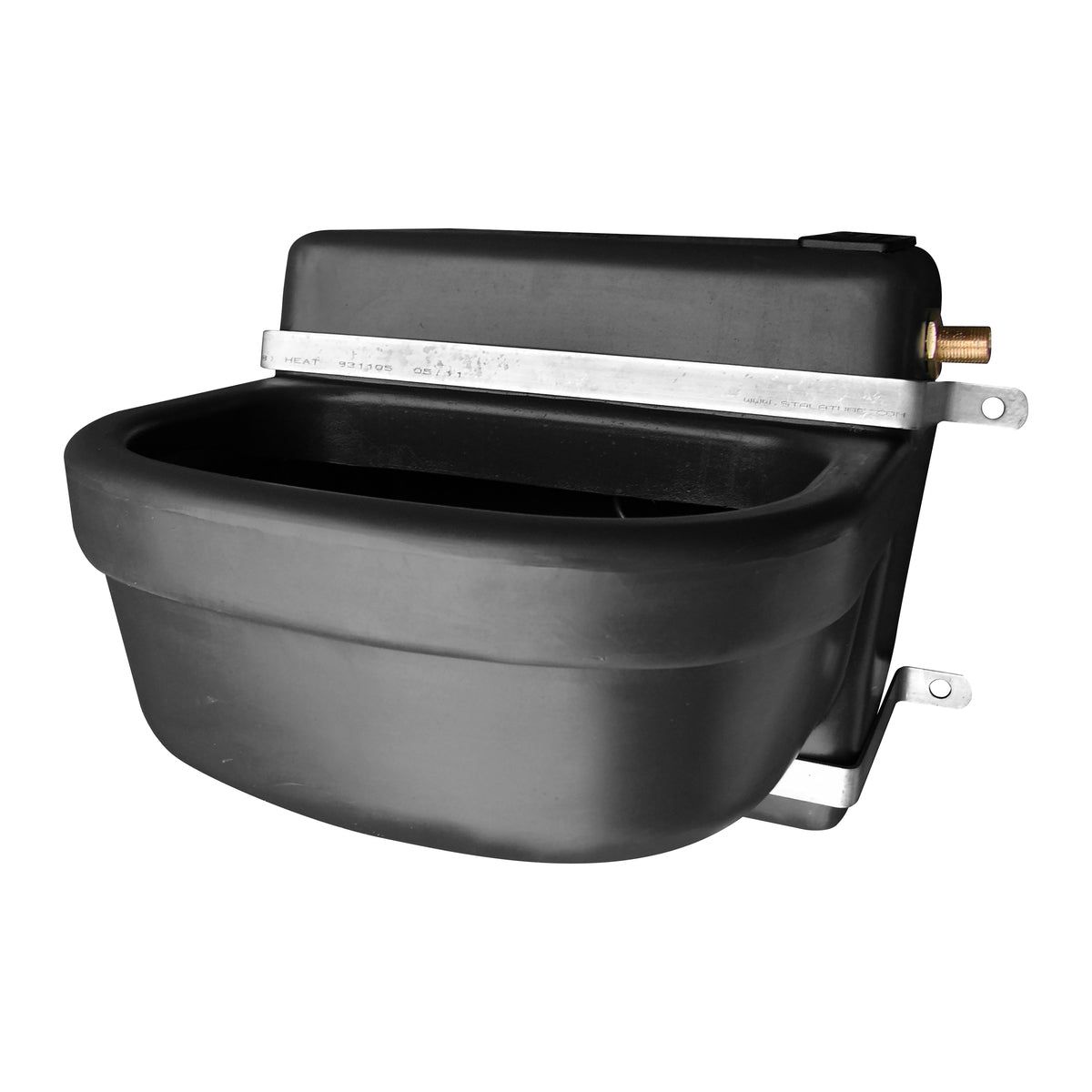

Fast-Fill Automatic Sheep Drinker

The Fast-Fill Automatic Sheep Drinker is a wall-mounted livestock watering unit developed for situations where rapid water replenishment is required. A high-flow float valve automatically restores the water level after animals drink, making the unit suitable for groups of goat-farming-equipment/" target="_blank" class="keylink">sheep, goats and other compatible livestock.

The drinking bowl is manufactured from tough, impact-resistant polyethylene with smooth curved surfaces designed for animal safety and convenient cleaning. The valve mechanism is positioned inside a raised protective housing to reduce direct livestock contact and help maintain reliable operation in demanding farm environments.

For commercial sheep farms, livestock housing projects and steel structure farm buildings, the drinker can be installed along walls, pen partitions or suitable structural supports. Mounting height, water connection and valve configuration can be coordinated with the livestock water-supply system according to project requirements.

• Fast-Fill Float Valve: High-flow water control rapidly replenishes the bowl after livestock consumption.
• Automatic Water-Level Control: The float mechanism opens and closes the inlet valve according to the water level.
• Impact-Resistant Polyethylene: Rugged molded construction is designed for intensive livestock environments.
• Large Drinking Reservoir: Provides practical water availability for larger animals or groups of smaller livestock such as sheep and goats.
• Protected Valve Housing: Raised enclosure helps protect the float valve and water connection from direct animal interference.
• Curved Animal-Safe Design: Smooth contours reduce exposed edges and simplify routine cleaning.
• Built-In Drain-Off: Allows convenient emptying, flushing and removal of sediment from the bowl.
• Adjustable Installation: Mounting brackets allow the drinking height to be selected according to animal size and housing layout.
• UV and Frost Resistant: Suitable for indoor and appropriate outdoor livestock applications according to local climate conditions.

The drinker is connected to a pressurized farm water supply. As sheep consume water, the water level in the bowl drops and the float mechanism moves downward. This opens the inlet valve and allows fresh water to flow into the reservoir.

The fast-fill valve delivers a substantially higher refill rate than conventional low-flow drinker valves, helping maintain water availability during periods of concentrated livestock use. When the preset water level is restored, the float rises and automatically closes the valve.

The valve housing protects the primary water-control components, while the drain-off enables the bowl to be quickly emptied for cleaning and inspection.

Reference technical data is based on a comparable JFC DBLFF fast-fill drinker configuration. Final SHEWUYOU dimensions, valve specifications and flow performance should be confirmed according to the selected model and project conditions.

• Commercial sheep farms and breeding facilities
• Goat farms and small-ruminant housing
• Ewe and lamb housing areas
• Group livestock pens with concentrated drinking demand
• Indoor sheep houses and livestock barns
• Steel structure livestock buildings
• Holding areas and feeding passages
• Farm renovation and drinking-system upgrade projects
• Livestock equipment dealer and distributor programs
• Agricultural development and commercial farm construction projects

For commercial livestock projects, the drinker can be configured according to animal requirements, water supply conditions and building layout. Available options may include:

• Bowl capacity and overall dimensions
• Fast-fill valve specification
• Water inlet connection size
• Valve flow rate according to available water pressure
• Mounting bracket configuration
• Installation height according to animal size
• Galvanized protection frame
• Water pipeline layout
• Cold-weather water-line protection
• OEM branding and export packaging

Final configuration can be designed according to local climate, flock size, water pressure and farm conditions.

Mounting: Secure the drinker to a structurally adequate wall, column or livestock pen support. Position the drinking edge at a suitable height for the target sheep or goat group.

Water Connection: Connect the fast-fill valve to a clean water supply using piping and fittings suitable for the required operating pressure and flow rate.

Commissioning: Flush new water lines before connection, adjust the float to the required operating water level and verify that the valve closes completely after refill.

Cleaning: Use the built-in drain to empty the bowl, then remove sediment, feed residue and organic contamination. Smooth polyethylene surfaces simplify washing and disinfection.

Valve Inspection: Periodically inspect the float, valve seat, seals and water connection for wear, mineral deposits or debris that could reduce refill performance.

Protection: In high-contact livestock areas, an additional galvanized guard can be installed to protect the drinking bowl and exposed water connections from rubbing or impact.

Fast-fill sheep drinkers can be incorporated into complete sheep and goat farm projects together with galvanized livestock pens, gates, feeders, water pipelines, drainage systems and steel structure livestock buildings. Drinking-point quantity and valve capacity can be planned according to flock size, pen layout, peak water demand and available supply pressure.

Q: What is the advantage of a fast-fill sheep drinker?
A: A higher refill rate helps restore the water level quickly when several animals drink within a short period, reducing the risk of the bowl being temporarily depleted.

Q: Does the drinker refill automatically?
A: Yes. A mechanical float valve opens as the water level falls and closes automatically when the preset level is restored.

Q: Is it suitable for groups of sheep?
A: Yes. The large bowl and fast-flow valve make this type of drinker suitable for groups of smaller livestock when correctly sized for flock demand and available water pressure.

Q: Can the drinking height be adjusted?
A: Yes. The mounting arrangement can be positioned according to sheep size, housing layout and project requirements.

Q: How is the bowl cleaned?
A: The drain-off allows the reservoir to be emptied quickly so sediment and feed contamination can be washed out.

Q: Is extra protection available?
A: Yes. A galvanized protection frame can be used in higher-impact areas to help protect the drinking bowl and water connections.

Q: Can SHEWUYOU customize the fast-fill drinking system?
A: Yes. Bowl size, valve configuration, connection arrangement, mounting system and project integration can be customized according to farm requirements.
