Compact Automatic Sheep Drinker

The Compact Automatic Sheep Drinker is a space-saving livestock watering unit designed to provide goat-farming-equipment/" target="_blank" class="keylink">sheep, lambs, goats and other small ruminants with convenient access to fresh drinking water. Its compact bowl format is suitable for individual pens, group pens, lambing areas and livestock buildings where efficient use of floor space is important.

The drinker uses an automatic float-controlled inlet valve to maintain the required water level. As livestock consume water, the valve opens automatically to replenish the bowl and closes when the preset level is restored. This reduces manual filling requirements and supports consistent water availability in commercial farm operations.

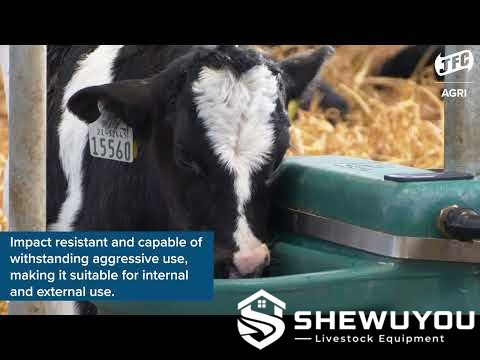

The molded polyethylene body combines impact resistance, corrosion resistance and smooth internal surfaces for convenient cleaning. The drinker can be integrated into galvanized sheep penning, concrete walls, livestock partitions and steel structure farm buildings according to project requirements.

• Compact Space-Saving Design: Suitable for livestock pens and buildings where drinking equipment must occupy minimal usable space.
• Automatic Float Valve: Maintains the required drinking-water level without continuous manual filling.
• Durable Polyethylene Construction: Tough molded body provides resistance to impact, moisture and corrosion in livestock environments.
• Protected Valve Housing: Raised valve area helps protect the water-control mechanism from direct animal interference.
• Smooth Curved Profile: Rounded internal and external surfaces support animal safety and simplify routine cleaning.
• Continuous Water Availability: Automatic refill supports reliable livestock hydration during normal farm operation.
• Easy-Clean Design: Smooth bowl surfaces and drain arrangements can facilitate removal of sediment and feed contamination.
• Indoor and Outdoor Application: Suitable for sheep barns, covered livestock areas and appropriate outdoor installations.
• Flexible Mounting: Can be installed on walls, pen partitions or suitable structural supports according to project requirements.

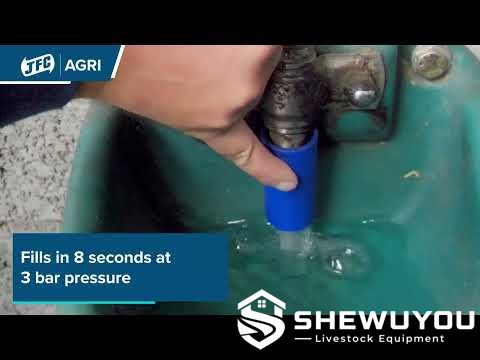

The automatic drinker is connected to the livestock building water supply. When sheep consume water and the bowl level decreases, the float moves downward and opens the inlet valve. Fresh water then enters the drinking bowl automatically.

As the water level rises, the float returns toward its upper position. Once the preset operating level is reached, the valve closes and stops the incoming flow. The cycle repeats automatically according to animal water consumption.

This mechanical water-level control requires no electrical power for standard operation and provides a simple solution for commercial livestock watering systems.

Reference dimensions, capacities and flow data are based on comparable JFC Agri drink-bowl configurations. Final SHEWUYOU specifications should be confirmed according to the selected model and project requirements.

• Commercial sheep farms and breeding facilities
• Lambing barns and lamb-rearing pens
• Goat farms and small-ruminant housing
• Individual and group livestock pens
• Indoor sheep houses and covered livestock buildings
• Steel structure livestock farm buildings
• Holding pens and handling areas
• Farm renovation and watering-system upgrades
• Agricultural equipment distributor projects
• International livestock development projects

SHEWUYOU can configure the compact automatic sheep drinker according to livestock species, pen layout, water pressure and farm construction requirements. Available options may include:

• Bowl dimensions and water capacity
• Float valve type and flow capacity
• Water inlet connection size and position
• Mounting brackets and fastening arrangements
• Wall or livestock-partition installation
• Installation height according to animal size
• Body color available upon request
• Cold-weather water-line protection
• Water distribution pipeline integration
• OEM branding and export packaging

Final configuration can be designed according to local climate, stocking density, livestock building layout and farm conditions.

Installation Height: Position the bowl at a suitable height for the target sheep or lamb group so animals can drink comfortably without excessive reaching.

Secure Mounting: Attach the drinker firmly to a structurally adequate wall, galvanized pen partition or support frame using suitable brackets and fasteners.

Water Connection: Connect the valve to a clean livestock water supply and confirm that water pressure is compatible with the selected valve configuration.

Float Adjustment: Check the float position after installation and set the operating water level to provide adequate drinking depth without unnecessary overflow.

Routine Cleaning: Drain and wash the bowl regularly to remove feed particles, sediment and organic contamination.

Valve Maintenance: Inspect the float, valve seat, seals and inlet connection periodically. Remove mineral deposits or debris that could restrict water flow or prevent complete shutoff.

Cold-Weather Operation: In freezing climates, protect water pipelines and valve components using a suitable frost-protection solution designed according to local climate and farm conditions.

Compact automatic sheep drinkers can be integrated into complete sheep and goat farm projects together with galvanized livestock pens, lambing pens, gates, feeders, water pipelines, drainage systems and steel structure livestock buildings. Drinking-point quantity and location can be planned according to flock size, pen arrangement, animal flow and available water pressure.

Q: How does the automatic sheep drinker control the water level?
A: A mechanical float operates the inlet valve. When the water level falls, the valve opens automatically; when the required level is restored, the valve closes.

Q: Is the compact drinker suitable for sheep and lambs?
A: Yes. The installation height and bowl configuration can be selected according to animal size, age and pen arrangement.

Q: Why use polyethylene for the drinking bowl?
A: Polyethylene offers corrosion resistance, impact resistance and a smooth surface that is convenient to clean in demanding livestock environments.

Q: Can the drinker be installed on sheep penning?
A: Yes. Appropriate brackets can be used to secure the unit to compatible livestock partitions, walls or support structures.

Q: Does the drinker require electricity?
A: Standard mechanical float-valve operation does not require electricity. Separate frost-protection equipment may be required in freezing climates.

Q: Can the water inlet arrangement be customized?
A: Yes. Inlet position, connection specification and pipeline layout can be configured according to project requirements.

Q: Can SHEWUYOU supply a complete watering system?
A: Yes. Automatic drinkers can be supplied together with livestock penning, water pipelines and other farm equipment for complete commercial sheep and goat housing projects.
