Height-Adjustable Automatic Sheep Drinker

The Height-Adjustable Automatic Sheep Drinker is a compact float-operated livestock drinking bowl designed for goat-farming-equipment/" target="_blank" class="keylink">sheep housing, lambing areas, breeding pens and other small-ruminant facilities. Its adjustable mounting system allows the drinking height to be changed as animal size, age or pen configuration changes.

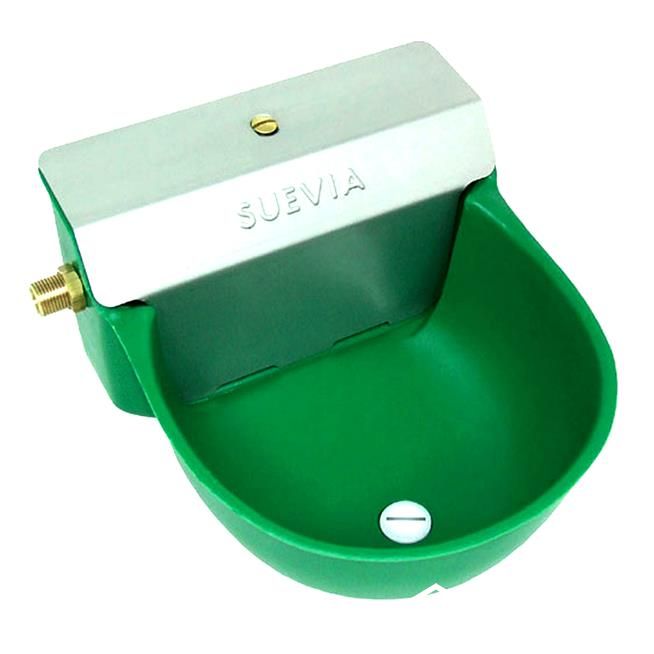

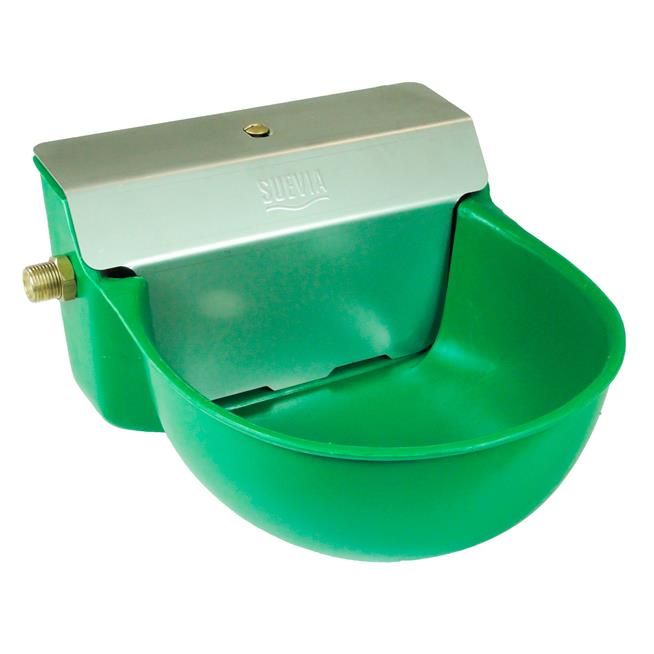

The drinker uses an automatic float valve to maintain a consistent water level. As sheep consume water, the float lowers and opens the inlet valve; once the preset level is restored, the valve closes automatically. This reduces the need for manual refilling and supports reliable water access in commercial livestock facilities.

A robust plastic bowl, removable stainless steel valve cover, quick-drain plug and flexible water connection make the unit suitable for routine farm operation and maintenance. It can be integrated into steel structure sheep houses, penning systems and complete livestock water supply projects.

• Tool-Free Height Adjustment: Drinking height can be repositioned without dismantling the complete unit.
• Suitable for Different Animal Sizes: Adjustment helps accommodate lambs, growing sheep and adult animals.
• Automatic Float Valve: Maintains a constant water level and replenishes water automatically.
• High-Quality Plastic Bowl: Durable bowl construction supports daily use in livestock environments.
• Stainless Steel Valve Cover: Protects the float valve area and can be removed for inspection and servicing.
• Quick Drainage: Drain plug allows rapid emptying for cleaning and maintenance.
• Flexible Water Connection: Supports practical installation when the drinker height is changed.
• Smooth Bowl Geometry: No sharp drinking edges, helping reduce animal injury risk.
• Commercial Farm Integration: Suitable for new livestock buildings, renovation projects and modular penning systems.

The automatic sheep drinker is connected to the farm water supply through a flexible line. When the water level falls, the float valve opens and allows fresh water to enter the bowl. As the required level is restored, the float rises and automatically closes the valve.

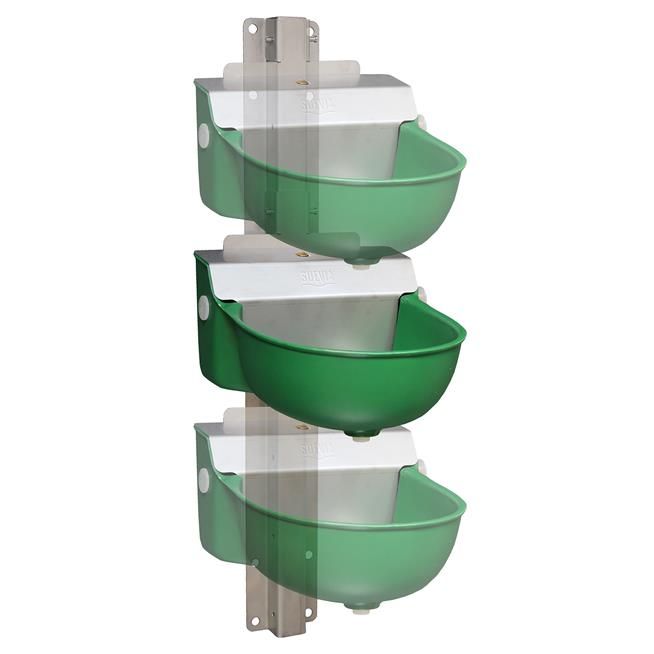

The height-adjustment mechanism allows the complete bowl assembly to be repositioned vertically. This makes it possible to adapt one drinking point to changing flock requirements without rebuilding the water line or mounting structure.

For commercial sheep housing projects, the selected drinking height should allow comfortable access while reducing unnecessary contamination from bedding, manure and feed residues.

Reference specifications are based on comparable SUEVIA Mod. 130P and its stainless steel height-adjustment accessory. Final SHEWUYOU dimensions and configurations should be confirmed before ordering.

• Commercial sheep farms
• Lambing and nursery areas
• Ewe and replacement-stock pens
• Breeding sheep facilities
• Indoor sheep barns
• Livestock penning systems
• Steel structure sheep houses
• Farm renovation and equipment upgrade projects
• Agricultural engineering and livestock development projects

SHEWUYOU can configure the drinking system according to farm layout, animal size and project requirements. Available options may include:

• Drinking bowl configuration according to livestock type
• Height-adjustment range according to project requirements
• Water inlet connection and flexible hose arrangement
• Normal-pressure or low-pressure valve options where applicable
• Mounting plate and support structure design
• Installation height for lambs, growing sheep or adult animals
• Water pipeline layout
• Number and spacing of drinking points
• Integration with feeding, penning and steel structure livestock buildings

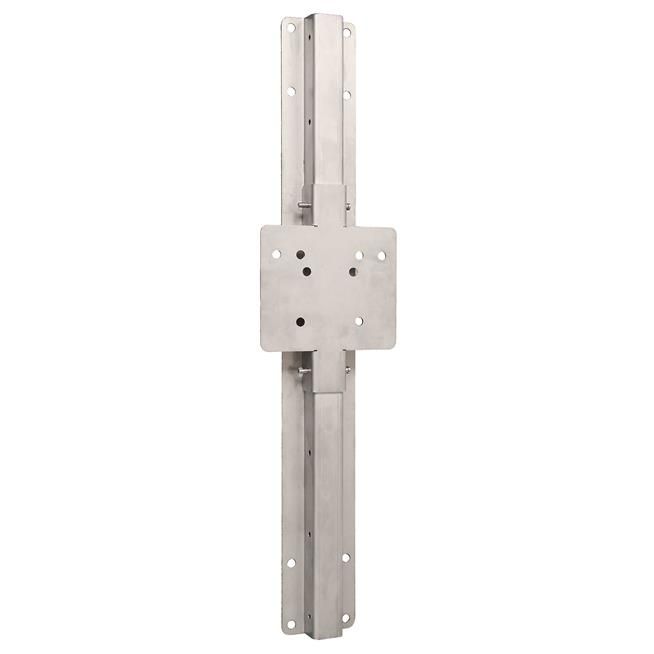

Mounting: Secure the stainless steel adjustment rail vertically to a stable wall, post or livestock partition. Confirm that the mounting surface is strong enough to withstand repeated animal contact.

Height Setting: Position the drinking bowl at a height suitable for the target sheep group. The adjustable system allows the bowl to be raised as lambs grow or lowered for smaller animals.

Water Connection: A flexible hose connection is recommended so that the water line can accommodate changes in bowl position without excessive stress on fittings.

Cleaning: Open the drain plug regularly to empty the bowl, then remove feed residues, sediment and organic material. The removable valve cover provides access for inspection and cleaning.

Inspection: Periodically check the float valve, hose, seals, adjustment rail, locking mechanism and fasteners to maintain reliable operation.

The Height-Adjustable Automatic Sheep Drinker can be incorporated into complete commercial sheep farm projects together with penning systems, feeding equipment, water pipelines, drainage facilities and steel structure livestock buildings. Adjustable drinking height is particularly useful where one housing area serves animals of different ages or production stages.

Q: Why use a height-adjustable sheep drinker?
A: Adjustable installation allows the drinking point to be adapted to lambs, growing sheep and adult animals without installing separate fixed-height bowls.

Q: How is the water level maintained?
A: An internal float valve automatically opens when the water level drops and closes after the preset level is restored.

Q: Can the height be adjusted without tools?
A: Yes. Comparable stainless steel height-adjustment systems are designed for tool-free repositioning.

Q: Why is a flexible water hose recommended?
A: A flexible hose allows the bowl to move vertically while reducing stress on the water connection.

Q: Can the drinker be used in commercial sheep houses?
A: Yes. It is suitable for sheep barns, lambing areas, breeding pens and other intensive livestock facilities when correctly installed.

Q: Can SHEWUYOU customize the installation system?
A: Yes. Mounting arrangement, drinking height, pipeline layout and related farm equipment can be configured according to project requirements.
