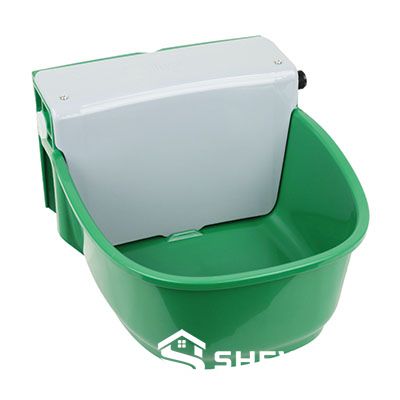

6L Automatic Float Sheep Drinker

The 6L Automatic Float Sheep Drinker is a constant-level livestock watering bowl designed for goat-farming-equipment/" target="_blank" class="keylink">sheep and other compatible small ruminants. A mechanical float valve automatically regulates the incoming water supply, keeping the drinking level stable without requiring manual refilling.

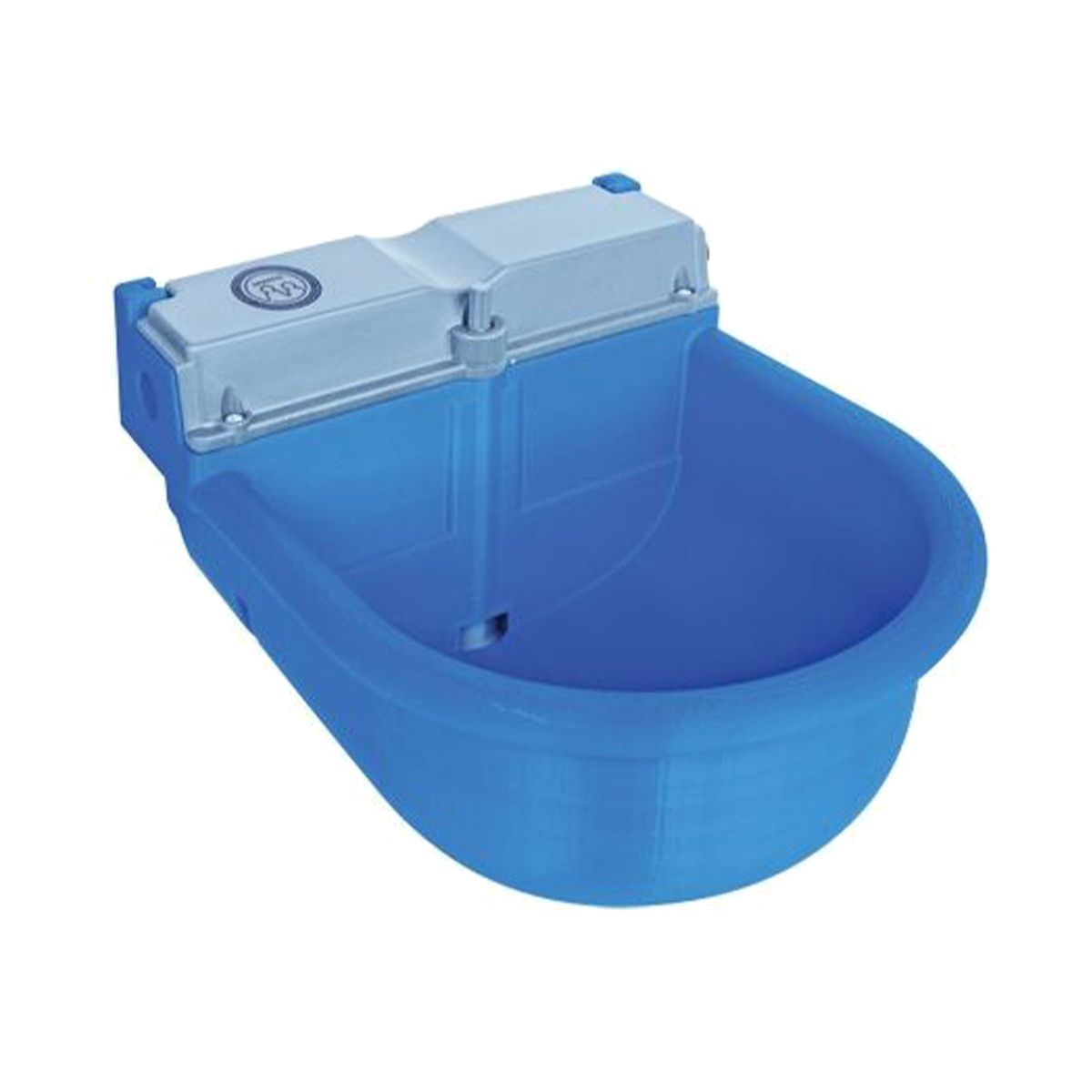

The reference configuration uses a large robust plastic bowl with approximately 6 liters of water volume, a fast-flow float valve and a 1/2-inch male water connection that can be arranged from either side. Rounded bowl geometry helps provide safe animal access, while the integrated drain plug simplifies cleaning and rapid emptying.

For commercial sheep farms, goat farms, agricultural contractors and livestock housing projects, the drinker can be incorporated into centralized water distribution systems together with galvanized penning, feeding equipment and steel structure livestock buildings.

• Approx. 6L Water Volume: Provides a practical drinking reservoir for sheep and compatible livestock.
• Automatic Float Valve: Maintains a constant water level as animals drink.
• Quick Water Refill: Float-valve configuration supports rapid replenishment under suitable supply conditions.
• Robust Plastic Bowl: Durable molded construction is resistant to corrosion and suitable for livestock-house environments.
• Side Water Connection: 1/2-inch male connection can be arranged from the right or left side in the reference design.
• Quick Drainage: Rubber drain plug allows convenient emptying during routine cleaning.
• Rounded Edges: Smooth bowl geometry minimizes sharp contact points around the drinking area.
• Adjustable Water Level: Float position can be set to maintain the required operating level.
• Wall or Pipe Installation: Suitable mounting accessories can be selected according to livestock pen design.
• Cold-Climate Options: Heated configurations can be supplied according to local climate and project requirements.

The drinker is connected to a pressurized livestock water line. When sheep consume water, the water level inside the bowl drops and the float moves downward. This movement opens the inlet valve and allows fresh water to enter.

As the bowl refills, the float rises. Once the preset level is reached, the valve closes automatically. This mechanical process maintains a constant drinking level and eliminates the need for routine manual filling.

Because the valve is mechanically controlled, normal operation does not require electrical power. Heated versions may require a suitable low-voltage power supply where frost protection is specified.

Reference capacity, pressure and dimensions are based on the comparable SUEVIA Mod. 135P configuration. Final SHEWUYOU specifications should be confirmed according to the selected model and project requirements.

• Commercial sheep farms and breeding facilities
• Sheep barns and steel structure livestock buildings
• Ewe and lamb housing systems
• Goat and small-ruminant facilities where compatible
• Individual pens and group housing areas
• Indoor livestock watering systems
• Farm renovation and drinking-system replacement projects
• Agricultural equipment dealer and distributor programs
• Livestock development and farm construction projects

SHEWUYOU can configure automatic sheep drinking equipment according to farm water pressure, livestock size and project layout. Available options may include:

• High-pressure or low-pressure float valve configuration
• Bowl dimensions and capacity according to project requirements
• Water inlet position and connection arrangement
• Wall, pipe or pen-partition mounting accessories
• Height-adjustable mounting system
• Valve protection components
• Cold-weather heating and frost protection
• Water-line layout for complete livestock buildings
• OEM branding and export packaging

Final configuration can be designed according to local climate, water pressure, sheep size, stocking density and farm conditions.

Mounting: Install the drinking bowl at a suitable height for the target sheep group. The supporting wall, post or livestock partition should be structurally adequate for repeated animal contact.

Water Connection: Connect the inlet to a clean farm water line using the correct fittings. Flush the pipeline before commissioning to prevent installation debris from entering the float valve.

Water-Level Adjustment: Set the float mechanism so that sufficient drinking depth is maintained without unnecessary overflow.

Cleaning: Remove the drain plug and empty the bowl regularly. Wash away sediment, feed particles and organic contamination before replacing the plug.

Valve Inspection: Periodically inspect the float, valve seat, seals and water connection for mineral deposits, wear or leakage.

Winter Operation: Where freezing temperatures occur, heated drinking equipment and protected supply pipes should be selected according to local climate and farm conditions.

The 6L Automatic Float Sheep Drinker can be incorporated into complete sheep-farm projects together with galvanized penning systems, feeders, gates, water pipelines, drainage systems and steel structure livestock buildings. Drinking-point quantity and installation height can be planned according to flock size, pen layout and water demand.

Q: How does the automatic float system work?
A: The float opens the inlet valve when the water level falls and closes the valve when the preset drinking level is restored.

Q: What is the reference water capacity?
A: The comparable configuration has approximately 6 liters of water volume.

Q: Can the water supply enter from either side?
A: Yes. The reference configuration uses a 1/2-inch male connection that can be arranged from the right or left side.

Q: Is a low-pressure version available?
A: Yes. A low-pressure float-valve configuration can be supplied according to project requirements.

Q: Is the bowl easy to clean?
A: Yes. A removable rubber drain plug allows rapid emptying, after which the bowl can be washed and flushed.

Q: Can it be used in freezing climates?
A: Heated configurations and water-line frost protection can be specified according to local winter conditions.

Q: Can SHEWUYOU customize the drinker for a commercial sheep farm?
A: Yes. Valve pressure range, mounting system, water connection, dimensions and cold-weather configuration can be customized according to project requirements.
