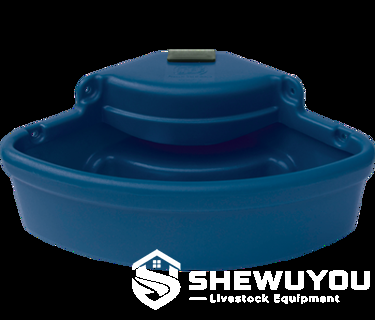

Corner Automatic Sheep Drinker

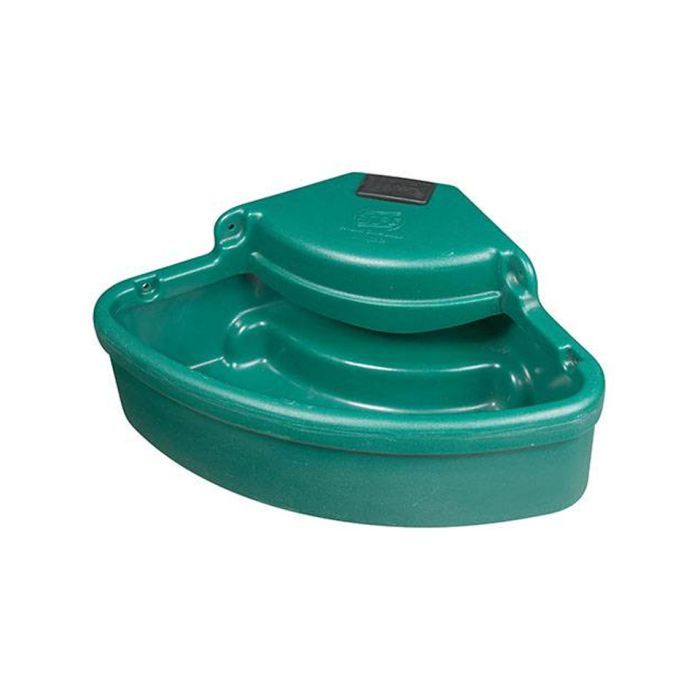

The Corner Automatic Sheep Drinker is a compact livestock watering solution designed to make efficient use of unused corner space in goat-farming-equipment/" target="_blank" class="keylink">sheep barns, goat houses, livestock sheds and other farm buildings. Its curved reservoir fits neatly into a corner while providing a generous drinking area for individual animals or groups of smaller livestock.

A float-controlled inlet valve maintains the water at a preset level automatically. As sheep or goats drink, the valve opens to replenish the reservoir and closes when the required water level is restored. This reduces manual filling and supports continuous access to fresh drinking water.

The impact-resistant polyethylene body, protected valve housing, rear water connection and integrated drain plug make the drinker suitable for demanding commercial livestock environments. It can be incorporated into new sheep farm construction, renovation projects and steel structure livestock buildings.

• Corner-Saving Design: Fits neatly into barn or pen corners, helping maximize usable livestock floor space.
• Automatic Float Valve: Maintains a consistent water level without continuous manual filling.
• Impact-Resistant Polyethylene: Tough molded construction is suitable for intensive livestock use.
• Corrosion-Free Body: Polyethylene construction is resistant to rust and common livestock-house moisture.
• Protected Valve Housing: Raised cover helps shield the float valve and internal water-control components from direct animal contact.
• Rear Water Connection: Keeps plumbing away from the main animal-access area and supports a cleaner installation.
• Integrated Drain Plug: Allows rapid emptying of the bowl for routine cleaning and maintenance.
• Rounded Animal-Safe Shape: Smooth surfaces and curved edges reduce exposed sharp corners around the drinking area.
• Indoor and Outdoor Use: Suitable for livestock sheds, covered pens and appropriate external installations.
• Simple Installation: Multiple molded mounting points provide secure fixing in a suitable corner.

The drinker operates through a mechanical float-valve system. When livestock consume water, the reservoir level falls and the float moves downward. This opens the inlet valve and allows fresh water from the farm supply line to enter the bowl.

As the reservoir refills, the float rises. When the preset water level is reached, the valve closes automatically. This cycle repeats according to animal consumption and provides continuous water availability without electronic level-control equipment.

The triangular corner geometry places the rear section of the drinker against two adjoining surfaces while leaving the curved drinking edge accessible to livestock. This configuration is especially useful where pen space is limited.

Reference dimensions, capacity and valve performance are based on the comparable JFC DBL3 configuration. Final SHEWUYOU specifications are customizable and should be confirmed according to project requirements.

• Commercial sheep farms
• Goat farms and small-ruminant housing
• Sheep breeding and lambing barns
• Livestock pen corners
• Holding and handling areas
• Indoor livestock sheds
• Steel structure sheep and goat buildings
• Farm renovation and watering-system upgrades
• Agricultural equipment distributor projects
• Livestock development and farm construction projects

For commercial livestock projects, the Corner Automatic Sheep Drinker can be configured according to pen layout, water supply conditions and farm management requirements. Available options may include:

• Bowl dimensions and water capacity
• Polyethylene color
• Float valve specification
• Water inlet connection size
• Left-side or right-side plumbing arrangement
• Mounting-hole configuration
• Drain plug configuration
• Operating water pressure requirements
• Cold-climate water-line protection
• OEM branding and packaging

Final configuration can be designed according to local climate, livestock type, pen arrangement and farm conditions.

Corner Positioning: Select a stable corner that provides unobstructed livestock access and does not interfere with gates, feeders, manure removal equipment or animal circulation.

Secure Mounting: Fix the drinker through the molded mounting points using fasteners appropriate for the wall or pen structure. The supporting surfaces must be strong enough to withstand livestock contact.

Water Connection: Connect the rear inlet to a clean farm water supply. Valve configuration and water pressure should be checked before commissioning.

Water-Level Adjustment: Adjust the float valve to maintain an appropriate operating level without unnecessary overflow.

Routine Cleaning: Remove the drain plug periodically and flush sediment, feed particles and organic material from the drinking bowl.

Valve Inspection: Inspect the float, valve seat, inlet fitting and seals regularly to maintain reliable refill and shut-off performance.

Cold-Weather Operation: Where freezing conditions occur, the water supply and valve area should be protected according to local climate and farm conditions.

Corner automatic sheep drinkers can be integrated into complete sheep and goat farm projects together with galvanized livestock pens, gates, feeders, water pipelines, drainage systems and steel structure livestock buildings. Drinking-point quantity and location can be planned according to flock size, pen arrangement, water pressure and livestock movement.

Q: Why choose a corner sheep drinker?
A: The corner-shaped structure uses space that is often underutilized in livestock pens while keeping the main drinking edge easily accessible.

Q: Does the drinker refill automatically?
A: Yes. A mechanical float valve opens as the water level falls and closes automatically when the preset level is restored.

Q: Is the valve protected from livestock?
A: Yes. The valve is positioned under a raised molded housing to reduce direct animal interference.

Q: Is the polyethylene body suitable for livestock barns?
A: Yes. Impact-resistant polyethylene is corrosion resistant, easy to clean and well suited to humid livestock environments.

Q: How is the bowl cleaned?
A: The reservoir can be emptied through the integrated drain plug and then rinsed to remove sediment and feed contamination.

Q: Can the drinker be used outdoors?
A: Suitable outdoor installation is possible when the water supply, mounting structure and freeze protection are designed according to local conditions.

Q: Can SHEWUYOU customize the drinker for farm projects?
A: Yes. Dimensions, capacity, valve type, water connection, mounting arrangement and packaging can be customized according to project requirements.
