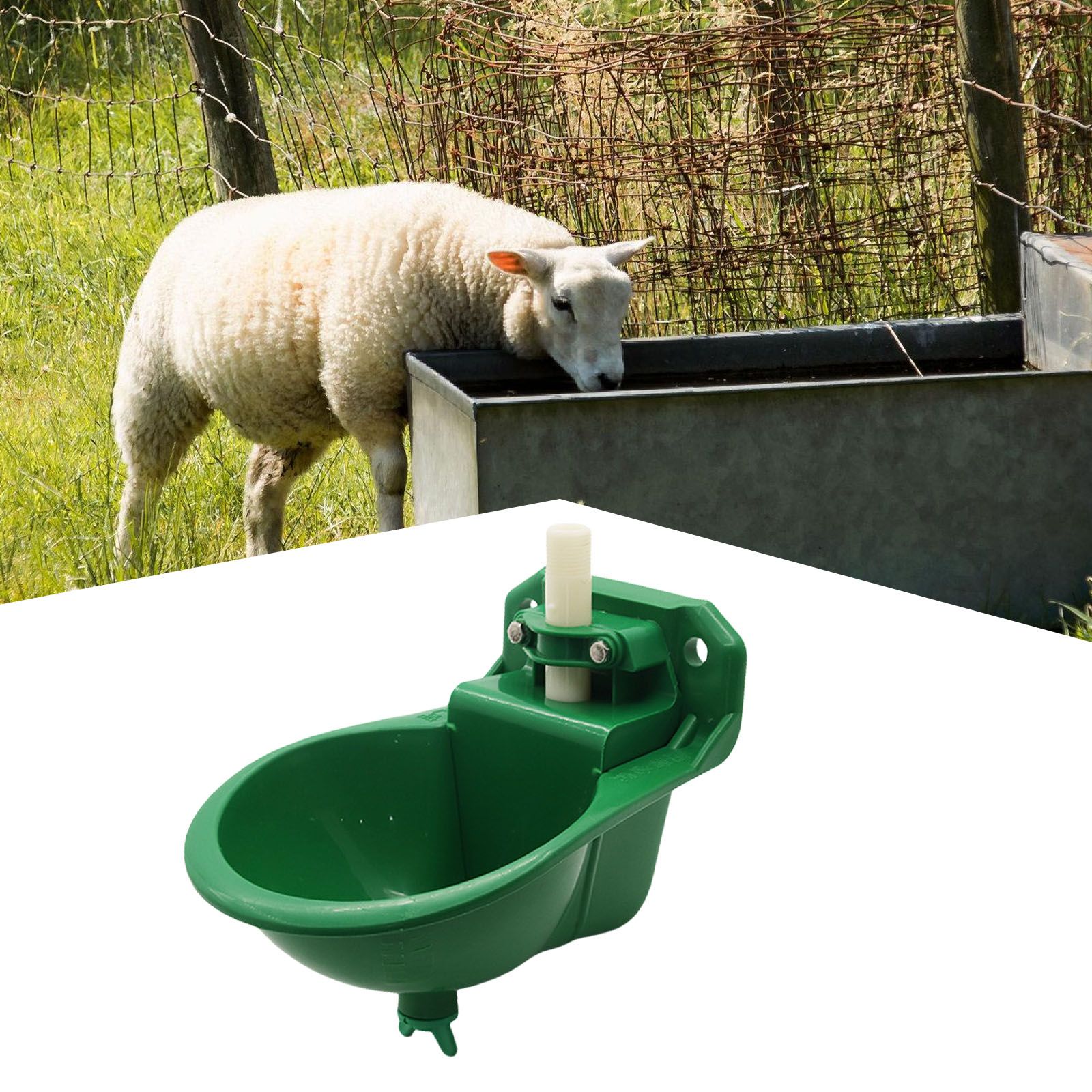

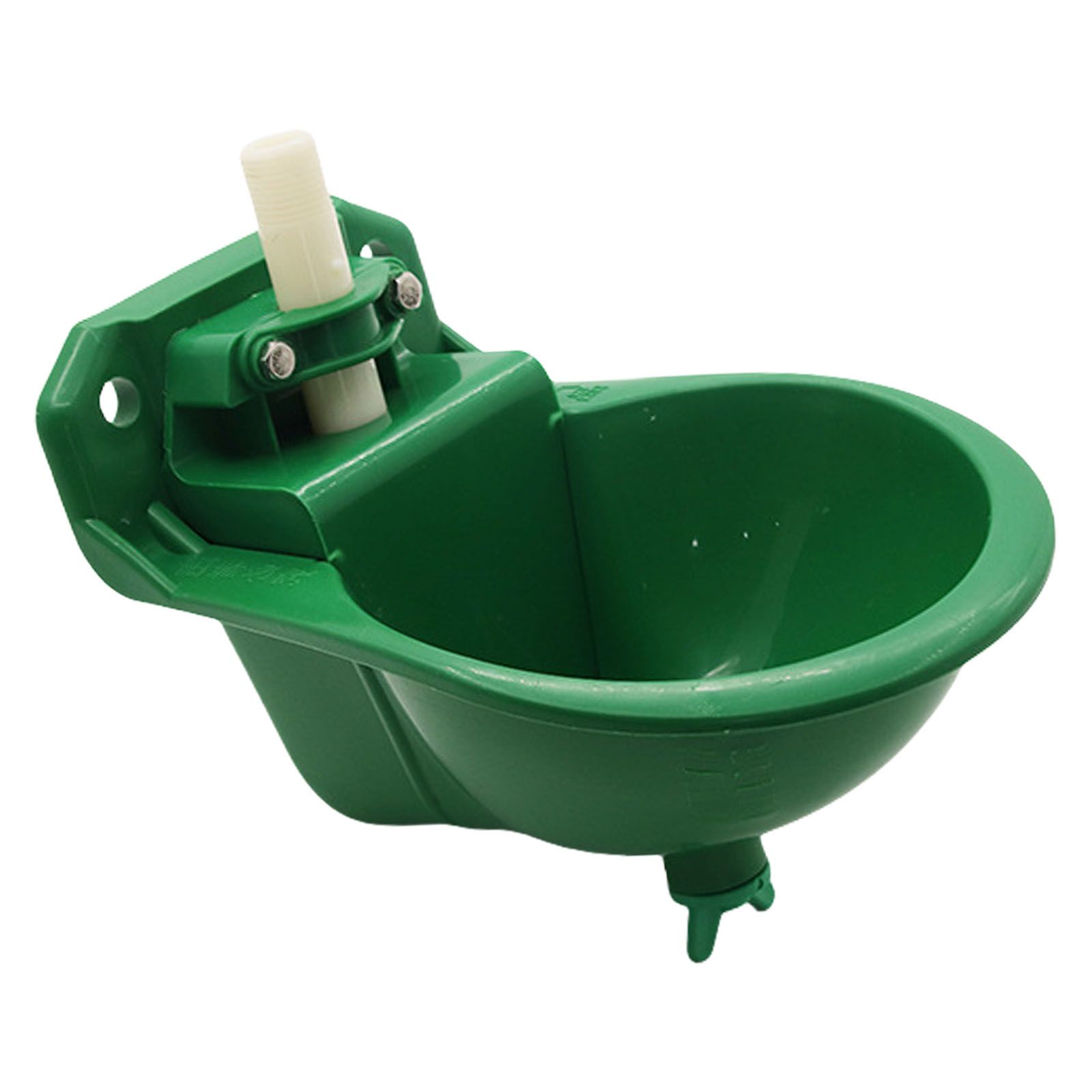

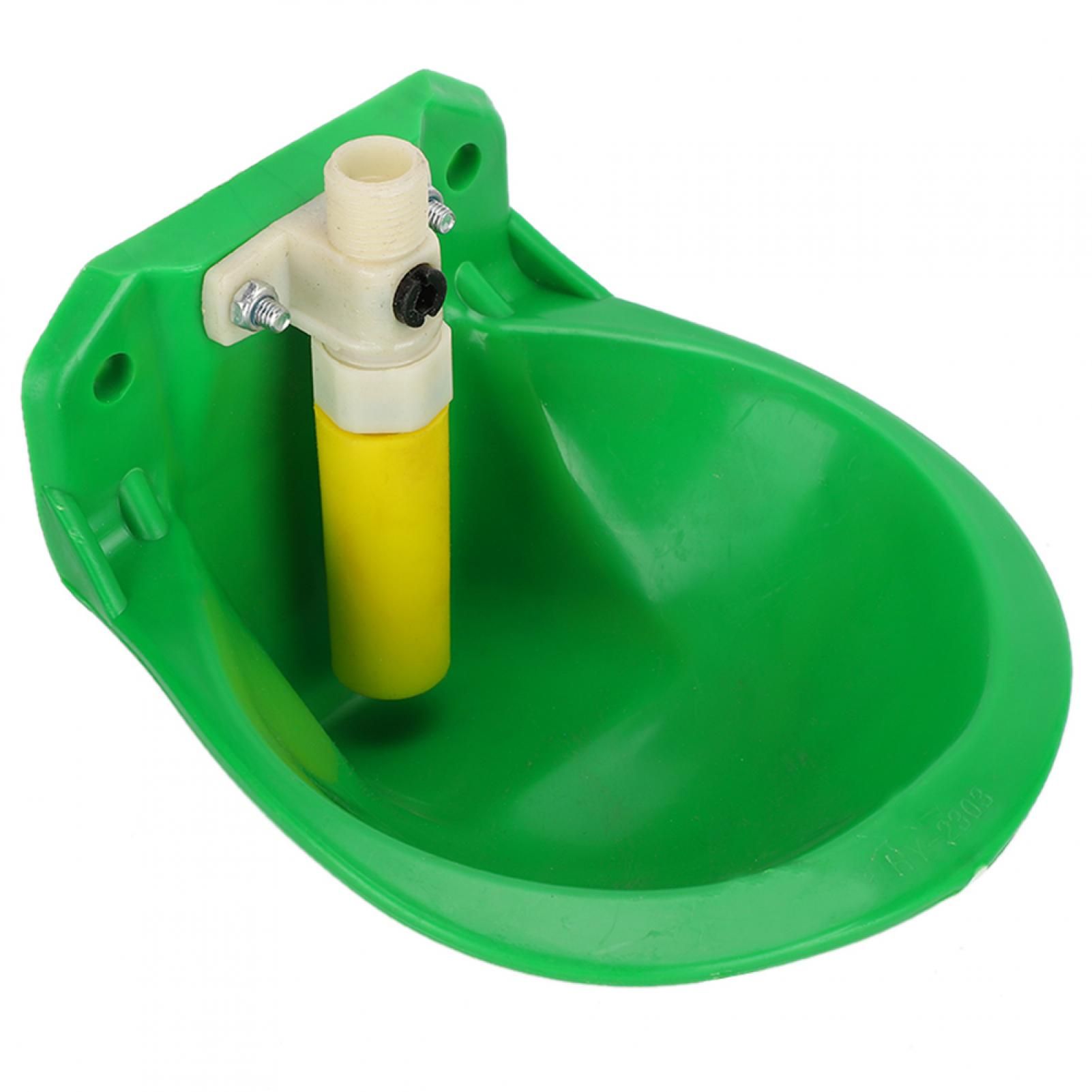

Plastic Float Valve Automatic Sheep Drinker

The Plastic Float Valve Automatic Sheep Drinker is a compact livestock watering bowl designed to provide goat-farming-equipment/" target="_blank" class="keylink">sheep, goats and other compatible farm animals with an automatically maintained supply of drinking water. The internal float valve responds to changes in water level and controls the inlet without requiring manual refilling.

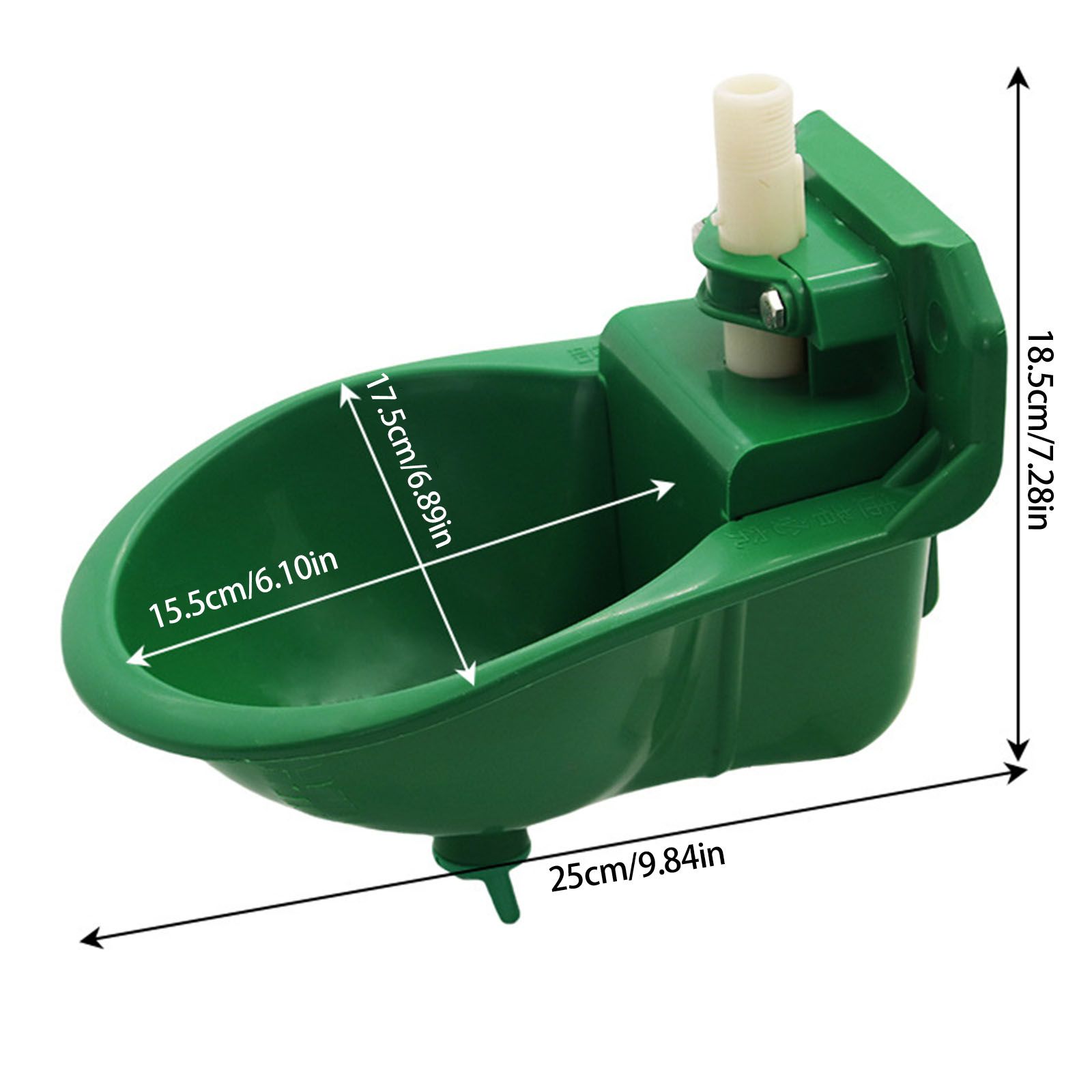

The reference S522 configuration uses a solid polypropylene bowl with a 3 L capacity, a G 1/2" water connection and a removable drain plug for convenient cleaning. Water can be connected from either the left or right side, providing greater flexibility when planning livestock-house pipework.

Its compact wall-mounted structure is suitable for commercial sheep farms, goat housing, breeding facilities and steel structure livestock buildings. For complete farm projects, drinker quantity, mounting height, waterline arrangement and protective accessories can be configured according to project requirements.

• Automatic Float Control: Maintains the preset drinking-water level automatically as livestock consume water.
• Durable Polypropylene Bowl: Lightweight, corrosion-resistant plastic construction is suitable for humid livestock environments.
• 3 L Reference Capacity: Compact bowl volume supports continuous automatic replenishment without requiring a large standing-water reservoir.
• Left or Right Water Connection: Flexible connection arrangement simplifies integration with different pen and pipeline layouts.
• Drain Plug: Removable outlet plug allows the bowl to be emptied quickly for routine washing and sanitation.
• Good Water Flow: The reference S522 provides a flow rate of approximately 6.5 L/min at 3 bar.
• Compact Wall-Mounted Design: Helps keep livestock pen floor space clear and facilitates centralized pipe installation.
• Simple Mechanical Operation: No electrical level-control components are required for standard operation.
• Replaceable Components: Float valve and drain plug are serviceable components on the reference design.
• Optional Protection: A protective guard can be added where additional resistance to animal impact is required.

The automatic sheep drinker is connected to a pressurized livestock water supply. As animals drink, the water level inside the bowl falls and the float moves downward. This movement opens the inlet valve and allows fresh water to enter the bowl.

When the required water level is restored, the float rises and closes the valve. This cycle repeats automatically according to animal water consumption, providing continuous water availability without manual filling.

The float system is particularly useful for livestock that benefit from drinking from an open water surface. The bowl can be drained through the lower plug during routine sanitation.

Reference technical data is based on the comparable Kerbl S522 float bowl. Final SHEWUYOU specifications, dimensions, valve configuration and connection details should be confirmed according to the purchase order and project requirements.

• Commercial sheep farms and breeding facilities
• Goat farms and dairy goat housing
• Ewe and lamb housing areas
• Individual livestock pens and group pens
• Sheep barns and livestock sheds
• Steel structure livestock buildings
• Indoor feeding and holding areas
• Farm renovation and drinking-system upgrades
• Agricultural equipment distributor projects
• Large-scale livestock development projects

For commercial livestock projects and distributor orders, product configuration can be coordinated with the overall farm watering system. Available customization may include:

• Bowl colour according to project requirements
• Float valve configuration
• Water inlet connection arrangement
• Left-side or right-side pipeline connection
• Mounting-hole and bracket configuration
• Protective guard options
• Installation height according to animal size
• Waterline layout for complete livestock buildings
• OEM branding and packaging
• Export packing according to distributor requirements

Final configuration can be designed according to local climate, flock size, water pressure, pen arrangement and farm conditions.

Mounting: Install the bowl on a stable wall, livestock partition or suitable support structure. Select the mounting height according to sheep size, age and pen design.

Water Connection: Connect the inlet to the livestock water supply from the left or right side according to the required pipeline layout. Flush the pipe before commissioning to prevent construction debris from entering the float valve.

Water-Level Check: After installation, confirm that the float valve opens and closes correctly and maintains an appropriate drinking level without overflow.

Routine Cleaning: Remove the drain plug to empty the bowl, wash away sediment and feed particles, and rinse the drinking surface regularly.

Valve Maintenance: Periodically inspect the float valve for mineral deposits, dirt or wear. Replace service components when required.

Cold-Climate Installation: In freezing environments, waterline insulation and appropriate frost-protection measures should be designed according to local climate and farm conditions.

Plastic float valve sheep drinkers can be integrated into complete livestock farm projects together with galvanized sheep pens, gates, feeders, water pipelines, drainage systems and steel structure livestock buildings. Drinking-point quantity and installation positions can be planned according to flock size, stocking density, animal age groups and water demand.

Q: How does the automatic float valve work?
A: When livestock drink and the water level falls, the float moves downward and opens the inlet valve. When the required level is restored, the float closes the valve automatically.

Q: Is this drinking bowl suitable for sheep?
A: Yes. The reference S522 is specifically listed for sheep as well as other compatible livestock.

Q: Can the water pipe be connected from either side?
A: Yes. The reference configuration supports connection from the left or right side, allowing greater flexibility in livestock-house plumbing.

Q: How is the bowl cleaned?
A: The lower drain plug can be removed to empty the bowl quickly, after which the drinking surface and float area can be rinsed and cleaned.

Q: Is the float valve replaceable?
A: Yes. The reference S522 design provides a separate replacement float valve and drain plug.

Q: Can a protective guard be installed?
A: Yes. A compatible protective guard can be used where additional protection against animal impact is required.

Q: Can SHEWUYOU customize the drinker for farm projects?
A: Yes. Valve configuration, connection arrangement, mounting solution, colour, protective accessories and packaging can be customized according to project requirements.
