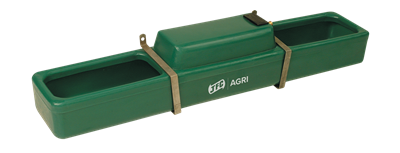

29.5L Large Capacity Automatic Sheep Drinker

The 29.5L Large Capacity Automatic Sheep Drinker is designed for group watering applications in goat-farming-equipment/" target="_blank" class="keylink">sheep, goat and other small-ruminant facilities. Its long, narrow twin-reservoir layout allows multiple animals to drink at the same time and makes the unit especially suitable for installation between two livestock zones or along pen divisions.

The drinker is manufactured from tough, impact-resistant polyethylene with a smooth, curved profile for improved livestock safety and easier cleaning. A raised central valve housing protects the water-control components, while the automatic brass float valve maintains the required water level without continuous manual filling.

For commercial livestock farms, agricultural construction projects and steel structure sheep buildings, the drinker can be integrated with centralized water pipelines, penning systems and drainage layouts according to project requirements.

• 29.5L Large Capacity: Provides a substantial drinking-water reserve for groups of sheep, goats and other smaller livestock.
• Automatic Float Valve: Brass float-valve system automatically replenishes water as the level falls.
• Twin Reservoir Design: Long double-reservoir configuration provides simultaneous access for several animals.
• Impact-Resistant Polyethylene: Tough molded body is designed for demanding livestock environments and regular animal contact.
• Frost-Resistant Construction: Polyethylene material provides good resistance to freeze/thaw conditions.
• Corrosion-Free Body: Non-metallic trough construction eliminates corrosion of the main reservoir structure.
• Raised Valve Housing: Helps protect the float valve and plumbing components from direct livestock interference.
• Central Water Connection: Simplifies installation when positioning the drinker between adjacent livestock areas.
• Built-In Drain Plug: Facilitates rapid draining, flushing and routine cleaning.
• Indoor and Outdoor Use: Suitable for livestock buildings, covered areas and external farm applications.

The drinker is connected to a suitable farm water supply through the central inlet connection. When sheep or goats consume water, the reservoir level falls and the float mechanism opens the brass inlet valve.

Fresh water then enters automatically until the preset level is restored. As the float rises, the valve closes and stops further water flow. This automatic cycle provides consistent water availability while reducing routine manual watering work.

The long twin-reservoir layout distributes drinking space on both sides of the central valve housing, making the unit particularly effective for group housing and installations between adjacent pens.

Reference values are based on the comparable JFC DBL2 configuration. Final SHEWUYOU specifications should be confirmed according to the required model, water pressure and project conditions.

• Commercial sheep farms
• Sheep breeding and lamb-rearing facilities
• Goat farms and small-ruminant housing
• Group livestock pens
• Pen-divider and two-zone watering installations
• Indoor sheep barns and steel structure livestock buildings
• Outdoor livestock yards and paddock watering points
• Agricultural farm renovation projects
• Livestock equipment dealer and distributor projects
• Government and international agricultural development projects

For commercial projects, SHEWUYOU can coordinate the drinker configuration with the overall livestock housing and water-distribution system. Available options may include:

• Reservoir capacity according to project requirements
• Overall dimensions and mounting arrangement
• Float valve specification
• Water inlet connection size and position
• Water pressure regulation configuration
• Mounting bracket design
• Drainage arrangement
• Body color available upon request
• Cold-climate installation design
• OEM branding and identification
• Export packaging according to project requirements

Final configuration can be designed according to local climate, livestock type, flock size, water pressure and farm conditions.

Installation Position: Install the drinker at a location that provides comfortable access for livestock while allowing convenient cleaning and service access to the central valve housing.

Mounting: Secure the drinker using suitable brackets and structural supports. The referenced configuration includes stainless steel mounting brackets.

Water Supply: Connect the central inlet to a suitable clean water source. Water pressure and valve configuration should be verified before commissioning.

Water-Level Adjustment: Adjust the float valve to maintain an appropriate operating water level without unnecessary overflow.

Routine Cleaning: Open the drain plug to empty the reservoirs and flush out sediment, feed residue and organic contamination. Smooth internal surfaces facilitate washing and disinfection.

Valve Maintenance: Inspect the float, valve seat, seals and water connection periodically for wear, mineral deposits or debris.

Cold-Weather Operation: Although the polyethylene body is frost resistant, water lines and valves should receive appropriate freeze protection according to local climate and farm conditions.

Large-capacity automatic sheep drinkers can be integrated into complete livestock farm projects together with sheep pens, galvanized gates, feed barriers, feeders, water pipelines, drainage systems and steel structure livestock buildings. For large projects, drinker quantity and positioning can be designed according to flock size, pen layout, animal flow and available water pressure.

Q: What is the capacity of this automatic sheep drinker?
A: The reference configuration provides a 29.5 L total capacity.

Q: Can several sheep drink at the same time?
A: Yes. The long twin-reservoir design provides multiple drinking positions and is suitable for group livestock watering.

Q: Does the drinker refill automatically?
A: Yes. A mechanical brass float valve regulates incoming water and maintains the preset drinking level.

Q: Can the drinker be installed between two pens?
A: Yes. Its narrow, elongated design and central water connection make it particularly suitable for positioning between two livestock zones where the farm layout allows.

Q: Is the polyethylene body corrosion resistant?
A: Yes. The molded polyethylene reservoir does not corrode and is suitable for humid livestock environments.

Q: How is the drinker cleaned?
A: A built-in drain-off plug allows the reservoirs to be emptied quickly for washing, flushing and disinfection.

Q: Can SHEWUYOU customize this product?
A: Yes. Valve configuration, connections, dimensions, mounting details, branding and packaging can be customized according to project requirements.
