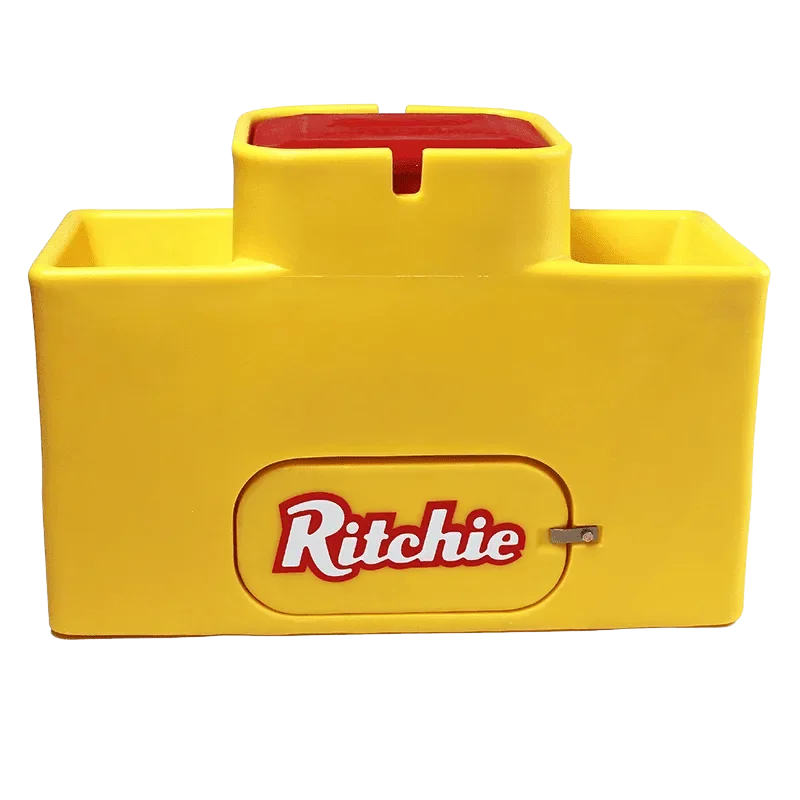

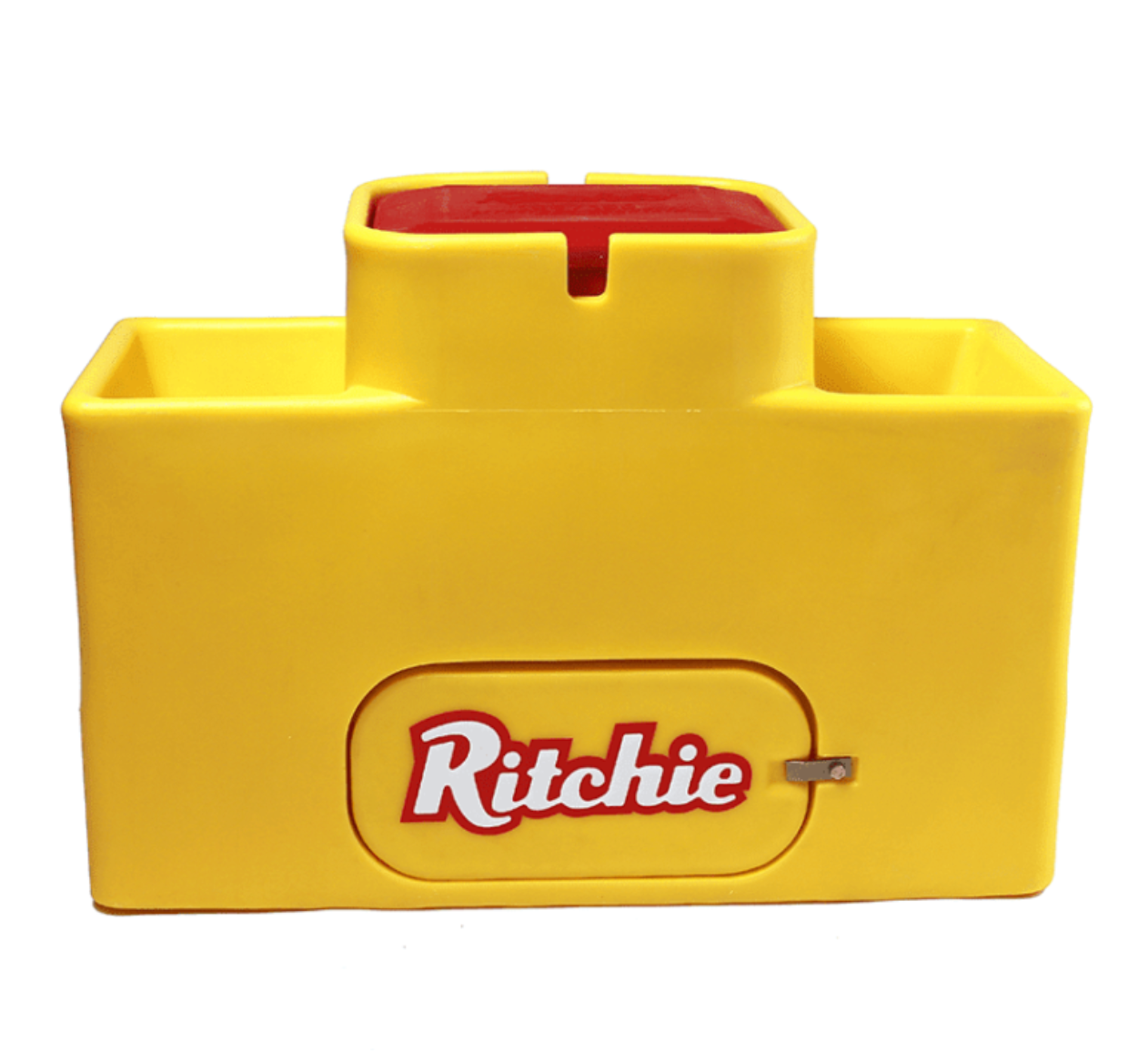

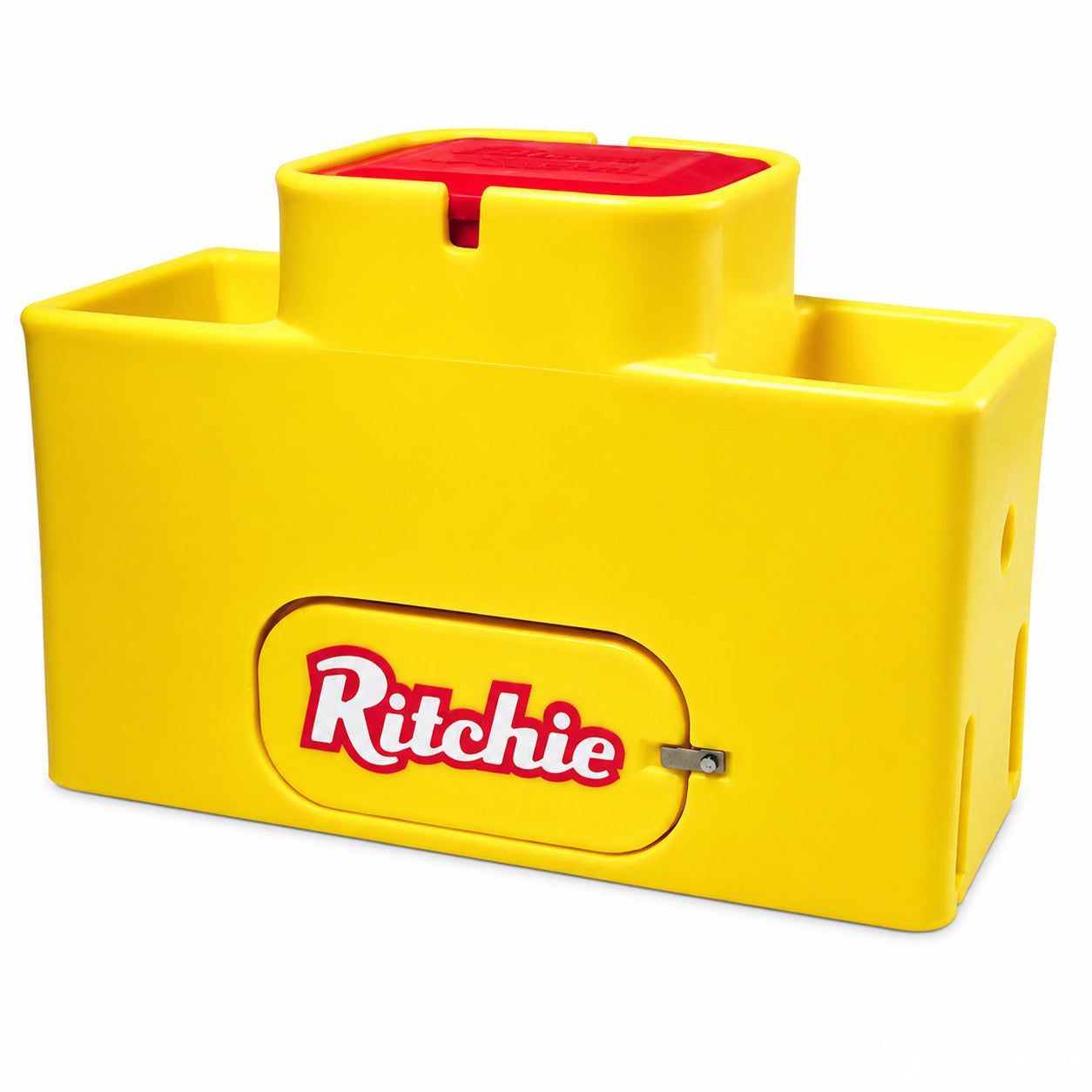

Double-Sided Automatic Sheep Drinker

The Double-Sided Automatic Sheep Drinker is a compact livestock watering system designed to provide reliable fresh-water access from two opposite sides. Its twin-trough arrangement is particularly suitable for fence-line installations, adjacent pens, small paddocks and commercial goat-farming-equipment/" target="_blank" class="keylink">sheep housing where one watering point can serve animals from more than one direction.

A mechanical float-controlled quick-refill valve automatically replenishes the trough as animals drink. The relatively low water capacity promotes frequent water turnover while helping reduce unnecessary stored water. Insulated construction helps moderate water temperature during seasonal changes, while optional heating can be incorporated for freezing climates.

For livestock farm construction projects, the drinker can be integrated with water pipelines, galvanized pen systems and steel structure livestock buildings. Installation layout, water connection and frost-protection arrangements can be configured according to project requirements.

• Double-Sided Drinking Access: Two drinking troughs allow livestock to access water from opposite sides.
• Fence-Line Friendly: Compact configuration is well suited to installation between adjacent livestock areas.
• Automatic Refill: Float-controlled valve replenishes water automatically as the trough level decreases.
• Quick Water Turnover: Low-capacity reservoir combined with rapid refill helps maintain fresher drinking water.
• Insulated Construction: Insulation helps reduce heat transfer and provides additional seasonal protection.
• Easy-Clean Surfaces: Trough surfaces slope toward drain points to facilitate debris removal and wash-down.
• Accessible Service Area: Side access allows convenient inspection of the valve, supply line and related components.
• Rugged Body: Durable molded construction is designed for demanding livestock environments.
• Optional Freeze Protection: Heating and water-line protection can be added according to local climate conditions.

The drinker is connected to the farm water supply through an inlet valve controlled by a mechanical float. As sheep or other livestock consume water, the trough level falls and the float moves downward, opening the valve and allowing fresh water to enter.

When the preset water level is restored, the float rises and closes the valve automatically. This cycle maintains drinking water availability without continuous manual filling.

The two-trough design provides water access from opposing sides, making the unit especially practical for fence-line applications and pen layouts where one centrally located waterer can serve adjacent groups.

Reference specifications are based on the comparable WaterMatic 150 configuration. Final SHEWUYOU dimensions, capacity, materials and valve configuration should be confirmed according to project requirements.

• Commercial sheep farms and breeding facilities
• Sheep and goat housing systems
• Fence-line watering between adjacent pens
• Small livestock paddocks and holding areas
• Ewe and lamb housing areas
• Steel structure livestock buildings
• Farm expansion and modernization projects
• Agricultural livestock development projects
• Dealer and distributor livestock equipment programs

SHEWUYOU can adapt the automatic watering solution according to livestock type, water supply conditions and farm layout. Available options may include:

• Overall dimensions according to project requirements
• Drinking height according to livestock size
• Water inlet and pipeline connection arrangement
• Valve selection according to water pressure and flow requirements
• Insulation configuration
• Optional heating system for freezing climates
• Water-line frost protection
• Foundation and anchoring arrangement
• Fence-line installation configuration
• OEM branding and export packaging

Final equipment configuration can be designed according to local climate, flock size, livestock building layout and farm conditions.

Foundation: Install the drinker on a stable, level concrete base or suitable structural foundation. Secure anchoring helps prevent livestock contact from shifting the unit.

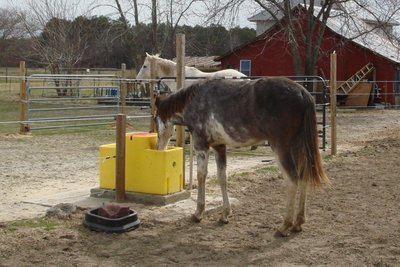

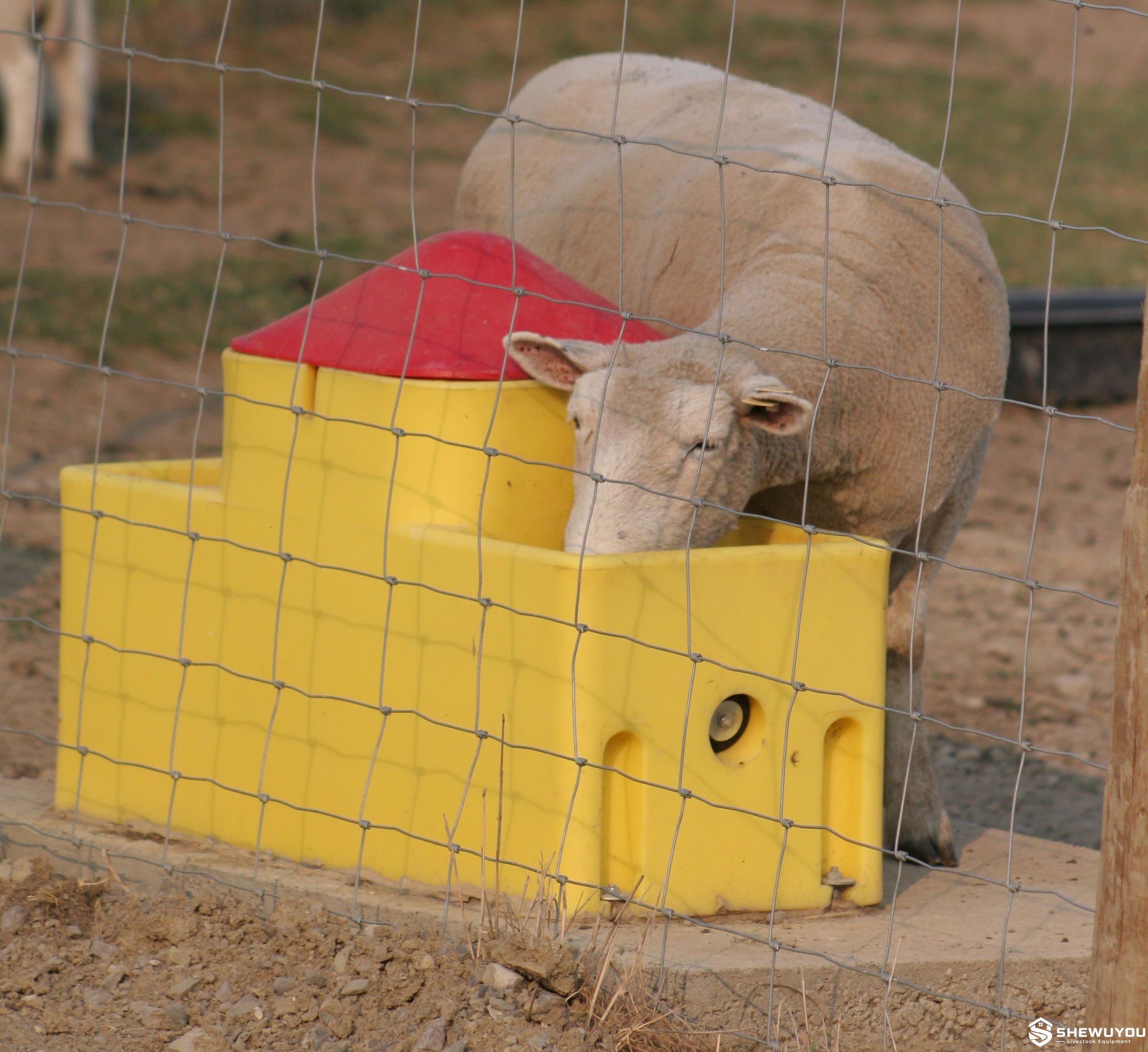

Fence-Line Positioning: For shared-pen applications, position the center of the drinker along the fence or pen partition so animals can drink comfortably from both sides while maintaining pen separation.

Water Connection: Connect the inlet to a clean pressurized farm water supply. Verify the actual water pressure and valve configuration before commissioning.

Cleaning: Drain the trough periodically and flush sediment, feed residue and organic matter toward the drain openings. Sloped surfaces simplify routine clean-out.

Valve Maintenance: Inspect the float, valve seat, seals and inlet fittings regularly to maintain reliable refill and shut-off performance.

Cold-Weather Operation: In freezing climates, install appropriate heating and water-line protection designed according to local minimum temperatures and farm conditions.

Double-sided automatic sheep drinkers can be integrated into complete sheep farm projects together with galvanized penning, sheep gates, feeders, handling equipment, water distribution pipelines, drainage systems and steel structure livestock buildings. Watering-point quantity and placement can be planned according to flock size, pen layout, animal flow and available water pressure.

Q: What is the advantage of a double-sided sheep drinker?
A: It provides drinking access from opposite sides and can be installed along a fence or pen divider so one unit serves livestock in adjacent areas.

Q: Does the drinker refill automatically?
A: Yes. A float-controlled valve opens when the water level falls and closes after the required level is restored.

Q: Is the unit suitable for sheep and goats?
A: Yes. The comparable WaterMatic 150 configuration is rated for up to 100 sheep or goats under suitable operating conditions.

Q: Can it be installed on a fence line?
A: Yes. The twin-trough configuration is particularly suitable for fence-line, small-pen and paddock applications.

Q: How is the trough cleaned?
A: Internal surfaces slope toward drain points, allowing water, sediment and debris to be flushed out during routine cleaning.

Q: Can it operate in freezing weather?
A: Yes, when an appropriate heating and water-line protection package is installed according to local climate conditions.

Q: Can SHEWUYOU customize the drinker for commercial farm projects?
A: Yes. Dimensions, water connections, valve configuration, insulation, heating arrangements and installation details can be supplied according to project requirements.
