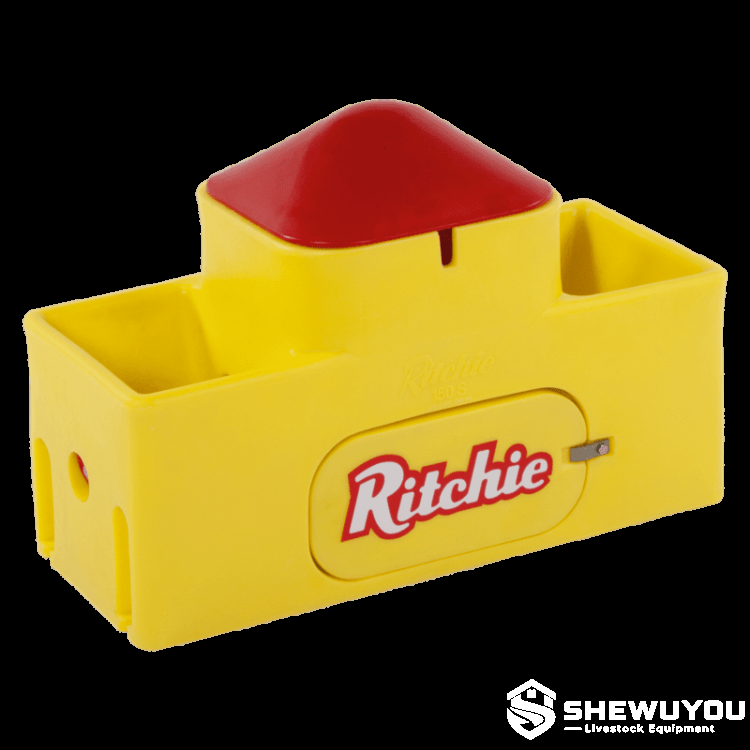

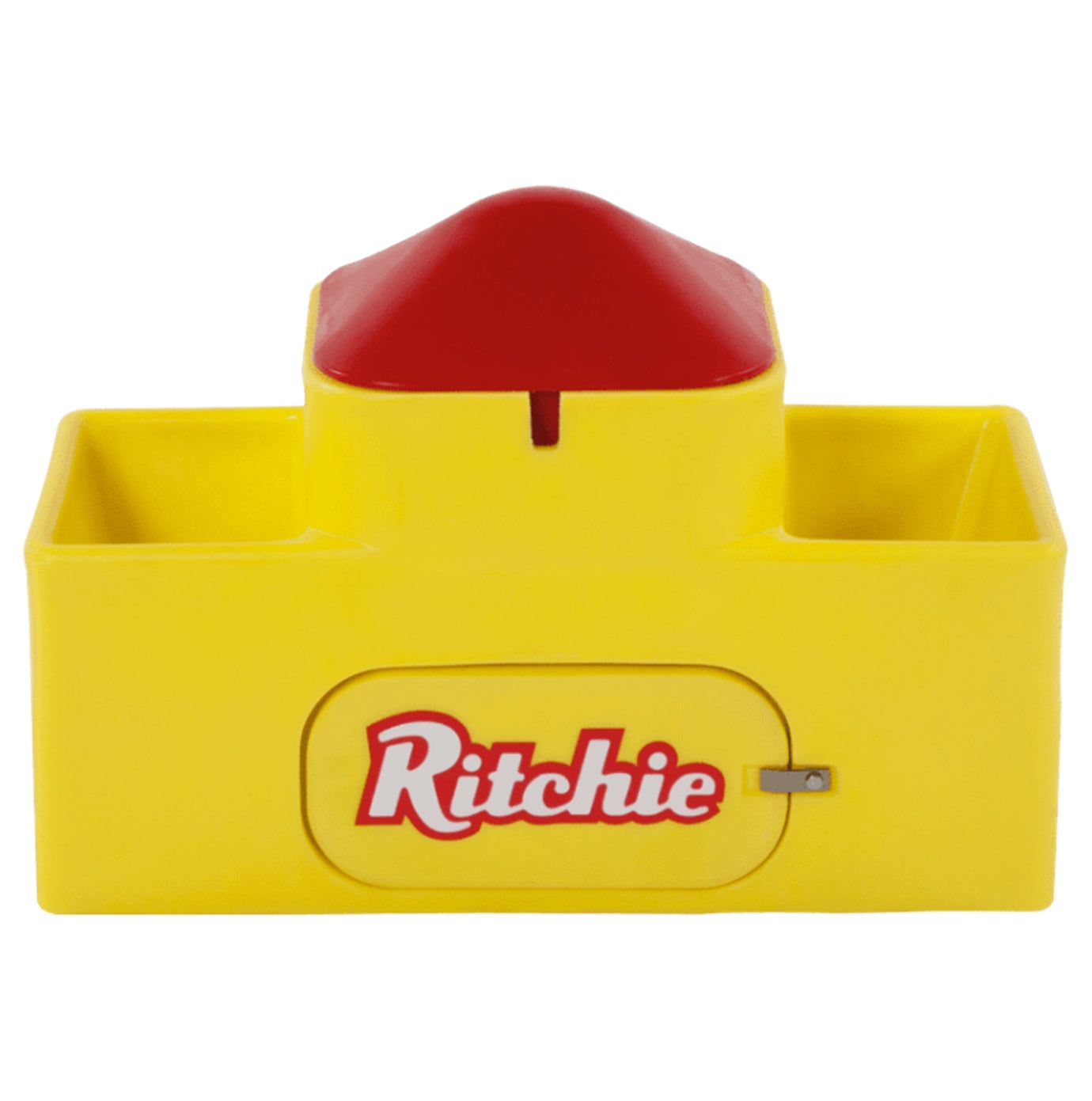

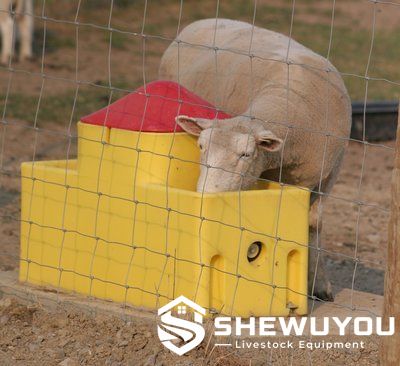

Low-Level Automatic Sheep Drinker

The Low-Level Automatic Sheep Drinker is a compact livestock watering unit developed for goat-farming-equipment/" target="_blank" class="keylink">sheep, goats and other small ruminants requiring a lower drinking height. Its double-sided trough configuration provides drinking access from both sides, making it suitable for pen divisions, fence lines and centralized watering points in commercial livestock facilities.

A float-controlled quick-refill system automatically replenishes the trough as animals drink, maintaining a practical supply of fresh water while minimizing unnecessary stored water. The low-volume trough design also supports faster water turnover and easier routine cleaning.

For livestock farm construction projects, the drinker can be integrated with water supply pipelines, sheep penning systems and steel structure farm buildings. Water connections, installation arrangements and cold-weather protection can be configured according to project requirements and local climate conditions.

• Low Drinking Height: Designed to provide comfortable water access for sheep, goats and other smaller livestock.
• Double-Sided Drinking Access: Two trough sections allow animals to drink from opposite sides of the unit.
• Automatic Water Refill: Float-controlled valve replenishes water automatically as the trough level drops.
• Low-Capacity, Quick-Refill Design: Reduces the volume of standing water while maintaining fresh water availability.
• Insulated Body: Insulation helps keep drinking water cooler during hot weather and provides additional protection in cold conditions.
• Anti-Climbing Cover: Raised domed valve-compartment cover discourages animals from standing or climbing on the waterer.
• Easy-Clean Troughs: Drinking surfaces slope toward drain points to assist sediment removal and routine washing.
• Service Access: Side access to the internal waterline and valve area simplifies inspection and maintenance.
• Durable One-Piece Body: Rugged construction is suitable for intensive livestock environments and long-term farm use.
• Cold-Climate Options: Heating arrangements can be incorporated where freezing conditions require additional protection.

The automatic sheep drinker is connected to the farm water supply. As animals consume water, the trough level falls and the internal float mechanism opens the inlet valve. Fresh water then enters the drinking trough automatically.

When the preset water level is restored, the float mechanism closes the valve and stops the incoming flow. This automatic cycle maintains drinking water availability without continuous manual filling.

The combination of a relatively low water volume and a quick-refill valve promotes frequent water replacement, while sloped trough surfaces and drain points simplify routine clean-out.

Reference dimensions and capacities are based on the comparable Ritchie WaterMatic 150S configuration. SHEWUYOU production specifications can be customized and should be confirmed before ordering.

• Commercial sheep farms and breeding facilities
• Goat farms and small-ruminant housing
• Ewe and lamb housing areas
• Indoor livestock pens and holding areas
• Fence-line and pen-divider watering points
• Steel structure sheep and goat buildings
• Livestock farm renovation projects
• Pasture and paddock watering systems where suitable water and foundation services are available
• Large-scale agricultural and livestock development projects

SHEWUYOU can configure the automatic watering solution according to animal type, farm layout and project conditions. Available options may include:

• Drinker dimensions and drinking height according to project requirements
• Water inlet and pipeline connection configuration
• Valve selection according to water pressure and required flow rate
• Insulation configuration according to local climate
• Optional cold-weather heating and frost-protection solutions
• Foundation and anchoring arrangement
• Waterer quantity and spacing according to flock size
• Integration with livestock penning and feeding systems
• Complete water pipeline layout for new farm construction

Foundation: Install the drinker on a stable, level base and secure it using appropriate anchor points. For new livestock buildings, the water supply line and any electrical service required for freeze protection should be coordinated with the foundation design before installation.

Water Supply: Connect the inlet to a clean livestock water supply. Valve selection and any pressure regulation should match the actual farm water pressure to ensure reliable shut-off and refill performance.

Cleaning: Periodically drain the troughs and remove feed residues, sediment and organic material. Sloped internal surfaces help direct debris toward the drain points.

Valve Inspection: Check the float, valve, seals and water connection regularly. Correct adjustment helps maintain the desired water level and prevents unnecessary overflow.

Cold-Weather Operation: In freezing climates, suitable heating, insulated supply lines and frost protection should be designed according to local temperatures and farm conditions.

The Low-Level Automatic Sheep Drinker can be incorporated into complete commercial sheep and goat farm projects together with penning systems, feeding equipment, water pipelines, drainage systems and steel structure livestock buildings. Waterer quantity and placement can be planned according to flock size, pen arrangement, animal flow and water demand.

Q: Why use a low-level automatic drinker for sheep?
A: A lower drinking edge provides easier access for shorter livestock such as sheep and goats while maintaining automatic water replenishment.

Q: How is the water level controlled?
A: An internal float-operated valve opens when the water level falls and closes automatically when the required level is restored.

Q: Why use a double-sided trough?
A: Drinking access from both sides can improve positioning flexibility and allows the unit to serve animals from adjacent areas when incorporated into a suitable pen or fence-line layout.

Q: Is the drinker suitable for cold climates?
A: Yes, when equipped with a suitable heating and frost-protection system. The final configuration should be designed according to local winter temperatures and waterline conditions.

Q: Can the water connection and dimensions be customized?
A: Yes. Connection arrangements, dimensions and related installation details are available according to project requirements.

Q: Can SHEWUYOU supply the drinker as part of a complete sheep farm project?
A: Yes. The watering equipment can be integrated with livestock penning, feeding systems, pipelines and steel structure farm buildings for complete project supply.
