Dual-Tank Continuous Spray Vaccination System

The Dual-Tank Continuous Spray Vaccination System is an automated hatchery solution developed for efficient spray vaccination of day-old chicks. It combines a controlled vaccine supply system, compressed-air atomization, protective spray containment and automatic triggering to support repeatable vaccination within a high-throughput chick handling workflow.

The equipment can be integrated with chick counting and boxing systems, discharge conveyors and other hatchery automation lines. It may also be configured as a standalone vaccination unit. Machine dimensions, conveyor interfaces, tank configuration and utility connections can be designed according to project requirements.

• Dual vaccine reservoirs support continuous operation and reduce interruptions caused by routine replenishment.
• Automatic changeover between the operating and reserve vaccine tanks helps maintain a stable vaccination workflow.
• Compressed-air atomization generates a controlled vaccine mist for spray application to day-old chicks.
• Automatic chick-box detection activates the spray cycle when a box reaches the designated vaccination position.
• Transparent protective guarding helps contain the spray pattern and minimize vaccine drift outside the chick box.
• Accessible vaccine containers simplify checking, replenishment, cleaning and routine sanitation.
• Suitable for high-throughput commercial hatcheries and integrated poultry production projects.

• Dual vaccine reservoirs: Operating and reserve tanks arranged for automatic changeover and continuous vaccine supply.
• Spray nozzle assembly: Precision nozzle arrangement for controlled atomization and spray distribution.
• Compressed-air circuit: Regulated air supply used to create the vaccine mist.
• Detection and control system: Sensor-based triggering and operating controls for automatic spray cycles.
• Transparent spray guard: Enclosed vaccination area designed to improve spray containment and operator visibility.
• Conveyor interface: Support and guide structure adaptable to the existing or planned chick-box conveyor.
• Hygienic machine frame: Stainless-steel construction can be specified for demanding hatchery cleaning and disinfection environments.

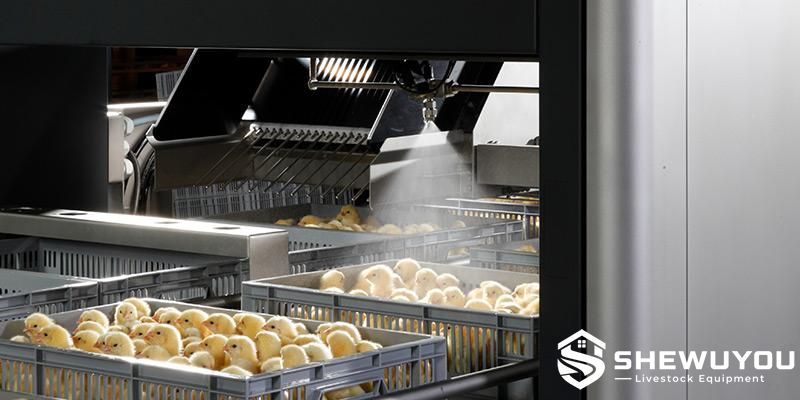

The vaccine solution is supplied from the active reservoir to the spray nozzle assembly. Compressed air assists atomization to produce a fine mist within the controlled vaccination zone. When a chick box enters the designated spray position, the detection system initiates the configured spray cycle.

During continuous production, the reserve tank can be brought into service when the active vaccine supply requires replenishment. This dual-tank principle is intended to minimize unnecessary production interruptions. Nozzle positioning and spray-zone geometry can be adjusted according to chick-box dimensions and conveyor layout.

• Commercial poultry hatcheries handling large volumes of day-old chicks.
• Broiler, layer and breeder chick processing operations using spray vaccination procedures.
• Integrated hatchery projects requiring connection with chick counting, boxing, conveying and stacking equipment.
• New hatchery construction projects and automation upgrades for existing facilities.
• Poultry engineering projects requiring hygienic, durable and automation-ready hatchery equipment.

The system can be engineered as part of a complete hatchery automation project and adapted to different production layouts and local operating conditions.

• Tank volume and dual-reservoir arrangement: Customizable.
• Nozzle quantity, position and spray coverage: According to project requirements.
• Conveyor width, working height and machine interface: Customizable.
• Standalone or inline installation: Available upon request.
• Sensors, control cabinet and automation functions: According to project requirements.
• Stainless-steel frame and protective guarding: Designed according to local climate, hygiene standards and site conditions.
• Electrical and compressed-air connections: Adaptable to local utility standards.

For new hatchery construction, the vaccination unit can be positioned during conveyor and process-line planning to ensure suitable working height, access clearance and utility routing. For retrofit projects, the support frame and conveyor interface can be adjusted to the existing production line.

• Install on a stable floor or engineered equipment support structure.
• Provide clean compressed air and electrical power according to the final equipment configuration.
• Keep vaccine containers, hoses and nozzles accessible for inspection and sanitation.
• Clean and disinfect product-contact components according to the vaccine manufacturer's instructions and hatchery biosecurity procedures.
• Inspect nozzles, tubing, seals, sensors and connections as part of routine preventive maintenance.

Final installation details are determined according to the project layout, building structure, conveyor system, local utilities and applicable hygiene requirements.

Q: Is the system suitable for a new hatchery project?
A: Yes. The vaccination unit can be incorporated into a complete hatchery process layout, including chick counting, boxing, conveying and stacking systems.

Q: Can it be installed on an existing conveyor line?
A: Yes. The conveyor interface, support structure and working height can be customized according to the existing equipment and site layout.

Q: What is the purpose of the dual-tank configuration?
A: It provides a reserve vaccine supply and allows replenishment of one reservoir while the vaccination process continues, helping reduce avoidable production interruptions.

Q: Can the spray process be automated?
A: Yes. An automatic detection and control configuration can trigger spraying when a chick box reaches the defined vaccination position.

Q: Can the equipment be customized for different chick boxes?
A: Yes. Nozzle arrangement, spray zone, conveyor interface and machine dimensions can be designed according to chick-box specifications and project requirements.

Q: What information is recommended for a project quotation?
A: Hatchery throughput, chick-box dimensions, conveyor layout, available utilities, vaccination process, installation environment and local electrical standards are recommended for engineering evaluation.
