Product Name	Automatic Chick Spray Vaccinator
Product Image

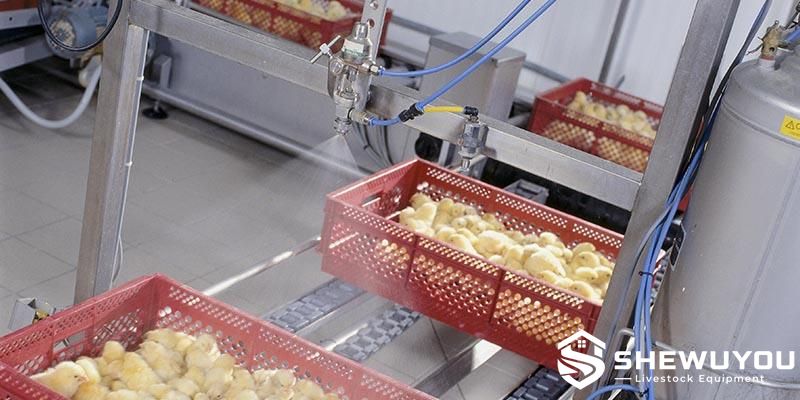

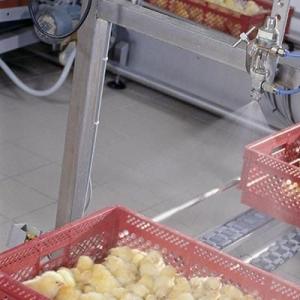

Product Overview	The Automatic Chick Spray Vaccinator is a hatchery vaccination system designed to apply vaccine uniformly over day-old chicks while they remain inside chick boxes. The system combines compressed air with liquid vaccine to generate a controlled spray pattern over the complete chick box. Automatic box detection activates spraying only when a chick box is correctly positioned beneath the spray section, helping reduce unnecessary vaccine loss. The unit can be installed above a chick-box conveyor for inline operation or configured as a standalone vaccination station. It is suitable for commercial hatcheries, poultry integration projects and automated chick handling lines requiring consistent, high-throughput vaccination.
Key Features	Automatic Chick-Box Detection: Sensors detect the presence of a chick box and activate spraying only when required. Uniform Spray Coverage: Multiple spray nozzles distribute vaccine across the chick box for consistent flock exposure. Compressed-Air Atomization: Controlled air pressure produces the required spray pattern for hatchery vaccination. Transparent Drift Guard: Clear protective covers help contain the spray pattern and reduce vaccine drift outside the chick box. Inline or Standalone Installation: The system can be integrated above an existing chick-handling conveyor or installed as an independent station. High-Throughput Operation: Suitable for large commercial hatcheries processing continuous batches of day-old chicks. Hygienic Construction: Stainless steel and washable protective components support hatchery cleaning and disinfection procedures.
Structural Components	Stainless Steel Frame: Supports the spray unit above the chick-box transport path. Spray Nozzle Assembly: Produces the required vaccine spray pattern over the chicks. Compressed-Air Circuit: Supplies regulated air pressure for vaccine atomization. Vaccine Reservoir: Stores prepared vaccine solution for continuous operation. Chick-Box Detection Sensor: Detects box position and triggers the vaccination cycle. Transparent Protective Covers: Help control spray drift and improve visibility during operation. Control System: Coordinates box detection, spray activation and operating sequence. Conveyor Interface: Allows integration with chick counting, boxing and handling equipment.
Working Principle	Day-old chicks are placed in transport boxes and moved beneath the vaccination unit manually or by conveyor. When the detection sensor confirms that a chick box has reached the correct position, the spray system activates automatically. Compressed air combines with the prepared vaccine solution and distributes it through the nozzle assembly over the chicks. After the programmed spray cycle is completed, the box moves away and the system remains ready for the next box. This automatic sequence supports repeatable vaccine application while minimizing unnecessary spraying between boxes.
Technical Specifications	Product Type Automatic Chick Spray Vaccinator Target Birds Day-old chicks Reference Capacity Up to 900 chick boxes/hour or 90,000 chicks/hour Spray Method Compressed-air vaccine spray Reference Air Requirement 0.2 litre/min at 6 bar Frame Material AISI 304 stainless steel Protective Covers Durable transparent plastic Reference Dimensions 1535 × 940 × 1200 mm Reference Weight 43 kg Installation Inline conveyor or standalone configuration Alternative Configuration Customizable according to project requirements
Applications	- Day-old chick spray vaccination - Commercial broiler hatcheries - Layer hatcheries - Breeder hatcheries - Poultry integration projects - Automated chick handling lines - Chick counting and boxing systems - Hatchery vaccination stations - Large-scale poultry vaccination programs - Newcastle Disease vaccination programs where approved - Infectious Bronchitis vaccination programs where approved
Customization Options	Available project options may include: - Conveyor width adaptation - Chick-box size compatibility - Spray nozzle configuration - Spray pressure configuration - Vaccine reservoir arrangement - Single or dual reservoir system - Automatic refill configuration - Sensor positioning - Stainless steel frame dimensions - Standalone or inline installation - Control interface - Cleaning and sanitation configuration Final specifications are determined according to hatchery capacity, chick-box dimensions and project requirements.
Installation & Maintenance	For inline operation, the vaccination unit should be positioned above the chick-box conveyor with sufficient clearance for safe box movement and uniform spray coverage. The compressed-air supply should be clean, regulated and suitable for the specified operating pressure. Vaccine lines, reservoirs and nozzles should be prepared according to the vaccination protocol before operation. Spray distribution should be checked regularly to confirm that the complete chick-box area receives uniform coverage. Nozzles should be inspected for blockage or irregular spray patterns. After vaccination, all vaccine-contact components should be cleaned according to approved hatchery hygiene procedures. Residual disinfectants should not remain in components that will contact live vaccines.
Project Cases	Automatic spray vaccinators are widely suited to hatcheries where day-old chicks are already transported in boxes through automated counting and handling lines. The spray station can be positioned after chick counting and boxing so each completed chick box passes automatically through the vaccination zone before stacking or dispatch. For new hatchery projects, equipment layout can be coordinated with chick conveyors, counting systems, boxing machines, vaccination equipment and climate-controlled chick holding areas.
Product FAQ	Q: What is an Automatic Chick Spray Vaccinator used for? A: It automatically applies compatible spray vaccines to day-old chicks while the birds remain inside chick boxes. Q: How is the spray cycle activated? A: A detection system identifies the presence of a chick box and automatically activates the spray cycle. Q: Can the system be installed above an existing conveyor? A: Yes. The reference design can be bridge-mounted above a chick-box conveyor or used as a standalone system. Q: What is the reference production capacity? A: The reference system is rated for up to approximately 900 chick boxes or 90,000 chicks per hour under suitable operating conditions. Q: Why is a transparent drift guard used? A: It helps contain the spray pattern over the chick box, reducing vaccine drift and unnecessary wastage. Q: Can the spray configuration be customized? A: Yes. Nozzle arrangement, conveyor interface, reservoir configuration and system dimensions can be adapted according to project requirements.
