Product Name	Cabinet Chick Spray Vaccinator
Product Image

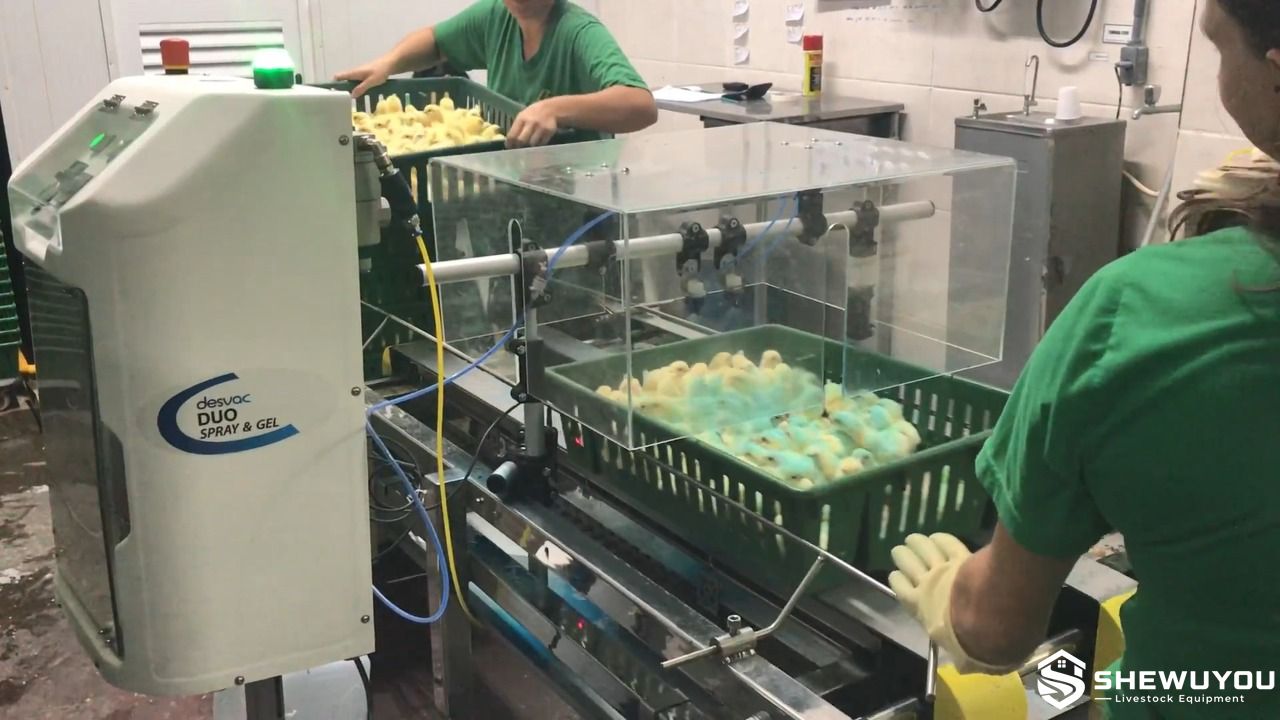

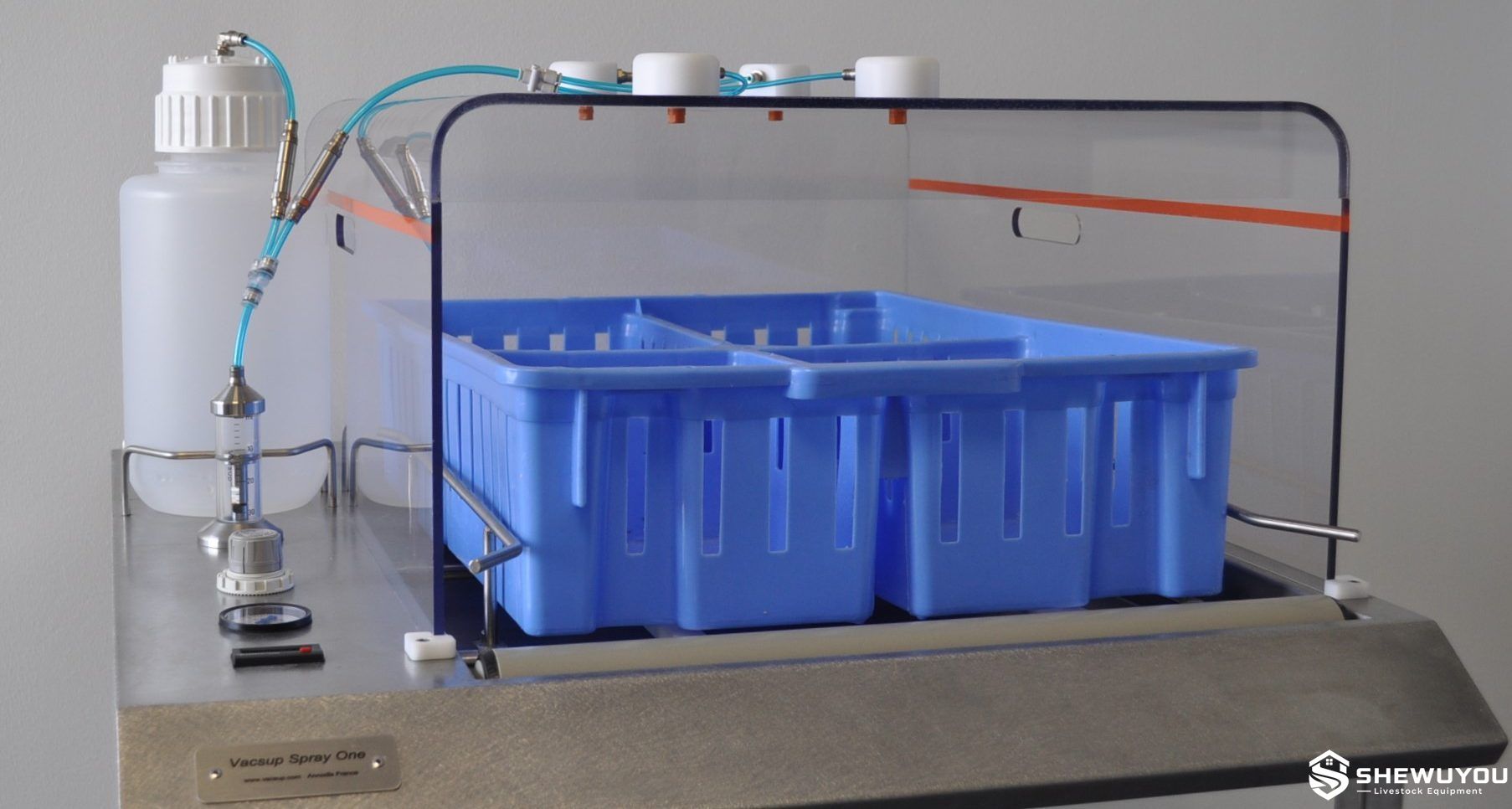

Product Overview	The Cabinet Chick Spray Vaccinator is designed for controlled spray vaccination of day-old chicks in commercial hatcheries. Chick boxes are positioned inside the vaccination chamber, where a dedicated spray system distributes prepared vaccine solution across the birds. The reference equipment combines a stainless steel structure with a transparent acrylic enclosure, mobile base and adjustable support system. A moving spray-nozzle mechanism helps improve distribution across the chick box while maintaining a compact and easy-to-clean workstation. This type of equipment is suitable for high-throughput hatchery operations requiring repeatable vaccination, convenient chick-box handling and integration with commercial poultry processing workflows.
Key Features	Cabinet Spray Vaccination: Provides controlled application of compatible spray vaccines to day-old chicks inside a dedicated enclosure. Moving Spray Nozzle: The nozzle movement system helps distribute vaccine across the chick box. Fan-Shaped Spray Pattern: Provides broad spray coverage suitable for grouped chick vaccination. Adjustable Vaccine Volume: Spray dose can be configured according to vaccine protocol and project requirements. Stainless Steel Construction: Main structural components can be manufactured from corrosion-resistant stainless steel for hatchery environments. Transparent Acrylic Cabin: Allows operators to observe chick positioning and the spray process. Mobile Base: Caster wheels support convenient positioning within chick processing areas. Easy Cleaning: Smooth surfaces and accessible components simplify routine hatchery sanitation.
Structural Components	Acrylic Vaccination Cabin: Transparent enclosure surrounding the chick box during spray application. Stainless Steel Frame: Supports the cabinet, dosing system and operating components. Stainless Steel Tray: Provides a durable working surface beneath the vaccination chamber. Moving Spray Nozzle: Travels through the required spraying path to improve vaccine distribution. Fan-Spray Nozzle: Produces a broad spray pattern over the chicks. Dosing Assembly: Controls the selected quantity of vaccine solution delivered during each cycle. Pneumatic Components: Provide operating force for compatible spray and movement functions. Casters and Support Feet: Allow mobile positioning and stable operation.
Working Principle	Prepared vaccine solution is connected to the dosing and spray system according to the applicable veterinary protocol. A chick box containing day-old chicks is positioned inside the vaccination cabinet. During the vaccination cycle, the dosing mechanism supplies the selected volume of vaccine solution to the spray nozzle. The nozzle moves across the vaccination area while producing a fan-shaped spray pattern over the chicks. After the spray cycle is completed, the chick box is removed and replaced with the next box. This process supports repetitive hatchery vaccination while maintaining a controlled spraying area.
Technical Specifications	Product Type: Cabinet Chick Spray Vaccinator Application: Spray vaccination of day-old chicks Main Structure: Stainless steel Cabin Material: Transparent acrylic Spray Pattern: Fan-shaped Nozzle Movement: Moving spray-nozzle system Vaccine Dose Volume: Customizable Chick Box Compatibility: According to project requirements Working Height: Customizable Caster Configuration: Available upon request Pneumatic Supply: According to equipment configuration Overall Dimensions: According to project requirements
Applications	The Cabinet Chick Spray Vaccinator is suitable for commercial broiler hatcheries, layer hatcheries, breeder hatcheries and integrated poultry production facilities. It can be used for compatible vaccines approved for spray administration, following the vaccine manufacturer's instructions and veterinary protocol. Typical users include poultry integrators, hatchery groups, livestock equipment distributors, engineering contractors and agricultural project suppliers requiring dedicated day-old chick vaccination equipment.
Customization Options	Vaccine dose volume: Customizable Chick box dimensions: According to project requirements Cabinet dimensions: Customizable Spray nozzle configuration: Available upon request Pneumatic connection configuration: According to project requirements Working height: Customizable Caster configuration: Available upon request Stainless steel structure configuration: According to project requirements Hatchery workstation integration: Available upon request Spare nozzle and maintenance kit: Available upon request
Installation & Maintenance	Position the cabinet on a stable hatchery floor and adjust the support feet to obtain a suitable working height. Lock the caster brakes before vaccination. Connect the required pneumatic and vaccine-supply components according to the equipment configuration. Before processing chicks, confirm that the dosing system, spray nozzle and nozzle movement mechanism operate correctly. Vaccine-contact components should be cleaned according to veterinary hygiene requirements after each vaccination session. The acrylic enclosure, stainless steel tray and frame should also be cleaned to remove vaccine residue and hatchery contamination. Routine maintenance should include inspection of tubing, nozzle openings, dosing components, pneumatic fittings, caster brakes and moving mechanisms.
Project Cases	Cabinet spray vaccinators can be installed as standalone vaccination stations in day-old chick processing areas or incorporated into larger hatchery handling workflows. For new hatchery projects, equipment dimensions, chick box format, pneumatic supply, working height and surrounding stainless steel processing equipment can be coordinated during project engineering. Mobile configurations also allow the unit to be repositioned when hatchery workflow, sanitation zoning or chick handling arrangements change.
Product FAQ	Q: What birds is the cabinet designed to vaccinate? A: It is designed primarily for spray vaccination of day-old chicks in commercial hatcheries. Q: Can the vaccine dose be adjusted? A: Yes. Dose volume can be configured according to the selected vaccine protocol and project requirements. Q: Why does the spray nozzle move? A: Nozzle movement helps distribute the fan-shaped spray across the chick box more evenly. Q: Is the equipment mobile? A: Yes. Caster-equipped configurations allow convenient repositioning within the hatchery. Q: Can the cabinet be customized for different chick boxes? A: Yes. Cabinet size, working height and related structural components can be designed according to project requirements. Q: Can any poultry vaccine be used? A: Only vaccines approved for the selected spray administration method should be used according to the vaccine manufacturer's instructions and veterinary protocol.
