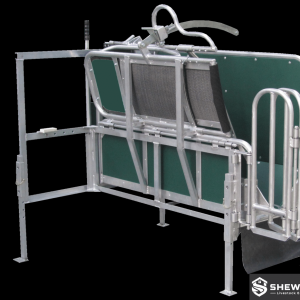

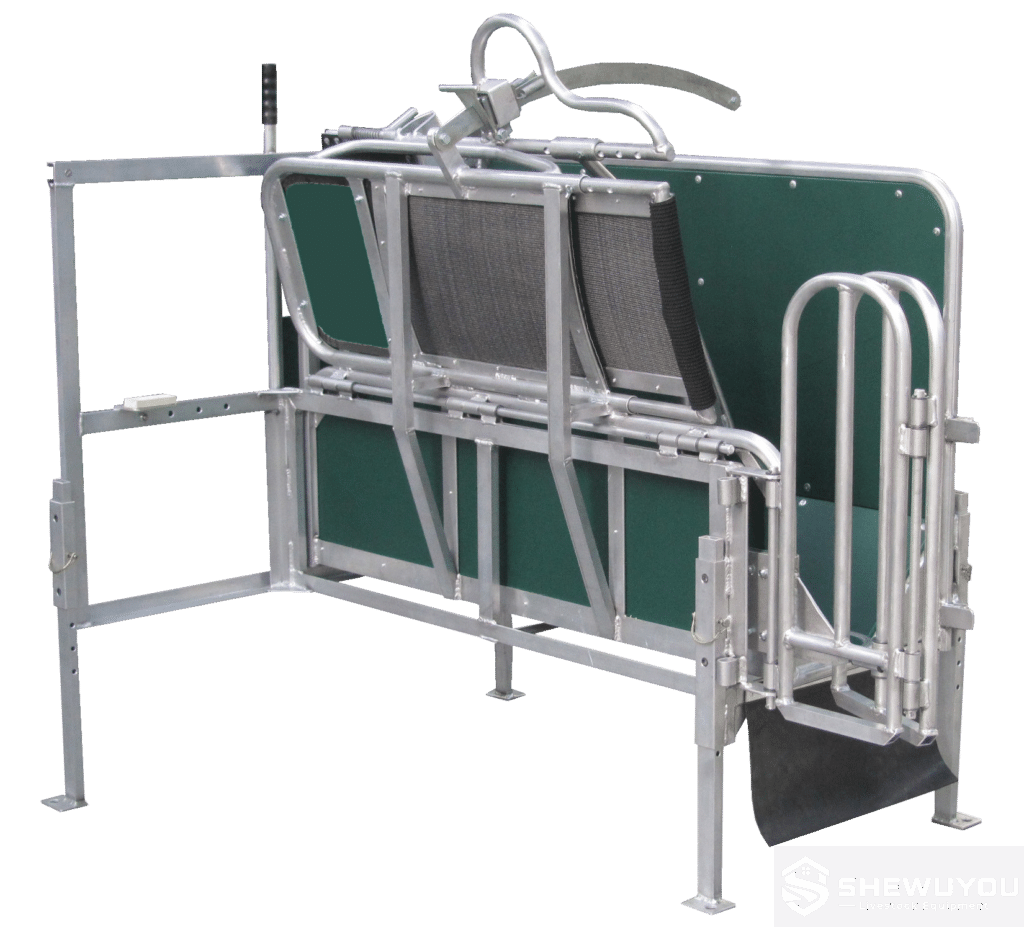

Product Name	Automatic Side-Tilt Sheep Handler
Product Image
Product Overview	The Automatic Side-Tilt Sheep Handler is a multi-purpose livestock handling system designed to restrain and position goat-farming-equipment/" target="_blank" class="keylink">sheep efficiently for hoof trimming, crutching, dagging, vaccination, drenching, tagging, inspection, weighing and drafting operations. Its adjustable clamping section holds the animal in a controlled working position, while the side-tilt mechanism allows the operator to rotate the sheep to a convenient angle for improved access to the hooves, belly and rear area. This reduces repeated manual lifting and helps improve operator efficiency during intensive flock management work. The system can be supplied as a stand-alone sheep handler or integrated with lead-up races, sorting gates, weighing equipment, EID identification systems and complete livestock handling yards for commercial sheep farms and agricultural projects.
Key Features	Automatic animal clamping for efficient and repeatable sheep restraint. Adjustable side-tilt function improves access for hoof trimming, crutching, dagging and veterinary work. Adjustable restraint width accommodates lambs, mature ewes and larger sheep. Open upper structure provides convenient access for vaccination, drenching, tagging and inspection. Controlled clamping pressure can be configured to improve animal restraint while reducing unnecessary compression. Automatic or manual operating modes can be configured according to farm workflow. Optional foot pedal, control panel or remote-control operation available upon request. Compatible with weighing, electronic identification and automatic drafting equipment. Can be integrated with sheep races, forcing pens, drafting gates and complete livestock handling systems. Heavy-duty frame configuration designed for repeated commercial livestock handling operations.
Structural Components	Main Frame: Rigid structural frame supporting the restraint, tilting and handling mechanisms. Lead-Up Section: Guides sheep individually into the handling area and helps maintain smooth livestock flow. Automatic Restraining Walls: Adjustable side panels secure the animal during treatment and data collection. Side-Tilt Assembly: Rotates the restrained sheep to a suitable working angle for hoof, belly and rear access. Front and Rear Access Areas: Provide practical access for trimming, crutching and livestock health procedures. Entry and Exit Gates: Control animal movement through the handling system. Control System: Coordinates clamping, release and optional drafting functions. Weighing Interface: Can be configured for connection with compatible livestock scales and load cells. EID Interface: Optional electronic identification equipment supports individual animal data collection. Drafting Section: Optional sorting gates direct sheep into designated groups after processing.
Working Principle	Sheep move from the holding area through the lead-up race and enter the restraining section individually. Sensors or operator controls can initiate the clamping cycle, positioning the animal securely between the adjustable restraint panels. For hoof trimming, dagging or other procedures requiring improved underside access, the side-tilt mechanism rotates the restrained animal to the selected working position. The operator can then complete the required livestock management procedure without manually supporting the full weight of the sheep. After treatment, the handler returns to its normal position and releases the animal. When equipped with weighing, EID or drafting components, the system can record livestock information and direct animals to different pens according to predefined management criteria.
Technical Specifications	Product Type Automatic sheep restraining and side-tilt handler Suitable Livestock Lambs, ewes, rams and similar small livestock Restraint System Automatic adjustable side clamp Tilt Function Adjustable side tilt Tilt Angle Customizable according to operating requirements Operating Mode Automatic / Manual, according to configuration Control Options Control panel, foot control or remote control available upon request Weighing System Optional EID Identification Optional Drafting Gates Available upon request Lead-Up Race Customizable Frame Material According to project requirements Surface Treatment Available upon request Overall Dimensions According to project requirements Installation Fixed, skid-mounted or portable configuration available upon request
Applications	Sheep hoof trimming and foot paring Dagging, crutching and belly access Drenching and oral treatment Vaccination and veterinary procedures Ear tagging and electronic identification Body condition and health inspection Livestock weighing and performance monitoring Automatic sheep drafting and flock classification Breeding ewe and ram management Commercial sheep farms and breeding operations Livestock handling yards and agricultural engineering projects
Customization Options	SHEWUYOU can configure the Automatic Side-Tilt Sheep Handler according to flock size, sheep breed, operating frequency, existing yard layout and livestock management objectives. Customization options may include restraint width, side-tilt configuration, control method, lead-up race dimensions, entry and exit gates, drafting arrangements, weighing equipment, EID interfaces, access flaps, skid frames and portable chassis systems. Complete handling layouts can also be coordinated with livestock panels, forcing pens, races, sorting gates and other farm infrastructure. Equipment configuration can be designed according to local climate and farm conditions.
Installation & Maintenance	Install the handler on a firm and level operating surface with sufficient clearance for livestock entry, drafting and operator access. The lead-up race should align correctly with the handler to maintain smooth sheep flow and prevent unnecessary turning or backing. Pneumatic, electrical, weighing and identification components should be installed according to the selected project configuration. Before operation, restraint width, sensor position, clamping pressure and gate movement should be adjusted for the livestock being processed. Routine maintenance should include cleaning the handling area, inspecting structural fasteners, checking hinges and gates, testing sensors and controls, examining pneumatic hoses and fittings where applicable, and keeping moving components properly serviced. Weighing equipment should be checked periodically to maintain reliable data collection.
Project Cases	The Automatic Side-Tilt Sheep Handler can be incorporated into new or upgraded sheep handling facilities. Typical project layouts combine holding pens, forcing areas, adjustable lead-up races, automatic restraint equipment, weighing stations and multiple drafting pens. For large commercial farms, the system can support repeated flock processing operations in which weighing, identification, treatment and classification are completed during a single livestock handling session. Final equipment quantities and layout are designed according to project capacity and management requirements.
Product FAQ	Q: What is the main advantage of the side-tilt function? A: Side tilting positions the restrained animal at a more convenient working angle, improving access to the feet, belly and rear area for trimming, crutching and livestock care. Q: Can the handler accommodate different sheep sizes? A: Yes. The restraint section and related settings can be configured for different livestock sizes according to project requirements. Q: Can weighing equipment be integrated? A: Yes. Compatible livestock weighing systems can be incorporated for weight recording and flock management. Q: Can an EID reader be added? A: Yes. Electronic identification integration is available upon request for individual animal identification and data management. Q: Can the system automatically draft sheep? A: Automatic drafting can be configured with suitable exit gates, weighing controls and livestock management equipment according to the required project design. Q: Can the sheep handler be integrated into an existing yard? A: Yes. Entry, exit and race connections can be customized to match existing livestock handling facilities. Q: Is a portable version available? A: Skid-mounted or mobile configurations can be supplied according to transportation frequency and farm requirements.
Product Gallery
