Product Name	Foot-Pedal Sheep Turnover Crate

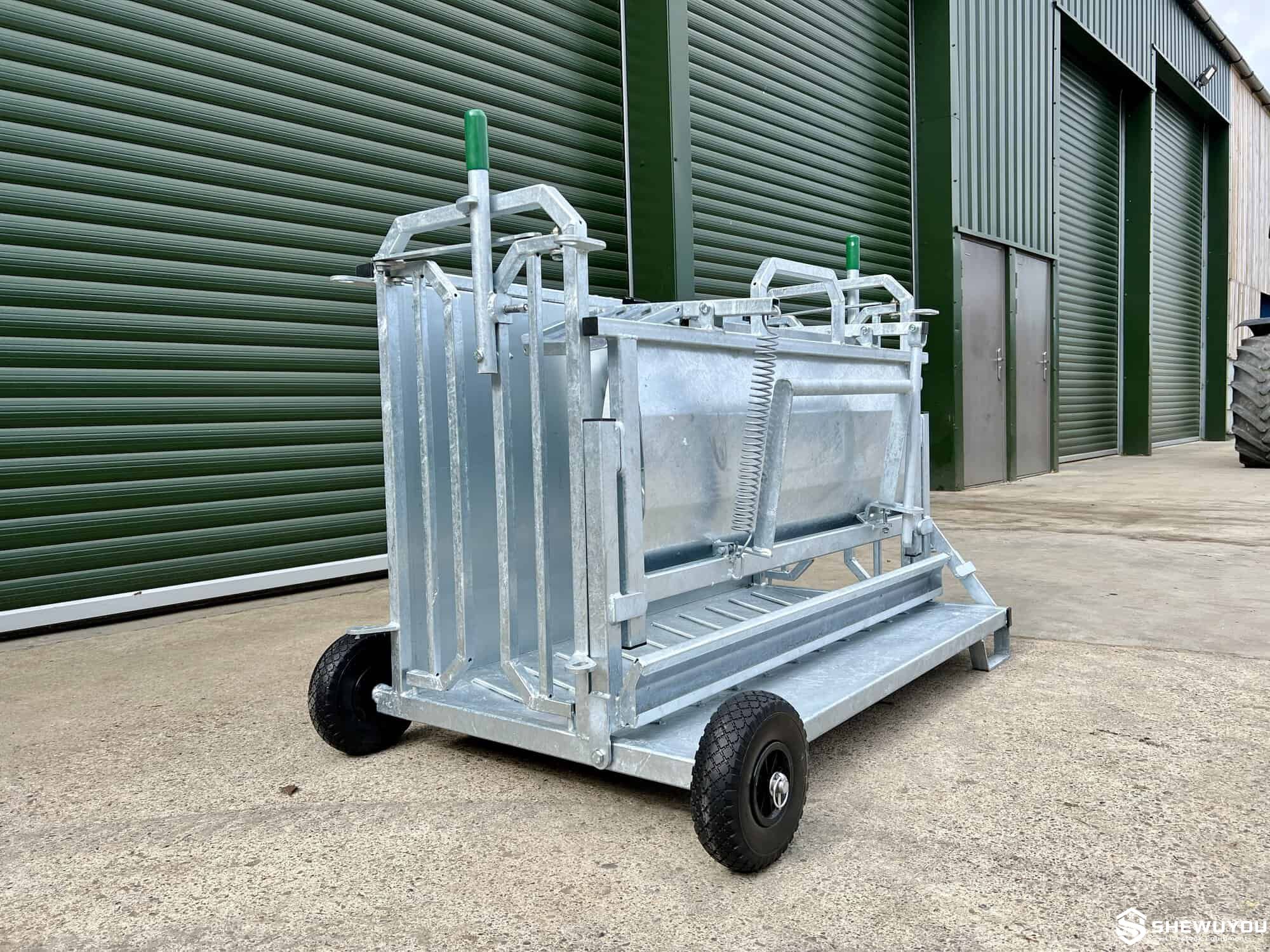

Product Image
Product Overview	The Foot-Pedal Sheep Turnover Crate is a practical livestock handling unit designed to restrain and rotate goat-farming-equipment/" target="_blank" class="keylink">sheep into a convenient working position for hoof trimming, dosing, tagging, inspection and routine flock management. The adjustable locking system accommodates different animal sizes, while the foot-pedal release allows gravity to assist the turnover movement for easier operation. The crate is suitable for commercial sheep farms, breeding operations, veterinary handling areas and livestock management projects where repeated animal treatment requires improved operator access and controlled restraint. A galvanized steel structure and portable wheel arrangement support regular use in demanding farm environments.
Key Features	Foot-pedal operated turnover release for convenient hands-free control. Gravity-assisted rotation helps reduce the physical effort required from the operator. Adjustable locking system adapts to sheep of different body sizes. Provides improved access to the legs, hooves, underside and rear of the animal. Suitable for hoof trimming, dosing, tagging, examination and routine flock care. Portable wheel system allows convenient movement around livestock yards and handling areas. Robust livestock equipment structure designed for repeated commercial farm use. Can be positioned as a stand-alone unit or incorporated into a sheep race and handling system.
Structural Components	Main Galvanized Frame: Provides structural strength and corrosion resistance for livestock handling environments. Adjustable Locking Mechanism: Secures sheep according to animal body size and working requirements. Turnover Cradle: Supports and rotates the restrained animal into an accessible treatment position. Foot Pedal Release: Controls the turnover mechanism while allowing the operator to keep both hands available. Entry and Exit Gates: Support controlled livestock flow through the handling area. Side Restraint Panels: Help stabilize the sheep before and during rotation. Non-Slip Floor Area: Provides secure footing while the sheep enters and is positioned. Transport Wheels: Improve portability between yards, races and working locations.

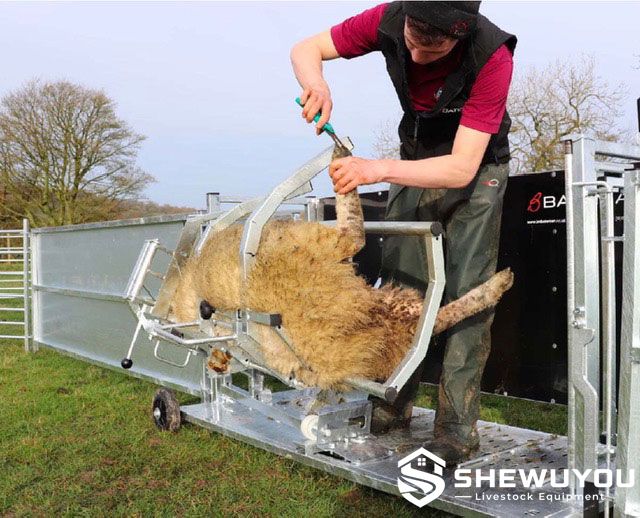

Working Principle	The sheep enters the crate through the livestock race or loading side and is secured using the adjustable locking system. After the animal is correctly positioned, the operator releases the turnover mechanism using the foot pedal. Gravity assists the crate in rotating the sheep into a controlled working position. The turnover action presents the animal's legs, hooves and body to the operator, reducing the need for manual lifting or wrestling. Once treatment is completed, the crate is returned to its upright position, the restraint is released and the sheep exits into the next handling area.
Technical Specifications	Product Type Sheep turnover and restraining crate Operation Foot-pedal release with gravity-assisted turnover Overall Length Approx. 1600 mm Overall Width Approx. 820 mm Overall Height Approx. 1100 mm Animal Restraint Adjustable locking system Surface Finish Galvanized finish or according to project requirements Mobility Transport wheels Race Integration Available according to project requirements Custom Configuration Available upon request
Applications	Sheep hoof trimming and foot paring Routine dosing and veterinary treatment Ear tagging and livestock identification Body and fleece inspection Dagging and rear-area maintenance Commercial sheep farms and breeding operations Livestock handling races and treatment yards Agricultural engineering and complete sheep farm projects
Customization Options	The Foot-Pedal Sheep Turnover Crate can be configured according to sheep breed, flock size, handling frequency and farm layout. Optional project adaptations may include frame dimensions, gate arrangement, race connections, wheel configuration, restraint settings and surface protection. Units can also be matched with sheep panels, drafting gates, holding pens and other livestock equipment. Final configuration can be designed according to local climate and farm conditions.
Installation & Maintenance	Install the turnover crate on a firm and level surface with sufficient clearance for full rotation, animal entry and operator movement. For race-mounted applications, align the crate with the livestock flow direction and securely connect adjoining gates and panels. Before operation, confirm that the locking mechanism, pedal, hinges and rotation components move freely. Routine maintenance should include cleaning manure and wool from the crate, inspecting fasteners and pivot points, checking wheels and restraint components, and servicing moving parts according to operating frequency.
Project Cases	Sheep turnover crates are commonly installed in commercial flock handling systems where animals require repeated hoof care, dosing, identification and inspection. The unit can be integrated between holding pens, forcing areas, sheep races and drafting sections to create an efficient livestock treatment workflow.
Product FAQ	Q: How does the turnover mechanism operate? A: The operator releases the turnover mechanism using a foot pedal, allowing gravity to assist the rotation of the restrained animal. Q: Can the crate handle sheep of different sizes? A: Yes. The locking system can be adjusted to accommodate different sheep sizes according to operational requirements. Q: What procedures can be carried out with the crate? A: Typical applications include hoof trimming, dosing, tagging, inspection, dagging and other routine livestock management procedures. Q: Can the turnover crate be installed in an existing sheep race? A: Yes. The unit can be configured for integration with existing handling races, gates and sheep pen systems. Q: Is the crate portable? A: Yes. A wheel arrangement allows the unit to be moved between working areas when required.

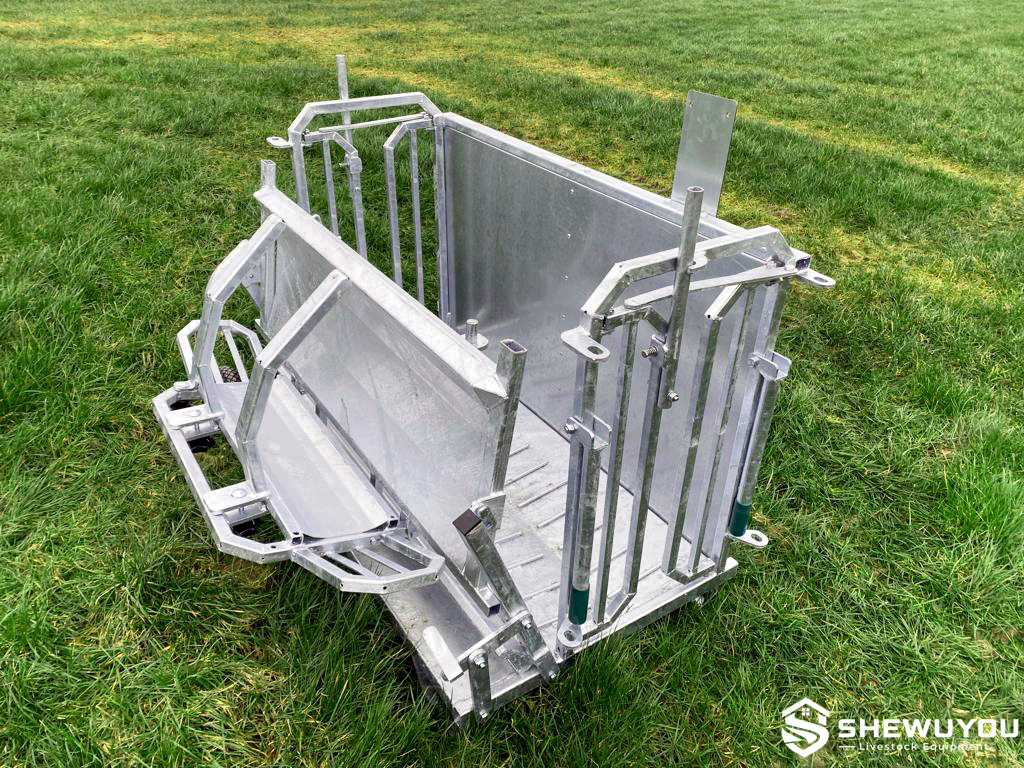

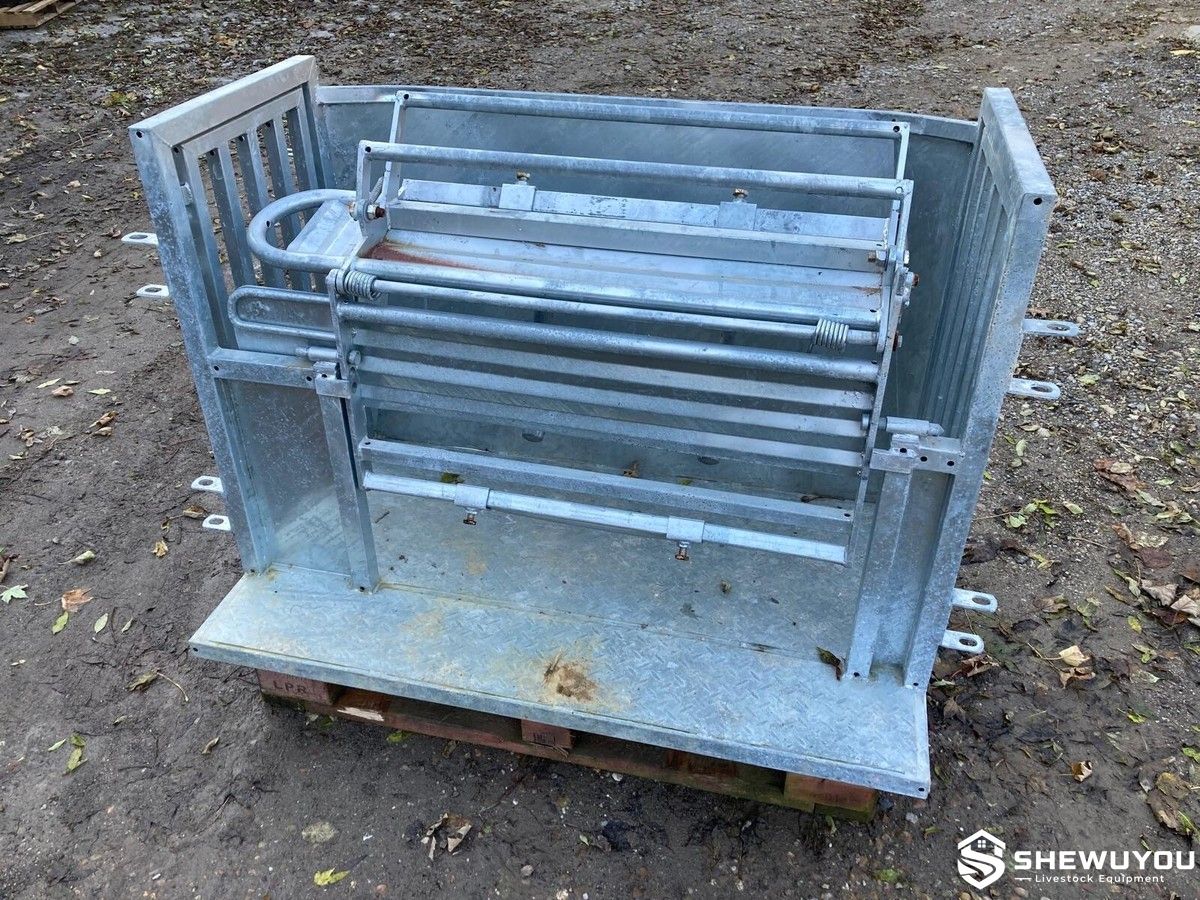

Product Gallery
