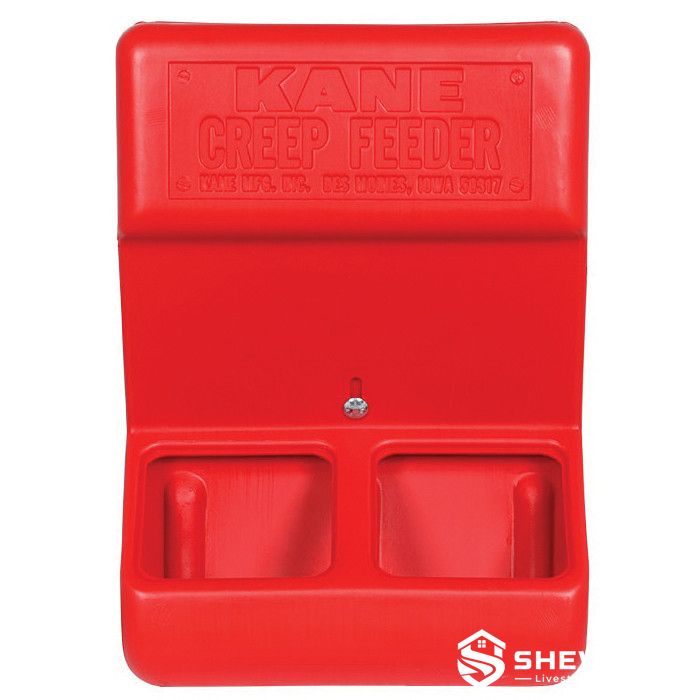

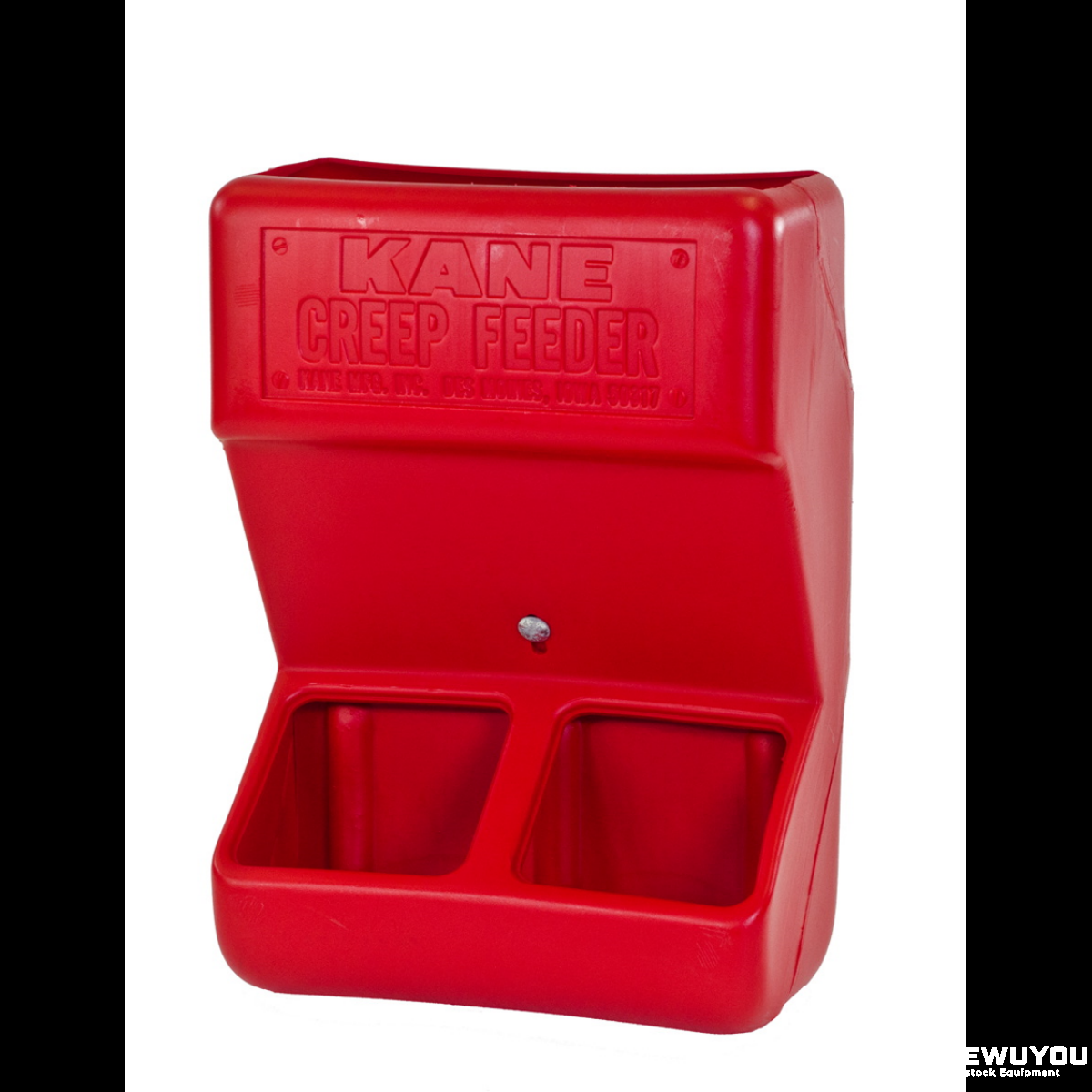

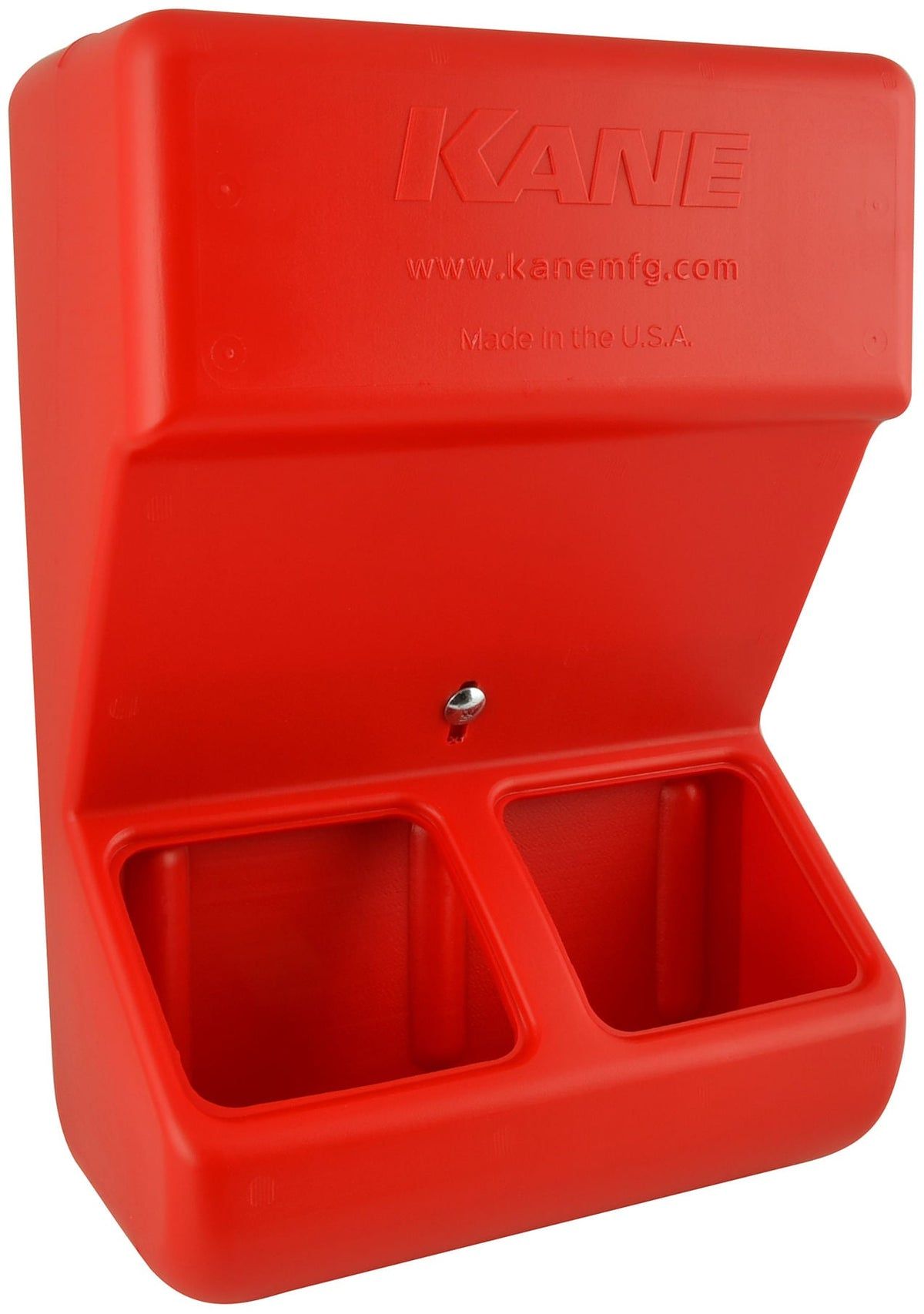

Adjustable Hopper Creep Feeder for Piglets

The Adjustable Hopper Creep Feeder for Piglets is designed to introduce dry starter feed to suckling piglets before weaning. Its compact hopper stores a practical quantity of feed and continuously supplies the lower feeding compartments through an adjustable metering system.

A smooth high-density polyethylene body resists corrosion and moisture, while the corner-free internal profile helps prevent feed from becoming trapped and stale. The rolled front lip helps retain feed during active piglet feeding.

The feeder mounts directly to compatible end or divider panels of farrowing crates and can be removed quickly for filling, washing and disinfection.

• Adjustable Feed Flow: Metering plate regulates the quantity of feed entering the lower trough.
• Integrated Hopper: Stores starter feed above the feeding area and reduces frequent hand feeding.
• Feed-Saving Lip: Rolled front edge helps reduce feed being pushed onto the floor.
• Dual Feeding Spaces: Two separated openings provide convenient access for young piglets.
• HDPE Construction: Non-corrosive molded polyethylene is suitable for humid farrowing environments.
• Corner-Free Interior: Smooth internal geometry reduces places where feed can wedge or accumulate.
• Quick-Release Mounting: Panel bracket allows convenient removal for cleaning and refilling.
• Multiple Dry Feed Types: Suitable for ground feed, pellets and compatible powdered feed additives.

• Upper Feed Hopper: Holds dry creep or starter feed above the metering section.
• Adjustable Meter Plate: Controls feed flow from the hopper into the trough.
• Dual Trough Compartments: Separate the feeding area into two piglet access points.
• Feed-Saver Rim: Raised rolled edge helps retain feed in the trough.
• Molded Polyethylene Body: One-piece structure provides a smooth and corrosion-resistant surface.
• Mounting Bracket: Secures the feeder to compatible farrowing-crate end or divider panels.

Dry starter feed is placed in the upper hopper and moves downward by gravity toward the adjustable meter plate.

The meter plate determines the opening available for feed to enter the lower trough. The operator adjusts this opening according to feed type, piglet age and consumption level.

As piglets consume feed, additional material moves from the hopper into the feeding area. Correct adjustment maintains feed availability without unnecessarily overfilling the trough.

• Product Type: Adjustable hopper creep feeder
• Primary Application: Piglets from creep-feeding introduction until weaning
• Reference Dimensions: Approximately 12 in W × 6 in D × 15 in H
• Reference Feed Capacity: Approximately 5 lb / 2.3 kg, depending on feed density
• Main Material: High-density polyethylene
• Feeding Spaces: Two
• Feed Flow: Adjustable meter plate
• Compatible Feed: Ground feed, pellets and compatible powder additives
• Mounting: End panel or divider panel of compatible farrowing crates
• Cleaning: Removable feeder body with smooth non-porous surfaces
• Final Configuration: Customizable according to project requirements

• Commercial farrowing crates
• Piglet creep areas
• Pre-weaning starter-feed programs
• Supplemental piglet feeding
• Early solid-feed introduction
• Sow and piglet production units
• Farrowing-house renovation projects
• Prefabricated steel structure pig houses

• Hopper capacity and feeder dimensions
• Feed-flow adjustment range
• Number and size of feeding spaces
• HDPE material specification
• Mounting bracket type and spacing
• Compatibility with different farrowing-pen panels
• Optional hopper cover
• Color, packaging and bulk quantities available upon request

Installation:

• Select an end or divider panel that provides convenient piglet access while minimizing interference from the sow.
• Secure the mounting bracket firmly to the compatible farrowing-crate panel.
• Attach the feeder to the bracket and confirm that the locking mechanism is engaged.
• Set the meter plate to a small initial feed opening.
• Add starter feed and observe feed flow into both trough compartments.
• Increase or decrease the opening according to piglet intake and feed characteristics.

Maintenance:

• Remove stale feed before refilling when necessary.
• Inspect the metering plate regularly for free movement.
• Keep the hopper and feed outlet dry when using dry starter feed.
• Remove, wash and disinfect the feeder between farrowing batches.
• Inspect the panel bracket and locking pins for wear or damage.
• Replace damaged mounting or adjustment components before reuse.

Q1: What is the feeder designed for?

It is designed to introduce dry starter and creep feed to young piglets while they are still with the sow and through the pre-weaning period.

Q2: How is feed flow adjusted?

An adjustable meter plate regulates the opening between the hopper and lower feeding trough.

Q3: What types of feed can be used?

The feeder can handle common dry materials such as ground starter feed, pellets and compatible powdered additives.

Q4: How much feed does the reference model hold?

The reference configuration holds approximately 5 lb or 2.3 kg of feed, depending on feed density.

Q5: How does the feeder reduce feed waste?

The adjustable feed opening prevents excessive trough filling, while the rolled front lip helps keep displaced feed inside the feeding area.

Q6: Where is the feeder installed?

It is typically mounted on an end or divider panel of a compatible farrowing crate.

Q7: Can it be removed for cleaning?

Yes. A detachable panel bracket allows the feeder to be removed conveniently for filling, washing and sanitation.

Q8: What information is required for a quotation?

Please provide the required quantity, piglet age, feed type, farrowing-crate panel dimensions, preferred hopper capacity, mounting requirements and project location.
