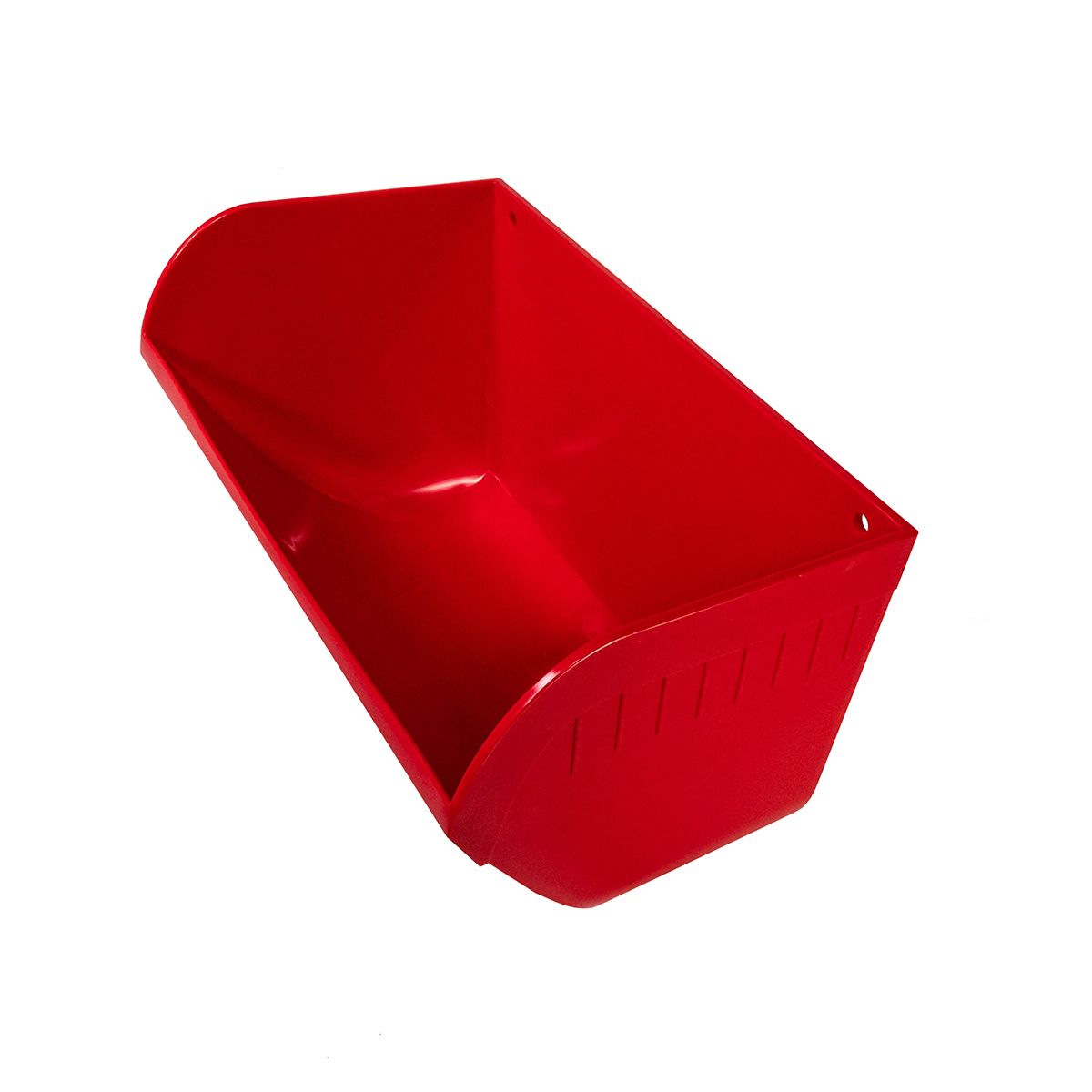

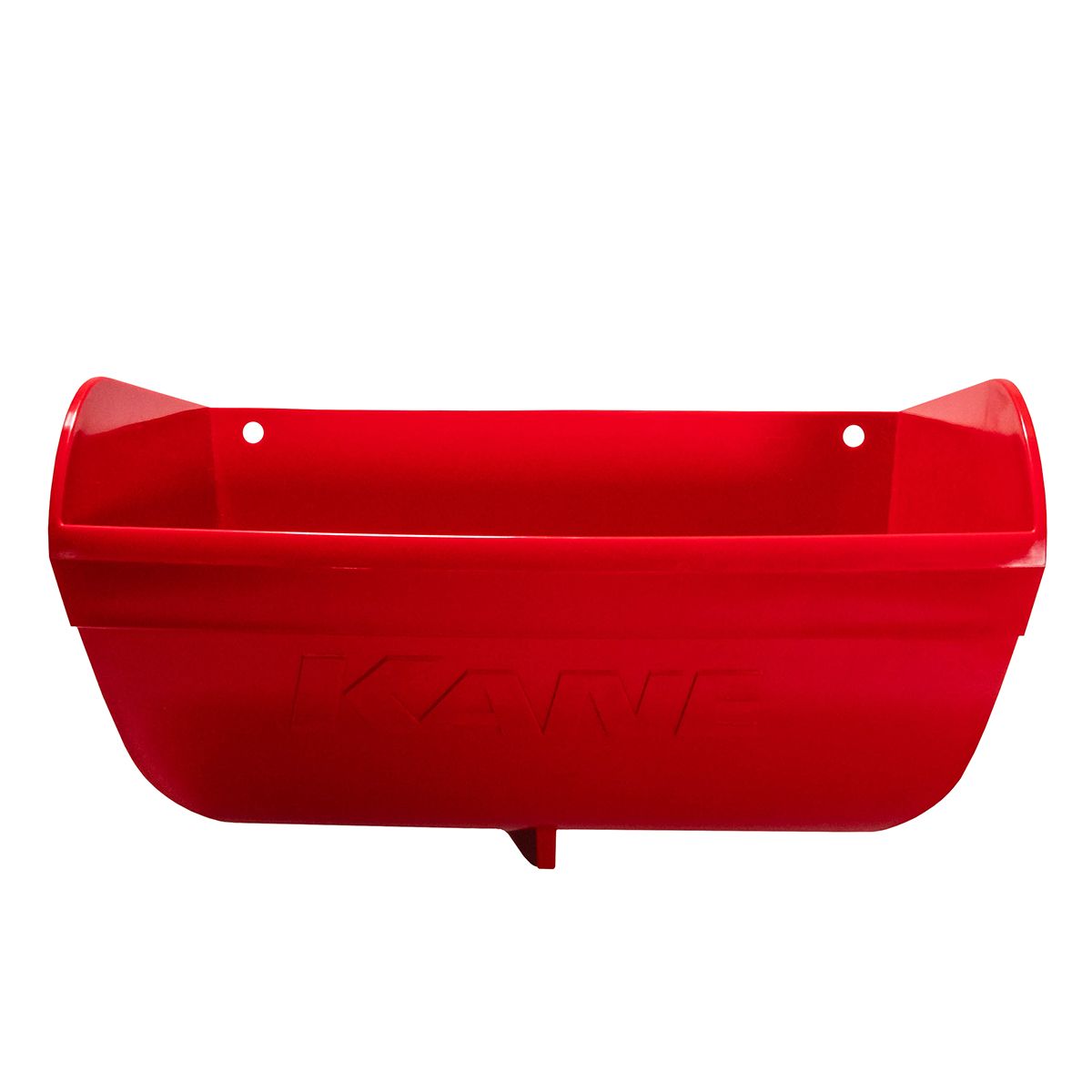

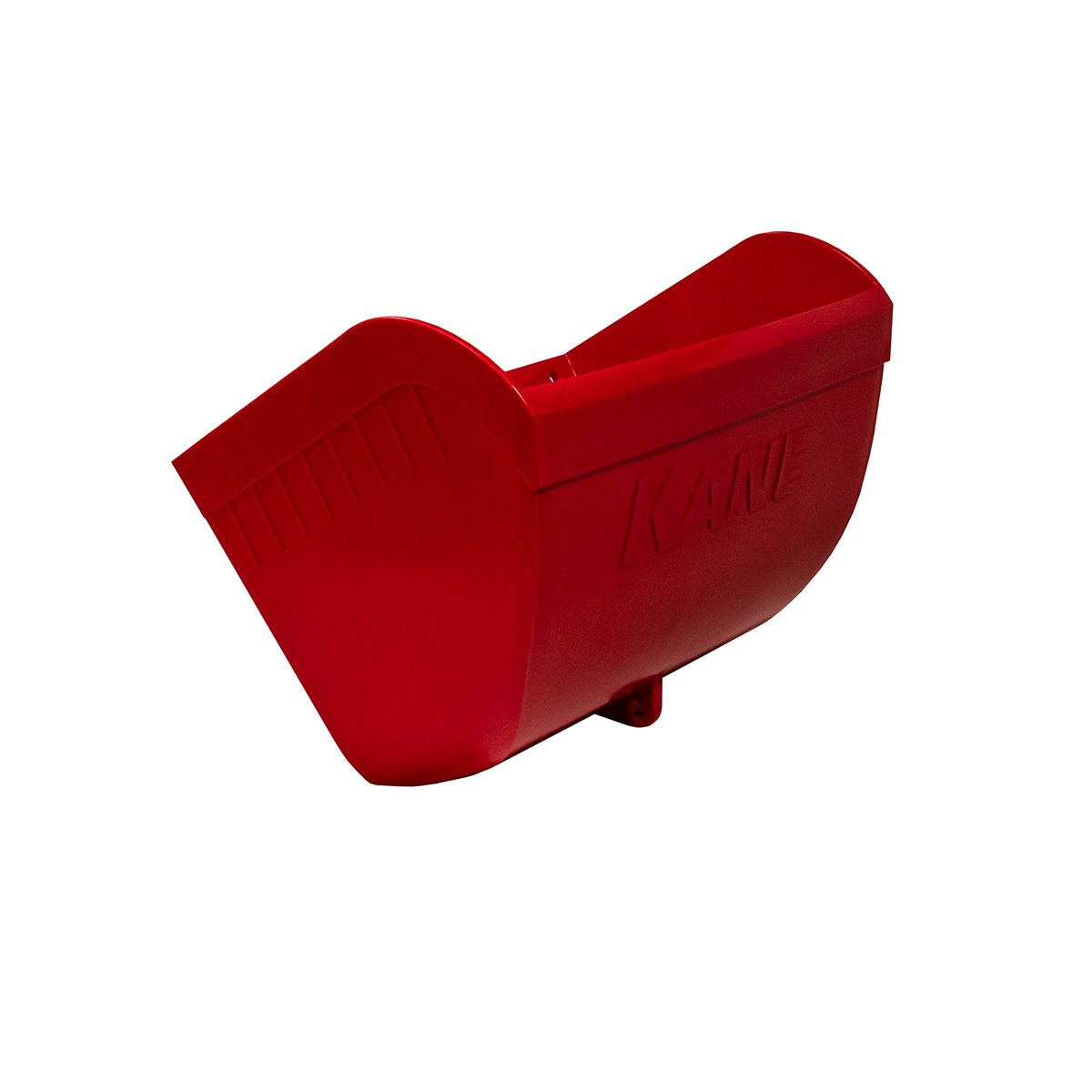

Feed-Saving Hanging Piglet Creep Feeder

The Feed-Saving Hanging Piglet Creep Feeder is a compact trough designed for supplemental feeding in farrowing pens, creep areas and small nursery pens. It hangs directly from a compatible pen panel or partition, keeping the feeding area conveniently positioned without occupying additional floor space.

Deep side walls and a high rear panel help retain feed inside the trough, while rounded internal corners reduce areas where feed can lodge and become stale. The lightweight high-density polyethylene body is non-corrosive, easy to wash and suitable for repeated commercial farm use.

Two stainless steel hanging clips provide simple installation and removal, making the feeder practical for daily feeding, cleaning and movement between pens.

• Feed-Saving Geometry: Deep sides and back help contain feed and reduce spillage outside the trough.
• Hanging Installation: Mounts directly to compatible pen panels, fencing or partitions.
• Durable HDPE Body: High-density polyethylene is lightweight, corrosion resistant and suitable for humid pig-house environments.
• Rounded Corners: Smooth internal transitions reduce trapped feed and simplify cleaning.
• Stainless Steel Clips: Two corrosion-resistant clips provide convenient and secure hanging.
• Easy Handling: Lightweight construction allows rapid installation, removal and relocation.
• Stackable Design: Feeders can be stacked for compact transportation and farm storage.
• Commercial Farm Use: Suitable for farrowing houses, creep areas and piglet-rearing facilities.

• Molded Trough Body: One-piece polyethylene feeding area designed for durability and simple sanitation.
• High Rear Wall: Helps prevent feed from being pushed behind the feeder.
• Deep Side Panels: Improve feed containment during active piglet feeding.
• Rounded Internal Corners: Reduce feed accumulation in difficult-to-clean areas.
• Front Feeding Edge: Provides convenient access while helping retain feed.
• Stainless Steel Hanging Clips: Attach the feeder to compatible pen structures without permanent floor mounting.

The feeder is suspended from the farrowing or nursery pen structure using stainless steel clips. Fresh creep or starter feed is placed directly into the open trough for easy piglet access.

Its deep rear and side walls form a feed-retaining enclosure around the feeding area. During rooting and eating activity, this geometry helps keep more feed inside the trough instead of allowing it to be pushed onto the flooring.

• Product Type: Hanging piglet creep feeding trough
• Reference Model: KFF-18 type
• Main Material: High-density polyethylene
• Reference Length: 15 in / approximately 381 mm
• Reference Width: 8 in / approximately 203 mm
• Reference Depth: 7 in / approximately 178 mm
• Mounting Hardware: Two stainless steel clips
• Construction: Lightweight molded, non-corrosive body
• Storage: Stackable
• Feed Application: Dry creep feed, starter feed and compatible supplemental feed
• Final Configuration: Customizable according to project requirements

• Commercial farrowing crates
• Loose-housed farrowing pens
• Piglet creep areas
• Pre-weaning creep-feed programs
• Piglet starter-feed introduction
• Small nursery and transition pens
• Pen-panel and fence-mounted feeding layouts
• Prefabricated steel structure pig houses

• Feeder dimensions and trough depth
• HDPE material specification
• Hanging clip size and spacing
• Pen-panel mounting compatibility
• Optional anti-waste guard configuration
• Optional stainless steel reinforcement
• Color options available upon request
• Packaging and bulk project quantities according to customer requirements

Installation:

• Select a pen panel or partition that provides convenient piglet access without interfering with sow movement.
• Position the feeder at an appropriate height for the target piglet size.
• Attach both stainless steel clips securely to the compatible pen structure.
• Confirm that the feeder remains level and stable before adding feed.
• Adjust the installation position as piglets grow or management requirements change.

Maintenance:

• Provide fresh feed regularly and remove stale or contaminated material.
• Wash and disinfect the trough between production groups.
• Inspect hanging clips for deformation, looseness or corrosion.
• Check the molded body for cracks or excessive wear.
• Store cleaned feeders in stacked form when not in use.

Q1: How does the hanging feeder help reduce feed waste?

Deep sides and a high rear wall help contain feed when piglets root and move feed inside the trough.

Q2: What is the reference size?

The reference feeder measures approximately 15 inches long, 8 inches wide and 7 inches deep.

Q3: What material is used?

The reference construction uses lightweight, durable high-density polyethylene with stainless steel hanging clips.

Q4: Does the feeder require floor mounting?

No. It is designed to hang from a compatible pen panel, fence or partition, eliminating the need for permanent floor anchoring.

Q5: Is it easy to clean?

Yes. The smooth molded body and rounded corners help minimize trapped feed and simplify washing and disinfection.

Q6: Can the feeder be moved between pens?

Yes. The hanging design and lightweight body make removal and relocation straightforward.

Q7: Are anti-waste guard versions available?

Guarded and reinforced configurations can be supplied according to project and management requirements.

Q8: What information is required for a quotation?

Please provide the required quantity, piglet age, pen-panel type, mounting dimensions, preferred feeder size, feed type and project location.
