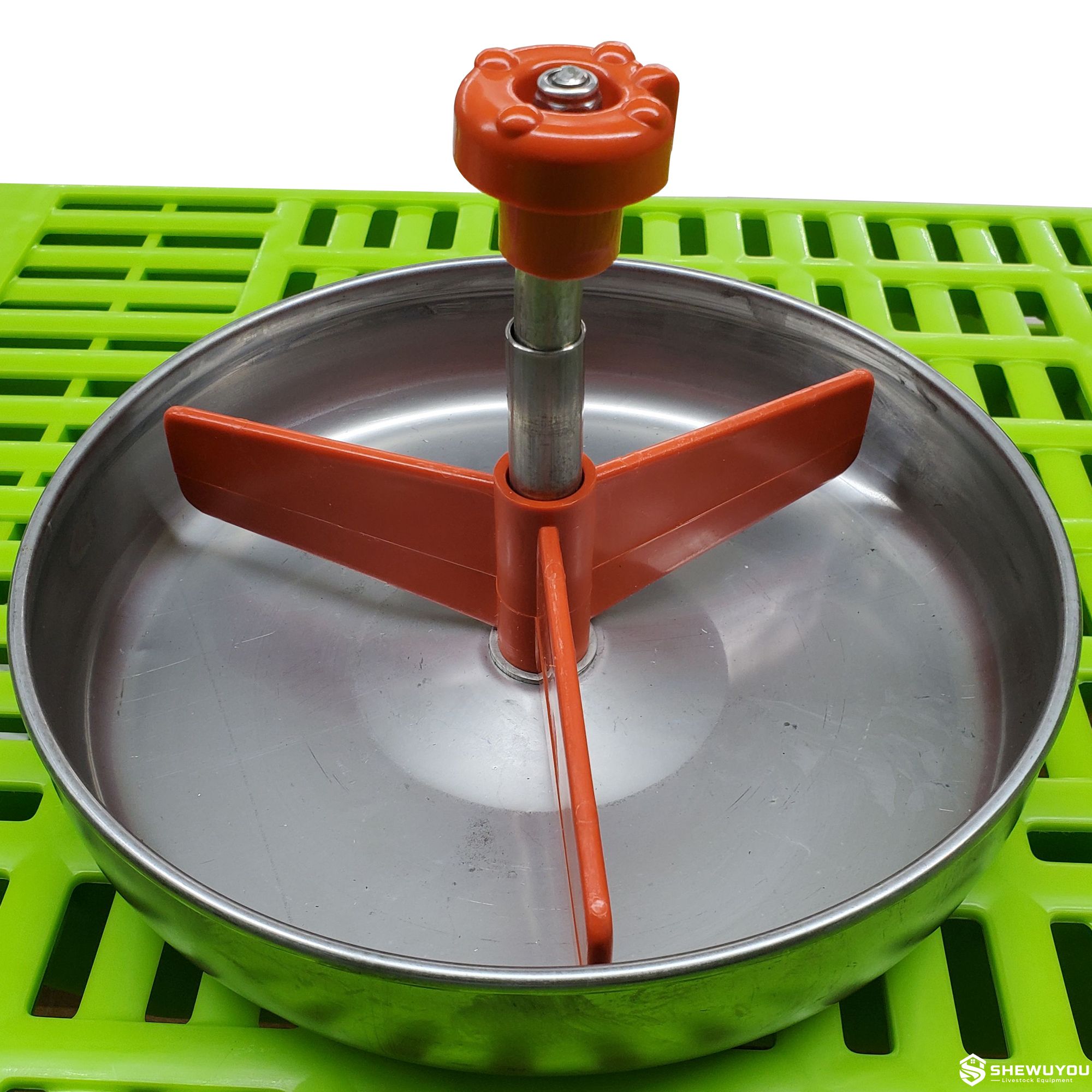

Stainless Steel Piglet Feeder with Plastic Dividers

• Stainless Steel Bowl: Durable, corrosion-resistant and suitable for frequent farm cleaning.
• Plastic Feed Dividers: Divide the round pan into separate feeding positions for better piglet access.
• 360-Degree Access: Circular design allows piglets to approach the feeder from multiple directions.
• Secure Floor Mounting: Spring-loaded J-clamp helps prevent tipping and feeder displacement.
• Low Piglet Access: Shallow pan geometry is suitable for small nursing and early-weaned pigs.
• Reduced Feed Waste: Dividers and fixed installation help keep feed inside the feeding area.
• Easy Sanitation: Smooth bowl surfaces and removable installation simplify washing between litters.
• Compact Footprint: Suitable for creep areas where available farrowing-pen space is limited.

• Round Stainless Steel Bowl: Holds creep or starter feed.
• Radial Plastic Dividers: Form individual feeding areas around the pan.
• Central Support Post: Supports the divider assembly and mounting mechanism.
• Top Adjustment Handle: Provides convenient handling and clamp operation.
• Spring-Loaded J-Clamp: Locks the feeder to compatible slatted flooring.
• Mounting Shaft: Connects the upper assembly with the floor-locking component.

• Farrowing crates and farrowing pens
• Piglet creep feeding areas
• Supplementary feeding of nursing piglets
• Pre-weaning starter-feed programs
• Early-weaned piglet feeding
• Commercial sow farms
• New steel-structure farrowing houses
• Existing farrowing-room renovation projects

• Stainless steel grade according to project requirements
• Bowl diameter and depth
• Plastic divider color
• Number and shape of feeding dividers
• J-clamp length and floor compatibility
• Spring-loaded or alternative floor locking system
• OEM branding and packaging available upon request

• Select a position in the piglet creep area that is outside the sow's normal foot traffic.
• Align the J-clamp with a compatible opening in the slatted floor.
• Insert the clamp through the floor slot and rotate or lock it according to the mounting mechanism.
• Check that the bowl sits flat and cannot be tipped by piglets.
• Confirm easy access around the complete feeding circumference.

• Remove stale or contaminated creep feed before refilling.
• Release the floor clamp and remove the feeder for thorough washing.
• Clean beneath and around the plastic divider assembly.
• Inspect the stainless steel bowl for deformation or damaged edges.
• Check the spring, J-clamp and central post for reliable locking.
• Wash and disinfect the feeder between litters according to the farm biosecurity program.

Q: What is this piglet feeder mainly used for?
A: It is designed for supplementary creep or starter feeding of nursing piglets in farrowing pens.

Q: What is the advantage of plastic dividers?
A: The dividers create separate feeding positions, help organize piglet access and reduce animals stepping directly into the feed.

Q: How is the feeder secured to the floor?
A: The referenced design uses a spring-loaded universal J-clamp that passes through a compatible flooring slot and locks the feeder in place.

Q: Can it be installed on plastic slatted flooring?
A: Yes. The mounting system can be used with compatible plastic slats when the slot dimensions match the clamp.

Q: Does the round design provide multiple feeding positions?
A: Yes. Piglets can approach around the bowl, while the radial dividers separate the available feeding areas.

Q: Is it easy to remove for cleaning?
A: Yes. The floor clamp is designed for quick release so the complete feeder can be removed, washed and disinfected.

Q: Can the dimensions or divider configuration be customized?
A: Yes. Bowl size, divider arrangement, material specification and mounting components can be supplied according to project requirements.

Q: What information is required for quotation?
A: Recommended information includes piglet age, number of farrowing pens, flooring type and slot dimensions, required feeder quantity, preferred stainless steel grade and divider configuration.
