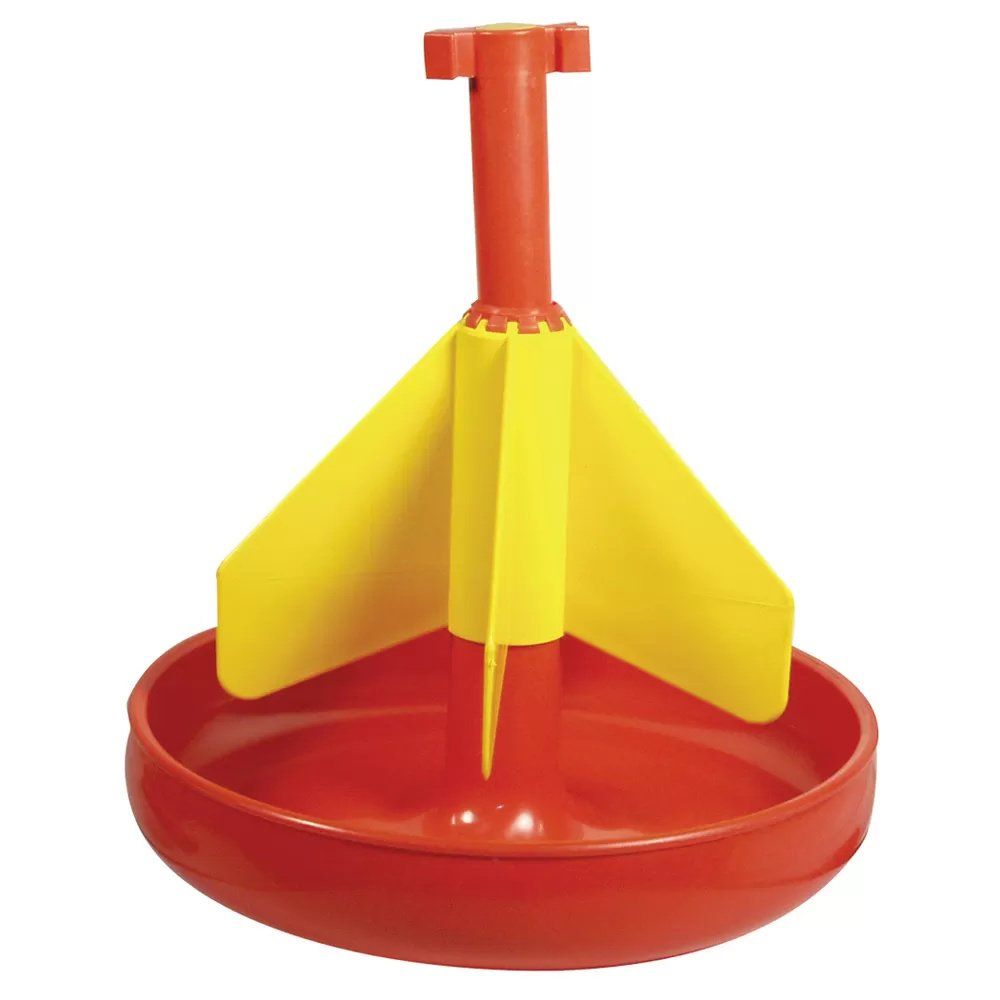

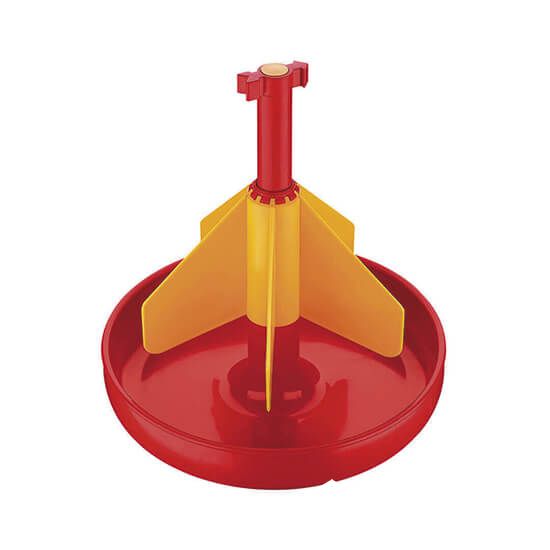

Plastic Piglet Creep Feeder

The Plastic Piglet Creep Feeder is a compact supplemental feeding pan designed for suckling piglets in farrowing pens. Its wide circular bowl provides easy access for several young pigs while helping introduce creep feed and starter ration before weaning.

Internal dividers create separate feeding spaces and discourage piglets from standing inside the bowl. The smooth plastic construction has no difficult internal corners, supporting fast cleaning and improved hygiene between litters.

A central handle and floor-hook system secures the feeder to compatible slatted flooring, reducing tipping and allowing quick removal for filling, washing or relocation.

• Designed for supplemental creep feeding of suckling piglets.
• Wide circular bowl allows several piglets to feed simultaneously.
• Low feeding edge provides easy access for young animals.
• Multiple dividers create organized feeding spaces.
• Divider design helps prevent piglets from standing in the feed.
• Durable plastic construction is corrosion-resistant and easy to handle.
• Smooth rounded surfaces simplify washing and disinfection.
• Secure floor-hook mounting helps prevent tipping and feed loss.
• Arrow-marked handle simplifies hook positioning during installation.
• Suitable for common metal, plastic and compatible slatted flooring.
• Can be used for starter feed and compatible liquid feeding applications.

• Plastic Feed Pan: Wide circular bowl for creep feed or starter ration.
• Concave Feeding Rim: Helps retain feed while maintaining easy piglet access.

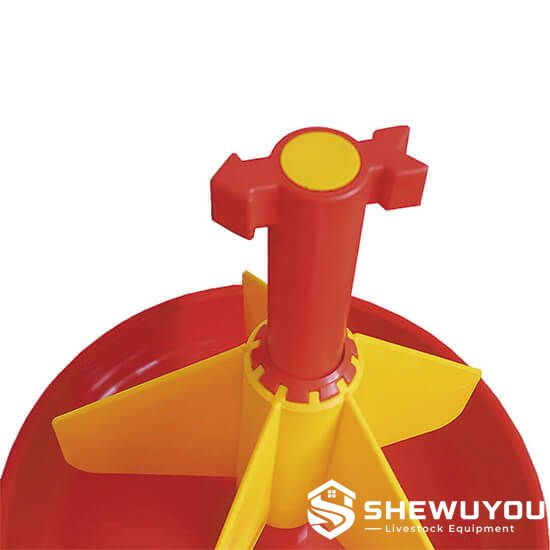

• Internal Dividers: Separate feeding positions and reduce contamination.
• Central Support: Connects the bowl, dividers and mounting mechanism.
• Top Handle: Provides convenient one-hand installation and removal.
• Direction Indicator: Shows the orientation of the floor hook.

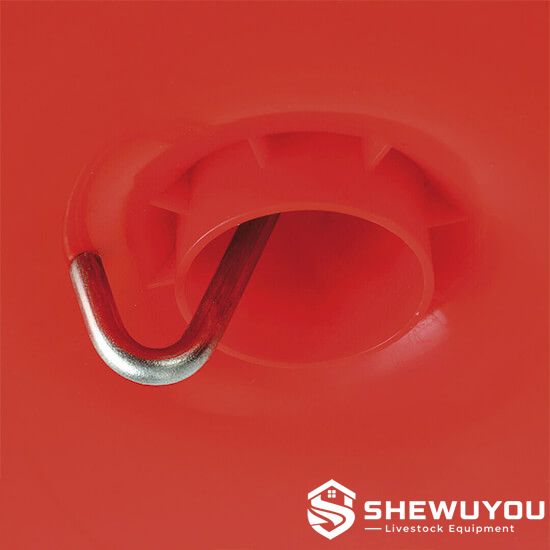

• Floor Hook: Secures the feeder to compatible livestock flooring.

A small quantity of creep or starter feed is placed in the circular pan. Piglets approach the feeder from around its perimeter and feed through the divided openings.

The central hook passes through the slatted floor opening and rotates beneath the flooring to lock the feeder in position. This helps prevent piglets or the sow from overturning the pan.

The feeder can be unlocked using the top handle when feed needs to be replenished or when the pan is removed for cleaning and disinfection.

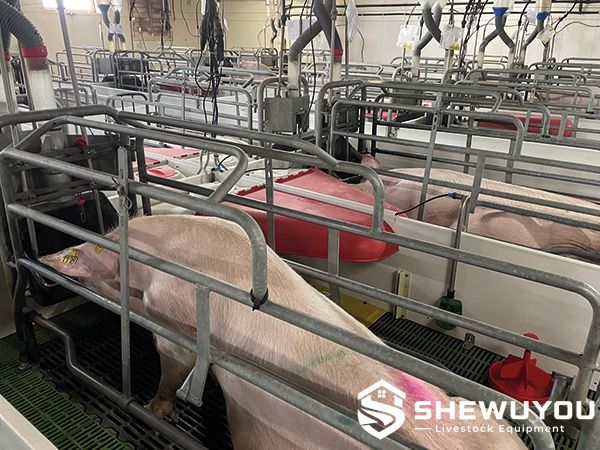

• Farrowing crate creep areas
• Loose-sow farrowing pens
• Suckling piglet starter feeding
• Pre-weaning feed introduction
• Milk replacer or compatible liquid feeding
• Commercial breeding farms
• Large-scale piglet production facilities
• Steel-structure pig houses
• Farrowing-house renovation projects

• Bowl diameter and capacity
• Plastic material specification
• Number of feeding divisions
• Feeder color
• Hook length and floor compatibility
• Metal or stainless steel fastening components
• Packaging quantity for distributors and project orders
• Customizable according to project requirements

Installation:

• Select an accessible creep area with minimal interference from the sow.
• Confirm that the floor opening is compatible with the selected hook.
• Insert the hook through the slatted floor.
• Use the arrow indicator to orient the hook beneath the flooring.
• Rotate or tighten the handle until the feeder is securely fixed.
• Check that the bowl remains level and stable before adding feed.

Maintenance:

• Add small quantities of fresh creep feed regularly.
• Remove stale, wet or contaminated feed promptly.
• Wash the bowl and dividers between litters.
• Inspect the hook and locking mechanism for wear or deformation.
• Disinfect thoroughly according to the farm biosecurity program.
• Allow the feeder to dry before refilling with dry starter feed.

Q: What is the Plastic Piglet Creep Feeder used for?
A: It is used to introduce creep feed or starter ration to suckling piglets while they are still housed with the sow.

Q: Can several piglets eat at the same time?
A: Yes. The wide circular bowl and divided feeding positions allow several young pigs to access feed simultaneously.

Q: How is the feeder fixed to the floor?
A: A central hook passes through the slatted floor and locks underneath it. The arrow on the handle indicates the hook direction.

Q: What flooring can it be used with?
A: Hook configurations are available for common plastic, metal, concrete and other compatible farrowing flooring systems.

Q: Can it be used for liquids?
A: Watertight comparable pan designs can also be used for suitable liquid supplements or milk-replacement applications.

Q: How does the feeder help reduce feed waste?
A: Secure floor mounting prevents tipping, while the circular bowl, raised rim and internal dividers help contain feed.

Q: Is the feeder easy to clean?
A: Yes. Smooth plastic surfaces and rounded internal geometry minimize inaccessible corners and simplify sanitation between litters.

Q: What information is required for a quotation?
A: Please provide required quantity, bowl size, flooring type, preferred material, mounting requirements, destination country and project quantity.
