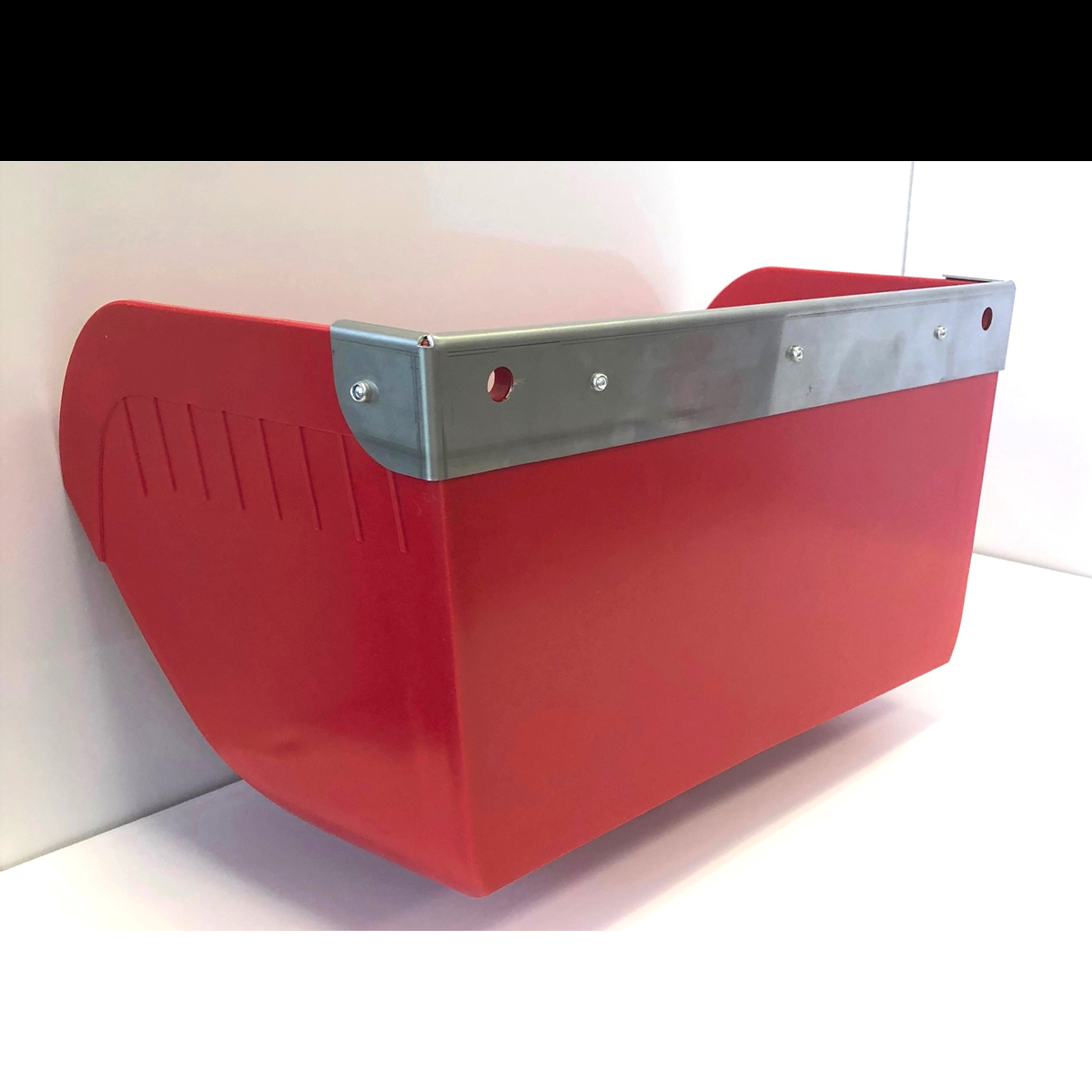

Heavy-Duty Hanging Piglet Creep Feeder with Guard

• Reinforced Construction: Stainless steel support strip strengthens the mounting area for demanding livestock use.
• Durable HDPE Body: Lightweight, rust-free and resistant to moisture and routine farm washing.

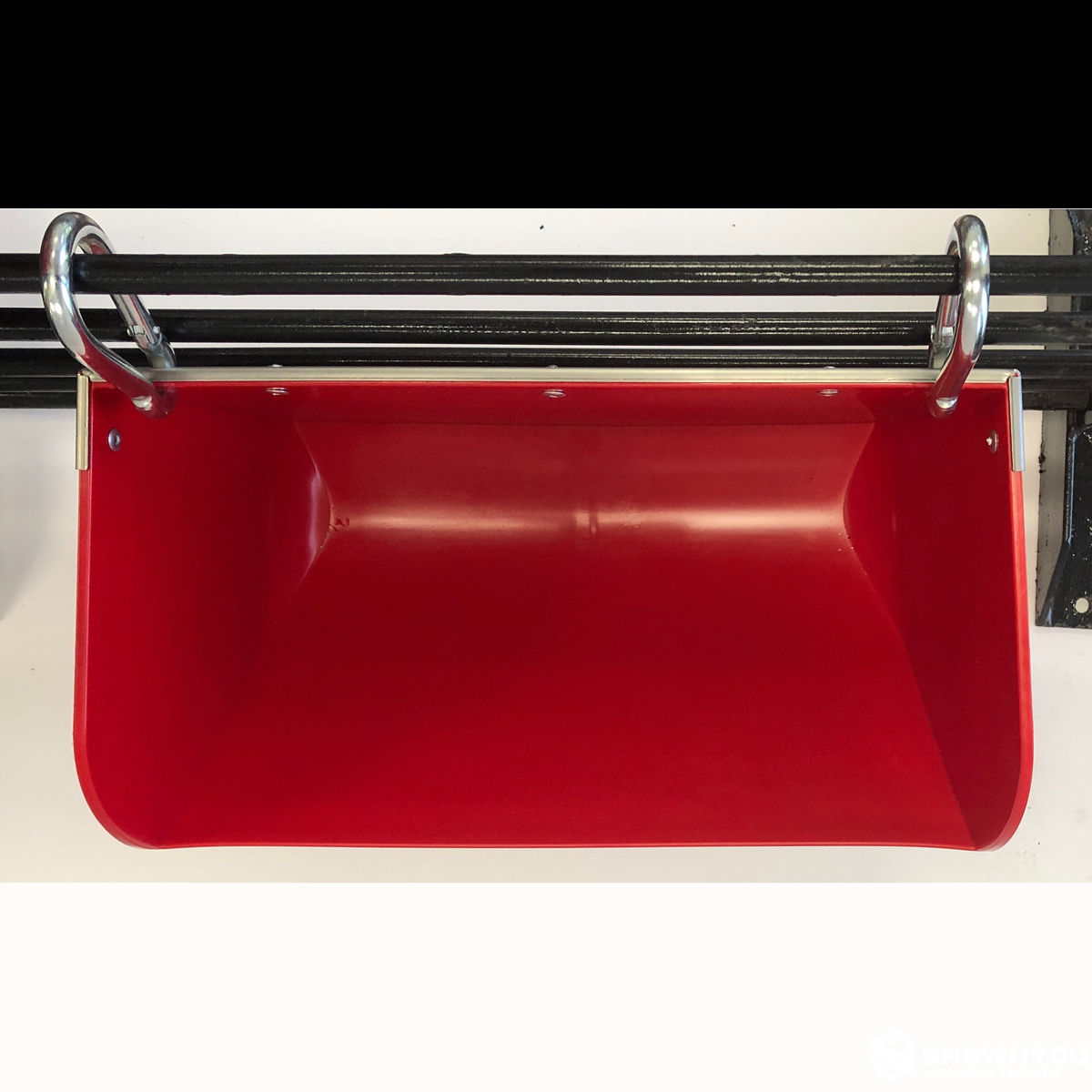

• Feed-Saving Design: Deep sides and back help limit feed loss caused by rooting and animal movement.
• Rounded Internal Corners: Reduce feed accumulation and simplify washing and disinfection.

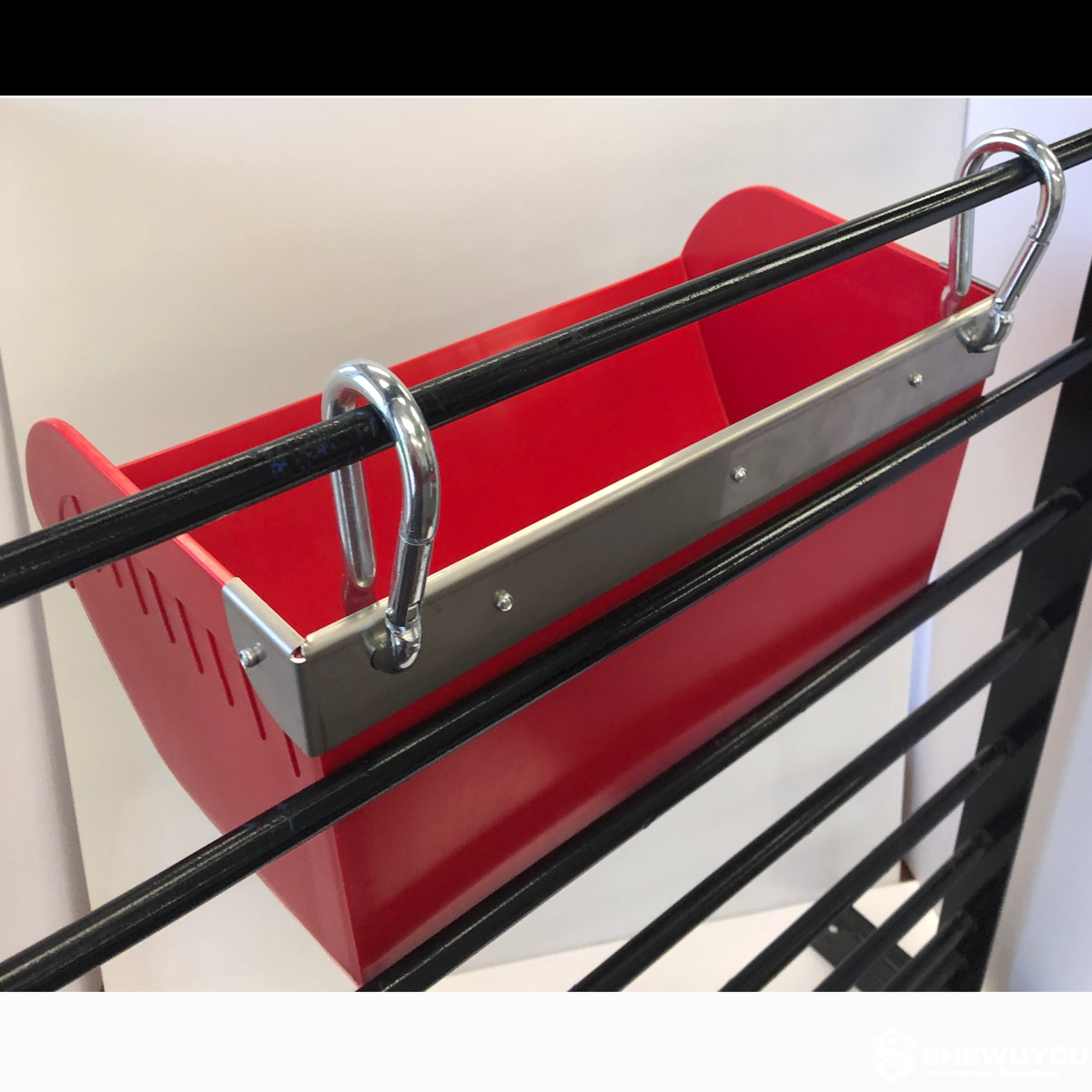

• Quick Hanging Installation: Two stainless steel clips provide convenient mounting on compatible pen rails.
• Easy Removal: The feeder can be detached quickly for refilling, cleaning or relocation.
• Stackable Body: Saves storage and transport space when multiple feeders are handled together.
• Low Maintenance: Simple open-trough construction contains no electrical or complex mechanical components.

• HDPE Trough Body: Forms the main feed-holding area.
• Deep Side Walls: Help keep feed inside the trough during piglet feeding.
• Raised Back Panel: Supports hanging installation and reduces rear-side feed loss.
• Stainless Steel Guard / Support Strip: Reinforces the upper mounting edge and improves structural durability.
• Stainless Steel Hanging Clips: Attach the feeder to compatible tubular penning or fencing.
• Rounded Bottom Profile: Allows easier removal of remaining feed during cleaning.

• Piglet creep feeding areas
• Farrowing pens and farrowing crates
• Supplementary feeding of nursing piglets
• Pre-weaning starter-feed programs
• Early nursery pig feeding
• Temporary or movable feeding stations
• Commercial sow and farrowing farms
• New or renovated steel-structure pig houses

• Feeder dimensions
• HDPE color
• Stainless steel reinforcement configuration
• Hanging clip size and spacing
• Side-wall and back-wall height
• Penning and gate compatibility
• OEM branding and packaging available upon request

• Select a location that provides easy piglet access while minimizing interference from the sow.
• Check that the selected pen rails are compatible with the hanging clips.
• Attach both stainless steel clips through the reinforced mounting section.
• Hang the feeder securely and verify that it cannot slide excessively along the rail.
• Set the feeding edge at a convenient height for the target piglet size.
• Confirm that the feeder does not obstruct gates, drinkers or other farrowing equipment.

• Remove old or contaminated feed before adding fresh starter feed.
• Detach the feeder regularly for complete washing and disinfection.
• Inspect the stainless steel guard and support strip for secure attachment.
• Check hanging clips for deformation or excessive wear.
• Inspect the HDPE body for cracks or damage.
• Stack clean feeders in a dry storage area when not in use.

Q: What makes this version more heavy-duty?
A: The reference design combines a durable HDPE trough with a stainless steel support strip that reinforces the mounting area.

Q: How does the feeder help reduce feed waste?
A: Deep side walls and a high back help retain creep feed when piglets root and eat from the trough.

Q: What are the reference dimensions?
A: The referenced KFF-18G feeder measures approximately 15 inches long, 8 inches wide and 7 inches deep.

Q: How is the feeder installed?
A: Two stainless steel clips hang the unit directly from compatible livestock fencing, gate rails or penning.

Q: Does the HDPE body rust?
A: No. High-density polyethylene is non-corrosive and is well suited to humid pig-house environments.

Q: Is the feeder easy to clean?
A: Yes. Rounded internal corners and removable hanging installation allow quick emptying, washing and disinfection.

Q: Can the feeders be stacked?
A: Yes. The reference design is stackable, helping reduce storage and transport space.

Q: What information is required for quotation?
A: Recommended information includes piglet age, number of pens, pen-rail dimensions, feed type, required quantity, preferred feeder size and mounting configuration.
