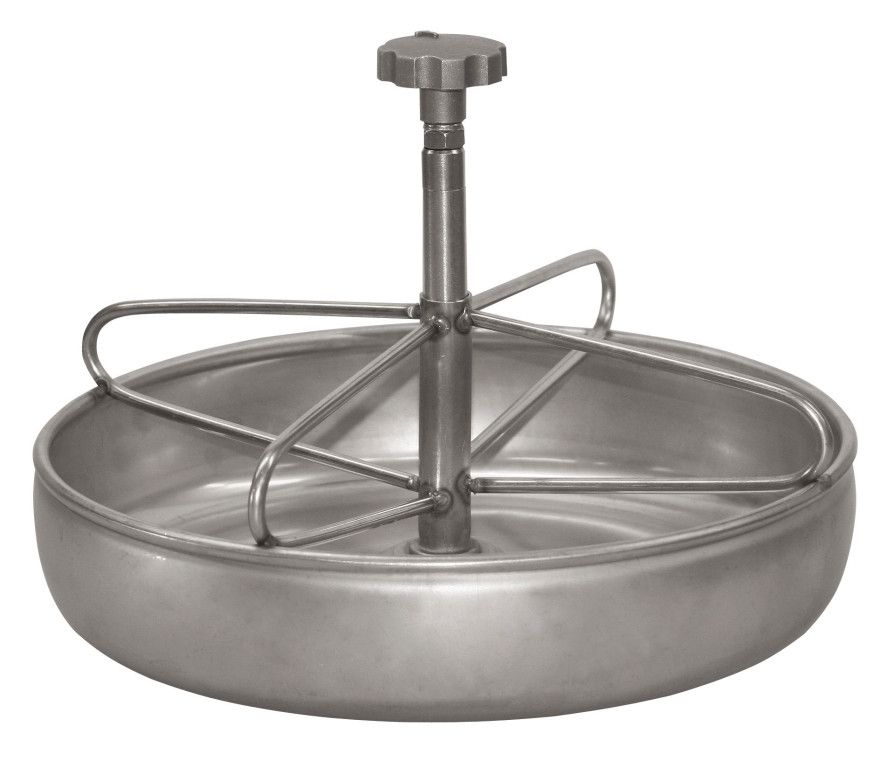

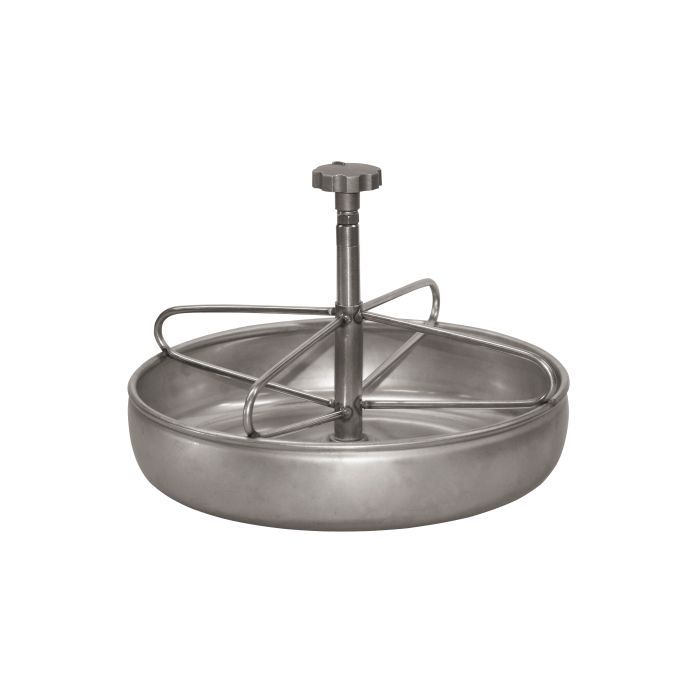

Stainless Steel Piglet Creep Feeder

The Stainless Steel Piglet Creep Feeder is a compact supplemental feeding pan designed for suckling piglets in farrowing crates and creep areas. Its low-profile circular bowl gives young piglets convenient access to starter or creep feed while keeping the feeder separate from the sow feeding area.

The stainless steel construction provides good corrosion resistance, smooth hygienic surfaces and durability under frequent washing and disinfection. A central floor-fastening mechanism secures the feeder to compatible slatted flooring and helps prevent piglets from overturning or moving the pan.

The feeder is suitable for commercial farrowing houses, piglet rearing facilities and integrated pig farm projects where early feed introduction and simple daily management are required.

• Stainless Steel Construction: Corrosion-resistant material suitable for humid farrowing-house environments.
• Low-Profile Feeding Pan: Provides easy feed access for small suckling piglets.
• Secure Floor Fixing: Spring-loaded or adjustable hook systems can secure the feeder to compatible slatted floors.
• Reduced Tipping: Central anchoring helps keep the feeder stable during piglet feeding and play.
• Easy Cleaning: Smooth stainless steel surfaces allow fast washing and disinfection between litters.
• Compact Creep-Area Design: Occupies little floor space and can be positioned close to the piglet resting zone.

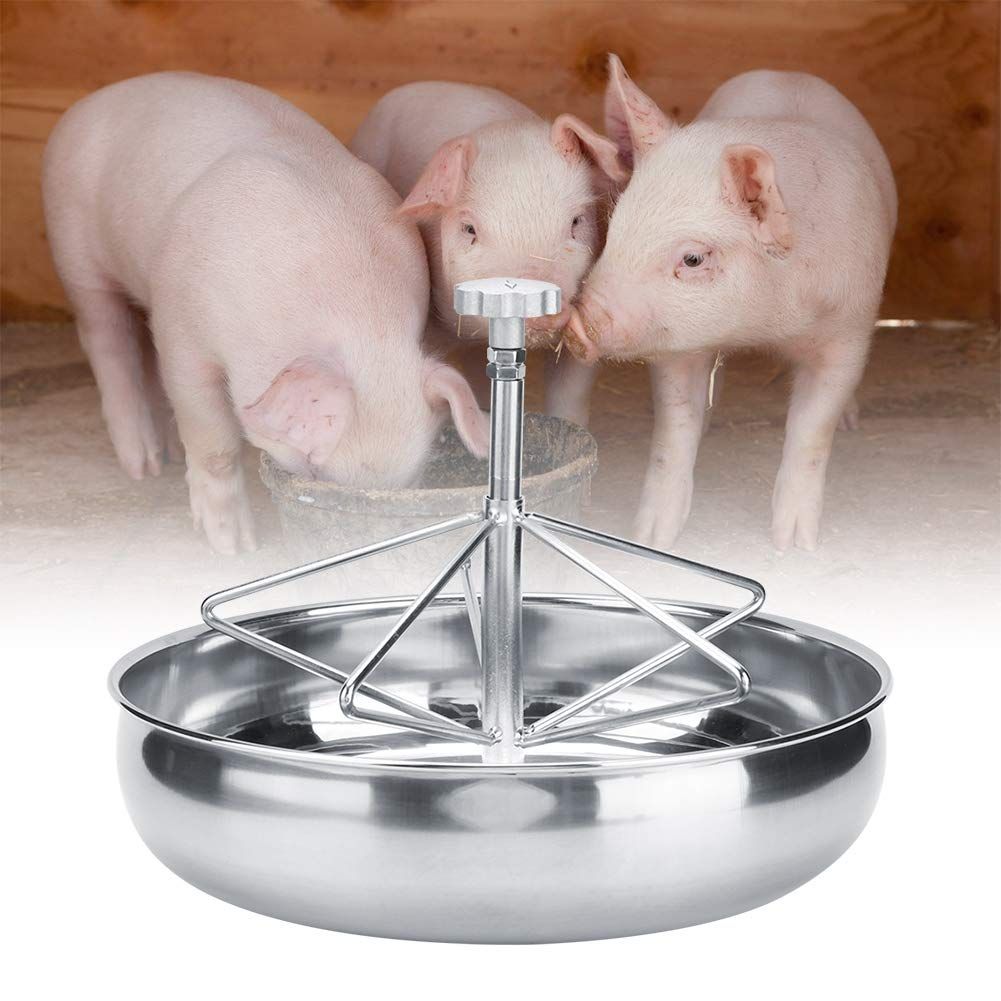

• Optional Feed Dividers: Radial bars or divider inserts can create several feeding positions and reduce piglet interference.
• Reusable Construction: Suitable for repeated production cycles with routine cleaning and inspection.

• Stainless Steel Pan: Round feeding bowl with a smooth inner surface and raised perimeter lip.
• Central Mounting Post: Provides structural support for the floor-fastening mechanism.
• J-Clamp or Hook Assembly: Secures the feeder underneath compatible plastic, metal or cast floor openings.
• Adjustment Handle: Allows the operator to tighten or release the floor clamp quickly.
• Optional Divider Grid: Stainless steel wire or durable plastic partitions can provide multiple piglet feeding positions.

A small quantity of fresh creep or starter feed is placed directly into the shallow stainless steel pan. Piglets can approach the feeder from multiple directions and begin exploring and consuming solid feed before weaning.

The central hook passes through an opening in the slatted floor and locks underneath the flooring. Tightening the upper handle secures the feeder in position, while loosening it allows quick removal for cleaning, relocation or storage.

• Product Type: Round piglet creep feed pan
• Application: Supplemental feeding of suckling piglets before weaning
• Main Material: Stainless steel
• Reference Construction: 20-gauge stainless steel
• Reference Diameter: Approximately 250 mm / 10 in
• Reference Pan Height: Approximately 55-70 mm depending on measurement point and configuration
• Floor Fixing: Spring-loaded J-clamp, adjustable hook or compatible floor-fastening system
• Feeding Access: Circular multi-direction access
• Divider Configuration: Open pan or multiple feeding spaces available upon request
• Final Dimensions: Customizable according to project requirements

• Conventional farrowing crates
• Loose-housed farrowing pens
• Piglet creep areas
• Pre-weaning supplemental feeding
• Piglet starter-feed introduction
• Commercial sow and piglet farms
• Plastic and metal slatted-floor systems
• Prefabricated steel structure pig houses

• Pan diameter and depth
• Stainless steel grade and thickness
• Open bowl or divided feeding configuration
• Stainless steel wire or plastic dividers
• J-clamp or alternative floor hook
• Mounting range for different slatted floors
• Packaging and project quantities available upon request

Installation:

• Select a location within the creep area that is easily accessible to piglets and protected from the sow.
• Insert the floor hook through a compatible slat opening.
• Rotate or position the hook underneath the flooring.
• Tighten the upper handle until the pan is stable against the floor.
• Check that the feeder cannot tip, rotate excessively or create an obstruction in the pen.

Maintenance:

• Offer small quantities of fresh creep feed and remove stale material regularly.
• Wash and disinfect the feeder between litters.
• Inspect the hook, spring, adjustment handle and welds for wear or damage.
• Keep the pan dry when used for dry creep feed.
• Replace damaged fixing components before returning the feeder to service.

Q1: What is a piglet creep feeder used for?

It provides suckling piglets with supplemental starter or creep feed before weaning, helping them become familiar with solid feed.

Q2: Why use stainless steel?

Stainless steel is durable, corrosion resistant and easy to wash and disinfect, making it suitable for repeated use in farrowing facilities.

Q3: How is the feeder secured to the floor?

A spring-loaded or adjustable hook passes through the slatted floor and clamps the pan securely in place.

Q4: Can it be installed on plastic slatted flooring?

Yes. Suitable hook configurations can be used with many common plastic, metal and compatible farrowing-floor systems.

Q5: Are feed dividers available?

Yes. Optional radial dividers can create several feeding positions and help organize piglet access.

Q6: Is the feeder easy to remove for cleaning?

Yes. Releasing the upper handle disengages the floor hook, allowing the entire feeder to be removed quickly.

Q7: What information is required for a quotation?

Please provide the required quantity, piglet feeding method, preferred diameter, floor type, slat-opening dimensions, divider requirement and project location.
