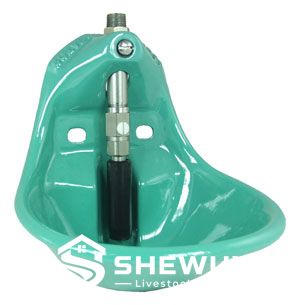

Enamelled Cast Iron Sow and Piglet Drinking Bowl

The Enamelled Cast Iron Sow and Piglet Drinking Bowl is a robust open-bowl watering solution designed primarily for farrowing pens. When installed at a suitable low position, the same drinking point can provide convenient water access for both the sow and her piglets.

The heavy cast iron bowl is completely enamelled to provide a smooth, corrosion-resistant surface. A stainless steel tube valve delivers a calm water flow and can be adjusted to match farm water pressure and animal requirements.

Compared with exposed nipple drinking points, the bowl retains a small visible water reserve that helps young piglets discover the drinking location while the surrounding bowl structure helps limit unnecessary water loss.

• Designed for sows and piglets in farrowing pens.
• Heavy-duty cast iron construction provides excellent mechanical strength.
• Complete enamel coating offers a smooth and corrosion-resistant drinking surface.
• Open-bowl design makes water easy for young piglets to locate.
• Low installation allows both sow and piglets to access the same drinking point.
• Stainless steel tube valve provides reliable long-term operation.
• Calm water delivery helps minimize splashing around the drinking area.
• Externally adjustable water flow is available in compatible configurations.
• Replaceable valve components simplify servicing and maintenance.
• Optional valve protection helps prevent damage from sow activity.

• Enamelled Cast Iron Bowl: Provides a durable open drinking reservoir for sow and piglet access.
• Stainless Steel Tube Valve: Controls water delivery when operated by the animal.
• Top Water Connection: Connects the drinker to the livestock-house water supply.
• Flow Regulation Assembly: Allows water delivery to be adjusted according to pressure and farm requirements.
• Mounting Holes: Allow secure installation to a floor bracket, wall structure or suitable support.
• Optional Valve Guard: Protects the valve assembly from mechanical impact in farrowing pens.
• Optional Pipe Bracket: Supports connection to suitable vertical water pipes or pen structures.

The drinking bowl is connected to the pressurized pig-house water line. When the sow or piglet activates the tube valve with its snout, the valve opens and releases water directly into the bowl.

Water remains visible in the open bowl, which encourages young piglets to investigate and learn the drinking location. The valve closes automatically when animal pressure is released.

Water flow can be adjusted to suit the local water pressure and drinking requirements, helping balance adequate supply with reduced splashing and wastewater production.

• Conventional sow farrowing crates
• Loose-sow farrowing pens
• Shared sow and piglet watering points
• Breeding sow facilities
• Commercial piglet production farms
• High-welfare farrowing systems
• Steel-structure pig houses
• New pig farm construction projects
• Existing drinking-system renovation projects

• Bowl dimensions and capacity
• Enamel color according to production requirements
• Stainless steel valve configuration
• Water connection specification
• Flow-regulation system
• Valve protection bracket
• Pipe or floor mounting brackets
• Installation height according to farrowing-pen design
• Customizable according to project requirements

Installation:

• Install the bowl low enough for piglets while maintaining comfortable access for the sow.
• In farrowing pens, placement near the sow feeder is commonly recommended.
• Secure the cast iron body firmly to the approved floor, bracket or pen structure.
• Install a valve protection bracket where the valve may be exposed to sow impact.
• Connect the top inlet to a clean, pressure-regulated water supply.
• Flush the water line before commissioning the drinker.
• Adjust the flow until sufficient water is supplied without excessive splashing.

Maintenance:

• Remove feed, manure and other contamination from the bowl daily.
• Check valve operation and water flow regularly.
• Inspect enamel surfaces for impact damage.
• Clean filters and water-line components according to the farm maintenance program.
• Inspect mounting bolts and protective brackets periodically.
• Replace worn valve seals or components when leakage occurs.
• Disinfect the bowl between production batches according to farm biosecurity procedures.

Q: Can the same bowl be used by both a sow and her piglets?
A: Yes. When installed at a suitable low position in the farrowing pen, this type of drinking bowl can provide access for both the sow and piglets.

Q: Why use enamelled cast iron?
A: Cast iron provides high mechanical strength, while the enamelled surface improves corrosion resistance and creates a smoother drinking and cleaning surface.

Q: How is water released?
A: The animal operates the tube valve with its snout, allowing water to flow calmly into the bowl.

Q: Can the water flow be adjusted?
A: Yes. Compatible stainless steel valve configurations allow the water flow to be adjusted externally.

Q: Why is a valve guard recommended?
A: In farrowing pens, a heavy sow may contact the drinking equipment. A protective bracket helps reduce mechanical stress on the valve assembly.

Q: Does the bowl help piglets learn to drink?
A: Yes. Because water remains visible in the open bowl, young piglets can observe the sow drinking and more easily discover the water source.

Q: What information is required for a quotation?
A: Please provide required quantity, sow housing type, water pressure, pipe connection, mounting method, preferred valve material and project destination.
