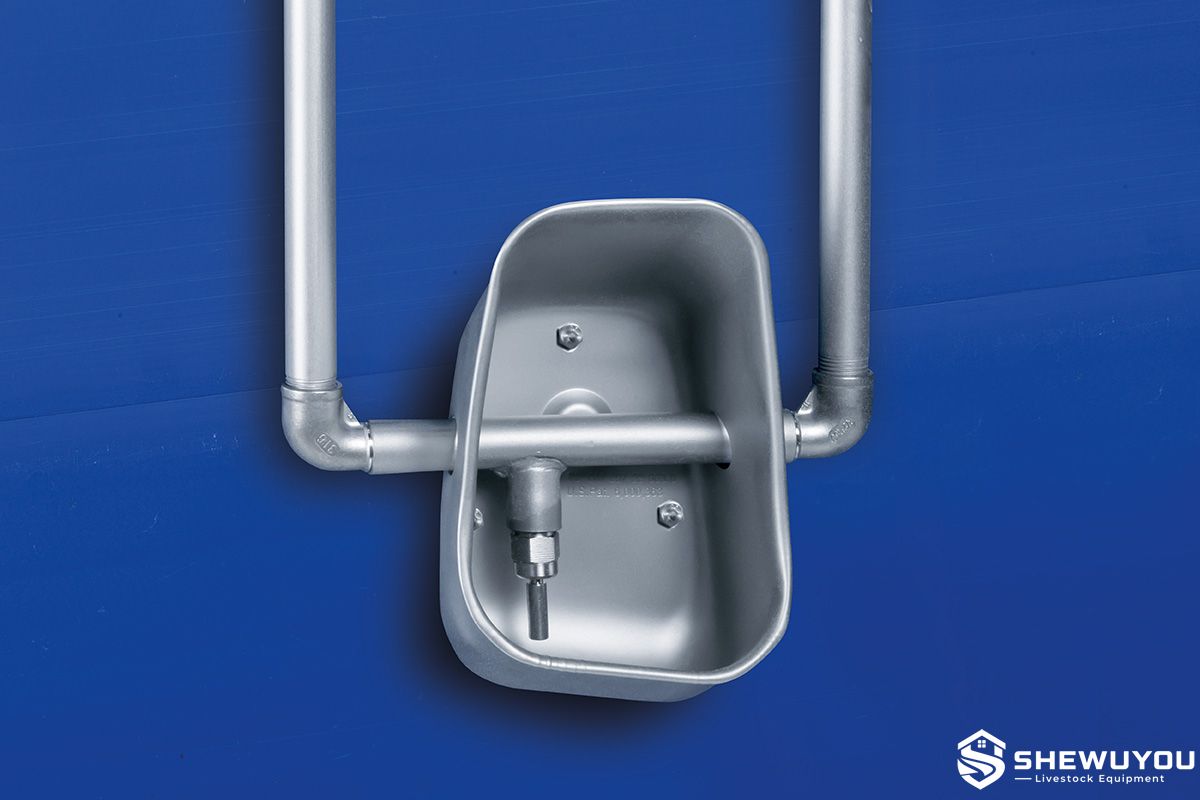

Water-Circulation Nursery Pig Drinking Bowl

The Water-Circulation Nursery Pig Drinking Bowl is designed for weaned and nursery pigs requiring easy access to clean drinking water. The stainless steel bowl provides a visible water source that young pigs readily recognize, while its lateral collar helps contain splashing and reduce water loss.

The drinking point can be integrated into a circulating water-line system. This configuration supports continuous water movement through the supply loop and allows convenient flushing of pipelines after medication or water-treatment programs, making it well suited to modern commercial nursery houses.

• Designed for Nursery Pigs: Reference configuration is suitable for piglets and weaners up to approximately 35 kg.
• Water-Circulation Compatible: Connects to a circulation loop for improved water-line management and convenient flushing.
• Low Water Loss: The deep bowl and lateral collar surround the pig's snout during drinking and help contain splashing.
• Easy for Young Pigs to Use: Visible water in the bowl encourages rapid acceptance after weaning.
• Stainless Steel Construction: Provides corrosion resistance and long service life in humid pig-house environments.
• Hygienic Water Management: Circulation and flushing help manage residues after medication and water-soluble supplements.
• Compact Pen Installation: Suitable for wall, partition or dedicated drinking-line installation in nursery pens.

• Stainless Steel Drinking Bowl: Provides an open and easily recognizable drinking area.
• Lateral Collar: Helps shield the drinking point and reduce water escaping from the bowl.
• Drinking Valve: Releases water when activated by the pig according to the selected valve configuration.
• Supply Pipe: Delivers water from the house drinking-water line to the bowl.
• Return Pipe: Allows integration into a circulating water loop.
• Mounting Hardware: Secures the drinking assembly to a suitable wall or pen structure.

Fresh water is supplied through the circulation pipe network. When a pig activates the drinking valve, water is released into the stainless steel bowl where it can be consumed naturally.

Water remaining in the supply loop can continue toward the return line instead of terminating at a dead-end pipe. The circulation configuration also allows the farm operator to flush the drinking lines after medication or other water treatments.

• Product Type: Nursery pig drinking bowl with water circulation
• Reference Pig Weight: Up to approximately 35 kg
• Bowl Material: Stainless steel
• Water System: Circulating supply and return line
• Drinking Method: Bowl with pig-activated water valve
• Reference Pipe Connection: 1/2 inch on comparable circulation-bowl configurations
• Installation: Wall or pen-partition mounting
• Water Pressure: According to selected valve and project requirements
• Water Flow: Adjustable or selected according to pig weight and farm water pressure
• Final Configuration: Customizable according to project requirements

• Nursery pig houses
• Weaner pens
• Piglets up to approximately 35 kg
• Commercial pig-rearing facilities
• Water-medication programs requiring convenient line flushing
• Steel structure pig houses
• New watering systems and existing pig-farm renovation projects

• Drinking bowl size
• Water valve and flow specification
• Supply and return pipe arrangement
• Pipe diameter and connection fittings
• Wall or pen-partition mounting brackets
• Pressure regulator, filter and water meter
• Medication and flushing-system integration
• Complete drinking-water layout according to pig-house project requirements

Installation:

• Mount the drinking bowl at a height that allows nursery pigs to access the water comfortably.
• Connect both supply and return pipes according to the circulation-loop design.
• Install suitable filtration and pressure-control components upstream of the drinking line.
• Flush the complete pipe network before placing pigs in the pen.
• Check drinking-valve activation, flow and shutoff before commissioning.

Maintenance:

• Remove feed, manure and mineral deposits from the bowl regularly.
• Inspect the drinking valve and verify adequate water delivery.
• Flush the circulation loop after medication or water-soluble supplement programs.
• Inspect supply and return pipes for leakage, blockage or loose fittings.
• Maintain filters and pressure regulators according to the farm water-management schedule.

Q1: What pigs is this drinking bowl designed for?

The reference circulation bowl is designed for piglet rearing and weaners weighing up to approximately 35 kg.

Q2: Why use a drinking bowl for nursery pigs?

Young pigs can see the water in the bowl and usually recognize the drinking point easily, while the bowl profile helps reduce water loss.

Q3: What is the advantage of water circulation?

A circulating line supports water movement through the system and allows convenient flushing of pipelines after medication or water-treatment programs.

Q4: Does circulation help with deposits in the water line?

Regular circulation and flushing can help manage residues and deposits from vitamins, minerals and medication in drinking-water pipes.

Q5: Is the bowl made from stainless steel?

Yes. The reference nursery drinking bowl uses stainless steel construction for durability and corrosion resistance.

Q6: Can it be added to an existing pig-house water system?

Yes. Retrofit configurations can be designed according to the existing water lines, pen layout and available circulation return route.

Q7: What information is required for a quotation?

Please provide pig weight range, pigs per pen, required quantity, water pressure, existing pipe diameter, circulation requirements, pen layout and project location.
