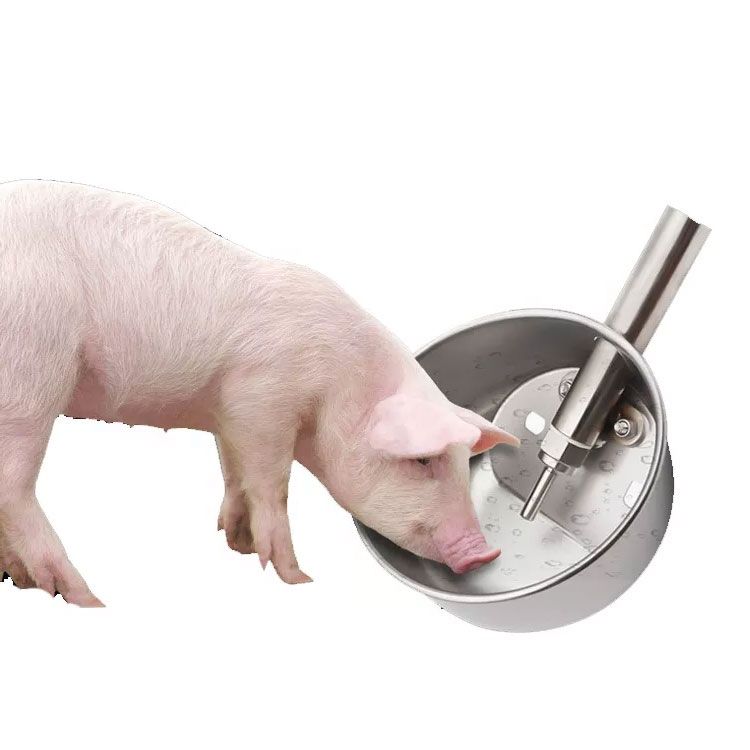

Piglet Stainless Steel Drinking Bowl

The Piglet Stainless Steel Drinking Bowl is specially designed to give young piglets easy access to fresh drinking water in commercial farrowing houses. Its compact bowl and sensitive drinking nipple are adapted to the small size and drinking behavior of piglets.

The nipple can be positioned close to the bottom of the bowl, allowing piglets to activate it with light pressure. Rounded stainless steel surfaces minimize blind corners, improve hygiene and simplify cleaning between production batches.

• Designed for Piglets: Compact dimensions and a sensitive nipple make early drinking easier to learn.
• Height-Adjustable Nipple: The nipple position can be set close to the bowl bottom for convenient access.
• Reduced Water Waste: Water is released only when the piglet activates the valve.
• Rounded Hygienic Bowl: Smooth contours reduce dirt accumulation and difficult-to-clean corners.
• Stainless Steel Construction: Provides corrosion resistance and long service life in humid livestock environments.
• Compact Installation: Suitable for farrowing pens where available wall and partition space is limited.
• Short or Long Pipe Options: Different pipe lengths can be selected according to the water-line and pen layout.

• Stainless Steel Bowl: Provides a shallow and accessible drinking area for young piglets.
• Rounded Back Plate: Supports wall or partition mounting and reduces sharp internal corners.
• Adjustable Drinking Nipple: Releases water when activated by light pressure.
• Water Supply Pipe: Available in short- and long-pipe configurations.
• Mounting Points: Allow secure attachment to compatible farrowing-pen structures.

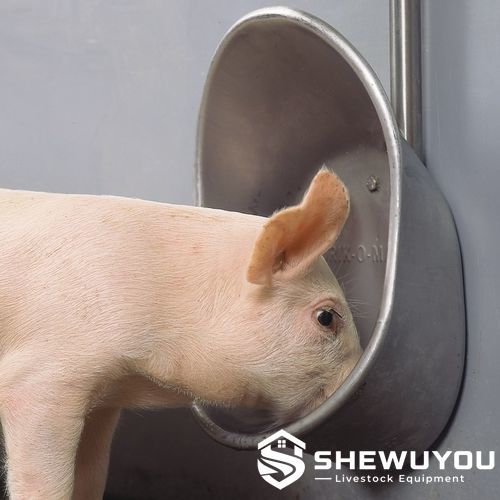

A piglet places its snout inside the bowl and applies light pressure to the nipple stem. The valve opens and releases fresh water into the lower part of the bowl.

When the piglet releases the nipple, the valve closes automatically. Positioning the nipple close to the bowl bottom helps young animals find and activate the water source while limiting unnecessary discharge.

• Product Type: Automatic stainless steel drinking bowl for piglets
• Reference Short-Pipe Model: 2100622
• Reference Short Pipe Length: Approximately 130 mm
• Long-Pipe Option: Approximately 352 mm
• Material: Stainless steel
• Reference Overall Height: Approximately 190 mm
• Reference Bowl Width: Approximately 120 mm
• Reference Bowl Depth: Approximately 65 mm
• Reference Weight: Approximately 364 g
• Valve: Height-adjustable, light-pressure drinking nipple
• Water Pressure: According to selected valve and project water-supply design
• Other Configurations: Available upon request

• Commercial farrowing houses
• Suckling piglet drinking systems
• Piglet creep areas
• Individual farrowing pens
• Loose-farrowing systems
• Steel structure pig houses
• Pig farm watering-system renovation projects

• Short or long water-supply pipe
• Drinking nipple specification
• Water-line connection arrangement
• Wall, panel or pen-partition mounting hardware
• Single or double drinking-point layouts
• Water filtration and pressure-control components
• Complete configuration according to farrowing-pen design and project requirements

Installation:

• Mount the bowl securely to a compatible wall, panel or farrowing-pen structure.
• Position the bowl low enough for young piglets to reach the nipple comfortably.
• Adjust the nipple close to the bowl bottom to support early learning and reduce water loss.
• Connect the supply pipe to a clean and regulated farm water line.
• Flush the water line before commissioning.
• Test nipple activation, flow and shutoff before piglets enter the pen.

Maintenance:

• Remove feed, manure and mineral deposits from the bowl regularly.
• Activate the nipple during daily inspections to confirm reliable water flow.
• Check the valve for continuous dripping after release.
• Inspect pipe connections and mounting hardware periodically.
• Flush the water system after medication or prolonged shutdown.

Q1: What age group is this drinking bowl designed for?

It is designed primarily for young piglets in farrowing pens and other early-life drinking applications.

Q2: Why is the nipple adjustable?

The nipple can be positioned closer to the bowl bottom, making it easier for small piglets to activate while helping reduce unnecessary water loss.

Q3: Why use a drinking bowl instead of an exposed nipple?

The bowl provides a visible and accessible drinking area for young piglets and captures part of the water released during drinking.

Q4: Are short- and long-pipe versions available?

Yes. The reference range includes a short-pipe version and a long-pipe version for different installation layouts.

Q5: Is the bowl easy to clean?

Yes. The stainless steel bowl uses rounded surfaces without deep blind corners, helping simplify routine washing and sanitation.

Q6: Can the bowl be connected to an existing farrowing-house water system?

Yes. Suitable pipes, hoses, fittings and mounting components can be selected for new or existing water-supply layouts.

Q7: What information is required for a quotation?

Please provide the required quantity, piglet production system, preferred pipe length, water pressure, mounting structure, water-line arrangement and project location.
