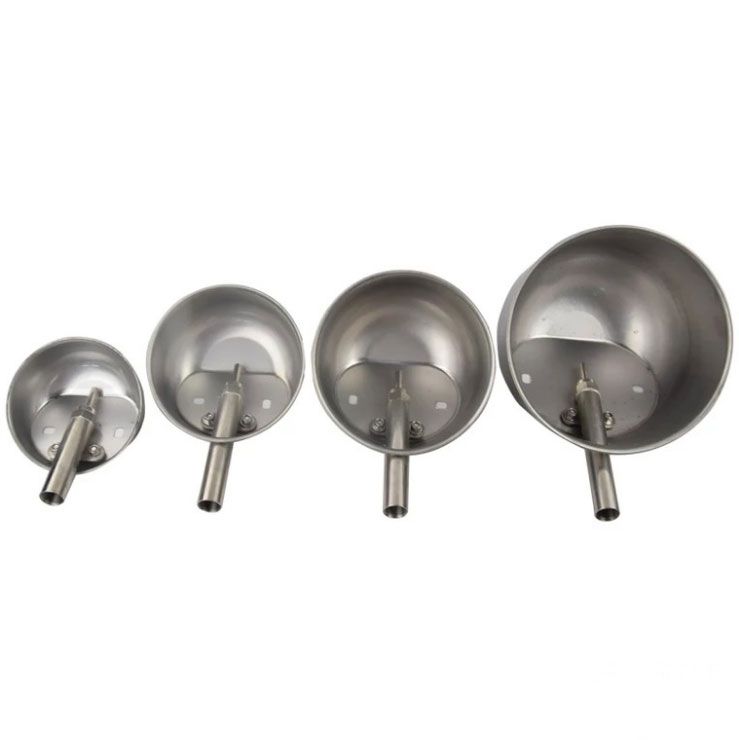

Water-Circulation Finisher Pig Drinking Bowl

The Water-Circulation Finisher Pig Drinking Bowl is designed for grower and finishing pig houses requiring hygienic water supply with reduced spillage. The stainless steel bowl allows pigs to drink from an open water surface while the surrounding bowl profile helps contain splashing.

Unlike a conventional dead-end drinking line, the circulation configuration connects the drinker to a return water pipe. Continuous or scheduled circulation helps maintain water movement through the line and makes pipeline flushing easier after the use of vitamins, electrolytes or water-soluble medication.

The system is suitable for commercial pig farms, steel-structure pig houses and livestock projects where durability, water hygiene and convenient maintenance are important.

• Designed for grower and finishing pigs.
• Water-circulation configuration supports continuous or scheduled water movement.
• Helps simplify flushing after vitamins, minerals or medication are supplied through drinking water.
• Stainless steel bowl provides corrosion resistance and long service life.
• Open-bowl drinking encourages natural water intake.
• Deep bowl profile and raised sides help reduce water splash and wastage.
• Animal-operated valve supplies water only when required.
• Smooth surfaces facilitate routine washing and disinfection.
• Wall, partition or pipe-mounted configurations available.
• Suitable for integration with centralized pig-house water supply systems.

• Stainless Steel Drinking Bowl: Provides a hygienic open-water drinking area.
• Drinking Valve: Releases water when activated by the pig.
• Valve Stem: Allows easy animal operation with the snout or mouth.
• Water Inlet Pipe: Supplies fresh water from the house drinking line.
• Circulation / Return Pipe: Returns water to the circulation loop instead of creating a dead-end section.
• Mounting Plate: Secures the bowl to pen partitions, walls or support structures.
• Pipe Fittings: Connect the drinker to the farm water-distribution system.

Fresh water enters the drinker through the supply line while the circulation pipe forms part of a closed or return-loop water system. Water can therefore continue moving through the pipeline instead of remaining stagnant in a dead-end branch.

When a pig presses the valve stem, water is released into the bowl. After the pig stops pressing, the valve closes automatically.

During line flushing, water can be circulated through the supply and return pipes to remove residues from medication, vitamins or minerals and to support routine drinking-line hygiene.

• Grower pig houses
• Finishing pig houses
• Wean-to-finish facilities
• Commercial pig production farms
• Large-group pig pens
• Steel-structure pig houses
• Centralized drinking-water systems
• Medication and vitamin dosing systems
• Pig-house renovation projects

• Bowl dimensions and depth
• Stainless steel grade and thickness
• High-pressure or low-pressure drinking valve
• Water inlet and return-pipe arrangement
• Thread and pipe connection size
• Mounting bracket configuration
• Circulation-line layout
• Water connection unit and pressure regulator
• Medication or dosing-system connection
• Customizable according to project requirements

Installation:

• Install the bowl where pigs can drink comfortably without blocking the main pen traffic area.
• Set the mounting height according to the size of the finishing pigs.
• Secure the bowl firmly to the wall or pen partition.
• Connect the supply and return pipes according to the designed circulation direction.
• Install isolation valves where required for individual maintenance.
• Flush the complete pipeline before pigs enter the pen.
• Adjust water pressure and valve flow to minimize excessive splashing.

Maintenance:

• Check daily that each drinking valve operates freely.
• Remove feed residue and manure from the bowl regularly.
• Inspect supply and circulation pipes for leaks.
• Flush the drinking line after medication or vitamin treatment.
• Clean filters and pressure regulators periodically.
• Inspect valve seals and replace worn components when necessary.
• Clean and disinfect the system between production batches according to farm biosecurity procedures.

Q: Why use water circulation in a finishing-pig drinking system?
A: A circulation loop keeps water moving through the pipeline and makes it easier to flush residues after vitamins, minerals or medication have been supplied through the drinking water.

Q: How does the bowl reduce water wastage?
A: The surrounding bowl catches much of the water released around the pig's mouth, while the animal-operated valve stops flow when it is no longer activated.

Q: Is stainless steel suitable for commercial pig houses?
A: Yes. Stainless steel provides good corrosion resistance, hygiene and durability in demanding livestock environments.

Q: Can the system be used with medication delivered through drinking water?
A: Yes. Circulation and flushing arrangements are especially useful where water-soluble supplements or medication are used, subject to the farm's veterinary and water-management procedures.

Q: Can the connection size be customized?
A: Yes. Pipe diameter, thread type and circulation layout can be selected according to the existing drinking-water system.

Q: What information is required for a quotation?
A: Please provide pig weight range, pigs per pen, required number of bowls, water pressure, pipe diameter, circulation-line layout, mounting method and project destination.
