Product Showcase	Content

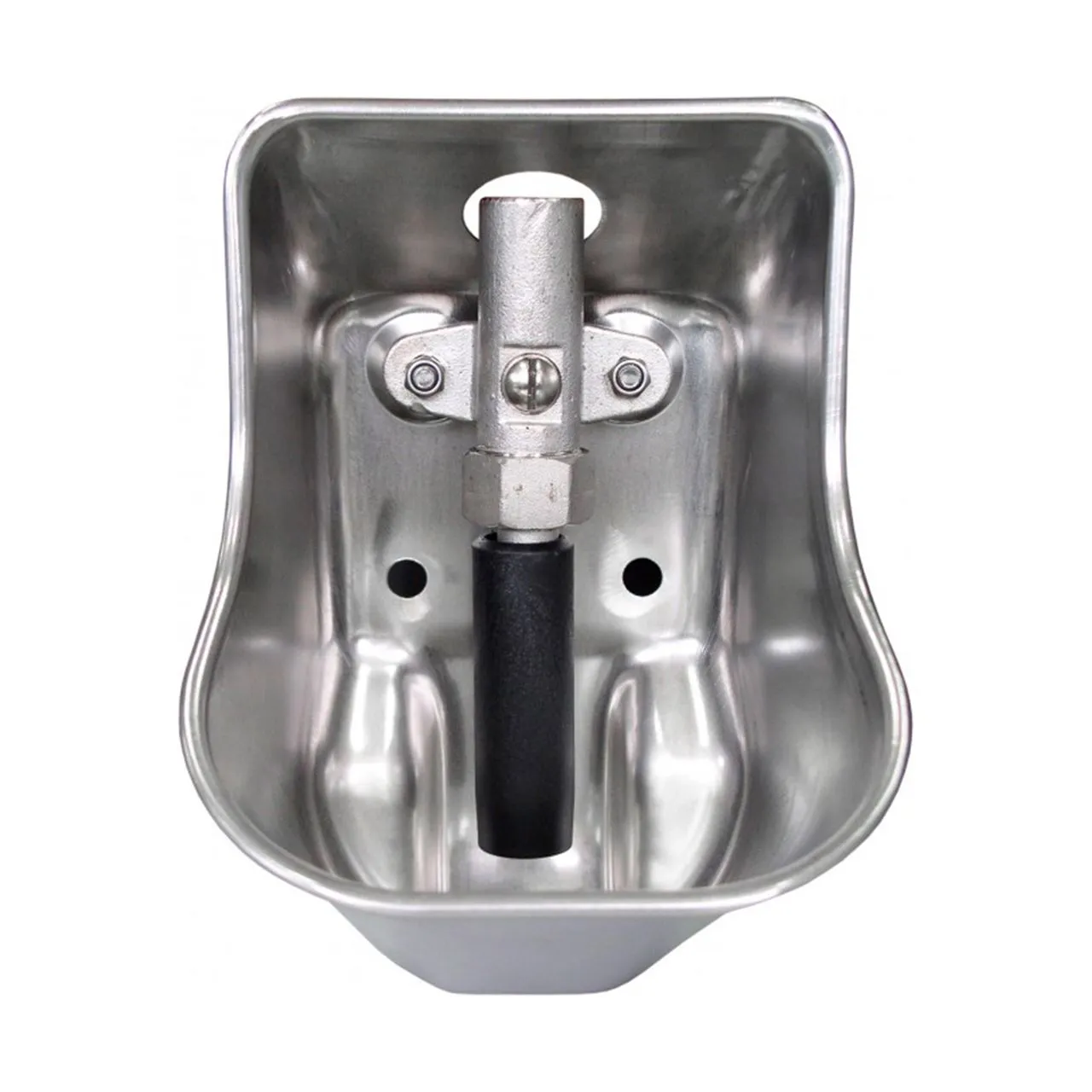

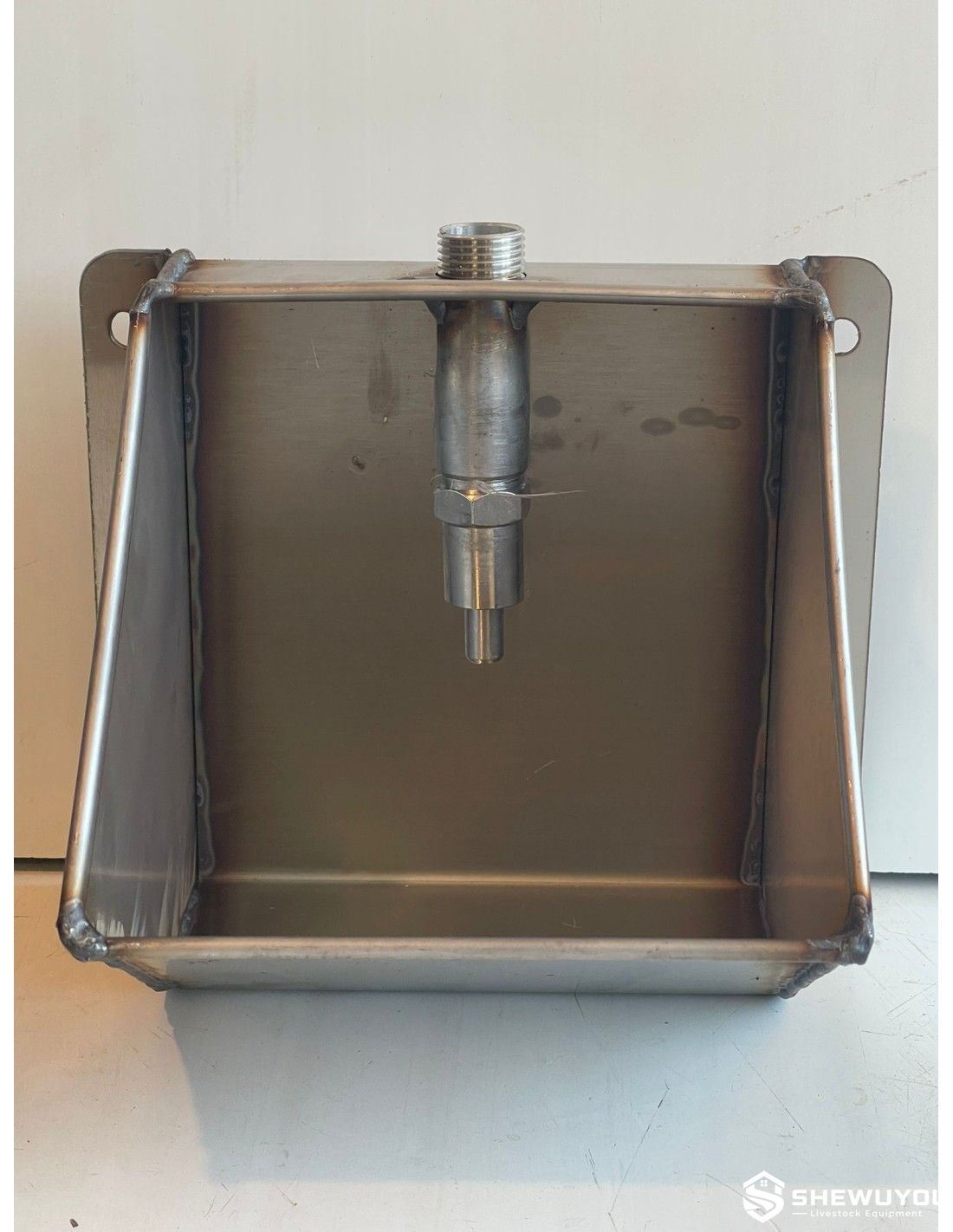

Product Name	Square Stainless Steel Pig Drinking Bowl
Product Image
Product Overview	The Square Stainless Steel Pig Drinking Bowl is a welded water cup designed for commercial nursery and finishing pig houses. The deep square-profile basin helps contain drinking water around the nipple while reducing unnecessary spray and runoff into the manure pit. A reinforced rear mounting plate and stainless steel water pipe provide a durable installation on pig penning systems. Single and double drinking-point configurations can be supplied according to barn layout and animal group requirements.
Key Features	Heavy-duty stainless steel construction for corrosion resistance and long service life. Square welded basin provides a stable and accessible drinking area. Deep bowl profile helps contain activated water and reduce floor wetness. Reinforced rear mounting plate improves structural strength. Pre-punched mounting slots simplify installation on pig penning. Compatible with trigger-type pig drinking nipples. Available for nursery and finishing pig applications. Single and double bowl configurations available upon request.
Structural Components	Stainless Steel Bowl: Welded drinking basin that retains water around the drinking point. Rear Mounting Plate: Reinforced plate with mounting slots for secure attachment to pen structures. Side Reinforcement: Supports the bowl against repeated animal contact. Square Water Pipe: Supplies water from the main pig-house water line to the drinking nipple. Nipple Connection: Accepts a compatible trigger nipple according to the selected configuration. Top Mounting Bracket: Secures the water pipe to the penning structure.
Working Principle / Structural Principle	Water is supplied through the vertical pipe to a trigger nipple positioned inside the bowl. When the pig activates the nipple, fresh water flows into the drinking basin. The bowl captures most of the released water so the animal can drink it instead of allowing excessive water to spray directly onto the floor. When the nipple is released, water flow stops automatically.
Technical Specifications	Product Type Square Welded Pig Drinking Bowl Reference Material 304 Stainless Steel Reference Bowl Body 16-Gauge Stainless Steel Reference Rear Plate 11-Gauge Stainless Steel Reference Water Pipe 50" Stainless Steel Square Pipe Reference Pipe Connection 1/2" FPT Top Connection Nipple Compatibility Compatible 1/2" MPT Trigger Nipple Configurations Single or Double Bowl Animal Stage Nursery and Finishing Pigs Water Flow According to Selected Nipple and Farm Water System
Applications	Piglet nursery houses Wean-to-finish facilities Grower and finishing pig houses Commercial swine production facilities Single-pen and group-housing drinking systems New pig farm construction projects Existing drinking-system renovation and replacement
Customization Options	Nursery or finishing pig bowl size Single or double drinking-point configuration Stainless steel grade and material thickness Water pipe length and connection specification Trigger nipple type and flow configuration Mounting plate and bracket arrangement OEM branding and bulk export packaging
Installation & Maintenance	Position the drinking bowl at an appropriate height for the target pig group. Secure the reinforced rear plate and water-pipe bracket to the pen structure, then connect the water pipe to the farm supply line and install the selected trigger nipple. Flush the water line before commissioning. Clean the bowl regularly and inspect the nipple, welds, mounting hardware and water connections for blockage, leakage or damage. Adjust water flow according to pig size and water-system conditions.
Product FAQ	Q: What is the main advantage of a drinking bowl compared with an exposed nipple? A: The bowl captures water released by the nipple, helping reduce spraying, runoff and unnecessary water entering the manure system. Q: What material is used for the reference configuration? A: The reference welded water cup system uses 304 stainless steel for durability and corrosion resistance. Q: Can the bowl be used for nursery and finishing pigs? A: Yes. Different configurations are available for nursery and finishing pig production stages. Q: Are single and double drinking bowls available? A: Yes. Both single and double bowl assemblies can be supplied according to pen layout and stocking requirements. Q: Is the nipple included? A: Nipple supply depends on the selected configuration. Compatible trigger nipples can be supplied according to project requirements. Q: Can the water pipe and mounting system be customized? A: Yes. Pipe length, connection, mounting brackets and bowl configuration can be adapted to the pig-house project.
Product Gallery

```
