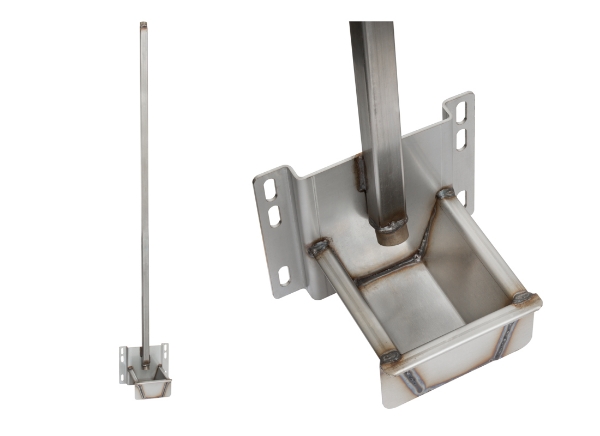

Single Pig Water Cup with Pipe

The Single Pig Water Cup with Pipe is a complete mounting assembly designed for nursery and finishing pig watering systems. It combines a welded stainless steel drinking cup, vertical water-supply pipe and mounting brackets for convenient installation on pig penning.

The bowl retains a small amount of drinking water around the nipple area, helping pigs locate water easily while reducing spray and runoff compared with an exposed nipple. Its stainless steel construction is suitable for intensive commercial pig-house environments.

• Single-Cup Design: Provides one dedicated drinking position for group-housed pigs.
• 304 Stainless Steel Construction: Provides good corrosion resistance and durability in humid swine buildings.
• Integrated Water Pipe: Vertical pipe keeps the water connection above the pig-access area.
• Nursery and Finishing Sizes: Different cup sizes are available according to pig growth stage.
• Reduced Water Waste: The cup captures triggered water and helps limit unnecessary runoff into manure pits.
• Pen-Mounting Brackets: Supplied bracket kit allows convenient attachment to compatible pen structures.
• Flexible Nipple Selection: Compatible drinking nipples can be selected according to pig size, water pressure and required flow.

• Welded Stainless Steel Cup: Forms the drinking basin and protects the nipple area.
• Square Stainless Steel Water Pipe: Supplies water vertically to the drinking point.
• 1/2-Inch Threaded Connection: Provides a standard connection for the water supply and compatible nipple.
• Mounting Brackets: Secure the pipe assembly to compatible pig penning.
• Nipple Mounting Position: Located inside the cup for protected, on-demand drinking.

Water enters through the upper connection of the vertical pipe and flows to a compatible nipple installed inside the drinking cup. When the pig activates the nipple, fresh water is released directly into the cup.

The bowl captures part of the released water, allowing the pig to drink from both the nipple and the retained water while reducing spray and excessive drainage onto the floor.

• Product Type: Single welded pig water cup with vertical pipe
• Applications: Nursery and finishing pigs
• Material: Stainless steel
• Reference Pipe Length: 50 in / approximately 1270 mm
• Pipe Profile: Square stainless steel pipe
• Top Connection: Round 1/2-inch FPT
• Reference Finishing Model: 8160191500
• Reference Nursery Model: 8160201500
• Mounting: Pipe bracket kit for attachment to penning
• Nipple: Selected separately according to watering requirements
• Other Sizes and Configurations: Available upon request

• Nursery pig houses
• Grower and finishing pig barns

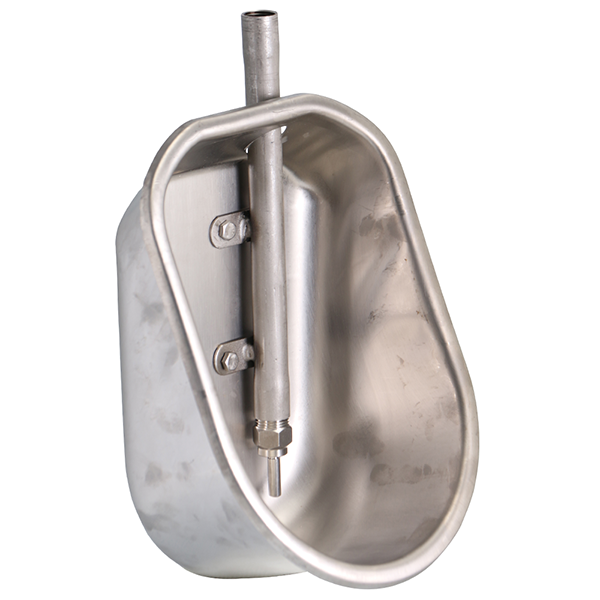

• Wean-to-finish production systems
• Group pig pens
• Commercial steel structure pig houses
• New pig watering installations
• Pig farm watering-system renovation projects

• Nursery or finishing cup size
• Water pipe length
• Drinking nipple type and flow rate
• Mounting bracket arrangement
• Water pressure regulator and filter
• Single or multiple drinking-point layouts
• Complete watering configuration according to project requirements

Installation:

• Select the nursery or finishing configuration according to pig size.
• Secure the pipe to compatible penning using the mounting bracket kit.
• Mount the drinking cup at an appropriate height for the target pig group.
• Connect the upper 1/2-inch threaded inlet to the clean water supply.
• Install a compatible nipple inside the cup where required.
• Flush the line and verify water flow and valve shutoff before use.

Maintenance:

• Remove feed, manure and mineral deposits from the cup regularly.
• Inspect welded joints, mounting brackets and pipe connections periodically.
• Check nipple operation and water flow during routine barn inspections.
• Flush water lines after medication or prolonged shutdown.
• Adjust drinking height and flow settings when pig size changes.

Q1: Is this water cup available for both nursery and finishing pigs?

Yes. Separate nursery and finishing cup configurations are available for different pig sizes.

Q2: What is included with the reference assembly?

The reference configuration includes a welded stainless steel single water cup, 50-inch stainless steel water pipe and pipe mounting bracket kit.

Q3: Is the drinking nipple included?

The reference Hog Slat configuration does not include the nipple. A compatible nipple can be selected according to pig size and required water flow.

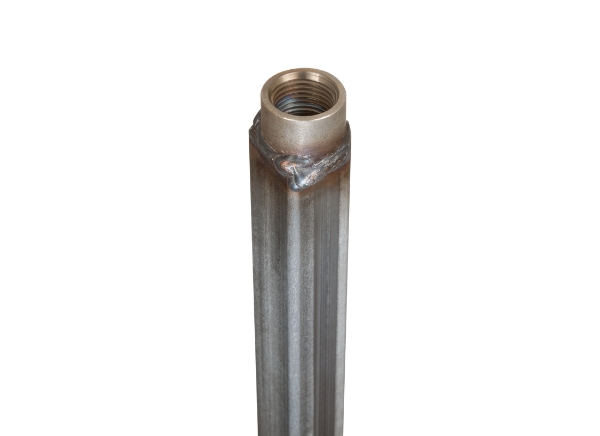

Q4: What connection is provided at the top of the pipe?

The reference square water pipe uses a round 1/2-inch female pipe-thread connection at the top.

Q5: How does a water cup reduce water waste?

The cup captures part of the water released by the nipple, reducing spray and the amount of clean water draining directly into the manure system.

Q6: Can it be mounted on existing pig penning?

Yes. The pipe bracket system is designed for attachment to compatible pen structures, making it suitable for both new installations and renovations.

Q7: What information is required for a quotation?

Please provide pig weight range, required quantity, nursery or finishing application, water pressure, nipple requirements, pen structure and project location.
