Product Showcase	Content
Product Name	Weaner Pig Drinking Bowl

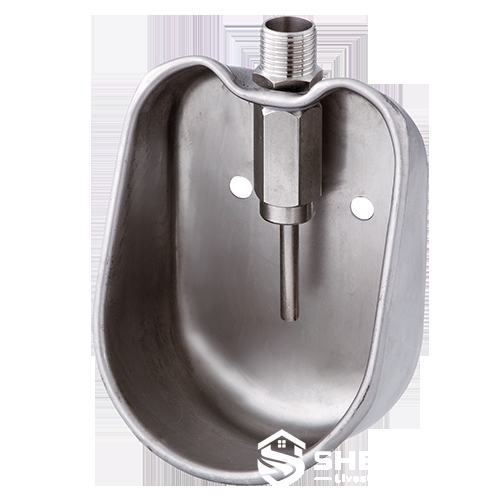

Product Image
Product Overview	The Weaner Pig Drinking Bowl is designed to provide clean, easily accessible drinking water for newly weaned and nursery pigs. Its stainless steel bowl combines a rounded hygienic profile with an adjustable nipple positioned inside the drinking area. Water is released only when pigs activate the nipple, helping reduce unnecessary water loss and slurry volume. The compact design is suitable for commercial nursery houses, weaner pens and wean-to-finish facilities.
Key Features	Stainless steel construction for durability and corrosion resistance. Rounded anatomical bowl design provides convenient access for young pigs. Smooth interior minimizes blind corners and simplifies cleaning. Closed upper section helps reduce manure contamination inside the bowl. Adjustable nipple valve controls water delivery according to farm requirements. On-demand drinking helps reduce unnecessary water consumption and slurry volume. Closed and bent edges improve strength while reducing dirt accumulation and sharp contact points. Suitable for commercial nursery and weaner housing systems.
Structural Components	Stainless Steel Bowl: Rounded drinking area designed for hygiene and easy animal access. Upper Shield: Helps protect the drinking area from manure and contamination. Adjustable Nipple Valve: Releases water when activated by the pig. Stainless Steel Nipple Pipe: Connects the valve to the farm water supply. Mounting Bracket: Secures the drinking bowl and pipe assembly to the pen structure. Water Connection: Integrates the unit with the pig-house drinking-water line.
Working Principle / Structural Principle	The nipple valve is positioned near the bottom of the drinking bowl. When a pig pushes or bites the nipple, the valve opens and fresh water flows directly into the bowl. When the nipple is released, water flow stops automatically. The bowl retains accessible water around the drinking point while helping limit splashing and unnecessary discharge onto the floor.
Technical Specifications	Product Type Automatic Weaner Pig Drinking Bowl Main Material Stainless Steel Reference Configuration Mini Drinking Cup for Weaners Reference Capacity Up to 30 Weaners per Drinking Cup Reference Mounting Height Approx. 12 cm from Floor to Lower Front Edge Reference Nipple 1/2" Adjustable Stainless Steel Drinking Nipple Reference Nipple Pipe 23 × 2 mm Stainless Steel Pipe Reference Maximum Water Pressure 2.5 Bar Water Flow Adjustable According to Pig Size and Water System Other Configurations Available Upon Request
Applications	Weaner pig houses Piglet nursery facilities Post-weaning production areas Wean-to-finish pig houses Commercial breeding and multiplication farms Group pens for young pigs New pig farm construction and drinking-system renovation projects
Customization Options	Bowl dimensions and drinking-cup configuration Stainless steel grade and material thickness Adjustable nipple type and water-flow configuration Nipple pipe length and connection specification Mounting bracket configuration Installation height according to pig size OEM branding and bulk export packaging
Installation & Maintenance	Mount the drinking bowl at a height appropriate for weaned pigs and secure the bracket firmly to the pen structure. Connect the nipple pipe to the farm water supply and flush the line before commissioning. Adjust the nipple flow to provide sufficient water without excessive discharge. Clean the bowl regularly and inspect the nipple, pipe, bracket and connections for blockage, leakage or mineral deposits. Replace worn valve or sealing components when required.
Product FAQ	Q: What pigs is this drinking bowl designed for? A: It is designed primarily for weaned and nursery pigs in commercial swine production facilities. Q: How many pigs can use one bowl? A: The reference Mini configuration is specified for up to 30 weaners per drinking cup. Q: What is the recommended mounting height? A: The reference configuration is installed approximately 12 cm from the floor to the lower front edge of the drinking cup. Q: Can the water flow be adjusted? A: Yes. An adjustable nipple allows water delivery to be matched to pig size, water pressure and farm management requirements. Q: Why is the nipple located inside the bowl? A: The internal nipple allows released water to remain accessible in the bowl, helping reduce spraying and unnecessary water loss. Q: Can complete installation assemblies be supplied? A: Yes. Drinking bowls, nipple pipes, adjustable nipples, brackets and related water-line fittings can be configured according to project requirements.

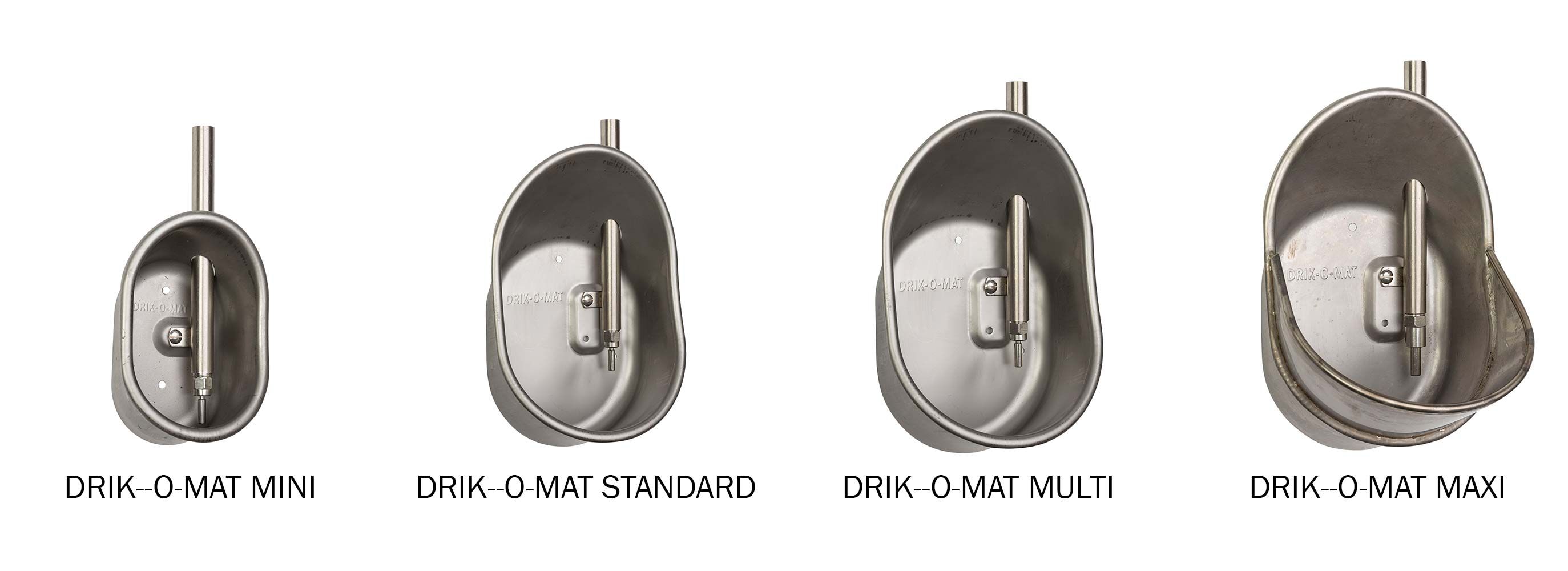

Product Gallery

```
