Stainless Steel Pig Drinking Bowl Series

The Stainless Steel Pig Drinking Bowl Series provides controlled access to fresh water for different stages of commercial pig production, including weaners, finishers, wean-to-finish pigs and sows.

The rounded bowl profile minimizes hard-to-clean corners, while the protected upper section helps reduce manure contamination. An adjustable nipple valve positioned low in the bowl releases water when activated by the pig, helping reduce unnecessary water loss and slurry volume.

• Full Pig-Stage Range: Different bowl sizes are available for weaners, finishers, wean-to-finish pigs and sows.
• Stainless Steel Construction: Suitable for humid and corrosive commercial pig-house environments.
• Rounded Hygienic Design: Smooth contours reduce blind corners and simplify daily cleaning.
• Protected Bowl Area: Raised and partially enclosed geometry helps limit manure and dirt entering the drinking area.
• Adjustable Nipple Valve: Water delivery can be matched to pig category and farm water conditions.
• Reduced Water Waste: Pigs activate the nipple only when drinking, helping limit unnecessary water discharge.
• Flexible Installation: Suitable for pen partitions, walls and compatible stainless steel nipple-pipe systems.

• Stainless Steel Drinking Bowl: Collects a small amount of water and provides comfortable drinking access.
• Rounded Front Edge: Provides smooth pig contact and reduces dirt accumulation.
• Protective Back Panel: Helps shield the bowl from contamination from above.
• Adjustable Drinking Nipple: Releases water when activated by the pig.
• Nipple Pipe: Supplies water to the valve and supports installation at the required height.
• Mounting Bracket: Secures the drinking bowl to compatible pen panels, posts or walls.

The pig places its snout inside the bowl and activates the nipple valve. Water is released directly into the lower drinking area where the pig can consume it immediately.

When the pig stops activating the valve, water delivery stops. The bowl surrounds the drinking point and captures part of the splashed water, helping improve water utilization compared with an exposed nipple installation.

• Product Type: Automatic stainless steel pig drinking bowl series
• Material: Stainless steel
• Valve: Adjustable stainless steel drinking nipple
• Reference Water Pressure: Maximum 2.5 bar at the nipple for selected configurations
• Mini: For weaners; reference capacity up to 30 pigs per bowl; mounting height 12 cm; approximately 15 × 21 × 9 cm
• Standard: For finishers; reference capacity up to 30 pigs per bowl; mounting height 25 cm; approximately 18 × 27 × 11 cm
• Multi: For wean-to-finish pigs and sows; reference capacity up to 30 weaners, 20 finishers or 10 sows; approximately 21 × 29 × 13 cm
• Maxi: For sows; reference capacity up to 10 sows per bowl; mounting height 35 cm; approximately 22 × 30 × 15 cm
• Reference Adjustable Flow: Approximately 3.0-7.0 L/min depending on valve setting and water pressure
• Other Sizes: Customizable according to project requirements

• Weaner and nursery pig houses
• Grower and finishing pig barns
• Wean-to-finish production systems
• Sow gestation and breeding facilities
• Farrowing and lactation units
• Individual and group pig pens
• Steel structure commercial pig houses
• New construction and pig watering-system renovation projects

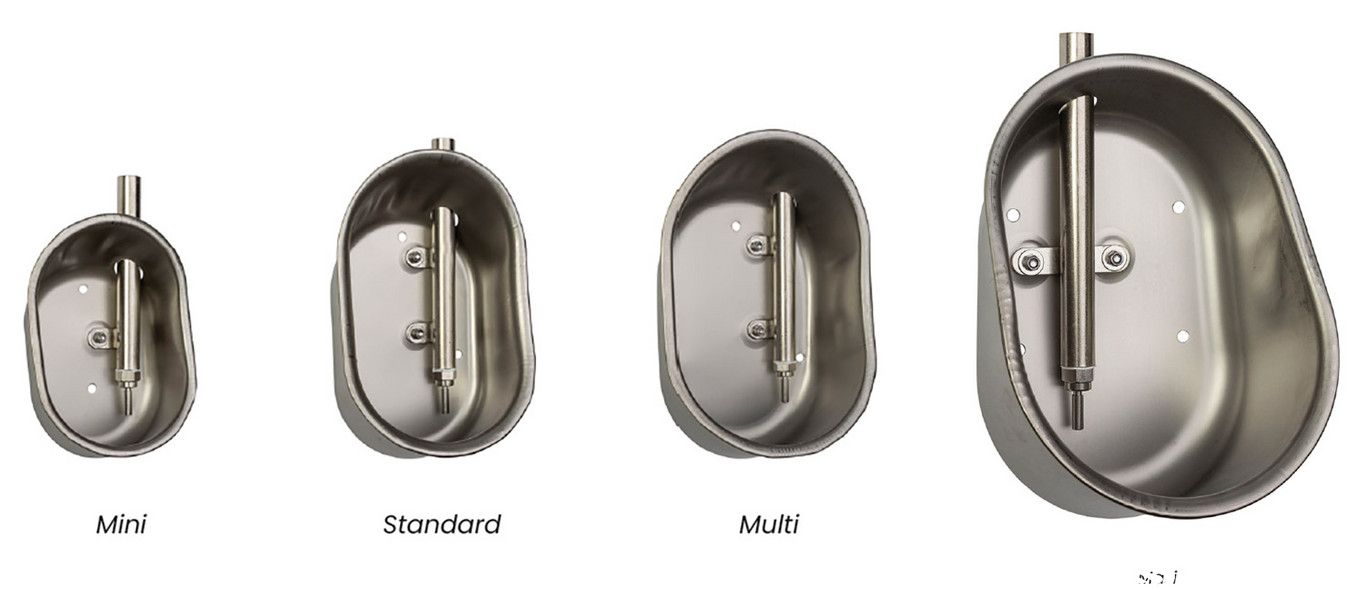

• Mini, Standard, Multi and Maxi bowl configurations
• Round bowl versions for different pig categories
• Stainless steel grade and material thickness
• Adjustable nipple valve specification
• Nipple pipe length and connection arrangement
• Wall, pen-panel or grille mounting brackets
• Pressure regulator, filter and flushing accessories
• Complete watering system according to pig-house layout and project requirements

Installation:

• Select the bowl size according to pig category and number of pigs per drinking point.
• Mount the bowl securely to the wall, partition or compatible pen structure.
• Set the lower front edge at the recommended height for the target pig group.
• Connect the nipple pipe to a clean, regulated water supply.
• Flush the water line before commissioning.
• Check pressure and adjust nipple flow before pigs enter the pen.

Maintenance:

• Remove feed, manure and mineral deposits from the bowl regularly.
• Activate the nipple periodically to verify sufficient water flow and complete shutoff.
• Inspect mounting hardware, pipes and threaded connections for looseness or leakage.
• Flush water lines after medication or prolonged shutdown.
• Adjust installation height and water flow when pig size or production stage changes.

Q1: Which pig categories can use these drinking bowls?

The series includes configurations for weaners, finishers, wean-to-finish pigs and sows.

Q2: Why use a bowl instead of an exposed nipple drinker?

The bowl provides a protected drinking area and captures part of the water released during drinking, helping reduce water waste and wet flooring.

Q3: Can the nipple flow be adjusted?

Yes. Adjustable nipple configurations allow water delivery to be matched to pig size, water pressure and farm requirements.

Q4: What water pressure is recommended?

For the reference configurations, pressure at the nipple should not exceed 2.5 bar. Final settings should follow the selected valve specification.

Q5: Are different bowl sizes available?

Yes. Mini, Standard, Multi, Maxi and round bowl configurations can be selected according to production stage.

Q6: Can the bowls be installed on existing pig pens?

Yes. Suitable brackets and pipe arrangements can be supplied for walls, pen panels, grille structures and renovation projects.

Q7: What information is required for a quotation?

Please provide pig category, pigs per pen, required quantity, water pressure, preferred bowl size, mounting structure and project location.
