Product Name Manure Slurry Knife Gate Valve
Product Image

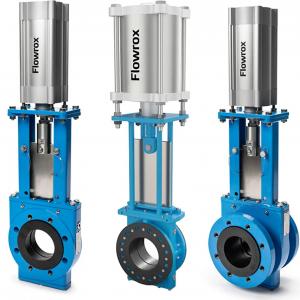

slurry knife gate valve reference product

Valmet reference image. Final SHEWUYOU valve design and appearance require confirmation.
Product Overview The Manure Slurry Knife Gate Valve provides on-off isolation in a livestock manure pipeline. Its sliding gate moves across the flow passage to close the line for equipment servicing or process switching. Selected for the actual solids content and pressure conditions, it can be integrated into commercial pig farm manure transfer, slurry separation and biogas digestate systems.
Key Features
  • On-off isolation for manure and other solids-bearing slurry lines.
  • A full-bore configuration can provide an unobstructed passage when open.
  • Replaceable seat and packing components can support planned maintenance.
  • Manual or powered operation can be specified to suit the pump station and control system.
  • Body, gate and seat materials can be selected for the media and farm environment.
Structural Components A typical assembly includes a valve body, sliding gate, resilient seat or sleeve arrangement, stem, stem packing or gland seal, support yoke and actuator. Flanged or wafer-style connections may be considered according to the mating pipework. Seat construction, flow direction capability and service procedure depend on the confirmed valve model.
Working Principle The actuator raises the gate to open the flow passage and lowers it across the bore to isolate the line. The selected seat system provides the shut-off seal. The valve is intended primarily for fully open or fully closed operation; continuous flow regulation requires a valve specifically rated for throttling service.
Technical Specifications
  • Nominal size and connection standard: According to project requirements
  • Working pressure and temperature: Available upon request for the selected model
  • Body, gate, seat and packing materials: Customizable
  • Actuation: Manual, pneumatic or electric options subject to configuration
  • Installation dimensions and required operating clearance: According to approved drawings
Applications Potential installation points include manure pump suction or discharge lines, storage tank connections, separator inlet lines and prepared digestate transfer pipes. In pig farm construction projects, valve access can be coordinated with concrete pits, equipment platforms and steel structure service buildings. Each duty should be checked for solids size, fibers, abrasion, flow direction and required shut-off performance.
Customization Options Options can include valve size, connection pattern, seat compound, gate material, corrosion protection, actuator type, position indication and control interface. The final specification can be designed according to local climate and farm conditions.
Installation & Maintenance Install the valve in aligned, independently supported pipework, following the approved flow orientation and flange-bolting instructions. Leave space for the full gate travel and access to the actuator, seat and packing. During commissioning, cycle the valve and check for external leakage and the specified shut-off performance. Isolate, drain and depressurize the line before inspection or replacement of service parts.
Product FAQ

Is the valve suitable for thick manure?
Suitability depends on solids size, fiber content, valve bore, seat design and pressure. Provide the media details for selection.

Can it be operated remotely?
Pneumatic or electric actuation can be specified where a compatible control and power supply are available.

What is needed for a quotation?
Provide the pipe size and flange standard, pressure, temperature, manure characteristics, installation position, required shut-off direction and preferred actuator.
Product Gallery

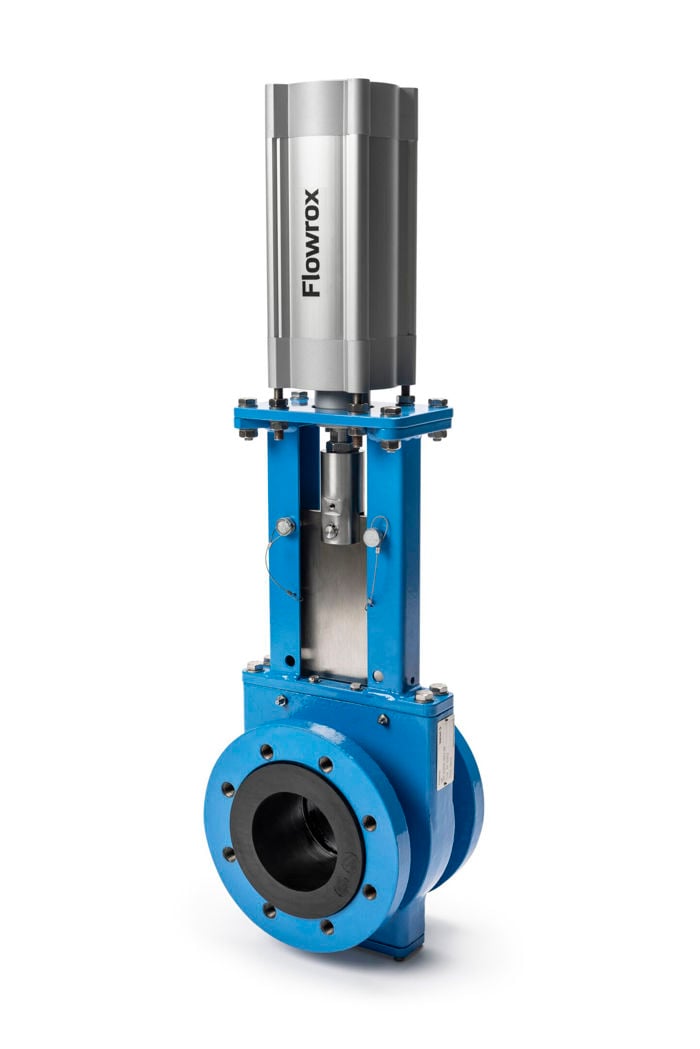

pneumatic slurry knife gate valve reference configuration

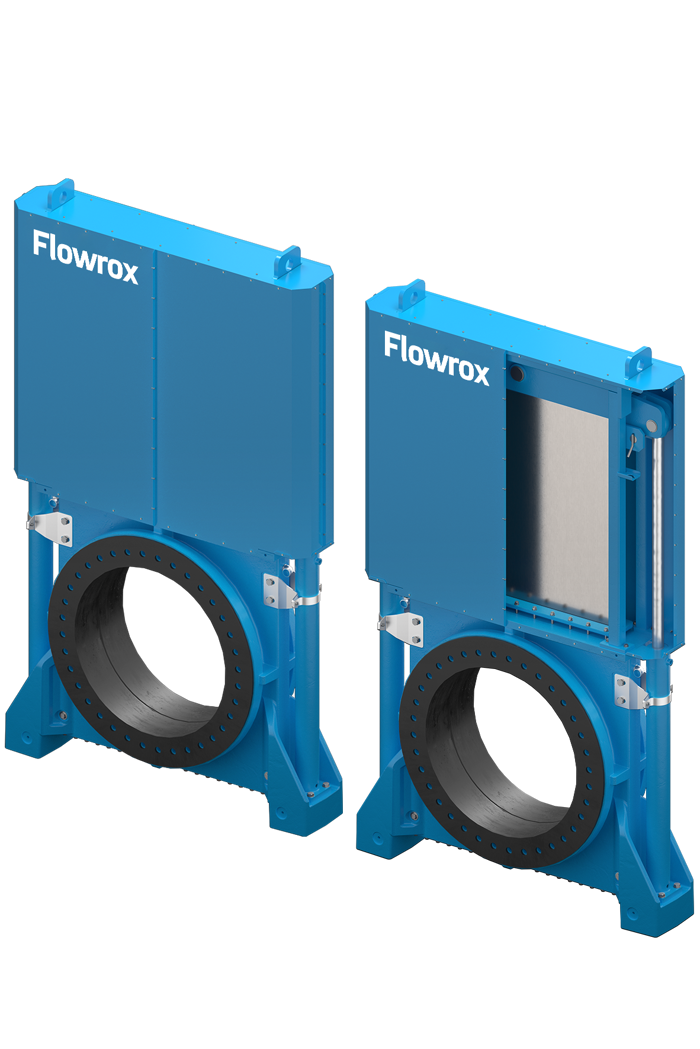

large flanged slurry knife gate valve reference configuration

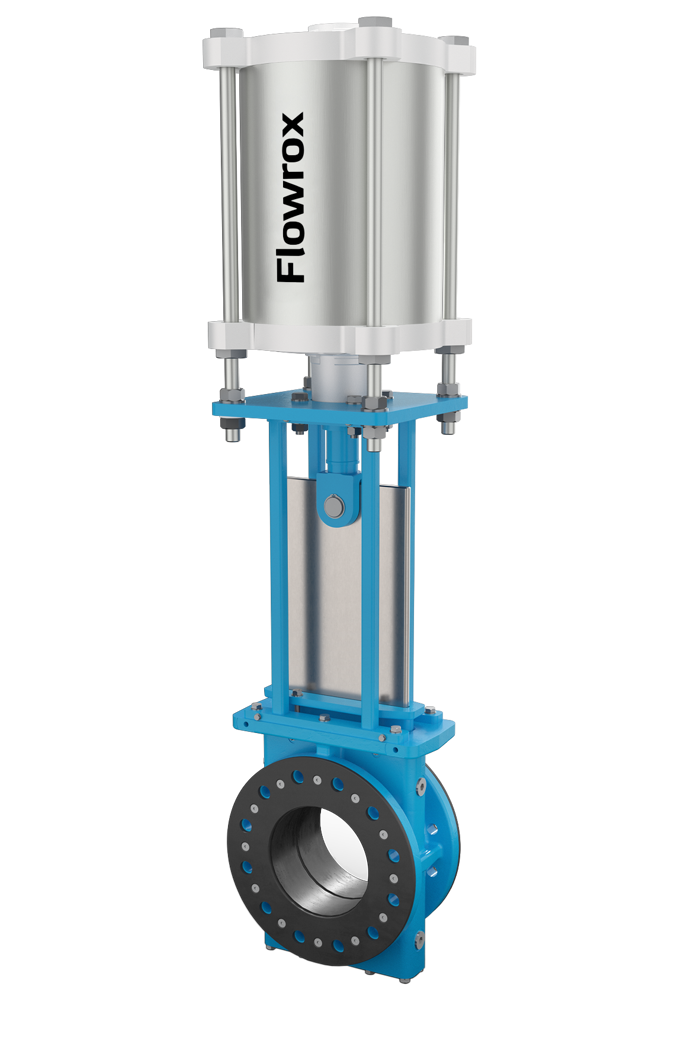

heavy-duty slurry knife gate valve reference configuration

Gallery images show third-party reference valve configurations, not a confirmed SHEWUYOU product or project.
