Manure Drain Pipe Fittings

Published: 2026-09-27 Views: 0 Comments: 0 Source: SHEWUYOU Products Team Request a Quote
Product Showcase Content
Product Name Manure Drain Pipe Fittings
Product Image
PVC manure drain pipe fittings for pig farm drainage
Product Overview Manure Drain Pipe Fittings connect the PVC pipe network that carries liquid pig manure from underfloor channels to a receiving pit or downstream treatment system. The range can include couplings, bends, branch fittings, reducers and access fittings selected for the drainage layout. These components support coordinated installation in commercial pig farm construction, including concrete manure channels beneath slatted floors in steel structure livestock buildings.
Key Features
  • PVC construction resists corrosion associated with wet agricultural drainage environments.
  • Multiple fitting patterns allow pipe runs to turn, branch, reduce or connect to pit outlets.
  • Compatible solvent-weld joints provide permanent connections when installed with the specified pipe and cement system.
  • Selected swept bends and branch layouts help maintain a practical flow path for slurry.
  • Fittings can be scheduled from project drawings to simplify site installation and procurement.
Structural Components Available fitting types may include socket couplings, elbows, wyes, tees, reducers, adapters and cleanout connections. Dedicated inlet fittings and wall-collar details can be considered where manure channels or pipework pass through concrete structures. The final fitting schedule depends on pipe dimensions, joint type and the approved manure drainage design.
Structural Principle Each fitting creates a continuous passage between compatible pipe sections. Couplings join straight runs, bends change direction, and branch fittings combine flow from separate manure channels. In a gravity drainage network, pipe fall and routing govern flow toward the collection point; fitting selection should account for slurry solids, inspection access and the risk of deposition.
Technical Specifications
  • Material: PVC or other project-approved material, according to requirements.
  • Nominal diameter and wall specification: Matched to the selected manure drain pipe.
  • Fitting pattern and branch angle: Available upon request.
  • Joint configuration: Compatible solvent-weld or other specified connection system.
  • Service duty: Confirmed for gravity drainage; pumped pressure lines require separately rated pipe and fittings.
Applications Suitable for underfloor pig slurry collection networks, pull-plug manure channel outlets, barn-to-pit gravity drains and pipe connections within farm manure handling facilities. Fittings can serve sow, nursery and finishing pig houses when selected for the actual pipe system and slurry characteristics.
Customization Options The fitting schedule can be assembled according to project requirements, including connection diameter, branch arrangement, outlet orientation, cleanout locations and interfaces with manure pits. For new buildings or renovations, pipe routes can be coordinated with concrete foundations, slatted floor layouts and other livestock equipment before installation.
Installation & Maintenance Check pipe and fitting compatibility before joining. Cut and deburr pipe ends, dry-fit the layout, then prepare and solvent-weld joints using the approved manufacturer's procedure where applicable. Maintain the designed pipe fall, support aboveground sections and protect buried fittings during bedding and backfill. Provide access for inspection and clearing at locations identified in the drainage design.
Product FAQ

Can these fittings be used on a pumped manure line?
Gravity sewer fittings should not be assumed suitable for pressure service. Specify a compatible pressure-rated system for pumped lines.

Which fitting types are needed for a pig barn?
The drawing typically determines the required couplings, bends, branch fittings, adapters and inspection points.

What should be provided for a quotation?
Send the pipe specification, plan and elevation drawings, fitting quantities, joint requirements and any concrete pit connection details.
Product Gallery

PVC solvent-weld drain fitting installation detail

pig manure drainage pipe with branch fittings and wall collars

special PVC tee fitting for pig slurry pipe system

Illustrative reference images: IPEX and Lothar Becker Agrartechnik. Supplied fitting patterns and project installations may differ.

Comments & Inquiries

Leave your questions or requirements below. We will reply as soon as possible.

Related Products

Slurry Pipeline Air Release and Vacuum Valve - SHEWUYOU Livestock Equipment

Slurry Pipeline Air Release and Vacuum Valve

Manure Slurry Ball Check Valve - SHEWUYOU Livestock Equipment

Manure Slurry Ball Check Valve

Manure Slurry Pinch Valve - SHEWUYOU Livestock Equipment

Manure Slurry Pinch Valve

manure slurry knife gate valve, pig farm slurry valve,... - SHEWUYOU Livestock Equipment

manure slurry knife gate valve, pig farm slurry valve, man...

Manure Slurry Drag Hose - SHEWUYOU Livestock Equipment

Manure Slurry Drag Hose

Manure Pump Suction Hose - SHEWUYOU Livestock Equipment

Manure Pump Suction Hose

Manure Pipe Quick Coupling - SHEWUYOU Livestock Equipment

Manure Pipe Quick Coupling

Manure Drain Pipe Fittings - SHEWUYOU Livestock Equipment

Manure Drain Pipe Fittings

Manure Transfer Pressure Pipe - SHEWUYOU Livestock Equipment

Manure Transfer Pressure Pipe

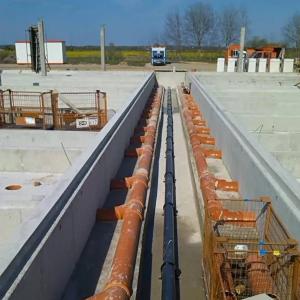

PVC Gravity Manure Drain Pipe - SHEWUYOU Livestock Equipment
