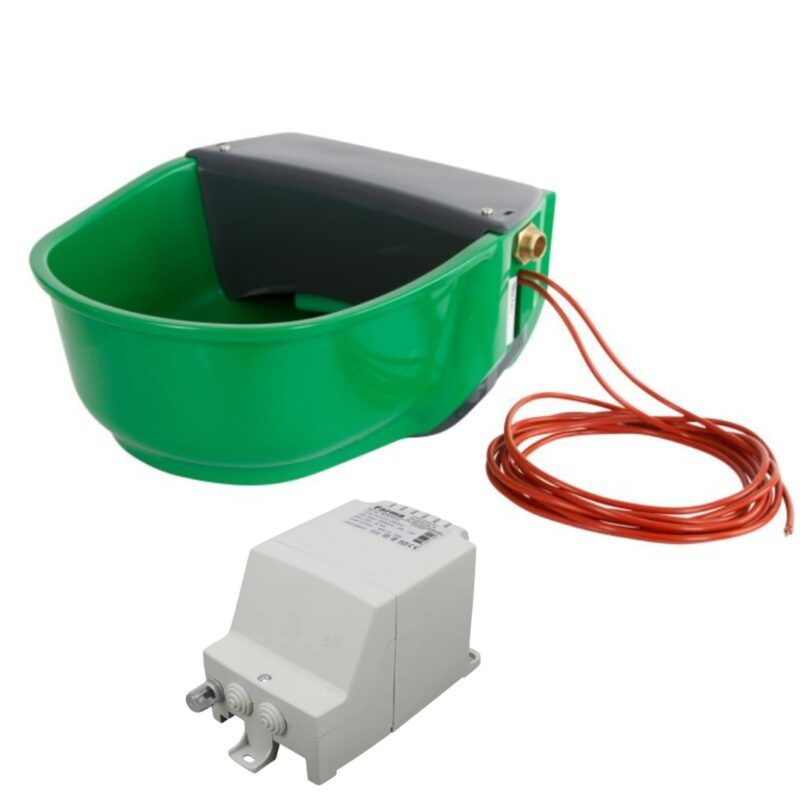

Heated Float Goat Drinking Bowl

The Heated Float Goat Drinking Bowl is an automatic livestock watering solution developed for goat and sheep facilities where dependable water availability is required during cold weather. It combines a durable drinking bowl, mechanical float valve and integrated electric heating system to maintain the water supply under low-temperature conditions.

The float-operated valve automatically replenishes water as animals drink, helping maintain a practical drinking level without continuous manual filling. An integrated frost-protection thermostat controls the heating system according to ambient temperature, reducing unnecessary heating during warmer conditions.

Designed for wall or pipe mounting, the unit can be integrated into goat barns, sheep houses, lambing facilities, breeding units and other steel-structure livestock buildings. Different voltage, heating capacity, valve and water-supply configurations can be selected according to project requirements.

• Automatic Float Water Control: Mechanical float valve automatically regulates the water level and replenishes the bowl after drinking.
• Integrated Frost Protection: Heating cable helps protect the drinking bowl and valve against freezing in cold-weather livestock housing.
• Thermostatic Operation: Frost-protection thermostat automatically controls heating according to temperature conditions.
• Optional Pipe Heating: Configurations with auxiliary heating for the incoming water pipe are available for enhanced winter protection.
• Durable Bowl Construction: Manufactured from robust livestock-grade plastic suitable for routine use in farm environments.

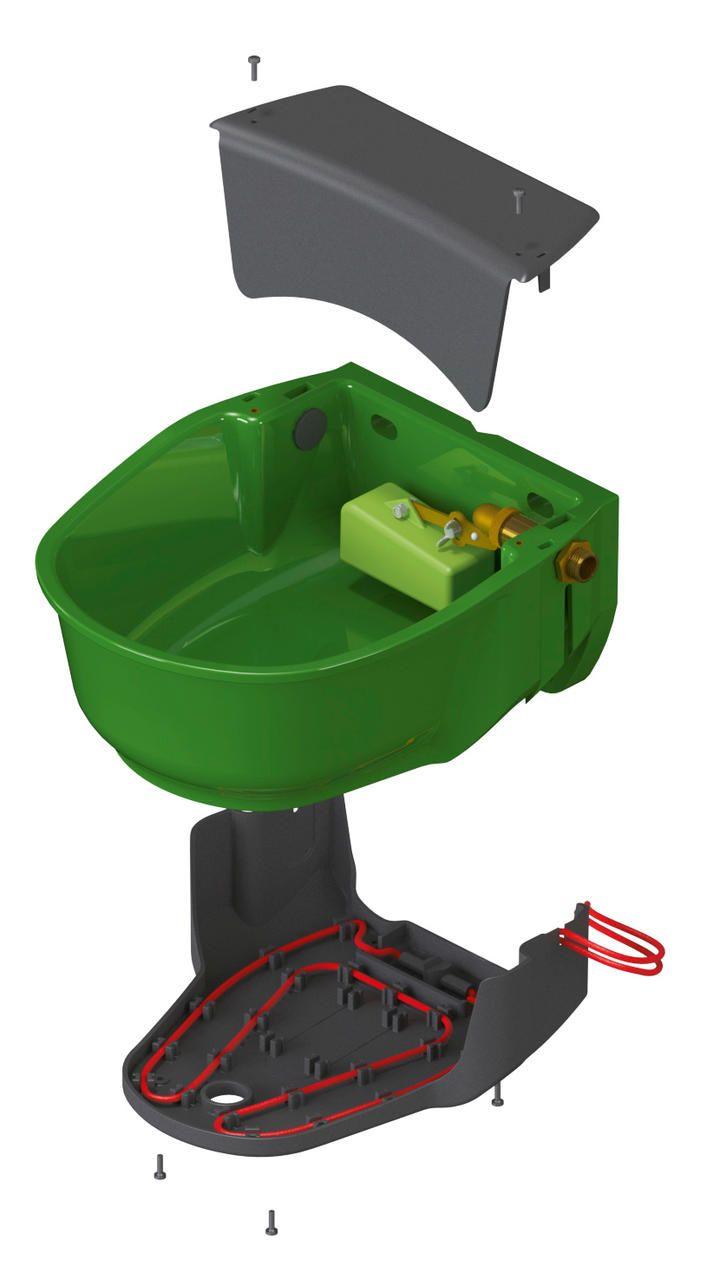

• Protected Float Valve: The valve is positioned beneath a protective cover to reduce contamination and accidental animal contact.
• Easy Valve Access: Removable valve cover simplifies inspection, adjustment and routine servicing.
• Convenient Cleaning: Drain outlet allows the bowl to be emptied efficiently during cleaning and maintenance.
• Flexible Installation: Suitable for wall, partition or pipe mounting according to livestock-house layout.
• Project Customization: Water connection, voltage, heating configuration and mounting accessories can be specified according to farm requirements.

When goats or sheep drink, the water level in the bowl falls and the float mechanism opens the inlet valve. Fresh water flows into the bowl until the preset level is restored, after which the float closes the valve automatically.

During cold weather, the thermostatically controlled heating cable protects critical areas of the drinking system against freezing. Depending on configuration, heating can cover the bowl and valve or can additionally extend along part of the incoming water pipe.

For reliable winter operation, the complete water supply system should be designed with appropriate pipe insulation and frost protection according to local minimum temperatures and farm conditions.

• Commercial goat farms and dairy goat facilities
• Sheep farms and breeding facilities
• Lambing and kidding barns
• Cold-climate livestock housing
• Indoor and semi-enclosed livestock buildings
• Steel structure goat and sheep houses
• Winter livestock watering systems
• Farm renovation and drinking-system upgrade projects

For livestock projects, SHEWUYOU can configure the drinking system according to farm layout, animal group and local climate conditions. Available options may include:

• 24 V or 230 V heating configuration
• Standard bowl heating or bowl plus auxiliary pipe heating
• High-pressure or low-pressure float valve configuration
• Wall or pipe mounting accessories
• Water-line layout according to livestock house design
• Additional pipe insulation and frost-protection solutions
• Integration with complete goat and sheep farm watering systems
• OEM and project-specific configurations available upon request

Installation: Secure the drinking bowl to a structurally suitable wall, livestock partition or mounting pipe at the appropriate drinking height. Connect the water inlet from the required side and install the electrical heating circuit in accordance with the selected voltage and applicable local electrical regulations.

Winter Protection: Water supply pipes outside the heated area should be properly insulated or equipped with suitable trace heating. The entire water line must be protected where temperatures can fall below freezing.

Electrical Safety: Heated livestock equipment should be installed by qualified personnel. Appropriate junction boxes, circuit protection and animal-resistant cable protection should be used according to the project environment. A suitable transformer is required when using a 24 V configuration where applicable.

Routine Maintenance: Periodically inspect the float valve, heating cable, thermostat, water connections and electrical protection. Remove sediment and feed contamination from the bowl and use the drain outlet for regular washing.

The Heated Float Goat Drinking Bowl can be incorporated into complete goat and sheep farm projects together with water supply pipelines, insulated pipe systems, pens, gates, feeders, flooring and steel structure livestock buildings. Drinking points can be positioned according to pen dimensions, stocking density, animal age and farm management requirements.

Q: How does the heated goat drinking bowl maintain the water level?
A: A mechanical float valve detects the water level. As animals drink and the level falls, the valve opens automatically and closes again when the preset level is restored.

Q: Is this drinking bowl suitable for freezing weather?
A: Yes. The integrated heating system is designed to protect the bowl and valve in cold conditions. Actual frost protection depends on the model, installation, water supply and local climate.

Q: Can the incoming water pipe also be heated?
A: Yes. Versions with auxiliary pipe heating can be supplied. Additional frost protection may be required for longer pipelines.

Q: Can it be used for sheep as well as goats?
A: Yes. The design is suitable for goat and sheep watering systems when installed at the correct drinking height and with an appropriate water supply.

Q: Can the bowl be mounted on livestock pen pipes?
A: Yes. Wall and pipe mounting configurations are available, allowing flexible integration into livestock penning systems.

Q: Can SHEWUYOU supply drinking equipment for a complete goat farm project?
A: Yes. Watering equipment, feeding systems, penning and related livestock farm equipment can be configured according to project layout and operating requirements.
