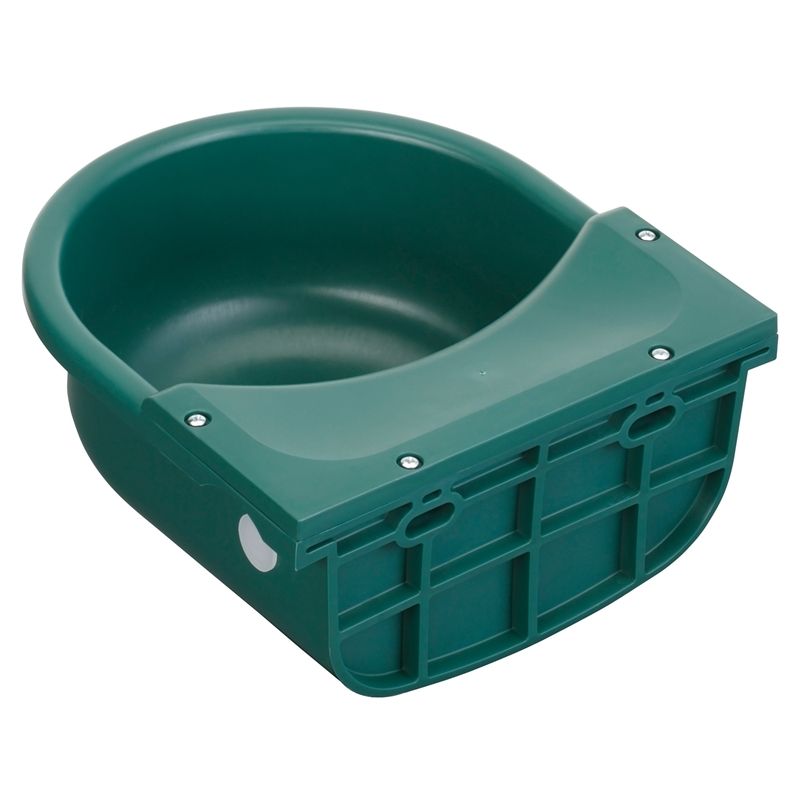

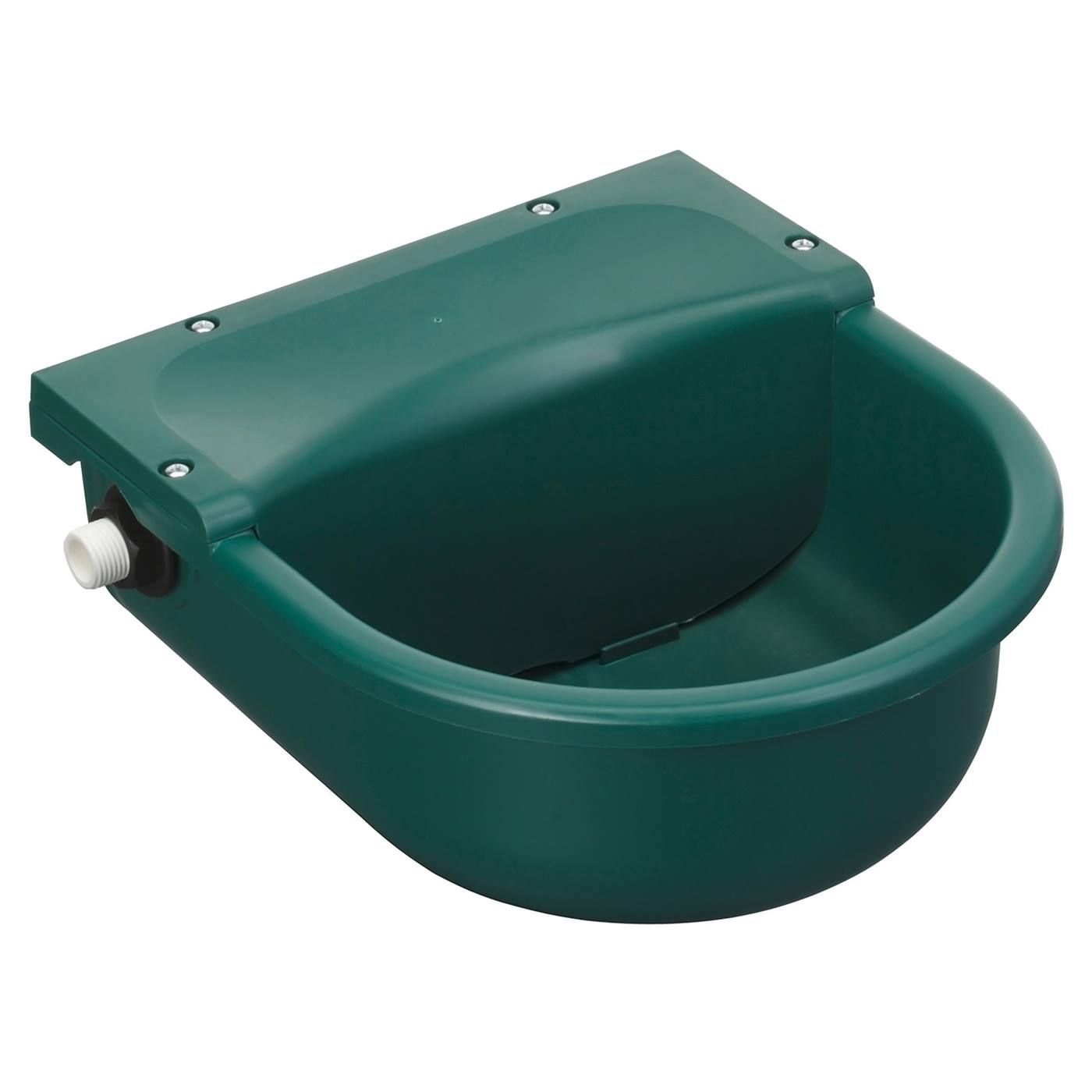

Wall & Pipe Mounted Goat Drinking Bowl

The Wall & Pipe Mounted Goat Drinking Bowl is a compact automatic livestock waterer designed to maintain a readily available water level for goats, sheep and other suitable farm animals. Its float-controlled filling system automatically replenishes water as animals drink, reducing the need for manual filling and supporting efficient daily livestock management.

The bowl is manufactured from robust polypropylene for practical use in livestock buildings. A protected float-valve compartment separates the operating mechanism from the main drinking area, while the smooth open bowl provides convenient access for animals.

With flexible water connection arrangements and a compact mounting footprint, this type of drinking bowl can be incorporated into goat pens, sheep housing, kidding areas, livestock partitions and steel-structure farm buildings. Mounting configuration, water supply layout and accessories can be selected according to project requirements.

• Automatic Water Refill: Float-valve operation maintains the required water level without continuous manual filling.
• Livestock-Grade Polypropylene Bowl: Solid plastic construction provides a practical combination of durability, corrosion resistance and easy handling.
• Open Drinking Surface: Allows goats and sheep to drink naturally from an accessible water surface.
• Protected Float Mechanism: The valve and float assembly are positioned beneath a protective cover to reduce direct animal contact.
• Flexible Water Connection: Water supply can be connected from the left or right side for easier integration with different pipeline layouts.
• Compact Installation: Suitable for installation along livestock pen walls, partitions and compatible pipe structures.
• Easy Cleaning: An integrated outlet plug allows the bowl to be emptied quickly during routine washing and maintenance.
• Low Daily Maintenance: Automatic refilling helps reduce labour requirements in commercial livestock facilities.

The drinking bowl operates through a mechanical float valve. When goats consume water, the water level falls and the float moves downward. This movement opens the inlet valve and allows fresh water to enter the bowl.

As the bowl refills, the float rises. Once the preset water level is reached, the valve closes automatically. This simple mechanical principle maintains a relatively constant drinking level without electrical control, making the system practical for everyday livestock watering.

• Commercial goat farms and goat breeding facilities
• Sheep and lamb housing systems
• Kidding and individual animal pens
• Group livestock pens and feeding areas
• Indoor barns and covered livestock buildings
• Steel-structure sheep and goat houses
• Farm renovation and livestock equipment upgrade projects
• Integrated livestock watering pipeline systems

For livestock equipment projects, SHEWUYOU can coordinate the drinking bowl with the overall farm water-supply and pen layout. Available configurations can be evaluated according to animal type, housing design and project requirements.

• Mounting arrangement according to wall or pen structure
• Pipe-mounting configuration according to project requirements
• Water inlet direction and pipeline arrangement
• Installation height according to goat or sheep size
• Water supply accessories available upon request
• Bulk quantities for livestock farm construction projects
• Packaging and supply solutions for distributors and agricultural equipment dealers

Installation: Position the drinking bowl at a suitable drinking height and secure it firmly to the selected wall, livestock partition or compatible pipe support. Connect the G 1/2" water inlet from the appropriate side and check all connections for leakage before use.

Commissioning: Open the water supply gradually and confirm that the float valve fills the bowl and shuts off correctly at the required level. Water pressure and pipeline design should be matched to site conditions.

Maintenance: Remove accumulated feed, sediment and other contaminants regularly. The drain plug can be opened to empty and rinse the bowl. Periodically inspect the float valve, inlet fitting, seals and mounting points to maintain reliable operation.

Q: Is this drinking bowl suitable for goats?
A: Yes. Float drinking bowls with an open water surface are well suited to goats and sheep, providing convenient access to automatically replenished drinking water.

Q: Does the bowl refill automatically?
A: Yes. A mechanical float valve controls the inlet and replenishes the bowl as the water level falls.

Q: Can the water pipe enter from either side?
A: Yes. The reference configuration supports left- or right-side water connection, which provides greater flexibility when planning livestock-house pipelines.

Q: Is electricity required?
A: The standard float-valve water-control mechanism operates mechanically and does not require electricity. Frost-protection requirements should be designed separately according to the local climate.

Q: How is the bowl cleaned?
A: The outlet plug allows retained water to be drained before the bowl is rinsed and cleaned.

Q: Can SHEWUYOU supply drinking bowls for a complete goat farm project?
A: Yes. Drinking equipment can be coordinated with livestock pens, water pipelines and other farm equipment according to the project layout and operating requirements.
