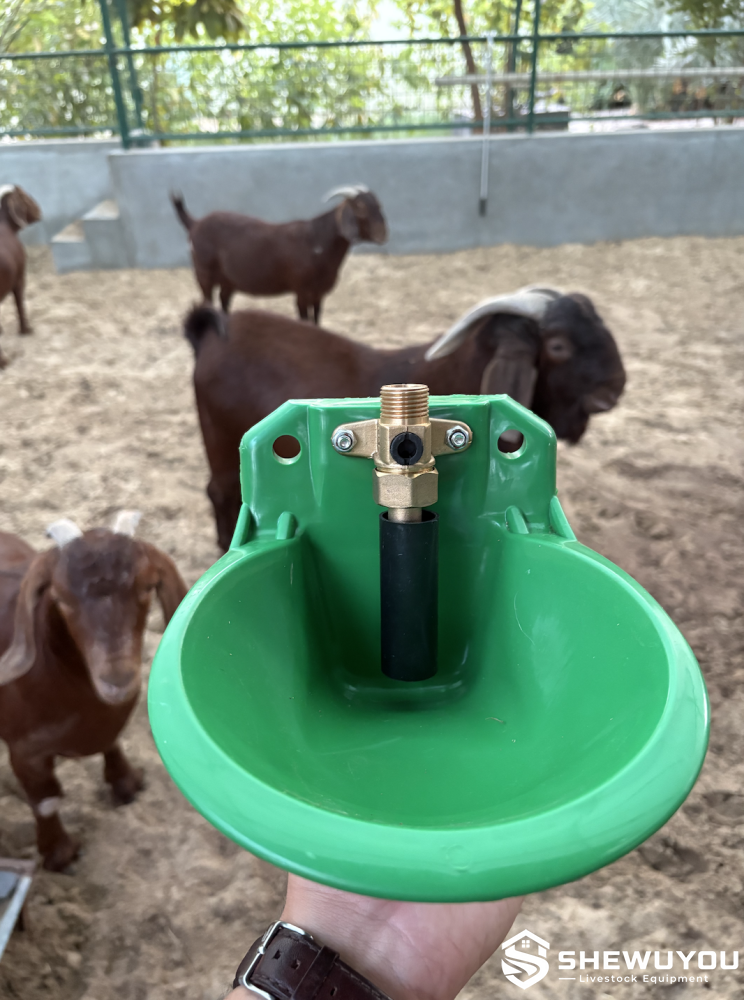

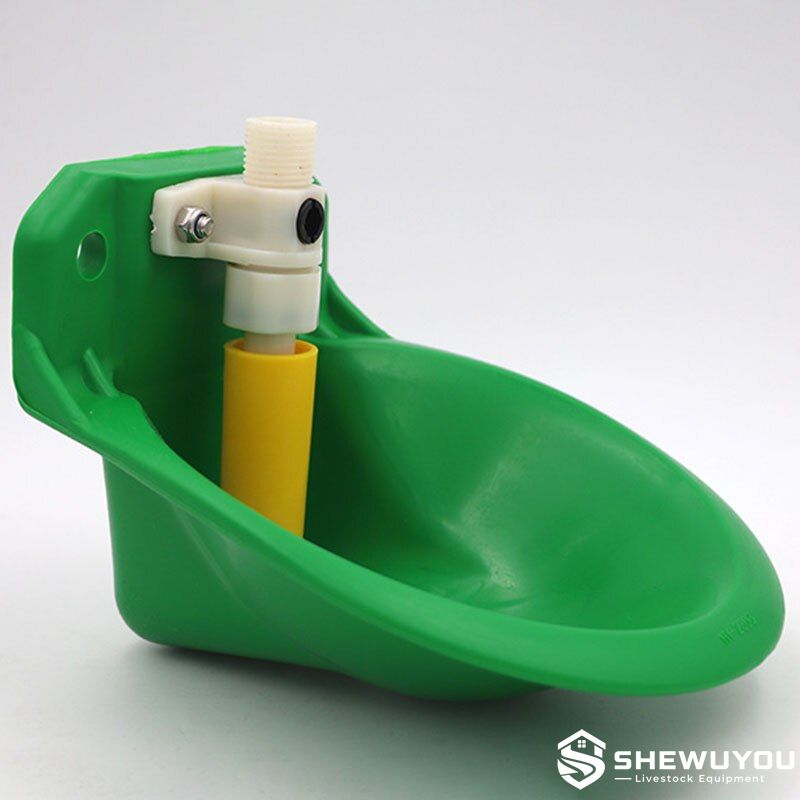

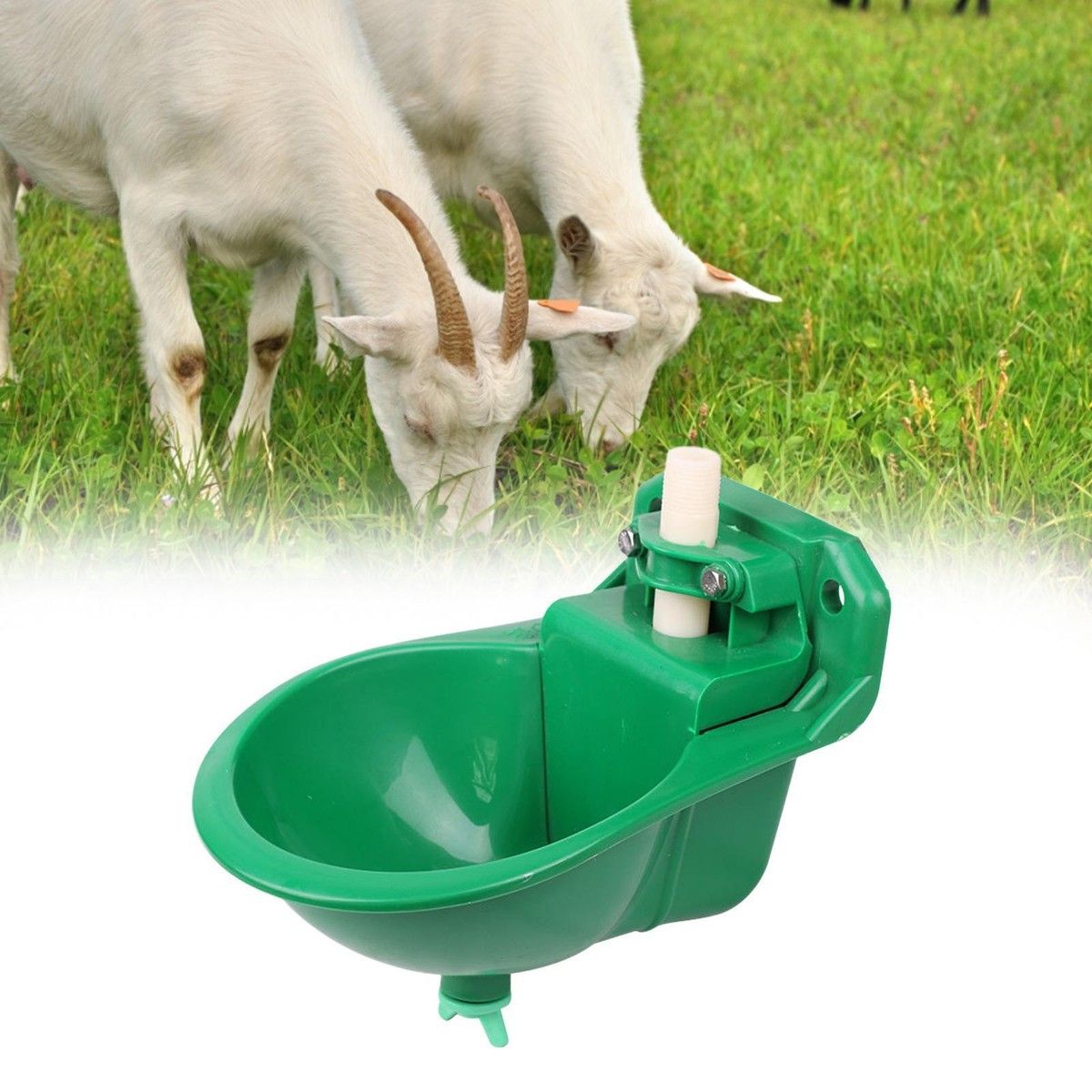

Automatic Plastic Goat Drinking Bowl

The Automatic Plastic Goat Drinking Bowl is a compact livestock watering solution designed for goats, sheep and other compatible small ruminants. The integrated float-valve mechanism automatically controls the water level, helping maintain a continuous drinking supply while reducing manual filling and unnecessary water waste.

The referenced configuration uses a durable one-piece ABS plastic bowl with a shallow, wide drinking opening for convenient animal access. Its smooth internal surface facilitates routine cleaning and disinfection, while the compact structure allows installation on walls, livestock partitions or suitable fence structures. :contentReference[oaicite:0]{index=0}

Designed for commercial goat farms, sheep housing, breeding facilities and livestock construction projects, the drinking bowl can be incorporated into centralized water-supply systems together with galvanized pens, feeding equipment and steel structure livestock buildings.

• Automatic Water-Level Control: The float mechanism controls incoming water according to the water level inside the bowl.
• Durable Plastic Construction: One-piece ABS plastic body provides a practical combination of impact resistance, corrosion resistance and low maintenance.
• Water-Saving Operation: Automatic shutoff helps reduce continuous overflow and unnecessary water consumption.
• Goat-Friendly Bowl Shape: The shallow and wide opening provides comfortable drinking access for goats and sheep.
• Compact Installation: Wall or fence mounting keeps the drinking point clear of valuable pen floor space.
• Smooth Interior: Molded surfaces facilitate removal of feed particles, sediment and other contamination during routine washing.
• No Electrical Control Required: The standard mechanical float system operates without electronic water-level sensors.
• Multiple Valve Options: Comparable livestock drinking bowls are available with plastic or metal valve configurations according to project requirements.
• Commercial Farm Application: Suitable for individual pens, group housing, breeding units and integrated livestock farm projects.

The drinking bowl connects to the livestock facility's water supply. When goats consume water, the level inside the bowl falls and the float mechanism moves downward. This movement opens the inlet valve and allows fresh water to enter.

As the bowl refills, the float rises. When the predetermined drinking level is reached, the valve closes automatically. This float-controlled cycle maintains water availability without requiring personnel to refill individual bowls manually. The reference product specifically identifies automatic water outlet and float-controlled water-level adjustment as core functions. :contentReference[oaicite:1]{index=1}

For best performance, water pressure, valve specification and pipeline diameter should be coordinated with the number of drinking points and the overall livestock-house water distribution system.

The reference manufacturer specifies an ABS plastic body, green/black color options and dimensions of 185 × 180 × 140 mm. Final SHEWUYOU specifications should be confirmed according to the selected model and purchase order. :contentReference[oaicite:2]{index=2}

• Commercial goat farms and breeding facilities
• Dairy goat barns and milking facilities
• Sheep housing and small-ruminant farms
• Goat kidding and rearing pens
• Lamb and kid group housing
• Individual livestock pens and group pens
• Steel structure livestock buildings
• Indoor barns and covered livestock areas
• Farm renovation and livestock construction projects
• Agricultural equipment distributor and dealer programs

For livestock farm projects, distributors and OEM orders, product configuration can be coordinated with animal housing and water-supply requirements. Available options may include:

• Bowl dimensions according to project requirements
• Plastic material and structural configuration
• Product color customization
• Plastic or metal valve options
• Water inlet connection arrangement
• Float-valve configuration
• Mounting-hole and bracket arrangement
• OEM logo and identification
• Bulk packaging for distributors
• Export packaging according to transportation requirements

OEM and ODM customization is available for suitable models and order quantities. :contentReference[oaicite:3]{index=3}

Mounting Position: Install the bowl at a comfortable drinking height according to goat or sheep size. Avoid locations that interfere with gates, feeders or animal movement.

Secure Fixing: Use the integrated mounting holes to attach the bowl firmly to a suitable livestock partition, wall or fence structure. Mounting hardware should match the supporting material and anticipated animal contact.

Water Connection: Connect the inlet to a clean farm water supply using compatible plumbing components. Flush new water lines before connecting the valve.

Float Adjustment: Check the float position and water level after commissioning. Adjust according to the selected valve configuration where applicable.

Routine Cleaning: Remove feed particles, sediment and organic contamination regularly. The smooth plastic bowl can be washed and disinfected as part of normal livestock-house hygiene procedures.

Valve Inspection: Periodically inspect the float, valve seat and inlet for dirt or mineral deposits that could affect automatic shutoff.

Cold-Climate Installation: Where freezing conditions occur, the supply pipeline and valve area should receive suitable freeze protection designed according to local climate and farm conditions.

Automatic plastic drinking bowls can be integrated into complete goat and sheep farm projects together with galvanized livestock pens, gates, feeders, feed barriers, water pipelines and steel structure livestock buildings. Drinking-point quantity and positioning can be planned according to flock size, stocking density, pen layout and available water pressure.

Q1: How does the automatic goat drinking bowl work?

A mechanical float responds to the water level. When animals drink and the level drops, the valve opens to refill the bowl. The valve closes when the required level is restored.

Q2: What material is the drinking bowl made from?

The referenced model uses ABS plastic, providing a lightweight and corrosion-resistant drinking surface suitable for livestock environments. :contentReference[oaicite:4]{index=4}

Q3: Is it suitable for sheep as well as goats?

Yes. This type of compact automatic bowl is commonly used for goats and sheep, with installation height selected according to animal size.

Q4: Does the drinking bowl require electricity?

No electricity is required for the standard mechanical float-valve water-level control system.

Q5: Can it be mounted on livestock penning?

Yes. The reference product is designed for wall or fence mounting, making it suitable for integration with compatible livestock partitions and support structures. :contentReference[oaicite:5]{index=5}

Q6: Is the bowl easy to clean?

Yes. Its smooth molded plastic surface facilitates routine washing and disinfection, helping maintain cleaner drinking conditions.

Q7: Can SHEWUYOU customize the product?

Yes. Dimensions, color, valve configuration, water connection, mounting arrangement, branding and packaging can be customized according to project requirements.
