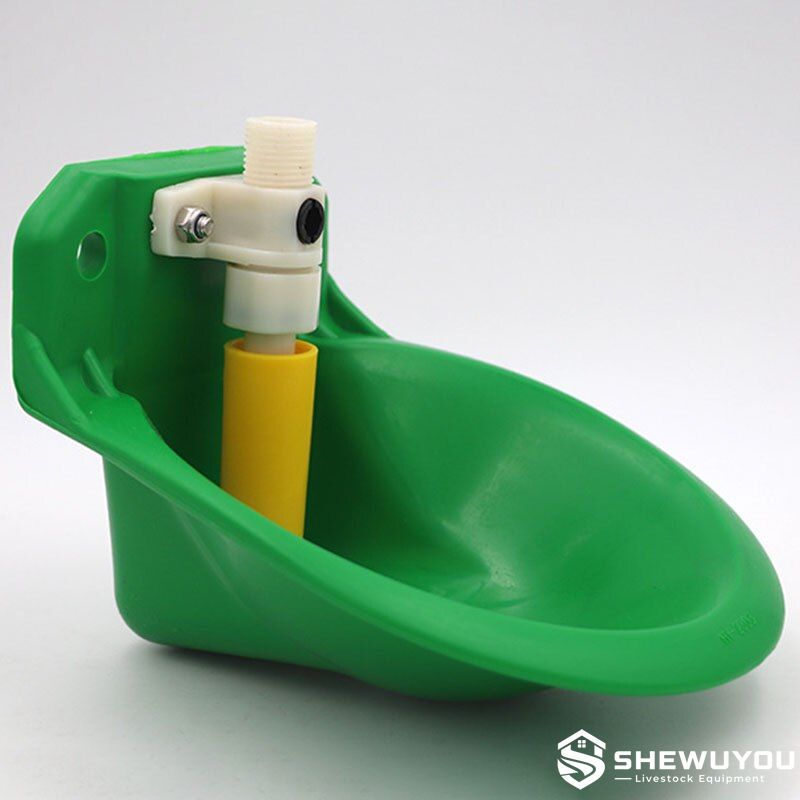

Plastic Float Valve Goat Drinking Bowl

The Plastic Float Valve Goat Drinking Bowl is a compact automatic livestock waterer designed to maintain a controlled drinking water level without continuous manual refilling. It is suitable for goat farms, sheep houses, lambing areas, livestock pens and integrated agricultural construction projects.

The bowl is manufactured from durable polypropylene and incorporates an internal float-controlled valve. As animals consume water, the float mechanism automatically opens the inlet and replenishes the bowl. When the preset water level is reached, the valve closes to help prevent unnecessary overflow.

The compact wall-mounted structure is particularly suitable for commercial livestock buildings where floor space, hygiene and convenient maintenance are important. Flexible water connection arrangements can simplify installation within galvanized penning systems, concrete livestock houses and steel structure farm buildings.

• Automatic Float Valve: Maintains the required drinking water level and reduces manual filling work.
• Durable Polypropylene Bowl: Lightweight, corrosion resistant and suitable for humid livestock housing environments.
• Compact Drinking Area: Provides convenient water access while occupying limited pen space.
• Protected Valve Structure: The valve mechanism is positioned within the rear section of the bowl to reduce direct livestock interference.
• Left or Right Water Connection: Flexible plumbing orientation simplifies installation according to farm water-line layout.
• Drain Plug: Allows rapid emptying during routine cleaning and livestock-house sanitation.
• Automatic Water Supply: Helps maintain continuous water availability when connected to a suitable pressurized supply line.
• Easy Wall Installation: Suitable for mounting on solid walls, livestock pen structures or dedicated support brackets.
• Low Maintenance: Smooth plastic surfaces and removable service components simplify cleaning and inspection.
• Project-Friendly Design: Suitable for complete goat farm, sheep farm and livestock housing construction projects.

The drinking bowl operates through a mechanical float-controlled inlet valve. When goats or sheep drink, the water level falls and the float moves downward. This movement opens the inlet valve and allows fresh water to enter the bowl.

As the bowl refills, the float rises with the water level. Once the predetermined level is reached, the valve closes automatically. This simple mechanical principle provides water on demand without electrical controls.

The system should be connected to a clean water supply with pressure and flow characteristics compatible with the selected valve configuration.

Capacity, dimensions, connection size and flow data above are reference values based on the comparable S522 configuration. Final SHEWUYOU specifications should be confirmed according to the selected model and project requirements.

• Commercial goat farms and breeding facilities
• Sheep farms and lambing buildings
• Goat kidding and rearing pens
• Small-ruminant group housing
• Indoor livestock barns
• Steel structure livestock buildings
• Farm renovation and modernization projects
• Livestock holding and handling pens
• Agricultural demonstration and breeding farms
• Livestock equipment distributor and dealer projects

SHEWUYOU can coordinate drinking equipment with complete livestock-house water systems and pen layouts. Available customization may include:

• Bowl dimensions according to project requirements
• Water connection specification
• Float valve configuration
• Left- or right-side inlet arrangement
• Mounting-hole configuration
• Installation height according to animal size
• Plastic color customization
• OEM logo and identification
• Individual or bulk export packaging
• Water-system layout designed according to local climate and farm conditions

Mounting Position: Install the bowl at a comfortable drinking height according to goat or sheep body size. The location should not obstruct animal movement, gates or manure-cleaning equipment.

Secure Fixing: Attach the drinking bowl to a structurally suitable wall, galvanized livestock pen member or dedicated mounting bracket using appropriate fasteners.

Water Connection: Connect the inlet to the farm water-supply line and check all joints for leakage before allowing livestock access.

Float Adjustment: Confirm that the float valve shuts off correctly at the required water level and that refill performance is suitable for the number of animals using the drinker.

Routine Cleaning: Remove the drain plug to discharge old water and sediment. Wash the drinking surface regularly to reduce feed residue, algae and other contamination.

Periodic Inspection: Check the float valve, inlet fittings, mounting bolts and drain plug for wear, leakage or blockage and replace worn components when necessary.

Plastic float valve drinking bowls can be integrated into complete goat and sheep farm projects together with galvanized livestock pens, feed barriers, gates, hay feeders, mineral feeders, water-supply pipelines and steel structure livestock buildings. Drinking-point quantity and positioning can be planned according to animal density, pen layout, water pressure and daily farm-management requirements.

Q1: How does the automatic goat drinking bowl maintain the water level?

A mechanical float valve opens when the water level drops and closes automatically after the bowl reaches the predetermined level.

Q2: Is the drinking bowl suitable for sheep as well as goats?

Yes. This compact float-bowl design is suitable for goat and sheep housing when installed at the correct drinking height and connected to an appropriate water supply.

Q3: Can the water connection be installed on either side?

The reference configuration supports connection from either the left or right side, which provides additional flexibility during livestock-house plumbing installation.

Q4: How is the bowl cleaned?

The drain plug can be removed to empty the bowl quickly. The smooth plastic drinking surface can then be rinsed or washed during routine sanitation.

Q5: Does the drinking bowl require electricity?

No electricity is required for the standard mechanical float-valve operation. Cold-climate installations may require separate freeze-protection measures according to local conditions.

Q6: Can SHEWUYOU customize the drinking bowl for livestock projects?

Yes. Valve configuration, connection arrangement, dimensions, color, installation details, packaging and other specifications can be supplied according to project requirements.
