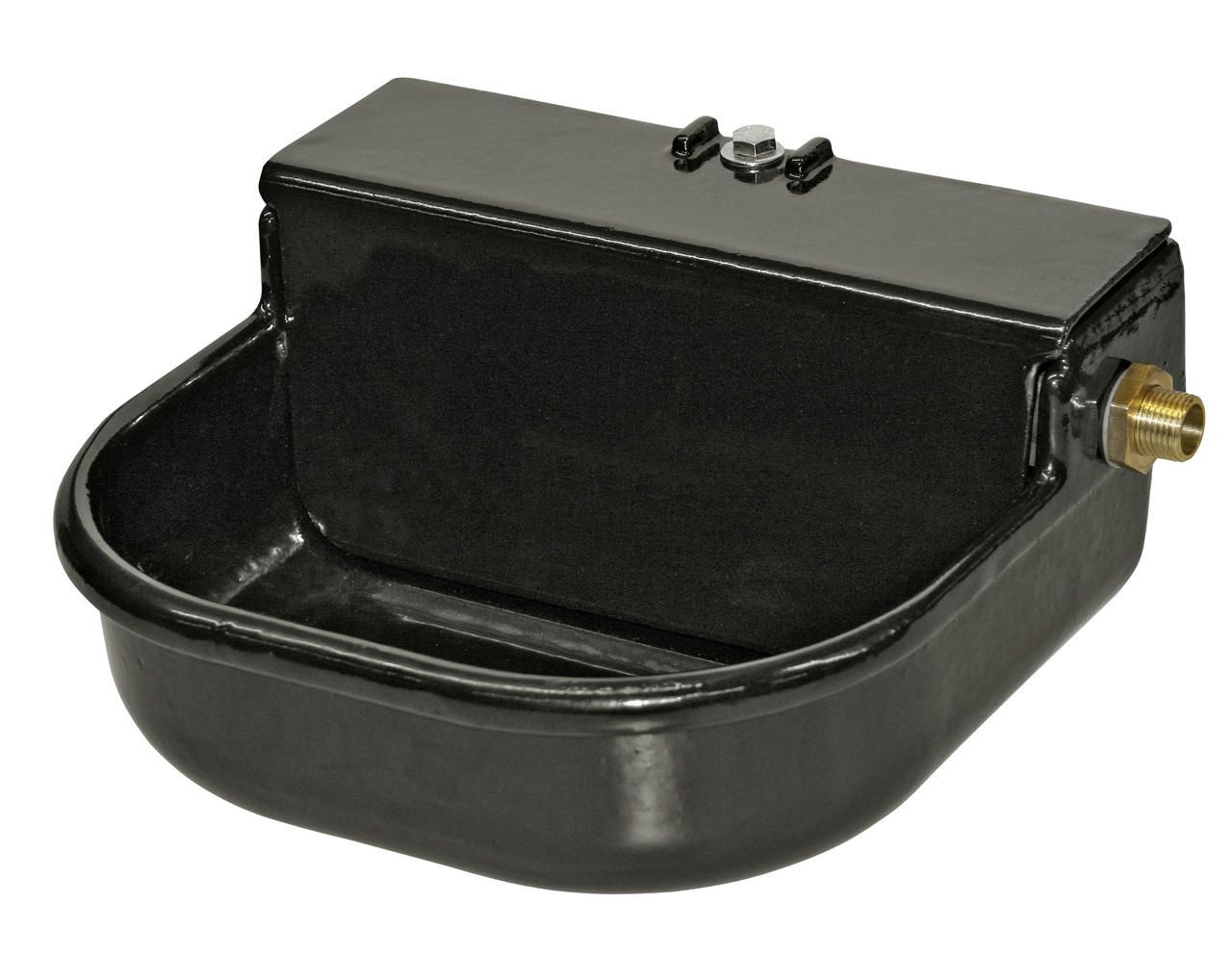

Cast Iron Float Valve Goat Drinking Bowl

The Cast Iron Float Valve Goat Drinking Bowl is a compact automatic livestock waterer designed to provide goats, sheep and other suitable farm animals with continuous access to drinking water. The heavy-duty gray cast iron bowl combines mechanical strength with a black enamelled surface for practical use in livestock housing environments.

An integrated float valve automatically controls the incoming water supply. As animals drink and the water level falls, the valve opens to replenish the bowl; once the preset level is restored, the valve closes automatically. This eliminates repeated manual filling and supports consistent water availability in commercial goat and sheep facilities.

The compact wall-mounted configuration is suitable for individual pens, group pens, kidding and lambing areas, livestock sheds and steel structure farm buildings. Water connection can be arranged from the left or right, providing flexibility when integrating the drinker with farm water lines.

• Heavy-Duty Cast Iron Bowl: Gray cast iron construction provides excellent mechanical strength for demanding livestock housing applications.
• Black Enamelled Surface: The enamelled finish provides a smooth drinking surface and additional protection for the cast iron body.
• Automatic Float Valve: Maintains the required water level automatically and reduces manual watering labor.
• Continuous Water Availability: Fresh water enters the bowl automatically as livestock consume water.
• 3 L Reference Capacity: Compact reservoir design combines convenient animal access with automatic replenishment.
• G 1/2" Water Connection: Standard connection facilitates integration into common livestock drinking-water systems.
• Left or Right Connection: Water supply can be connected from either side to accommodate different pipe layouts.
• High Reference Flow Rate: Comparable S195 configuration provides approximately 6.5 L/min at 3 bar.
• Protected Valve Area: The rear valve housing separates important water-control components from the main drinking area.
• Compact Installation: Wall-mounted design saves floor space and works efficiently with livestock penning systems.

The drinking bowl operates through a mechanical float-controlled water inlet. When the bowl contains water at the preset operating level, the float holds the inlet valve closed. As goats or sheep drink, the water level and float position drop, causing the valve to open.

Pressurized water then enters the bowl until the float rises to its normal shut-off position. This simple mechanical principle maintains water availability without requiring livestock to push a paddle or operate a nose valve.

The float-valve principle is particularly useful for animals that are accustomed to drinking from an open water surface. Correct water pressure, installation height and valve adjustment are important for reliable operation.

Reference specifications are based on the comparable S195 configuration. Final dimensions, valve specification, operating pressure and flow performance should be confirmed according to the ordered model and project requirements.

• Commercial goat farms and breeding facilities
• Sheep farms and small-ruminant housing
• Goat kidding and rearing facilities
• Individual livestock pens and group pens
• Indoor barns and livestock sheds
• Steel structure livestock buildings
• Farm renovation and drinking-system upgrade projects
• Livestock holding and handling areas
• Agricultural equipment distributors and dealers
• Integrated livestock farm construction projects

For commercial farm construction, distributor orders and integrated livestock drinking systems, available configurations can be selected according to project requirements, including:

• High-pressure or suitable low-pressure valve configuration
• Water inlet arrangement according to farm pipeline layout
• Drinking bowl dimensions available upon request
• Installation height according to goat or sheep size
• Mounting hardware configuration
• Protective guard options for demanding livestock environments
• Water-line accessories according to project requirements
• OEM branding and identification
• Bulk and export packaging options

Final configuration can be designed according to local climate, water pressure, livestock type, pen arrangement and farm conditions.

Mounting Position: Install the drinking bowl on a rigid wall, steel post or suitable livestock pen structure at a height appropriate for the animals.

Secure Fixing: Use suitable corrosion-resistant fasteners and ensure that the supporting structure can withstand repeated livestock contact.

Water Connection: Connect the G 1/2" inlet from the left or right according to the farm plumbing layout. Flush new pipelines before connecting the float valve.

Commissioning: Slowly open the water supply and inspect all joints for leakage. Confirm that the float valve closes correctly when the desired water level is reached.

Routine Cleaning: Remove feed residue, sediment and other contamination from the bowl regularly to maintain drinking-water hygiene.

Valve Inspection: Periodically inspect the float, sealing components and inlet valve. Clean mineral deposits when necessary and replace worn seals or valve components.

Winter Operation: In freezing environments, the bowl and exposed water supply require suitable frost-protection measures designed according to local climate and farm conditions.

Cast iron float drinking bowls can be incorporated into complete goat and sheep housing projects together with galvanized livestock pens, gates, feeding troughs, hay racks, mineral feeders, water-supply pipelines and steel structure livestock buildings. For commercial projects, drinking-point quantity and installation position can be planned according to pen capacity, livestock age, water pressure and farm layout.

Q1: How does the float valve goat drinking bowl work?

The float responds to the water level inside the bowl. When animals drink and the level drops, the valve opens automatically. It closes again after the required water level is restored.

Q2: Is this drinking bowl suitable for sheep as well as goats?

Yes. This type of float drinking bowl is suitable for goats and sheep when installed at the correct height and connected to an appropriate water supply.

Q3: Why use cast iron instead of a lightweight plastic bowl?

Cast iron provides a rigid, heavy-duty structure suitable for demanding livestock environments where drinking equipment is regularly exposed to animal contact.

Q4: Can the water supply enter from either side?

Yes. The reference S195 configuration supports connection from the left or right, simplifying integration with different livestock-house pipe layouts.

Q5: Does the animal need to press a paddle to obtain water?

No. The float valve maintains an open drinking-water surface automatically, so the animal drinks directly from the bowl.

Q6: Can the drinking bowl be used with low-pressure water systems?

A suitable low-pressure valve configuration can be specified when required. The valve must be matched to the actual farm water-supply pressure.

Q7: Can SHEWUYOU supply the drinking bowl as part of a complete goat farm project?

Yes. Drinking bowls can be coordinated with livestock penning, water pipelines, feeding equipment and steel structure farm buildings according to project requirements.
