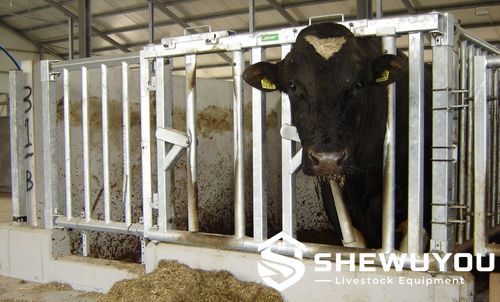

Heavy-Duty Bull Safety Headlock

• Extra-heavy structure designed specifically for breeding bulls and large cattle.
• Two independently operated feeding and restraint positions.
• Adjustable neck width accommodates different bull ages and body sizes.
• Self-locking operation allows animals to secure themselves when entering to feed.
• Open mode permits unrestricted head movement during normal feeding.
• Individual release enables one animal to be released without opening the second position.
• Lower safety opening provides an alternative individual release route.
• Heavy tubular construction withstands the higher loads generated by mature bulls.
• Designed to improve operator separation during breeding and cattle-management procedures.
• Suitable for integration with a heavy-duty bull pen door and safety-lock system.
• Modular support posts and fastening hardware simplify installation in livestock buildings.

• Heavy Upper Rail: Reinforced structural member designed to resist repeated loading from mature bulls.
• Heavy Lower Rail: Stabilizes the complete feed-front frame and supports the lower safety opening.
• Fixed Vertical Members: Define individual feeding spaces and provide structural reinforcement.
• Pivoting Headlock Arms: Move between open and self-locking positions as the animal feeds.
• Adjustable Neck Opening: Allows the restraint width to be matched to bull size.
• Operating Sleeve: Controls individual locking and release functions.
• Lower Safety Opening: Provides an alternative route for individual animal release.
• Heavy Support Posts: Transfer livestock loads into the barn floor and surrounding structure.
• Optional Bull Pen Door: Heavy-duty door with safety locking points for complete pen-front applications.

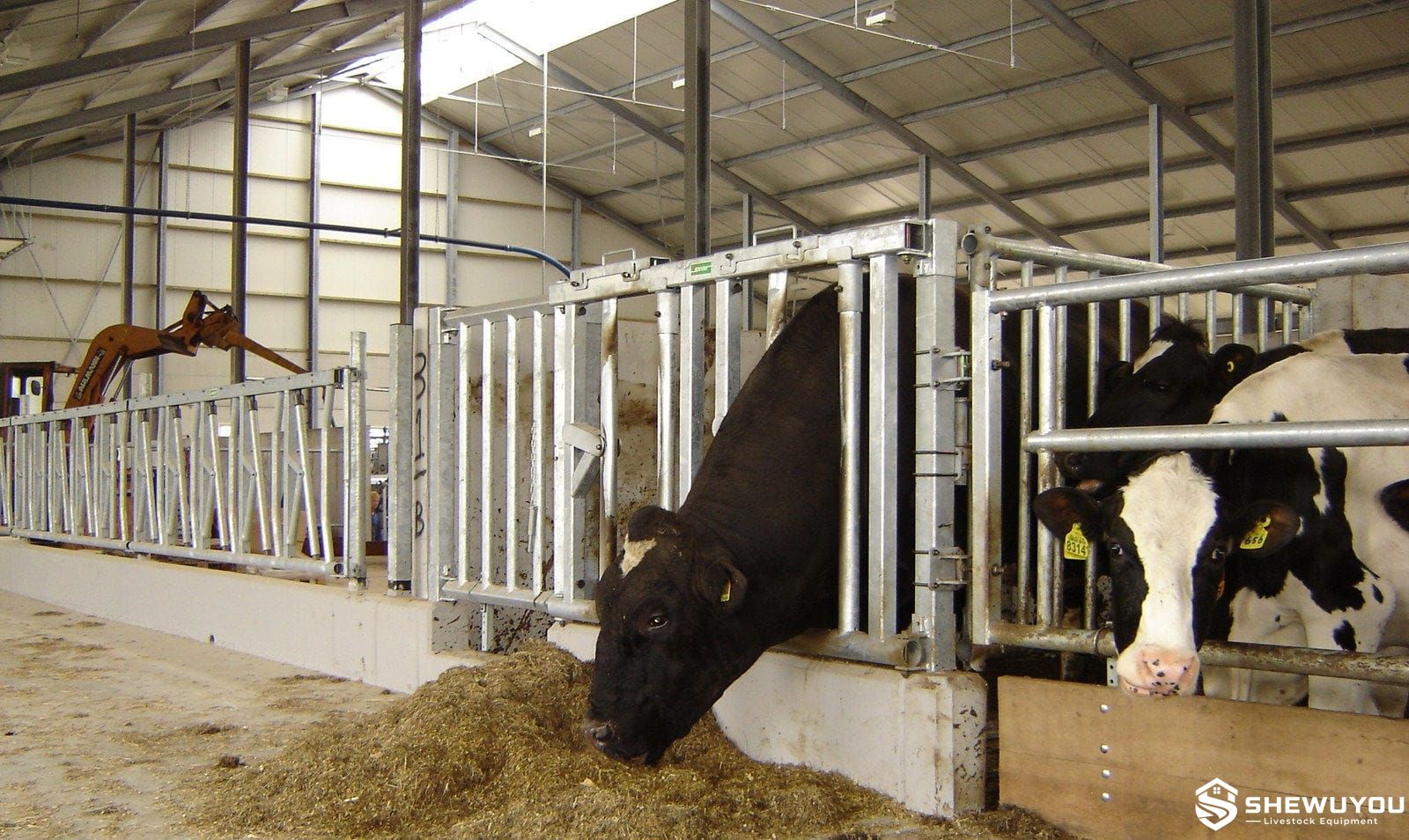

• Breeding bull housing and feeding areas.
• Dairy cattle breeding facilities.
• Beef cattle breeding farms.
• Artificial insemination and natural-mating management areas.
• Bull examination and veterinary procedures.
• Individual bull feeding and restraint.
• Heavy-duty cattle isolation pens.
• Commercial livestock breeding centers.
• Steel-structure cattle barn construction projects.
• Existing bull-pen renovation and safety-upgrade projects.

• Neck Width: Adjustable according to bull age, breed and body size.
• Feed-Front Dimensions: Customizable according to project requirements.
• Steel Tube Specification: Available according to structural loading requirements.
• Support Posts: Floor-mounted and project-specific configurations available.
• Bull Pen Door: Heavy-duty safety door available as part of a complete pen-front system.
• Door Locking Points: Configurable according to barn layout and operating requirements.
• Surface Treatment: Hot-dip galvanizing available for corrosive livestock environments.
• Mounting Hardware: Fasteners, protective sleeves and door hangers available according to project requirements.

• Confirm bull size, neck-width range, feed-bunk position and structural bay dimensions before installation.
• Anchor support posts to a structurally suitable reinforced concrete base.
• Install the headlock frame level, plumb and correctly aligned with the feeding curb.
• Use heavy-duty fasteners suitable for the expected livestock loads.
• Set the neck opening according to the size of the animals using the facility.
• Test both feeding positions independently before introducing bulls.
• Verify open, self-locking, individual-release and lower safety-release functions.
• Inspect operating sleeves, pivots, fasteners, welds and support posts regularly.
• Remove manure, feed residues and corrosive contamination during routine barn cleaning.
• Replace bent, cracked or excessively worn structural and locking components immediately.
• Only trained personnel should work around restrained breeding bulls using an established farm safety procedure.

Q: Is this headlock designed specifically for breeding bulls?
A: Yes. The extra-heavy structure and adjustable neck opening are intended for the higher strength and varying body sizes of breeding bulls and other large cattle.

Q: How many feeding positions does the reference headlock have?
A: The reference safety feed front has two feeding positions that can be operated independently.

Q: Can the neck opening be adjusted?
A: Yes. The reference design provides several neck-width settings to accommodate bulls of different sizes.

Q: Does the bull lock itself while feeding?
A: Yes. In self-locking mode, the movable headlock mechanism secures the animal as it enters the feeding position.

Q: Can one animal be released independently?
A: Yes. Each position can be individually released by operating the corresponding control sleeve.

Q: What is the lower safety opening for?
A: It provides an alternative individual release route when the normal upper release path is not appropriate.

Q: Can the headlock be supplied as part of a complete bull pen front?
A: Yes. Compatible heavy-duty doors, posts, locking components, fasteners and protective accessories can be supplied according to project requirements.

Q: Can dimensions be customized for different cattle facilities?
A: Yes. Neck width, structural dimensions, mounting arrangements and selected steel specifications can be configured according to bull size and farm construction requirements.
