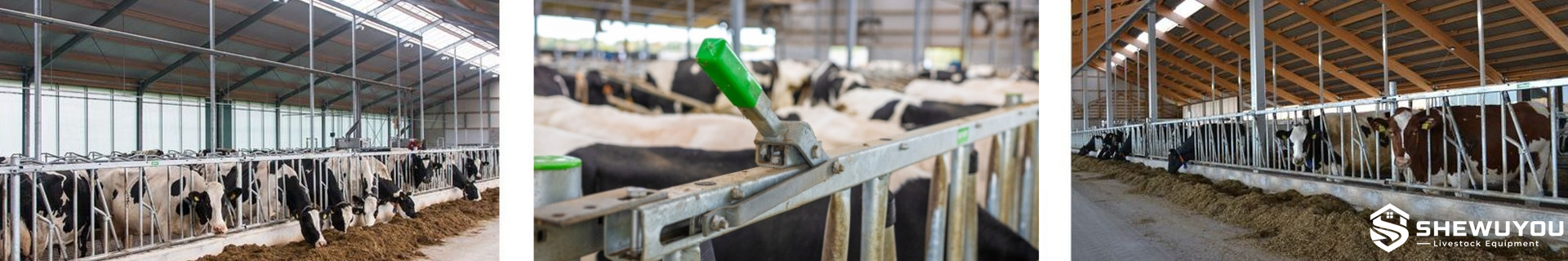

Central-Control Self-Locking Cow Headlock

The Central-Control Self-Locking Cow Headlock is a professional feed-front and temporary restraint system designed for commercial dairy cattle housing. Cows enter the feeding positions naturally and can be secured automatically when the system is set to self-locking mode.

A centralized operating mechanism allows multiple feeding positions to be controlled from one location, while individual release functions provide flexibility for veterinary inspection, reproductive management and routine herd handling. The modular steel structure can be configured according to cattle size, feed-alley dimensions and steel-structure barn requirements.

• Central-control locking and release for efficient herd management.
• Self-locking mechanism allows cattle to secure themselves at the feeding position.
• Individual release function supports selective animal handling.
• Protected locking mechanism reduces exposed moving components.
• Low-noise moving parts help maintain a calmer feeding environment.
• Heavy-duty steel construction suitable for commercial dairy barns.
• Multiple feeding-space widths available for different cattle groups.
• Modular sections simplify transportation, installation and future expansion.
• Suitable for new dairy farm construction and existing barn renovation projects.

• Upper Structural Profile: Supports and protects the central locking mechanism.
• Lower Crossbar: Reinforces the overall feed-front structure.
• Fixed Vertical Bars: Define individual cattle feeding positions.
• Movable Locking Bars: Pivot as cattle enter and activate the self-locking function.
• Central Control Linkage: Connects multiple headlock positions for group operation.
• Individual Release Device: Allows selected cattle to be released separately.
• Impact-Reducing Stops: Help reduce noise and excessive metal-to-metal contact.
• Mounting Hardware: Connects headlock sections to compatible barn support posts.

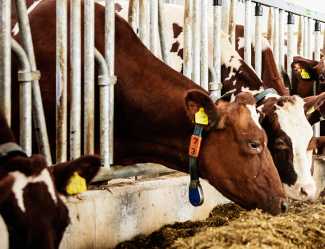

The operator places the feed front in self-locking mode using the central control mechanism. When a cow lowers its head through the feeding opening, the movable locking bar pivots and allows the animal to enter the feeding position.

As the cow reaches the normal feeding position, the locking mechanism engages and temporarily restrains the animal. The complete section can later be released centrally, while selected cattle can be released individually when required.

• Commercial dairy cow feeding alleys.
• Free-stall dairy barns and steel-structure cattle houses.
• Heifer and young-stock feeding areas.
• Temporary cattle restraint for veterinary inspection.
• Vaccination and health-management procedures.
• Artificial insemination and reproductive management.
• Pregnancy checking and individual animal treatment.
• New cattle-farm construction and barn renovation projects.
• Livestock equipment distributors and turnkey dairy projects.

• Feeding Space Width: Customizable according to cattle age and body size.
• Panel Length: According to feed-alley dimensions and barn column spacing.
• Number of Feeding Positions: Available according to project requirements.
• Frame Height: Configurable for mature cows, heifers, young stock and calves.
• Steel Tube Specification: Available upon request.
• Surface Treatment: Hot-dip galvanized or alternative corrosion-protection options available.
• Individual Locking: Optional individual restraint configurations available.
• Mounting Hardware: Designed according to steel posts, concrete posts or existing feed-front structures.
• OEM Production: Custom drawings, specifications and packaging available upon request.

• Confirm cattle size, feed-place spacing and structural support locations before installation.
• Install the feed-front sections on adequately reinforced posts according to project drawings.
• Keep adjacent sections correctly aligned so the central locking linkage operates freely.
• Test open, self-locking and centralized release modes before commissioning.
• Check each movable locking bar and individual release mechanism before cattle enter the area.
• Retighten mounting bolts and clamps after initial operation where required.
• Remove feed, manure and bedding buildup from moving components during routine barn cleaning.
• Inspect locking components, pivot points and operating linkage regularly.
• Replace damaged or excessively worn components promptly.

Q: Can multiple cattle headlocks be controlled from one operating point?
A: Yes. Compatible configurations can control a long feed-front section through a centralized operating mechanism.

Q: Can individual cows be released separately?
A: Yes. Individual release functions can be incorporated so selected animals can be released while others remain restrained.

Q: Can the system be customized for different cattle sizes?
A: Yes. Feeding-space width, frame height and head opening can be configured for mature cows, heifers, young stock and calves.

Q: Is the headlock suitable for commercial dairy farms?
A: Yes. The centralized locking system is designed for efficient feeding and herd-management procedures in commercial dairy facilities.

Q: Can it be installed in a steel-structure cattle barn?
A: Yes. Panel length and mounting hardware can be coordinated with barn column spacing, feed-curb dimensions and structural drawings.

Q: Can SHEWUYOU provide customized project configurations?
A: Yes. Structural dimensions, feeding positions, mounting arrangements, surface treatment and OEM specifications are available according to project requirements.
