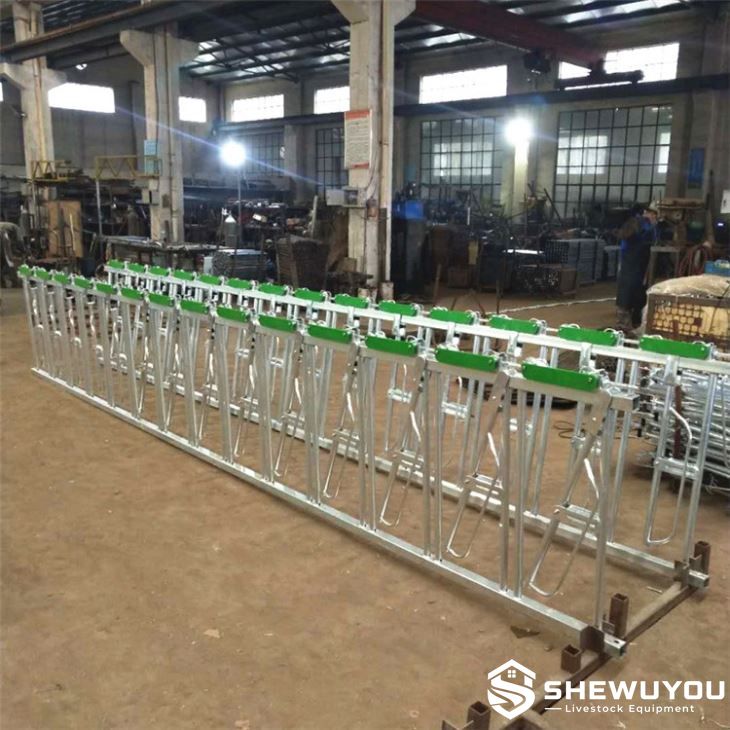

Hot-Dip Galvanized Dairy Cow Headlock System

The Hot-Dip Galvanized Dairy Cow Headlock is a self-locking feed-front system designed for organized feeding, temporary cattle restraint and routine herd management in commercial dairy and beef cattle facilities.

The welded steel frame is hot-dip galvanized after fabrication to improve corrosion resistance in humid livestock environments. Individual pivoting locking arms allow cows to enter the feeding position naturally, while the upper operating bar enables centralized locking and release. Headlock spacing, panel length and cow positions can be configured according to herd age, cattle size, feed-alley layout and steel-structure barn design.

• Overall hot-dip galvanizing after welding for enhanced corrosion protection.
• Heavy-duty steel frame suitable for intensive commercial cattle housing.
• Balanced pivoting swing-arm design supports natural entry into the feeding position.
• Self-locking mechanism allows cattle to be temporarily restrained during feeding or herd-management procedures.
• Central top-bar control can release multiple headlocks together.
• Individual animal release can be incorporated according to selected configuration.
• Different feeding-space widths are available for calves, heifers, lactating cows and dry cows.
• Modular panel construction simplifies integration with concrete feed curbs and steel-structure cattle barns.
• Custom panel lengths, cow positions and structural specifications are available for farm projects.

• Upper and Lower Crossbars: Form the primary structural frame of each headlock panel.
• Fixed Vertical Supports: Maintain cow-position spacing and reinforce the feed-front structure.
• Pivoting Locking Arms: Move as the cow enters and activate the self-locking position.
• Locking Clips: Engage the movable arm during restraint mode.
• Transmission Bar: Connects the locking positions for centralized operation.
• Release Mechanism: Allows group or selected individual release according to configuration.
• Mounting Brackets: Connect the panel to reinforced barn columns, posts or feed-barrier structures.

When the system is placed in self-locking mode, the cow lowers its head through the feeding opening and moves the pivoting arm. As the animal reaches the normal feeding position, the movable arm engages with the locking mechanism and temporarily retains the animal at the feed front.

The operator can release the row through the upper transmission bar or release selected animals where an individual-release configuration is provided. The system can also be placed in an open feeding mode when restraint is not required.

• Commercial dairy cow feeding alleys.
• Free-stall dairy barns and steel-structure cattle houses.
• Beef cattle feeding and handling facilities.
• Heifer and replacement-stock barns with customized spacing.
• Temporary restraint for veterinary inspection, vaccination and reproductive management.
• Feed-front management during herd sorting and routine health checks.
• New cattle-farm construction and existing barn renovation projects.
• Livestock equipment distributors, farm contractors and turnkey dairy projects.

• Panel Length: Customizable according to feed-alley dimensions.
• Cow Positions: Configured according to herd size and barn layout.
• Feeding Space: Adjustable for calves, heifers, mature dairy cows or dry cows.
• Steel Tube Specification: Available according to structural and project requirements.
• Galvanizing Specification: Available upon request.
• Locking Mechanism: Centralized and individual-release configurations available according to requirements.
• Mounting Brackets: Designed according to steel columns, concrete posts or existing feed-front structures.
• OEM Production: Drawings, dimensions and private-label configurations available upon request.

• Confirm panel length, feed-space width, curb height and structural support locations before installation.
• Install headlock panels on adequately reinforced posts or steel-structure columns according to project drawings.
• Maintain consistent panel alignment along the feed curb to prevent uneven loading.
• Check that pivoting arms move freely before cattle are introduced.
• Test the centralized locking and release mechanism across the complete installed row.
• Tighten mounting clamps, bolts and connecting hardware after initial commissioning.
• Inspect locking clips, pivot points and transmission bars periodically for wear or deformation.
• Remove accumulated feed, manure and debris from moving components during routine barn cleaning.
• Repair damaged galvanized surfaces when required to maintain long-term corrosion protection.

Q: Can the headlock dimensions be customized?
A: Yes. Panel length, cow-position spacing, tube specifications and mounting arrangements can be customized according to barn drawings and herd requirements.

Q: Why is the complete frame hot-dip galvanized after welding?
A: Galvanizing the finished welded assembly provides protective zinc coverage over the frame and welded areas, helping improve corrosion resistance in demanding livestock environments.

Q: Can different cattle ages use the same headlock design?
A: The structural concept can be adapted for different cattle groups, but feeding-space width and head opening should be selected according to animal age and body size.

Q: Can several cows be released at the same time?
A: Yes. The centralized transmission system allows multiple headlock positions to be released together on compatible configurations.

Q: Can individual cows also be released?
A: Individual-release functions can be supplied according to the selected locking-system configuration.

Q: Is the headlock suitable for new steel-structure cattle barns?
A: Yes. Mounting dimensions and brackets can be coordinated with the barn column spacing, feed curb and structural drawings during project design.

Q: Can SHEWUYOU provide complete cattle-barn equipment packages?
A: Headlocks can be supplied together with compatible cattle housing and feeding equipment according to project requirements.
