Product Showcase	Content
Product Name	Adjustable Young-Stock Cattle Headlock
Product Image
Product Overview	The Adjustable Young-Stock Cattle Headlock is a self-locking feed-front system developed for calves, growing heifers and other young cattle from approximately two weeks to 22 months of age. Age-specific frame dimensions and adjustable neck openings allow the feed fence to follow animal growth while maintaining suitable feeding access. Animal-friendly pivot joints support smooth movement of the locking bar, while individual push-button release simplifies routine handling. For young stock over approximately seven months, a Twist & Lock configuration can provide individual locking and rapid animal selection for veterinary checks, breeding management or other herd-care procedures.
Key Features	Wide Age Range: Configurations cover young cattle from approximately two weeks to 22 months. Adjustable Neck Opening: Opening width can be matched to different growth stages. Age-Specific Feeding Width: Feeding-space dimensions increase as calves develop into larger heifers. Animal-Friendly Pivot: Smooth hinge movement is designed specifically for young-stock feeding behavior. Individual Push-Button Release: Selected animals can be released without opening the complete feed-front section. Twist & Lock Option: Available for young stock over approximately seven months to support individual restraint and selection. Modular Panel Lengths: Multiple section lengths simplify integration into different cattle barn layouts. Commercial Farm Application: Suitable for heifer barns, calf group housing and replacement-stock facilities. Simple Mechanical Operation: No electricity, pneumatic system or hydraulic power is required.
Structural Components	Upper control rail Heavy-duty lower structural tube Vertical divider bars Pivoting self-locking arms Adjustable neck-opening mechanism Animal-friendly hinge assemblies Individual release push buttons Optional Twist & Lock controls End mounting brackets Intermediate supports according to panel length
Working Principle	Feeding Access: Young cattle place their heads through the individual openings to reach feed along the feed curb. Self-Locking Movement: The pivoting arm moves as the animal lowers its head and engages the mechanical locking system when the fence is set to restraint mode. Individual Restraint: The selected animal remains safely positioned at the feed front for inspection, treatment or management. Individual Release: The operator releases an animal using the dedicated push-button mechanism. Twist & Lock Selection: On compatible versions for older young stock, individual positions can also be intentionally locked to separate selected animals from the group.
Technical Specifications	Product Type Adjustable self-locking feed fence for young cattle Reference Age Range Approx. 2 weeks to 22 months 0.5–6 Months Feeding Width 38–43 cm 0.5–6 Months Neck Width Adjustable 8–15 cm 0.5–6 Months Panel Length 135–325 cm reference range 0.5–6 Months Fence Height 81 cm; internal height 67 cm 7–12 Months Feeding Width 44–54 cm 7–12 Months Neck Width Adjustable 10–17 cm 7–12 Months Panel Length 110–350 cm reference range 7–12 Months Fence Height 94 cm; internal height 80 cm 13–22 Months Feeding Width 51–56 cm 13–22 Months Neck Width Adjustable 13–20 cm 13–22 Months Panel Length 121–350 cm reference range 13–22 Months Fence Height 94 cm; internal height 80 cm Reference Tube Sizes 1.5-inch lower tube and 1-inch bars Individual Release Push-button release Individual Locking Twist & Lock option for animals over approximately 7 months
Applications	Calf group-housing facilities Young-stock and heifer barns Replacement-heifer operations Dairy cattle rearing centers Commercial dairy farms Feed alleys and feed-front barriers Veterinary inspection and vaccination Breeding and herd-management procedures Steel-structure cattle barns New-build and retrofit livestock projects
Customization Options	Age-specific 0.5–6 month configuration 7–12 month Twist & Lock configuration 13–22 month Twist & Lock configuration Neck-opening adjustment range Feeding-space width Panel length Number of feeding positions Mounting brackets and support posts Surface treatment available upon request Customizable according to barn drawings and project requirements
Installation & Maintenance	Install the headlock panels securely between structural posts along the cattle feed curb. Select the appropriate panel height and neck-opening range according to the age and body size of the young stock. Align all sections so that feeding spaces remain consistent and pivoting arms move freely without contacting adjacent steelwork. Support posts and fixing points must withstand normal animal loading. As animals grow, review the adjustable neck width and move the setting where required. This allows the same young-stock housing program to maintain appropriate feeding access throughout different growth stages. Regularly inspect pivots, locking bars, push buttons, Twist & Lock components, fasteners and structural tubes. Remove accumulated feed and manure around moving components and replace damaged parts promptly.
Product FAQ	Q: What ages can use this young-stock headlock? A: Reference configurations cover animals from approximately two weeks to 22 months of age. Q: Can the neck opening be adjusted as the animal grows? A: Yes. The neck width is adjustable, with different ranges for calves, younger heifers and older young stock. Q: What is the Twist & Lock function? A: It allows an individual feeding position to be intentionally locked so selected animals can be separated or restrained quickly. Q: Is Twist & Lock available for very young calves? A: The reference system uses standard individual release for the 0.5–6 month configuration, while Twist & Lock is available for animals over approximately seven months. Q: Can individual animals be released separately? A: Yes. Reference configurations use a simple individual push-button release mechanism. Q: Can the panel dimensions be customized? A: Yes. Panel length, feeding spacing, neck-opening range and mounting arrangement can be selected according to animal age, structural bay spacing and project requirements.

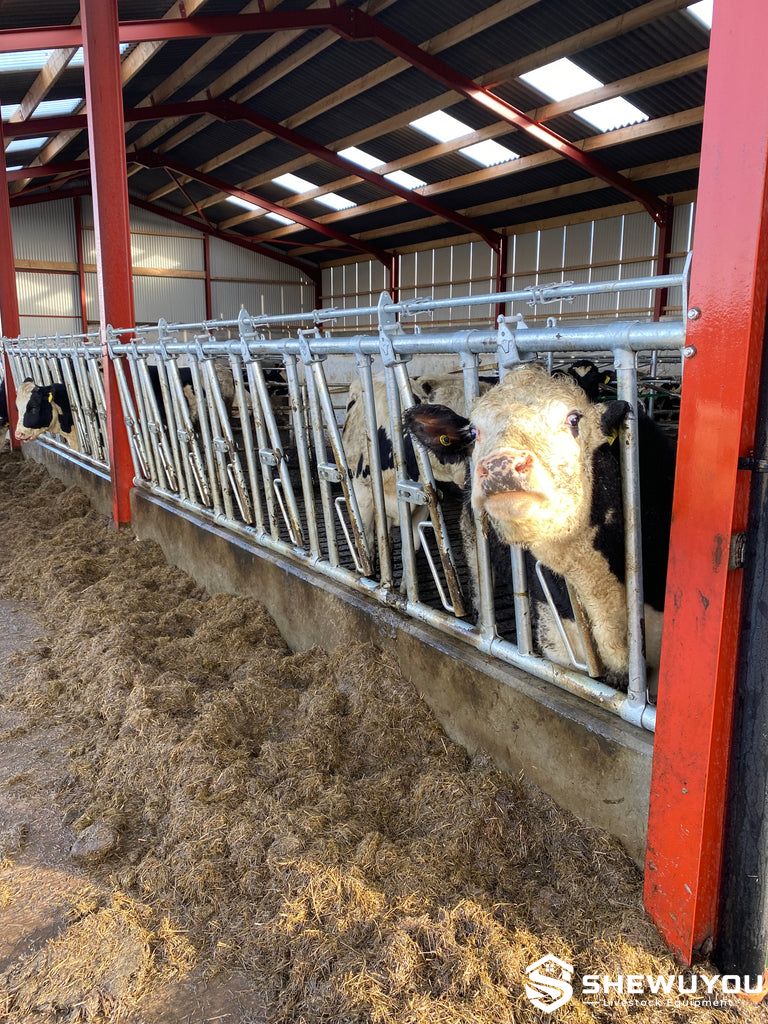

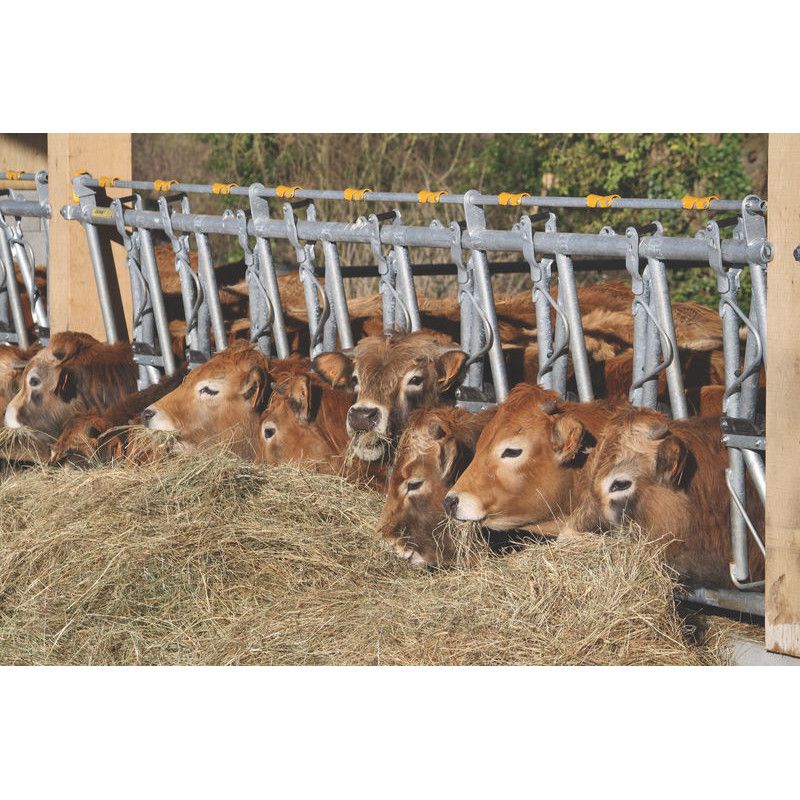

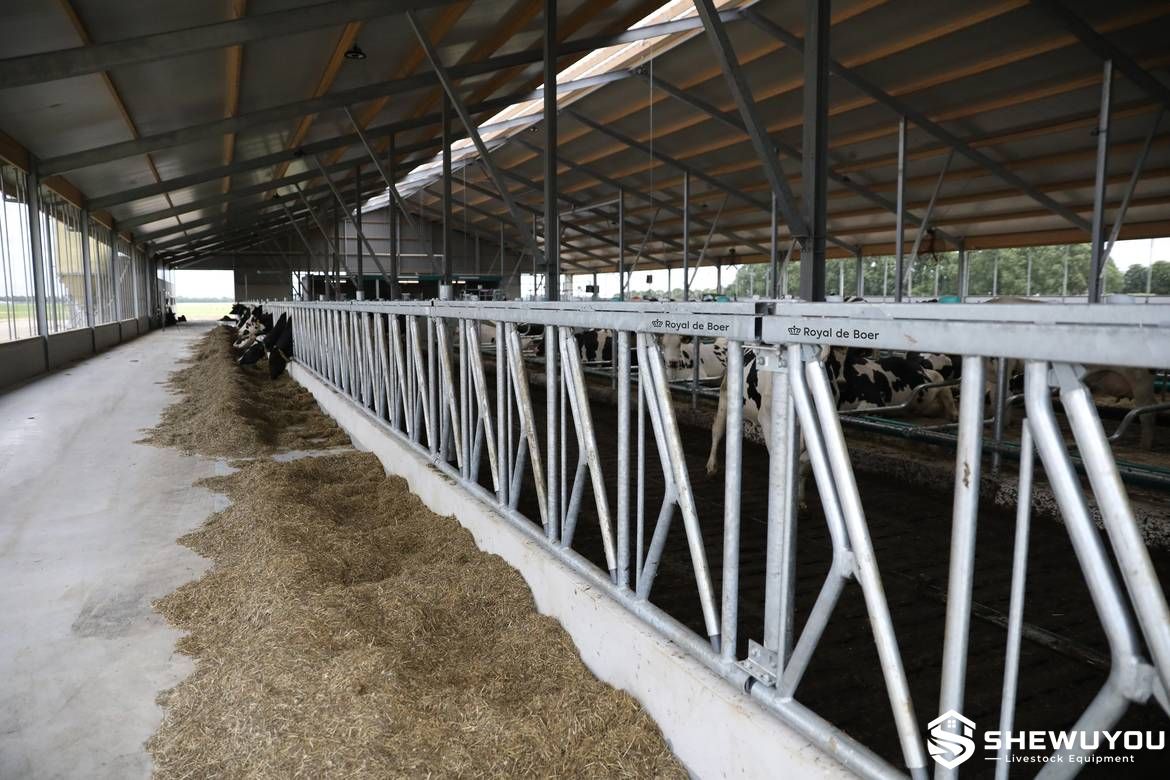

Product Gallery
