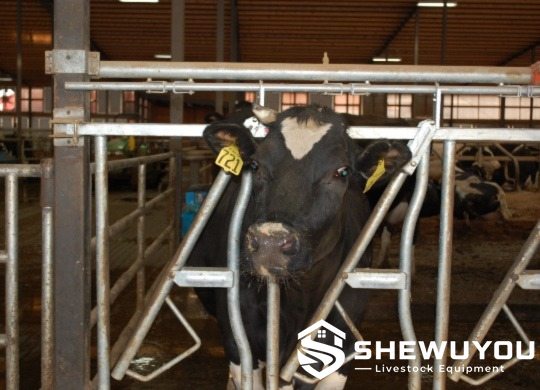

Safety Quick-Release Cattle Headlock

• Self-locking feed-front design supports efficient cattle feeding and restraint.
• Quick-release mechanism enables convenient herd release after management procedures.
• Individual cow lock-up allows selected animals to remain restrained when required.
• Group locking and release improve labor efficiency for large commercial dairy herds.
• Panic-release design provides an additional safety feature for abnormal animal positioning.
• Wide top and bottom openings improve head and neck clearance for mature cattle.
• Reference WSL opening is approximately 430 mm at the top and bottom.
• Noise-reducing hardware minimizes unnecessary metal impact in the feeding alley.
• Minimal moving components help reduce routine maintenance requirements.
• Visual locking status allows operators to check headlock position quickly.
• Multiple mounting configurations support new barns and renovation projects.

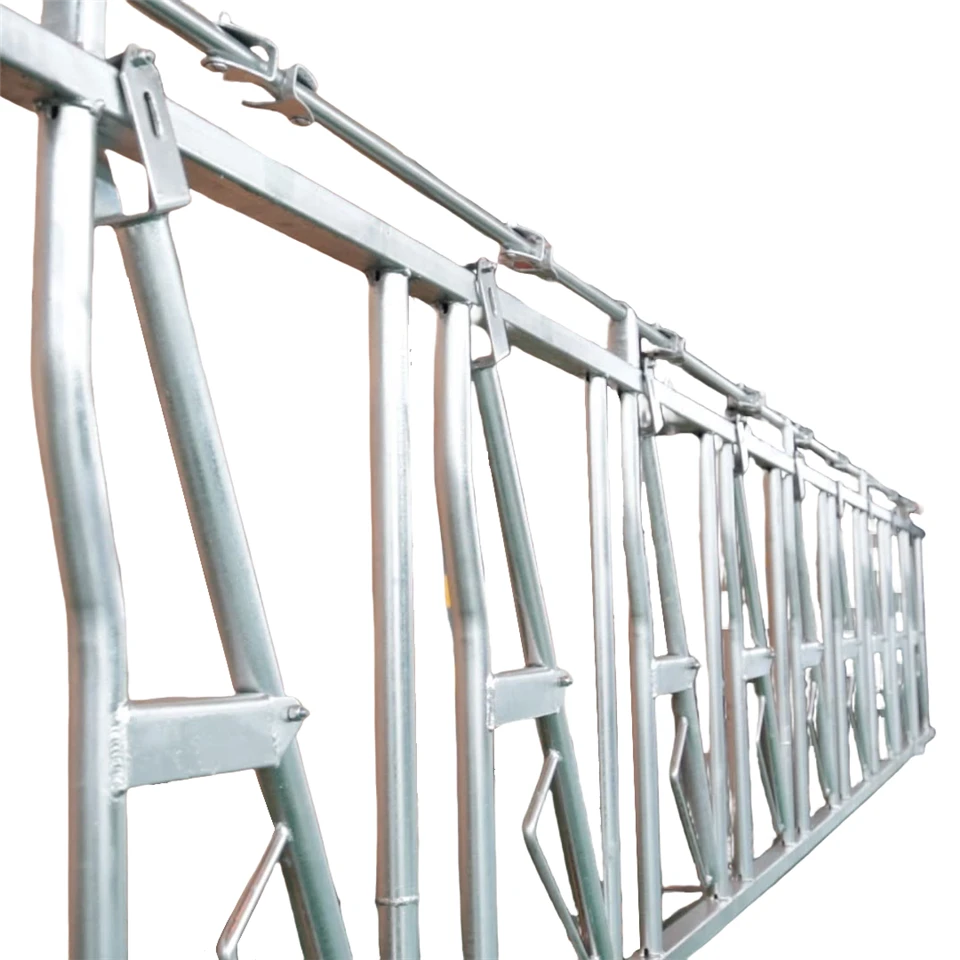

• Galvanized steel configurations are suitable for corrosive livestock-building environments.

• Top Rail: Provides longitudinal structural support and carries the locking-control hardware.
• Bottom Rail: Stabilizes the feed-front panel and withstands repeated cattle contact.
• Fixed Uprights: Define individual feeding spaces and maintain structural alignment.
• Pivoting Locking Arm: Moves as the cow enters and forms the self-locking neck opening.
• Locking Mechanism: Holds the movable arm in the required operating position.
• Quick-Release Control: Allows restrained animals to be released efficiently.
• Panic-Release Section: Provides additional clearance for safer animal exit when necessary.
• Noise-Reducing Components: Reduce metal-to-metal impact during headlock operation.
• Mounting Hardware: Connects headlock panels to steel posts, concrete structures or compatible barn framing.

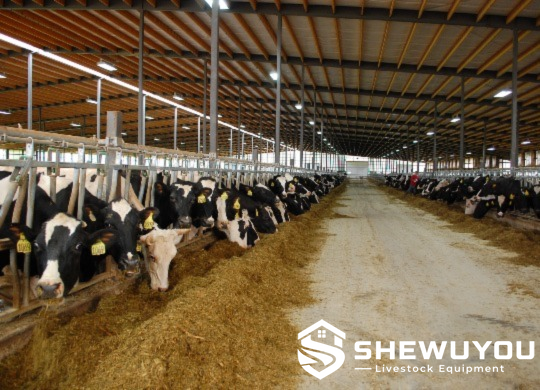

• Commercial dairy cow feeding alleys.
• Free-stall dairy barn feed fronts.
• Beef cattle feeding facilities.
• Physical examination and herd-health procedures.
• Vaccination and medication management.
• Artificial insemination programs.
• Pregnancy checking and reproductive management.
• Individual animal isolation at the feed bunk.
• New steel-structure cattle barn projects.
• Existing dairy barn renovation and expansion projects.
• Large livestock groups, engineering contractors and farm-equipment distributors.

• Headlock Opening: Customizable according to cattle size and herd requirements.
• Panel Length: Manufactured according to feed-alley and building dimensions.
• Opening Quantity: Configurable according to required cow spacing and panel length.
• Steel Specification: Available according to project structural requirements.
• Surface Treatment: Hot-dip galvanized configuration available for corrosive livestock environments.
• Mounting Hardware: Multiple installation options available for steel posts, concrete posts and renovation projects.
• Release System: Individual and group control configurations available upon request.
• Farm Layout: Headlock arrangement can be designed according to barn dimensions, feed-bunk design and cattle management requirements.

• Confirm feed-front length, cow spacing, curb height and supporting-post locations before installation.
• Install headlock panels on structurally suitable steel or concrete supports.
• Keep the complete headlock run level and correctly aligned to prevent binding of movable components.
• Verify that all mounting bolts, clamps and connectors are securely tightened.
• Check the locking and release mechanism across the complete panel before cattle are introduced.
• Ensure moving arms operate freely without sharp edges or abnormal interference.
• Inspect pivot points, locking components and noise-reducing hardware regularly.
• Remove accumulated feed, manure and corrosive contamination during routine barn cleaning.
• Repair damaged galvanized surfaces and replace bent or heavily worn components when required.
• Test panic-release and group-release functions as part of the farm's routine equipment inspection program.

Q: What is a self-locking cattle headlock used for?
A: It combines a feed barrier with cattle restraint, allowing cows to feed normally while enabling operators to secure animals for examination, vaccination, insemination, pregnancy checking and treatment.

Q: Can cows be released as a group?
A: Yes. Suitable configurations allow group release, while individual animals can also be locked or released according to management requirements.

Q: What is the purpose of the panic-release system?
A: It provides additional clearance and an alternative release option if an animal becomes positioned abnormally in the headlock.

Q: How wide is the reference WSL opening?
A: The referenced WSL design provides approximately 430 mm of opening at both the upper and lower sections.

Q: Is the headlock suitable for commercial dairy barns?
A: Yes. It is designed for repetitive feeding and herd-management use in commercial dairy and cattle facilities.

Q: Can headlock dimensions be customized?
A: Yes. Panel length, opening quantity, cattle spacing, mounting hardware and selected structural specifications can be designed according to project requirements.

Q: Can the system be installed in an existing barn?
A: Yes. Multiple mounting configurations allow the headlock system to be adapted to many renovation projects after the existing structure has been measured and evaluated.

Q: How is operating noise reduced?
A: Noise-reducing hardware is incorporated around moving and contact points to minimize unnecessary metal impact during normal headlock operation.
