Product Name	Modular Multi-Position Cattle Headlock Panel

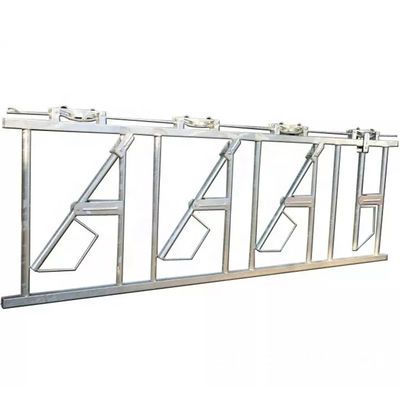

Product Image
Product Overview	The Modular Multi-Position Cattle Headlock Panel is a heavy-duty feed-front system designed for dairy barns, cattle feeding lanes and commercial livestock facilities. Each panel integrates multiple individual feeding positions with balanced pivot swing arms. Cows can enter the feeding openings naturally and can then be restrained for feeding management, veterinary examination, breeding work, pregnancy checks or other routine herd-management procedures. The modular frame is manufactured from heavy-duty steel tubing and hot-dip galvanized after fabrication for improved corrosion resistance in humid and manure-exposed cattle housing environments. Panel length, number of feeding positions and mounting arrangement can be configured according to barn layout and herd size.
Key Features	Multiple Feeding Positions: One modular panel accommodates several cows along a continuous feed barrier. Balanced Pivot Swing Arms: Moving headlock arms provide reliable self-locking action while maintaining convenient cow entry. Individual or Group Release: Individual locking positions can be managed separately, while the top control bar allows multiple positions to be released together. Hot-Dip Galvanized After Fabrication: Finished panels receive corrosion-resistant galvanizing after welding and assembly. Heavy-Duty Tubular Frame: Reference construction uses thick-wall steel tubing suitable for intensive commercial dairy use. Modular Layout: Multiple sections can be connected to form long feeding lines in freestall or loose-housing barns. Custom Feeding Spacing: Position quantity and opening width can be configured for different cattle sizes and farm layouts. Herd-Management Efficiency: Allows cows to be restrained at the feed line for inspection, vaccination, insemination and routine treatment. Retrofit or New-Build Installation: Suitable for both new steel-structure cattle barns and renovation projects. Low-Maintenance Structure: Galvanized steel construction and straightforward mechanical components simplify routine maintenance.
Structural Components	Upper horizontal frame rail Lower structural frame rail Vertical divider tubes Balanced pivot swing arms Individual headlock openings Top locking and release control bar Pivot brackets and hinge assemblies Individual locking components End mounting brackets Hot-dip galvanized steel frame Connection hardware according to installation design
Working Principle	Open Feeding Position: The pivot arm remains in the entry position so cattle can place their heads through the feed barrier to reach the ration. Self-Locking Movement: As the cow lowers its head toward the feed, the balanced swing arm changes position and engages the locking mechanism. Temporary Restraint: The animal remains positioned at its individual feeding place, allowing farm personnel to perform routine herd-management procedures more efficiently. Individual Release: Selected animals can be released independently where the configured locking system provides individual control. Group Release: Operating the top control bar releases multiple headlock positions simultaneously for efficient herd movement.
Technical Specifications	Product Type Modular multi-position cattle headlock feed barrier Frame Material Heavy-duty steel tubing Surface Treatment Hot-dip galvanized after fabrication Reference Tube Construction 10-gauge thick-wall tubing on referenced configuration Reference Panel Lengths 3 m and 6 m configurations; customizable Reference 3m Configurations 4 / 5 / 6 / 7 feeding positions Reference 6m Configurations 7 / 9 feeding positions Locking Type Balanced pivot swing-arm headlock Release System Individual and group release according to configuration Feeding Position Spacing According to cattle size and project requirements Panel Height Customizable Mounting Method Post-mounted, bolted or welded according to barn design
Applications	Commercial dairy cattle barns Freestall and loose-housing facilities Dairy feed alleys and feed-front barriers Beef cattle feeding facilities Replacement-heifer barns Veterinary examination and treatment areas Artificial insemination and breeding management Pregnancy-check and herd-health procedures New steel-structure cattle barn projects Existing dairy barn retrofit projects
Customization Options	Panel length Number of feeding positions Feeding-position width Overall panel height Steel tube size and wall thickness Headlock opening geometry Individual locking arrangement Group release configuration Round-post or square-post mounting brackets End posts and intermediate supports Hot-dip galvanized coating Customized according to farm drawings and project requirements

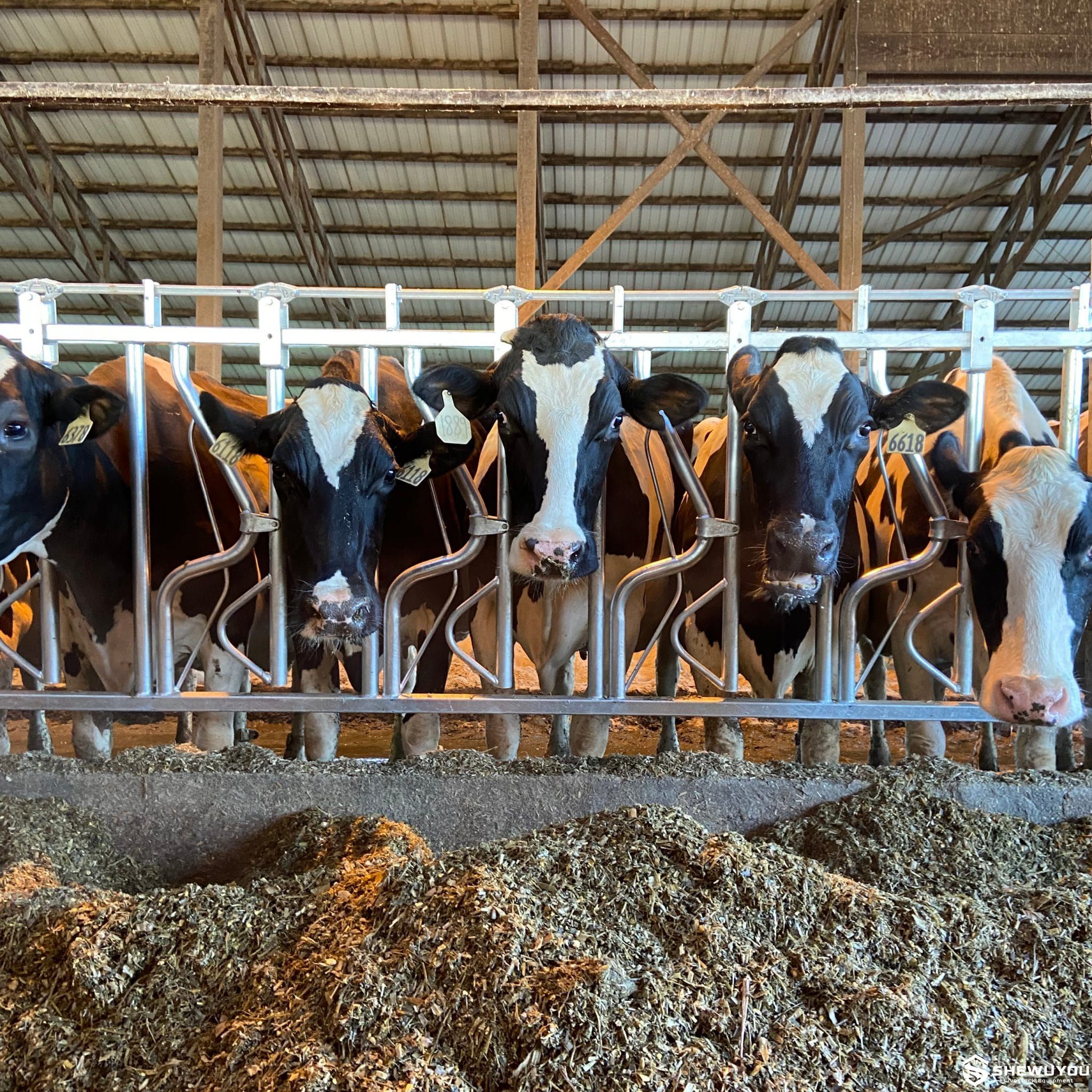

Installation & Maintenance	Headlock panels are normally installed along the concrete feed curb of a dairy or cattle barn. End supports must be securely connected to structural posts or dedicated steel supports capable of resisting cattle loading. During installation, maintain consistent panel height, feeding-position spacing and alignment along the feed line. Adequate clearance should be provided for cattle entry, feeding and emergency release. Mounting can be adapted to round posts, square posts or flat structural surfaces according to the project design. Bolted connections simplify replacement, while welded mounting can be specified for selected permanent installations. Regularly inspect pivot points, locking mechanisms, top control bars, fasteners and welds. Remove accumulated feed and manure around moving parts and replace damaged or excessively worn components promptly.
Product FAQ	Q: Can the number of headlock positions be customized? A: Yes. Panel length, number of feeding positions and opening dimensions can be configured according to cattle size and barn layout. Q: Can cows be released individually? A: Compatible configurations support individual locking and release, while the top operating bar can release multiple positions together. Q: Is the panel suitable for large dairy farms? A: Yes. The modular system can be connected into long feed-front lines for commercial dairy and cattle facilities. Q: How is the steel protected against corrosion? A: The reference construction is hot-dip galvanized after fabrication to provide durable protection in demanding livestock environments. Q: Can the headlock be installed in an existing barn? A: Yes. Mounting can be adapted for new construction or retrofit applications using round posts, square posts or other suitable structural supports. Q: What information is required for a customized quotation? A: Recommended project information includes total feed-line length, cattle type, average animal size, required number of feeding positions, post spacing and barn drawings.

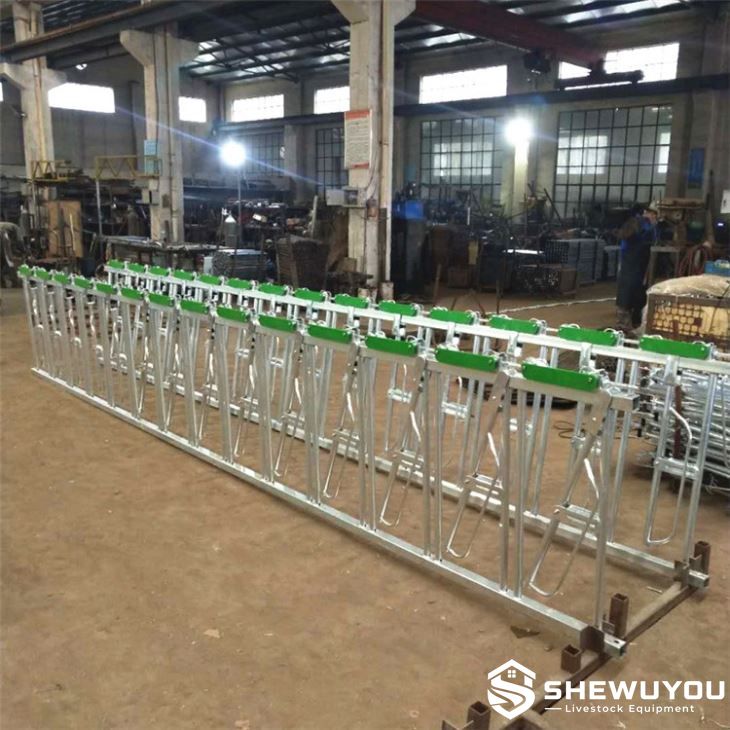

Product Gallery
