High Pressure Cattle Drinking Bowl

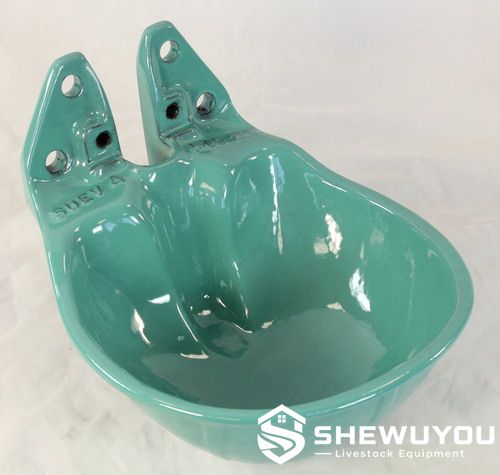

The High Pressure Cattle Drinking Bowl is a heavy-duty automatic livestock waterer developed for cattle housing supplied by pressurized farm water systems. Its completely enamelled cast iron basin combines mechanical strength with a smooth, easy-to-clean drinking surface for intensive livestock environments.

A smoothly operating tube valve allows cattle to activate water flow directly with the muzzle. The demand-operated design provides fresh water when required while helping minimize unnecessary standing water and overflow.

The drinking bowl is suitable for dairy cows, beef cattle and bulls without nose rings and can be installed on walls, steel posts or compatible pipe structures in free-stall barns, cattle pens and livestock construction projects.

• High-Pressure Operation: Designed for pressurized livestock water systems with operating pressure up to 5 bar on the referenced configuration.
• Enamelled Cast Iron Bowl: Heavy-duty cast construction provides excellent mechanical stability for commercial cattle facilities.
• Smooth Tube Valve: Low-effort valve operation allows cattle to release water naturally while drinking.
• Calm Water Delivery: Tube-valve construction directs water smoothly into the bowl and helps reduce splashing.
• Adjustable Flow: Water delivery can be continuously regulated from outside with an adjustment screw.
• High Water Delivery: The referenced 3/4-inch configuration provides water flow up to approximately 12 L/min.
• Flexible Water Connection: Water supply can be connected from the top or bottom according to barn plumbing layout.
• Six-Point Mounting: Multiple fixing holes provide stable installation on livestock structures.
• Serviceable Valve: Springs, seals, tube and valve components can be replaced during routine maintenance.
• Project Integration: Suitable for livestock water circuits and steel structure cattle barn installations.

• Completely enamelled cast iron drinking bowl

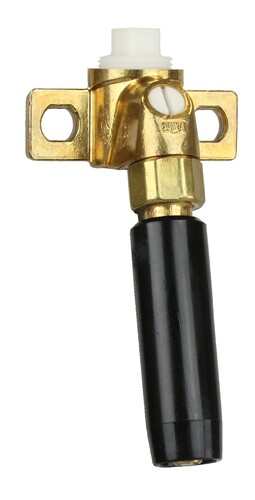

• 3/4-inch tube valve assembly
• Brass or stainless steel valve option
• Animal-operated valve tube
• Valve spring
• Valve sealing components
• External flow regulation screw

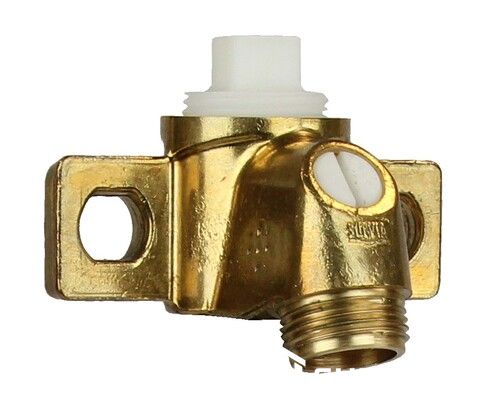

• Upper and lower threaded connection points
• Six mounting holes
• Optional pipe mounting bracket
• Optional valve protection bracket
• Optional water-circuit connection set

The bowl is connected directly to a pressurized livestock water line. When the animal pushes the tube valve with its muzzle, the valve moves away from its sealing position and allows fresh water to enter the drinking basin.

Water continues to flow while the tube is actuated. When the animal releases the valve, the spring-assisted mechanism returns to the closed position and stops water delivery.

An external regulation screw allows the installer to adjust the water flow according to supply pressure, pipe capacity and livestock drinking requirements.

Reference technical data are based on a comparable professional 3/4-inch high-pressure tube-valve drinking bowl. Final specifications should be confirmed according to the selected configuration and farm water system.

• Commercial dairy farms
• Beef cattle housing
• Free-stall cattle barns
• Tie-stall dairy barns
• Bull housing without nose rings
• Replacement heifer facilities
• Cattle breeding centers
• Livestock holding and handling pens
• Steel structure cattle barns
• Pressurized livestock watering systems
• New farm construction projects
• Cattle barn renovation projects

SHEWUYOU can configure high-pressure cattle drinking bowls according to animal group, water pressure, barn plumbing design and livestock project requirements.

• Brass or stainless steel tube valve
• Thread and water connection configuration
• Top or bottom inlet arrangement
• Water flow configuration
• Wall mounting
• Pipe or steel post mounting
• Valve protection bracket
• Water-circuit connection set
• Steel mounting posts
• Cold-climate pipe protection
• Complete cattle drinking-system packages
• OEM labeling and bulk project packaging

Install the bowl at a suitable height for the cattle group and fasten it securely to a structurally sound wall, steel post or compatible pipe structure.

• Determine the correct drinking height before drilling or mounting.
• Use all required fixing points to provide stable installation.
• Flush the livestock water line before connecting the valve.
• Connect the supply line to the top or bottom inlet according to the plumbing layout.
• Check all threaded connections for leakage.
• Adjust the flow using the external regulation screw.
• Confirm that the tube valve moves freely and closes reliably.
• Clean the enamelled basin regularly to remove feed, sediment and organic contamination.
• Inspect the valve tube, spring, sealing and regulation components periodically.
• Install a protection bracket where heavy cattle impact is expected.

Q1: What makes this a high-pressure cattle drinking bowl?

The referenced tube-valve configuration is designed for pressurized farm water systems and is rated for operating pressure up to 5 bar.

Q2: How does the tube valve operate?

The animal moves the tube with its muzzle, opening the internal valve and allowing water to flow into the bowl. The valve closes automatically when the tube is released.

Q3: Can the water flow be adjusted?

Yes. Water delivery can be continuously regulated from outside using the adjustment screw.

Q4: What is the maximum reference water flow?

The referenced 3/4-inch professional tube-valve model provides water flow up to approximately 12 L/min.

Q5: Can the water supply be connected from below?

Yes. Compatible configurations provide 3/4-inch female connections from both the top and bottom.

Q6: Is stainless steel available for the valve?

Yes. Brass and stainless steel tube-valve versions are available according to project requirements.

Q7: Can the bowl be mounted on livestock pipes or steel posts?

Yes. Compatible U-bolt sets, adapter plates and steel posts can be used for different cattle housing structures.

Q8: Can SHEWUYOU supply the complete drinking installation?

Yes. Drinking bowls, valves, protection brackets, mounting hardware, water-circuit fittings and related livestock watering components can be configured according to project requirements.
