High-Flow Cattle Drinking Bowl

The High-Flow Cattle Drinking Bowl is designed for dairy cows, beef cattle, bulls and other compatible large livestock that require rapid access to fresh drinking water. The heavy-duty bowl structure, high-capacity valve and adjustable water delivery make it suitable for intensive livestock housing and commercial cattle farm applications.

The drinking bowl uses an animal-operated flap valve. When the animal presses the flap, the valve opens and water enters the bowl at a controlled rate. The water flow can be adjusted according to farm pressure, animal demand and pipeline conditions, helping provide sufficient replenishment without unnecessary overflow.

Its compact design is suitable for wall, post or pipe mounting in dairy barns, cattle pens, feeding areas and steel structure livestock buildings. Valve configuration, water connection and installation accessories can be customized according to project requirements.

• High Water Delivery: Designed for rapid bowl replenishment and high drinking demand from adult cattle.
• Heavy-Duty Cast Iron Bowl: Robust construction withstands frequent livestock contact and demanding barn conditions.
• Enamelled Surface: Smooth finish supports hygiene, corrosion protection and convenient cleaning.
• Adjustable Water Flow: Flow can be regulated according to available water pressure and livestock requirements.

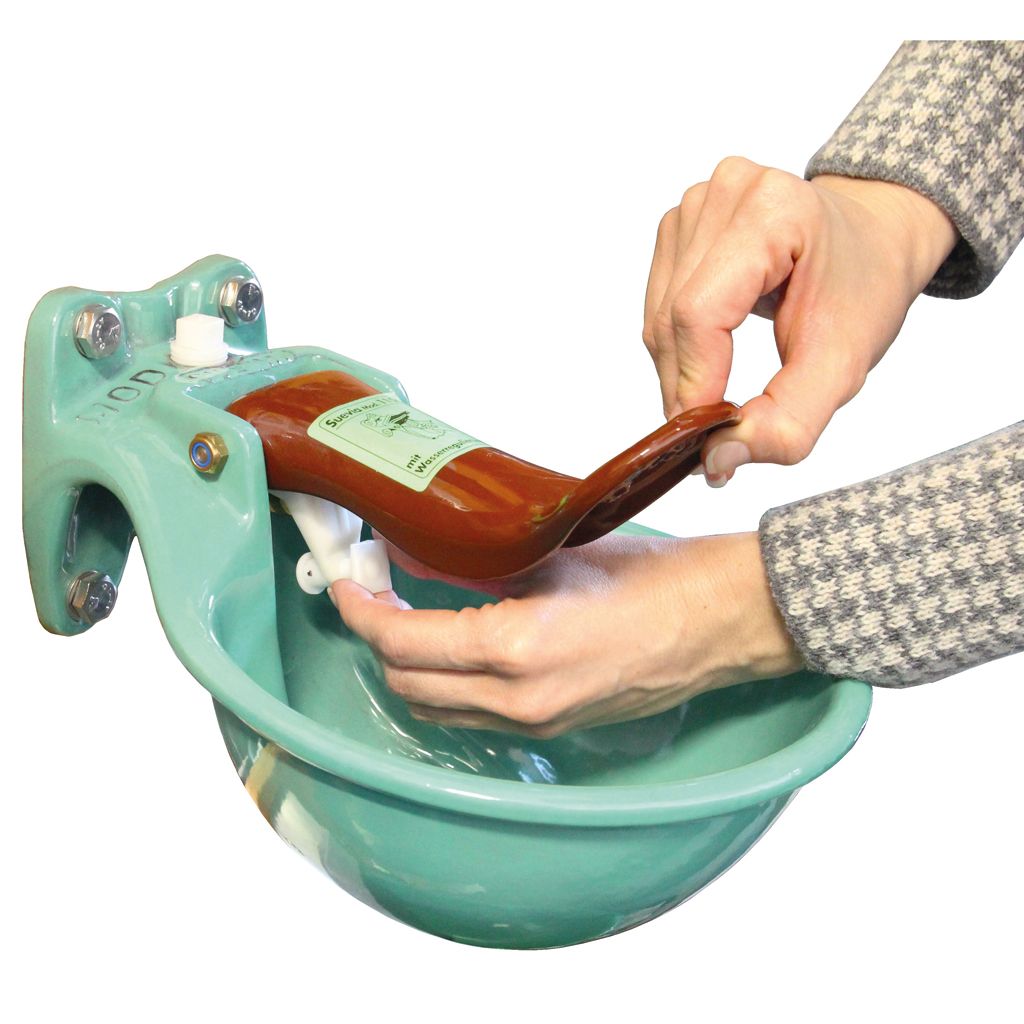

• Tool-Free Adjustment: Comparable professional configurations allow water regulation directly beneath the operating flap.
• Automatic Animal Operation: Cattle activate the valve naturally while drinking.
• Mechanical Design: Standard operation requires no electrical control system.
• Top and Bottom Connection: Flexible inlet arrangement simplifies integration with different livestock water pipelines.
• Secure Mounting: Multi-point fixing allows stable wall or structural support installation.
• Protection Accessories: Optional guards and pipe-mounting brackets are available for demanding farm environments.

• Heavy-duty cast iron drinking bowl
• Enamelled protective surface
• Animal-operated flap / tongue
• Brass or corrosion-resistant valve assembly
• Valve housing
• Flow regulation screw
• Valve spring
• Valve sealing components
• Top water inlet
• Bottom water inlet
• Rear mounting structure
• Optional pipe mounting brackets
• Optional protective steel guard

The drinking bowl is connected directly to the livestock water supply line. When the animal presses the operating flap with its muzzle, the movement opens the internal valve and fresh water enters the bowl.

A flow regulation mechanism controls the amount of water delivered. Depending on the selected valve configuration, the water supply can be adjusted from a reduced flow to a higher replenishment rate according to livestock demand and pipeline pressure.

When the animal releases the flap, the spring-loaded valve returns to the closed position and stops the water supply. This simple mechanical principle provides fresh water on demand without requiring electricity.

• Commercial dairy cattle barns
• Beef cattle housing
• Bull pens
• High-production dairy facilities
• Tie-stall cattle barns
• Individual cattle stalls
• Replacement heifer facilities
• Breeding cattle units
• Holding and treatment areas
• Steel structure livestock buildings
• Cattle farm renovation projects
• Centralized livestock water supply systems

The high-flow configuration is especially useful for adult cattle where rapid replenishment is required between drinking events. Multiple bowls can be distributed along a centralized pipeline according to animal numbers, barn layout and available water pressure.

For steel structure livestock projects, drinking bowl positions can be coordinated with pen partitions, cattle headlocks, structural columns, feeding alleys and water distribution lines during farm design.

• Cast iron bowl configuration
• Enamelled surface finish
• High-flow valve specification
• Water flow adjustment range
• Water connection size
• Top or bottom inlet arrangement
• Wall mounting hardware
• Pipe mounting brackets
• Structural post mounting accessories
• Protective steel guard
• Replacement valve and sealing components
• Cold-climate installation accessories
• OEM packaging and labeling available upon request

Product configuration can be selected according to cattle type, required drinking flow, pipeline pressure, barn layout and project requirements.

Installation Position: Install the drinking bowl where cattle have unobstructed access without interfering with gates, feeding equipment or manure-management systems.

Mounting Height: Determine the installation height according to animal size and cattle housing design.

Secure Fixing: Fasten the unit firmly to a suitable wall, steel post or pipe using compatible mounting hardware.

Water Connection: Connect the bowl to the livestock pipeline and install an accessible shut-off valve for servicing.

Pipeline Flushing: Flush the water line before connecting the valve to remove sand, rust and installation debris.

Flow Adjustment: Adjust the regulating mechanism until the bowl replenishes rapidly without excessive splashing or overflow.

Routine Cleaning: Remove feed residues and dirt regularly, particularly around and behind the operating flap.

Valve Inspection: Periodically inspect seals, springs, regulating components and the valve body for wear or leakage.

Winter Protection: Protect supply pipes and exposed valves against freezing according to local climate conditions.

High-flow cattle drinking bowls are suitable for new dairy and beef cattle projects where rapid water replenishment and compact individual watering points are required.

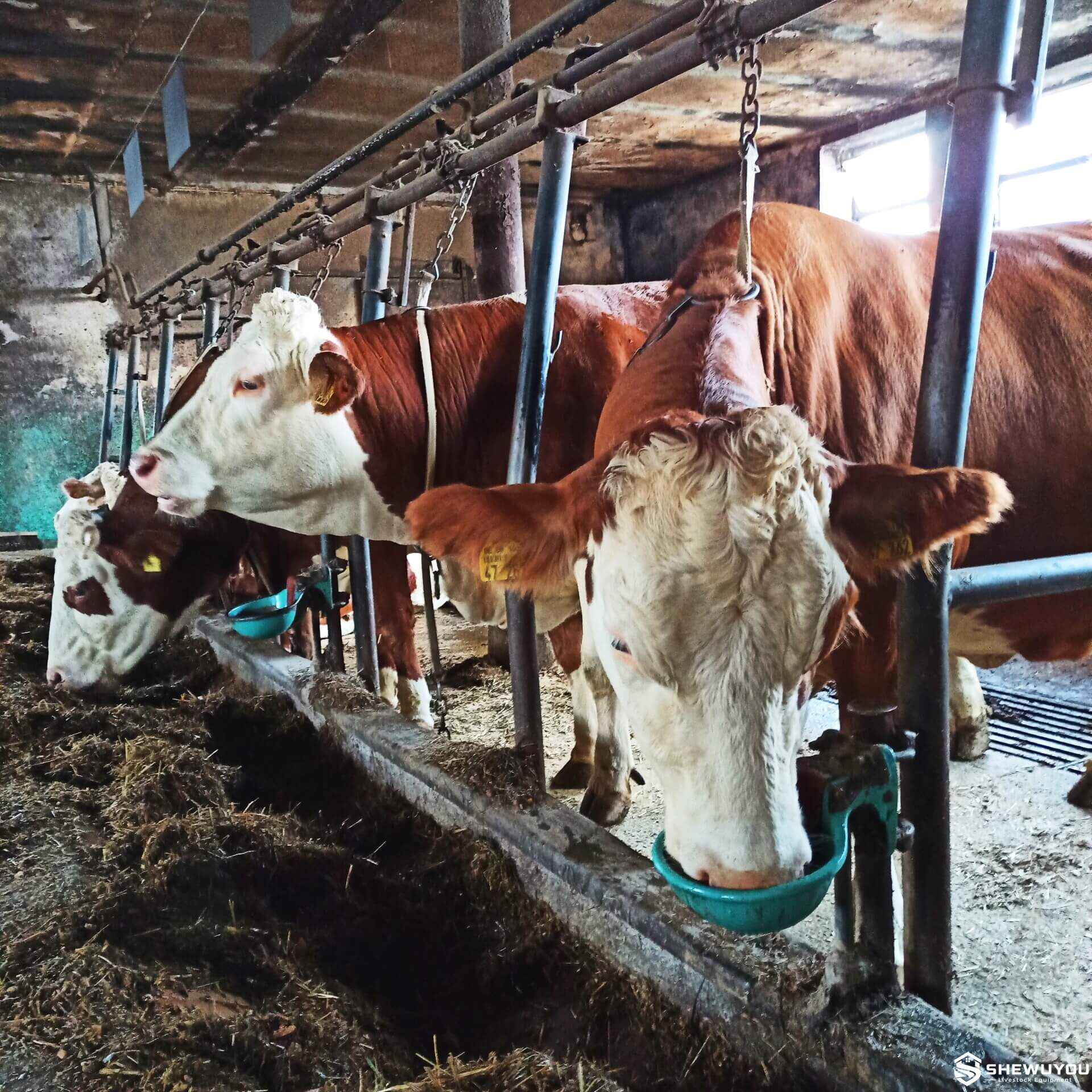

In tie-stall barns, the bowls can be installed along stall rows with direct connection to the livestock water pipeline. In group pens, units can be positioned at reinforced walls or structural posts to provide additional drinking points.

For large commercial livestock projects, bowl quantity, water-line diameter, valve specification and mounting height can be planned according to herd size, barn arrangement and available water pressure.

Q1: What makes this a high-flow cattle drinking bowl?
The valve and water connection are designed to provide rapid water delivery, helping the bowl refill quickly during cattle drinking.

Q2: What is the reference water flow?
A comparable professional Model 115 provides up to approximately 14 L/min at 5 bar. Final flow depends on the selected valve and actual farm water pressure.

Q3: Can the water flow be adjusted?
Yes. Adjustable-flow configurations allow the delivery rate to be matched to livestock requirements and pipeline conditions.

Q4: Does the drinking bowl require electricity?
No. Standard flap-valve operation is mechanical.

Q5: Why is cast iron used?
Cast iron provides a rigid, impact-resistant structure suitable for intensive livestock housing applications.

Q6: Is the bowl suitable for dairy cows?
Yes. High-flow cast iron drinking bowls are commonly used in dairy cattle facilities when correctly installed and supplied with adequate water pressure.

Q7: Can the water supply be connected from above or below?
Yes. Comparable professional configurations provide both top and bottom water connections.

Q8: Can it be mounted on a pipe?
Yes. Suitable U-bolts, brackets or adapter plates can be selected according to pipe diameter and installation structure.

Q9: Is a protection guard available?
Yes. Protective steel brackets can be supplied for installations exposed to heavy animal contact.

Q10: Can the drinking bowl be customized?
Yes. Valve configuration, water connection, mounting hardware and protection accessories can be supplied according to project requirements.
