Double Valve Cattle Drinking Bowl

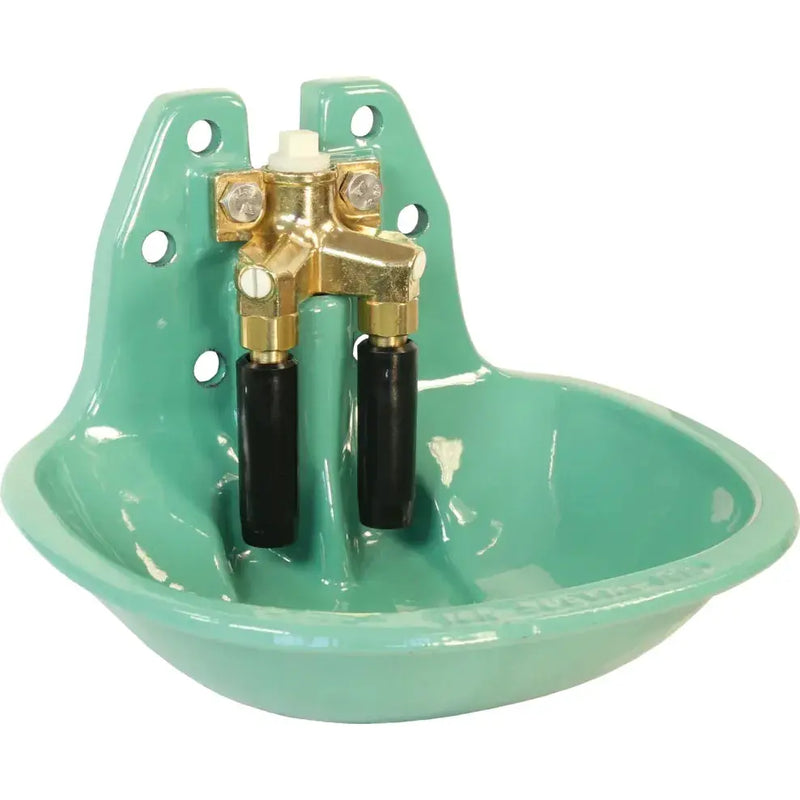

The Double Valve Cattle Drinking Bowl is engineered for reliable automatic watering in commercial cattle housing, dairy barns, livestock pens and agricultural construction projects. The robust enamelled cast iron bowl provides a durable drinking surface, while the double brass tube-valve assembly delivers controlled water flow when activated by the animal.

Its practical configuration is suitable for installation in partition walls between livestock pens, while the top and bottom water connections provide flexibility for different farm water-line layouts.

• Heavy-duty enamelled cast iron drinking bowl for commercial livestock environments.
• Double brass tube-valve configuration for automatic water supply.
• Externally adjustable water flow for convenient commissioning and servicing.
• Top and bottom water connection options for flexible pipe routing.
• Six-hole mounting arrangement for secure installation.
• Suitable for partition walls, galvanized steel structures and dedicated support frames.
• Easy-access bowl design simplifies routine cleaning and inspection.
• Suitable for integration with compatible livestock water circulation systems.

• Drinking Bowl: Enamelled cast iron construction designed for demanding livestock applications.

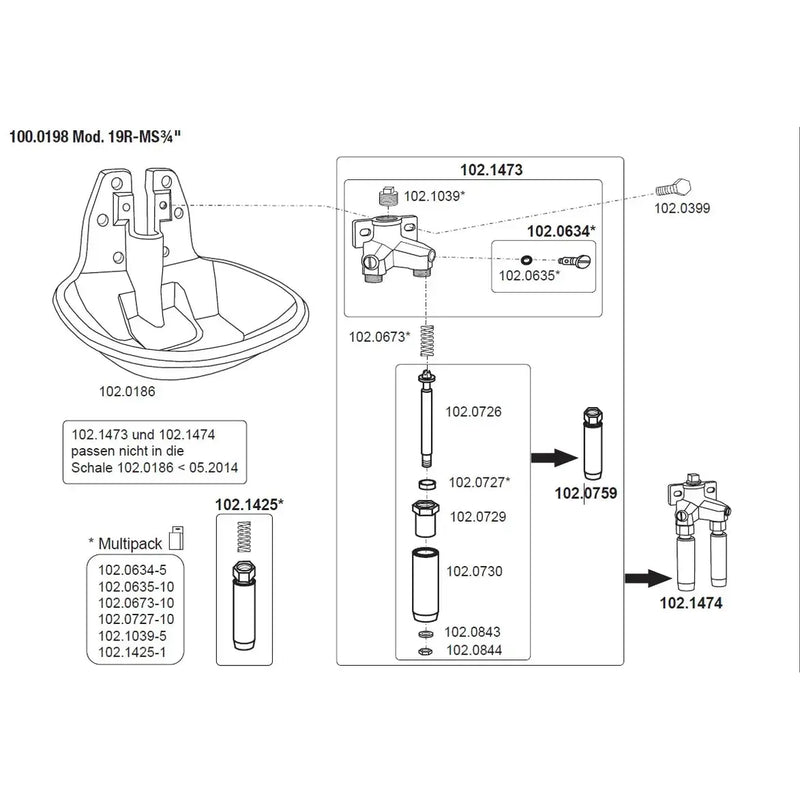

• Valve Assembly: Double brass tube-valve mechanism for automatic filling and shut-off.
• Flow Adjustment: External adjustment mechanism for regulating water delivery.

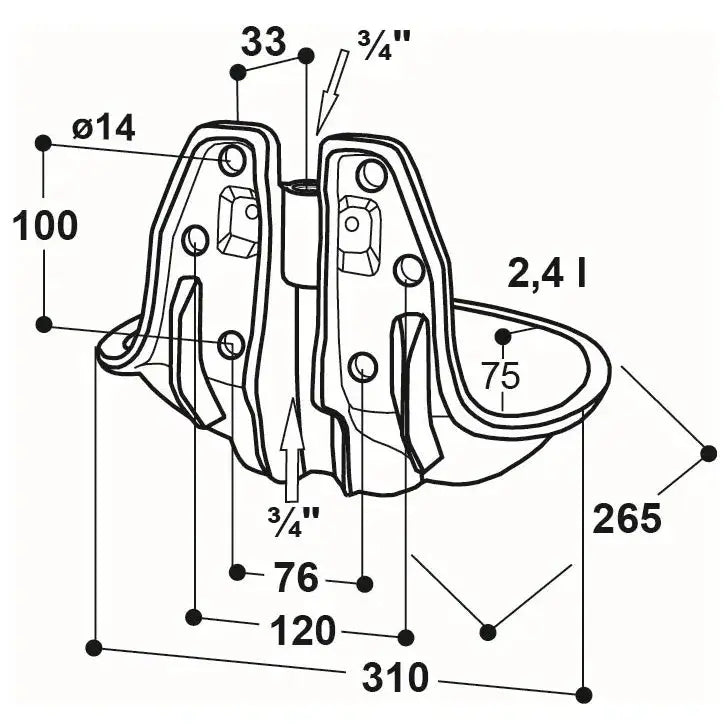

• Water Connections: 3/4-inch female threaded connections from the top and bottom of the valve assembly.
• Mounting Points: Six-hole fixing arrangement for wall or structural support installation.
• Support Structure: Can be combined with suitable galvanized steel brackets, posts or livestock partition systems according to project requirements.

The drinking bowl operates through a mechanical tube-valve system. When cattle activate the valve actuator, the inlet opens and fresh water flows into the bowl. When the actuator is released, the valve closes and stops the water supply.

The double-valve arrangement allows the drinking point to serve an appropriate livestock housing layout, while the top and bottom inlet configuration gives installers greater flexibility when routing water pipes through partition walls or steel support structures.

• Commercial cattle barns and dairy farm facilities.
• Free-stall and loose-housing livestock systems.
• Cattle pens and livestock separation walls.
• Livestock housing equipped with galvanized steel partitions and pipe structures.
• New agricultural construction and existing barn renovation projects.
• Large-scale livestock projects supplied by engineering contractors and agricultural equipment distributors.
• Livestock drinking-water systems with suitable circulation or ring-main pipework.

• Mounting and support configuration: customizable.
• Wall, partition and galvanized steel support installation: according to project requirements.
• Water-line routing and connection arrangement: according to the farm piping layout.
• Protective brackets and support structures: available upon request.
• Frost-protection configuration: designed according to local climate and farm conditions.
• Packaging and labeling: customizable for distributors, agents and project procurement.
• OEM/ODM and project-specific requirements: available upon request.

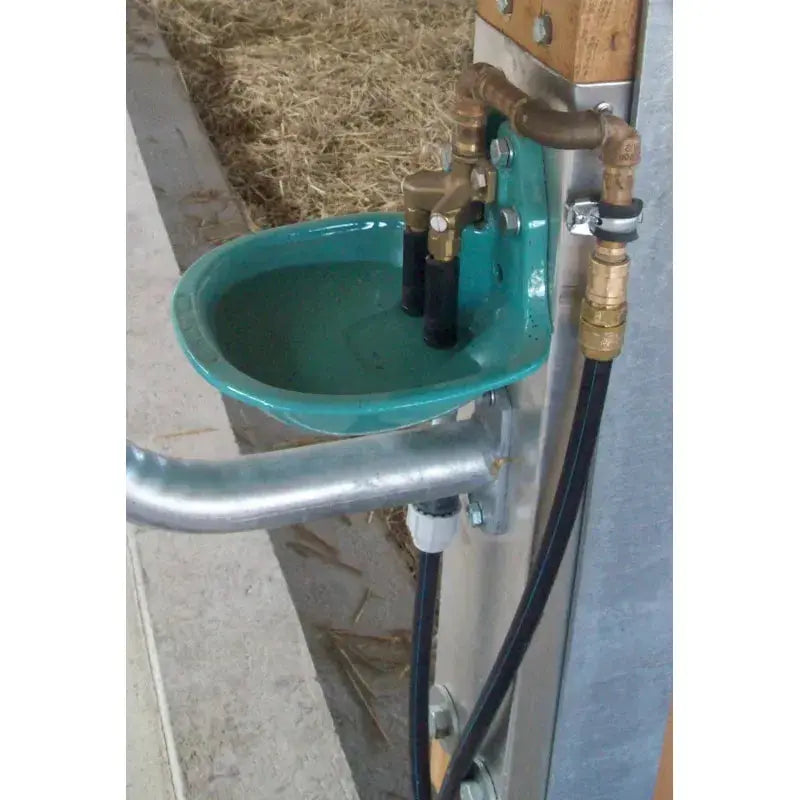

Installation: Mount the bowl securely to a suitable livestock partition, wall, galvanized steel support or dedicated frame using the designated fixing points. Connect the water supply through the appropriate top or bottom inlet according to the farm piping layout.

Commissioning: Check all threaded connections and sealing components before pressurizing the water line. Flush the pipeline, test valve operation and adjust the water flow according to the available water pressure and farm requirements.

Maintenance: Clean the drinking bowl regularly to maintain water hygiene. Periodically inspect the valve mechanism, seals, adjustment components and water connections. In cold climates, use a suitable frost-protection solution designed according to local climate and farm conditions.

Q1: What animals is this drinking bowl designed for?
A: It is primarily designed for cattle, including dairy cattle and other suitable cattle housing applications.

Q2: Can it be installed between two cattle pens?
A: Yes. The double-valve configuration is suitable for drinking points incorporated into suitable separation walls or livestock partitions.

Q3: Can the water pipe be connected from the top or bottom?
A: Yes. The valve assembly provides top and bottom water connection options for flexible integration with different barn water-line layouts.

Q4: Is the water flow adjustable?
A: Yes. The valve assembly includes an external adjustment mechanism for regulating water delivery according to operating conditions.

Q5: Is it suitable for commercial livestock projects?
A: Yes. Its heavy-duty construction and flexible mounting configuration make it suitable for commercial cattle barns, dairy farms, agricultural engineering projects and livestock housing upgrades.

Q6: Can the product be customized?
A: Project-specific configurations, support structures, packaging and other requirements can be discussed according to project requirements.
