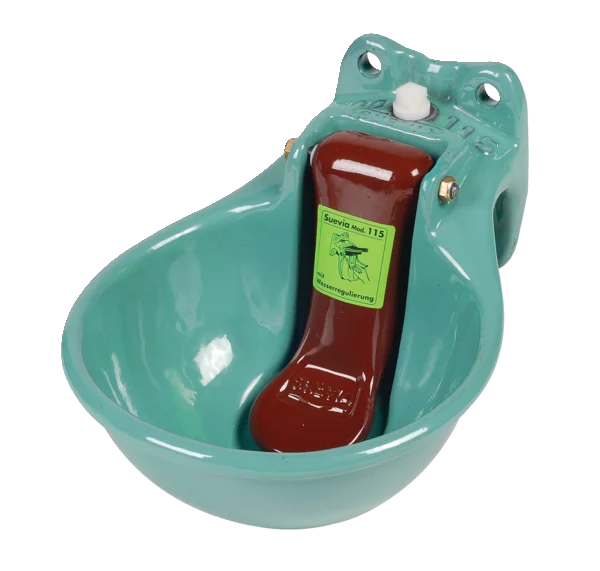

Cast Iron Paddle Valve Cattle Drinking Bowl

The Cast Iron Paddle Valve Cattle Drinking Bowl is a robust individual livestock waterer designed for dairy cows, beef cattle, bulls and other compatible large livestock. The heavy cast iron bowl provides mechanical strength for demanding barn environments, while an enamelled or protective surface helps improve corrosion resistance and simplifies routine cleaning.

Water is supplied on demand through an animal-operated paddle or flap valve. When the animal presses the paddle, the valve opens and fresh water enters the bowl. Releasing the paddle stops the flow, helping reduce unnecessary standing water and overflow.

The compact design is suitable for wall, post or pipe installation in cattle barns, individual stalls, group pens and livestock handling areas. Water connection, valve configuration, mounting brackets and protective guards can be supplied according to project requirements.

• Heavy-Duty Cast Iron Bowl: Robust structure suitable for intensive cattle housing and daily livestock contact.
• Paddle-Activated Water Supply: Animals operate the valve directly while drinking, providing fresh water on demand.
• Durable Surface Finish: Enamelled or protective coating options improve hygiene and corrosion resistance.
• Adjustable Water Flow: Flow regulation can be configured according to water pressure and livestock requirements.
• High-Flow Options: Suitable valve configurations can provide rapid replenishment for adult cattle.
• Compact Drinking Station: Ideal where individual watering points are preferred over long open troughs.
• Top or Bottom Connection: Flexible inlet arrangements simplify integration with different barn pipeline layouts.
• Wall or Pipe Mounting: Multiple installation methods are available for new and existing cattle facilities.
• Replaceable Valve Components: Serviceable valve assemblies simplify long-term maintenance.
• Protection Accessories: Optional guards help protect the bowl and water connections from excessive animal impact.

• Heavy-duty cast iron drinking bowl
• Enamelled or protective surface coating
• Animal-operated paddle / flap
• Valve housing
• Brass or corrosion-resistant valve components
• Valve spring and sealing components
• Water flow adjustment mechanism
• Top and/or bottom water inlet
• Rear mounting plate with fixing holes
• Optional pipe mounting brackets
• Optional protective guard

The drinking bowl is connected directly to the livestock water supply. When cattle lower their muzzle into the bowl and press the paddle or flap, the mechanical movement actuates the internal water valve.

The opened valve allows fresh water to flow into the drinking area. When pressure on the paddle is released, the valve returns to its closed position and stops the water supply.

This animal-operated system does not require an electrical control circuit. Water is delivered when required, while the compact bowl retains enough water for comfortable drinking according to the selected configuration.

• Dairy cattle barns
• Beef cattle facilities
• Bull pens
• Tie-stall cattle housing
• Individual cattle stalls
• Replacement heifer facilities
• Breeding cattle barns
• Livestock treatment pens
• Holding and handling areas
• Steel structure livestock buildings
• Farm renovation projects
• Commercial livestock watering systems

The compact bowl design is particularly suitable for individual stalls and locations where floor space is limited. Multiple drinking bowls can be distributed along a livestock water line to provide dedicated drinking positions throughout the barn.

For complete cattle farm construction projects, drinking bowl locations can be coordinated with pen partitions, cattle headlocks, feed alleys, structural columns and centralized water pipelines.

• Cast iron bowl dimensions
• Enamelled or coated surface finish
• Paddle material and configuration
• Valve specification
• Water flow configuration
• Water connection size
• Top or bottom inlet arrangement
• Wall mounting hardware
• Pipe mounting brackets
• Structural post mounting accessories
• Protective steel guard
• Replacement valve and sealing components
• OEM packaging and labeling available upon request

Product configuration can be selected according to cattle type, barn layout, pipeline arrangement, operating water pressure and project requirements.

Installation Position: Mount the bowl where cattle can drink comfortably without interfering with gates, feeding equipment or manure handling systems.

Mounting Height: Determine the installation height according to animal size and livestock housing design.

Secure Fixing: Fasten the bowl firmly to a suitable wall, steel post or pipe using compatible mounting hardware.

Water Connection: Connect the inlet to the farm water line and install an accessible shut-off valve for servicing.

Flow Adjustment: Adjust the valve to provide sufficient water without excessive splashing or overflow.

Routine Cleaning: Remove feed particles and dirt from the bowl and behind the operating paddle regularly.

Valve Inspection: Periodically inspect the paddle, valve, seals and spring components for wear or leakage.

Winter Protection: Protect supply pipes and the drinking station against freezing when installed in cold-climate livestock facilities.

Cast iron paddle valve drinking bowls are suitable for new cattle barn construction and renovation projects requiring durable individual watering points.

In tie-stall or partitioned cattle housing, bowls can be mounted directly to walls, steel posts or suitable pipelines. Protective guards can be added in high-contact areas to reduce accidental impact on the bowl and plumbing.

For large commercial livestock projects, bowl quantity, mounting height, pipeline diameter and valve configuration can be planned according to animal numbers, barn layout and available water pressure.

Q1: How does the paddle valve drinking bowl work?
The animal presses the paddle while drinking, mechanically opening the valve and allowing fresh water to enter the bowl.

Q2: Does the drinking bowl require electricity?
No. The standard paddle valve operates mechanically and does not require electrical power.

Q3: Why use cast iron for the drinking bowl?
Cast iron provides a strong, rigid structure suitable for demanding livestock housing and frequent animal contact.

Q4: Can the water flow be adjusted?
Yes. Adjustable-flow valve configurations are available to match farm water pressure and livestock requirements.

Q5: Can water be connected from above or below?
Top and bottom water inlet configurations are available depending on the selected model.

Q6: Can the bowl be installed on a wall?
Yes. Wall mounting is commonly used, while pipe and steel-post installation can also be configured.

Q7: Is this drinking bowl suitable for adult cattle?
Yes. Heavy-duty paddle valve bowls are suitable for dairy cows, beef cattle and bulls when correctly sized and installed.

Q8: Is a protection guard available?
Yes. Protective steel brackets or guards can be supplied for installations exposed to heavy animal contact.

Q9: How should the drinking bowl be maintained?
Clean the bowl and paddle area regularly and inspect the valve, seals and moving components for wear or leakage.

Q10: Can the configuration be customized for livestock projects?
Yes. Valve type, connection arrangement, mounting hardware and protective accessories can be supplied according to project requirements.
