Product Showcase	Content

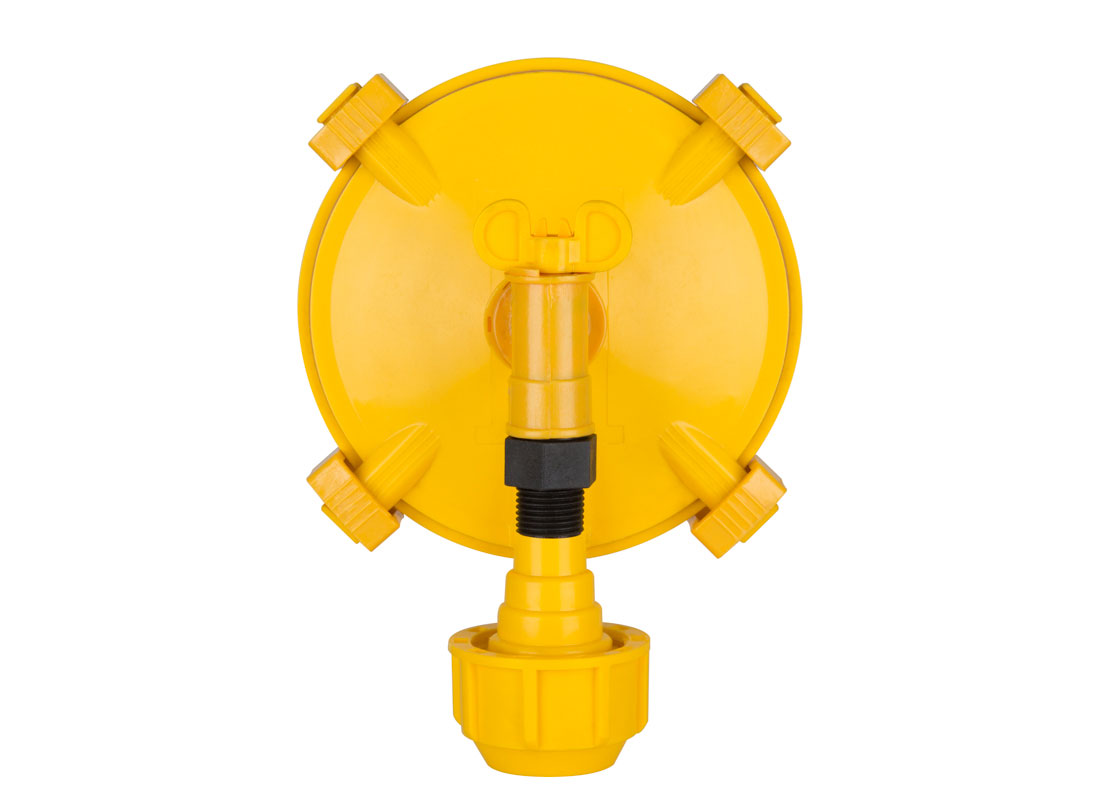

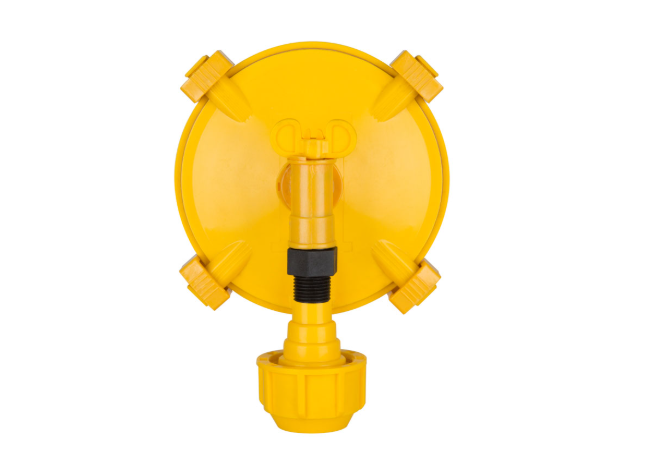

Product Name	Float-Free Membrane Water Level Valve
Product Image
Product Overview	The Float-Free Membrane Water Level Valve is designed to automatically regulate water levels in livestock drinking troughs and tanks without conventional floats, electronic sensors or electrical power. A flexible membrane responds to water-level and pressure changes to control water replenishment. The compact valve head can be connected to a smooth water pipe, providing a simple solution for commercial pig drinking systems, group pens and trough watering installations.
Key Features	Maintains water level without a conventional float mechanism. No electrical sensors, controllers or external power supply required. Flexible membrane provides reliable automatic water regulation. Tool-free retaining clips allow convenient access to internal components. Flexible connection accepts compatible 1/2" smooth pipe assemblies. Rear regulating port incorporates a valve and can rotate through 360°. Compact design reduces mechanical components inside the drinking trough. Suitable for commercial pig farms and livestock watering projects.
Structural Components	Valve Housing: Encloses and protects the membrane regulating mechanism. Flexible Membrane: Main control element for automatic opening and shutoff. Retaining Clips: Secure both sides of the valve head and allow tool-free servicing. Rear Regulating Port: Provides water-level adjustment and flexible installation orientation. Built-In Shutoff Valve: Supports convenient adjustment and servicing. Flexible Pipe Connector: Accepts compatible smooth water pipe assemblies. Outlet Pipe: Transfers regulated water toward the trough or drinking tank.
Working Principle / Structural Principle	The valve uses membrane-operated water-level control instead of a mechanical float. When the water level in the trough falls, the pressure condition acting on the membrane changes and the valve allows fresh water to enter. As the trough refills to the selected operating level, the membrane responds and closes the inlet. This cycle repeats automatically as animals consume water, maintaining a relatively constant drinking level without electrical control equipment.
Technical Specifications	Product Type Float-Free Membrane Water Level Valve Control Method Automatic Membrane Control Float Mechanism Not Required Electrical Power Not Required Reference Pipe Connection Compatible with 1/2" Smooth Pipe Assembly Regulating Port 360° Rotatable with Built-In Valve Reference Working Pressure 7-50 psi Reference Water Temperature 34-104°F / Approx. 1-40°C Water Level Setting Adjustable According to Installation Requirements Application Pig Drinking Troughs, Tanks and Compatible Watering Systems
Applications	Sow gestation and group-housing systems Farrowing-house drinking troughs Weaner and nursery pig facilities Grower and finishing pig houses Stainless steel pig drinking troughs Livestock water storage and drinking tanks New pig farm construction and water-system renovation projects
Customization Options	Outlet pipe length Water-level setting according to trough configuration Pipe material and connection arrangement Water inlet fittings Mounting brackets and installation kits Prefilter and isolation-valve combinations Complete trough water-supply assemblies OEM branding and bulk export packaging

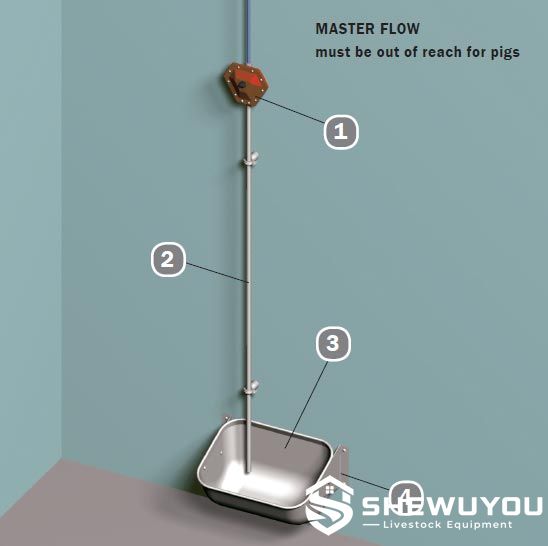

Installation & Maintenance	Install the valve in a protected position above the livestock drinking area and connect it to a compatible water-supply pipe. Set the outlet or regulating arrangement according to the required trough water level. Flush new water lines before commissioning and use suitable filtration where sediment may be present. Periodically inspect the membrane, regulating port, pipe connections and valve seat. The retaining clips allow the valve head to be opened without tools for membrane inspection or replacement.
Product FAQ	Q: Does this valve use a conventional float? A: No. The water level is controlled by a membrane-based valve system without a conventional float mechanism. Q: Does it require electricity? A: No. The controller operates mechanically and does not require electrical sensors or external power. Q: What is the reference working pressure? A: The reference Euro Valve configuration is specified for approximately 7-50 psi working water pressure. Q: Can the valve be opened for maintenance without tools? A: Yes. The reference design uses four retaining clips that can be removed to access the internal membrane. Q: Can the installation direction be adjusted? A: Yes. The rear regulating port of the reference configuration can rotate 360° for flexible positioning. Q: Can complete water-level control systems be supplied? A: Yes. Valves, pipes, filters, shutoff valves, fittings, troughs and mounting components can be configured according to project requirements.
Product Gallery

``` Reference design details including float-free operation, tool-free clips, membrane construction, 1/2-inch smooth-pipe compatibility, 360° regulating port, 7-50 psi working pressure and 34-104°F water-temperature range are supported by Hog Slat product and catalog information.
