Non-Return Sheep Sorting Gate

The Non-Return Sheep Sorting Gate is a practical livestock handling component designed to maintain one-way goat-farming-equipment/" target="_blank" class="keylink">sheep movement through handling races, drafting lanes and treatment systems. Spring-loaded gate wings allow animals to move forward while restricting backward movement after they have passed through the gate.

By preventing sheep from reversing inside the race, the gate helps maintain orderly livestock flow and reduces interruptions during weighing, vaccination, drenching, identification, hoof treatment and sorting operations.

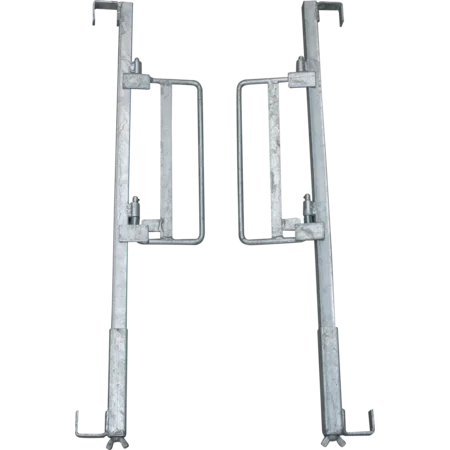

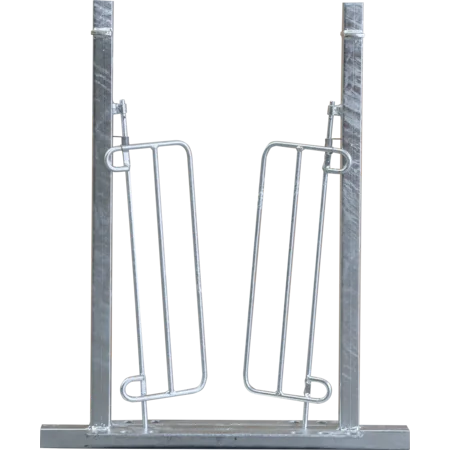

The compact gate can be installed at suitable points within a sheep handling race and integrated with hurdles, race joiners, sheeted panels and other livestock equipment. Depending on system design, the gate may be supplied as a two-part spring-loaded assembly or as a complete race-frame configuration.

Suitable for commercial sheep farms, livestock contractors and agricultural engineering projects, the Non-Return Sheep Sorting Gate provides a simple mechanical solution for improving handling efficiency without requiring electrical or pneumatic power.

• One-Way Animal Flow: Allows sheep to move forward while restricting backward movement through the race.
• Spring-Loaded Gate Wings: Gate sections automatically return toward the closed position after livestock passes.
• Reduced Backing: Helps prevent sheep from reversing into animals waiting behind them.
• Improved Handling Efficiency: Maintains continuous livestock movement during weighing, sorting and treatment procedures.
• Simple Mechanical Design: Requires no electrical, hydraulic or pneumatic power for standard operation.
• Easy Race Integration: Can be installed within compatible sheep races and hurdle systems using joining hardware.
• Galvanized Construction Options: Provides corrosion resistance for indoor and outdoor livestock environments.
• Compact Installation: Requires limited space and can be positioned at strategic points within the handling system.
• Suitable for Lambs and Adult Sheep: Gate arrangement can be selected according to animal size and project requirements.
• Custom Configuration: Dimensions, frame type and connection system can be adapted to different sheep yard layouts.

• Left spring-loaded gate wing
• Right spring-loaded gate wing
• Galvanized supporting frame or mounting brackets
• Pivot hinges
• Return springs
• Joining lugs
• Drop pins or race joining pins
• Optional alley frame
• Optional locking or hold-open arrangement

As a sheep approaches the gate from the permitted direction, the animal pushes the spring-loaded gate wings forward. The wings rotate outward sufficiently to allow the animal to pass through the opening.

After the sheep passes, the spring mechanism returns the gate wings toward their original position. If the animal attempts to move backward, the gate geometry and spring-loaded wings create a barrier that discourages reverse movement.

This one-way operating principle helps maintain spacing between animals and supports continuous livestock flow through narrow handling races, particularly during high-throughput flock management operations.

• Commercial sheep handling races
• Sheep drafting and sorting yards
• Livestock weighing stations
• EID identification systems
• Vaccination and veterinary treatment races
• Drenching and dosing operations
• Foot treatment and inspection areas
• Shearing preparation systems
• Breeding flock management
• Portable sheep handling systems
• Livestock contractor equipment
• Complete sheep farm and steel structure livestock projects

• Gate width and height: Customizable
• Two-part or framed configuration: According to project requirements
• Spring tension: Available according to animal size
• Steel or aluminium structure: Available upon request
• Surface treatment: Galvanized, electro-plated or customized
• Joining pin configuration: Customizable
• Race-frame integration: Available upon request
• Hold-open or locking arrangement: Available upon request
• Complete sheep handling layouts can be designed according to local climate and farm conditions.

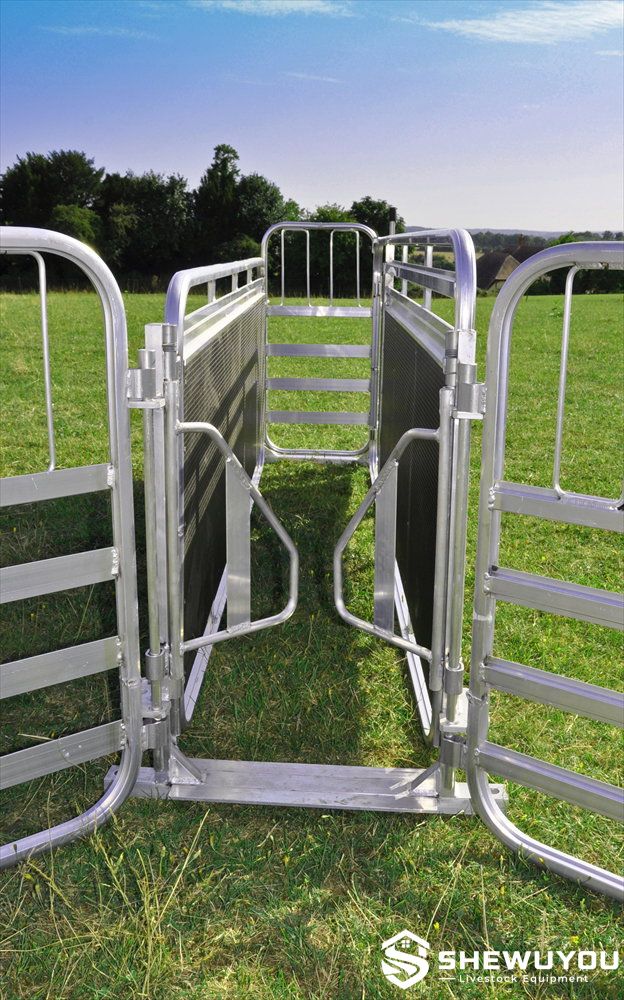

The Non-Return Sheep Sorting Gate can be installed at a suitable point within the race where backward animal movement needs to be controlled. Two-part designs can be mounted directly onto compatible hurdles, while framed versions can form a complete race section.

Joining pins or drop pins provide a simple connection method for modular livestock handling systems. The gate opening should be positioned centrally in the race so animals can pass without contacting unnecessary projections.

After installation, check that both wings open freely in the permitted direction and return reliably under spring tension. Spring resistance should allow sheep to pass comfortably while still providing effective anti-backing control.

Routine maintenance includes cleaning hinges and spring assemblies, removing accumulated manure and dirt, inspecting connection pins and checking the protective surface finish for mechanical damage.

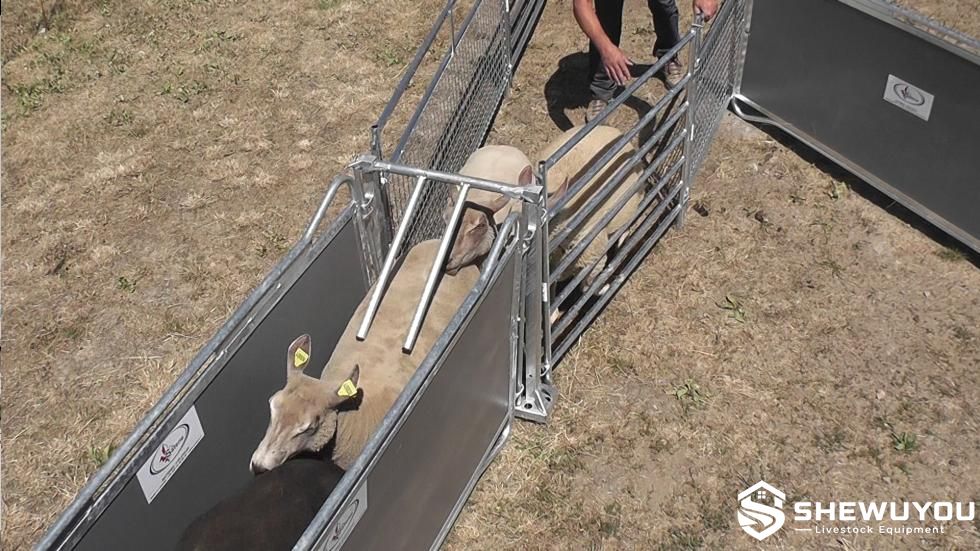

In a typical commercial sheep handling system, a non-return gate is positioned in the approach race before a weighing crate, treatment station or drafting gate. Once each sheep passes the gate, it is prevented from moving backward into animals approaching from behind.

For longer handling races, multiple non-return points can be considered according to livestock flow requirements. The gate can also be integrated with sheeted hurdles, guillotine gates, EID systems and sorting equipment as part of a complete flock-management layout.

Q: What does a non-return sheep gate do?

A: It allows sheep to move forward through a handling race while helping prevent them from reversing back along the same route.

Q: How does the gate operate?

A: Spring-loaded wings open when the sheep moves forward and return toward the closed position after the animal passes.

Q: Does the gate require electricity?

A: No. Standard versions operate mechanically using spring-loaded gate sections.

Q: Can the gate be installed in an existing sheep race?

A: Yes. Compatible models can be connected to existing hurdles or race components using joining pins or mounting brackets.

Q: Can it be used for lambs?

A: Yes. Gate dimensions and race width should be selected according to the size of the animals being handled.

Q: Can SHEWUYOU customize the gate?

A: Yes. Dimensions, materials, mounting systems and spring configuration can be customized according to project requirements.
